The Ultimate European Class A1 Integrated Insulation System: Fusing Vacuum and Aerogel Technologies

Content Part 1: The Heritage Dilemma & The Impossible Trinity

The Thermodynamic Dilemma of European Heritage

Across Europe's historic city centers, asset managers and structural engineers are locked in a silent battle against thermodynamics. Aging limestone facades and historic brick heritages are suffering from massive, invisible thermal losses. Under the pressure of escalating carbon penalties and strict net-zero mandates, modern engineering forces a brutal dilemma: How do we upgrade energy efficiency without destroying architectural identity or cannibalizing premium space? Traditional insulation materials fail to provide an acceptable answer, leaving developers trapped in a regulatory deadlock.

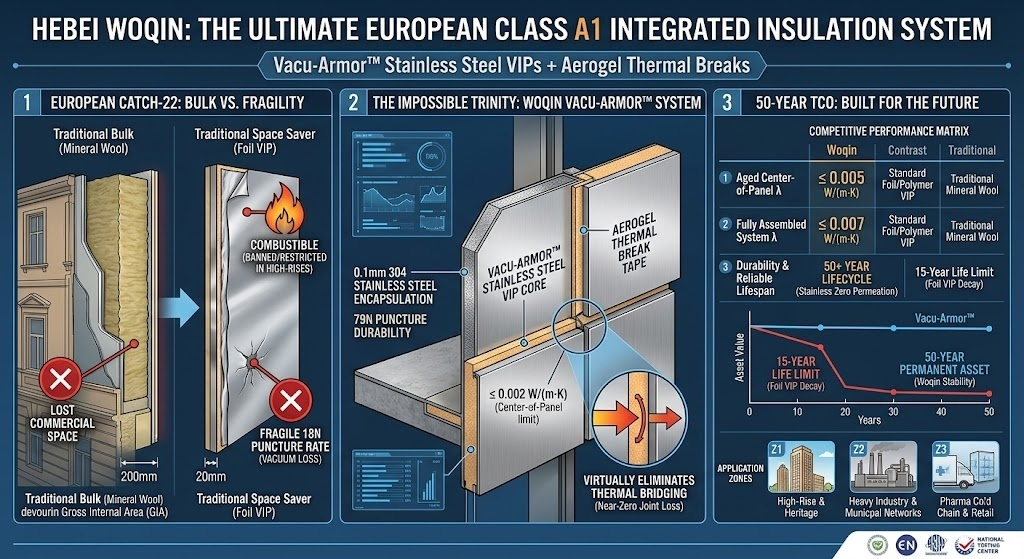

The Insulation Catch-22: Fire Safety vs. The 15-Year Failure

Following rigid updates to European building codes, materials used in high-rise envelopes and public structures must meet strict Class A1 or A2-s1, d0 non-combustible ratings. This has created a severe engineering Catch-22:

1. The Bulky Fire Shield: Traditional Class A1 alternatives, like mineral wool, require an insulation thickness of up to 200mm to meet modern U-value targets. In premium real estate, this thickness steals massive amounts of sellable Gross Internal Area (GIA).




2. The Fragile Space Saver: Standard plastic-foil Vacuum Insulation Panels (VIPs) achieve thin profiles of 20mm, but they fail the Class A1 non-combustible criteria. Worse, with a puncture resistance of just 18N, they are frequently damaged on-site. Crucially, due to vapor and gas permeation through the plasticized metal foils, the vacuum naturally degrades, limiting the reliable lifespan of standard VIPs to a mere 15 years. Upgrading a century-old heritage building with a material that degrades in 15 years is a fundamental engineering failure.

Breaking the Impossible Trinity with Integrated Systems

To break this deadlock, Hebei Woqin has developed a fully integrated Stainless Steel VIP and Aerogel thermal insulation system. We recognize that true thermal mastery demands a system-level synergy: combining an indestructible, non-combustible vacuum core with a highly adaptive thermal break.

The foundation of this architecture is Vacu-Armor™ Stainless Steel Vacuum Insulation Panels. Engineered with uncompromising precision, Vacu-Armor™ establishes absolute transparency in its thermal data: while the heavy-duty center core achieves a limit thermal conductivity of 0.002 W/(m·K), the average thermal conductivity across the entire panel is certified at 0.007 W/(m·K).

Unlike traditional options, Vacu-Armor™ is the only solution validated by comprehensive testing suites to satisfy the engineering "Impossible Trinity":

• Ultra-Thin Profile: Delivers Passivhaus-grade thermal resistance in a profile of just 20mm (averaging 0.007 W/(m·K)).

• Absolute Fire Safety: Certified as Class A1 Non-Combustible (tested per EN 13501-1 and EN ISO 1716), featuring a Total Heat of Combustion (THV) value of 0 MJ/kg.

• 50-Year Site-Proof Durability: Utilizes a 0.1mm 304 stainless steel encapsulation that elevates puncture resistance to 79N. By ensuring absolute zero gas transmission, it shatters the 15-year limit of standard foils, guaranteeing vacuum stability for decades.

Content Part 2: Engineering the Edge & The Ultimate Performance Matrix

Confronting the Physics: The Stainless Edge Thermal Bridge

Leading innovators in building physics understand a fundamental truth: theoretical thermal performance means nothing if the system fails at the joints.

A common engineering critique of metal-encapsulated VIPs is the edge thermal bridge. While 304 stainless steel has a significantly lower thermal conductivity (~16 W/(m·K)) compared to standard aluminum foil (~237 W/(m·K)), a 0.1mm thick stainless steel envelope still creates a direct lateral heat transfer path from the warm side to the cold side of the panel edges. If these panels are simply butted together on-site without thermodynamic intervention, these linear thermal bridges will severely degrade the overall system U-value.

The Aerogel Edge-Isolation Protocol & System λ Definition

To neutralize this physical reality, Hebei Woqin engineered the Aerogel Edge-Isolation Protocol. We never leave stainless steel edges exposed to structural framing or adjacent panels.

Instead, the Vacu-Armor™ system integrates a continuous, highly compressible Aerogel Thermal Break Tape applied across all panel joints. By physically separating the stainless steel edges with this ultra-hydrophobic aerogel layer, the direct heat conduction path is permanently severed.

To provide absolute transparency to European architects and EPC contractors, we strictly differentiate our thermal metrics to eliminate any "performance gap" risks:

• Aged Center-of-Panel λ: Even after 25 years of simulated aging (tested per ASTM C1484), the laser-welded stainless steel core maintains a limit thermal conductivity of ≤ 0.005 W/(m·K).

• Fully Assembled System λ: By applying our Aerogel Edge-Isolation Protocol, edge thermal bridging is virtually eliminated. The fully assembled envelope—factoring in edge corrections and joint transmittance—is certified to deliver a reliable, real-world system thermal conductivity of ≤ 0.007 W/(m·K).

The Ultimate European A1 Insulation Matrix

To provide absolute clarity for European fire engineers and facade consultants, we benchmark the Vacu-Armor™ integrated system directly against the industry's default choices. This matrix exposes the fatal compromises of traditional materials and proves why Vacu-Armor™ is the only architecture that guarantees long-term compliance and spatial ROI.

Content Part 3: The Master Application Index & 50-Year Lifecycle ROI

The Woqin Integrated Systems Master Directory

True thermodynamic mastery cannot rely on isolated components or fragmented procurement. To assist European architects, specifyers, and EPC directors in navigating complex thermal regulations, Hebei Woqin has organized our core technical literature into an actionable application index.

Explore our specialized technical papers below to see how the Vacu-Armor™ Stainless Steel VIP and Aerogel integrated system solves the industry's most critical structural deadlocks:

 Zone 1: High-Rise Facades & Heritage Retrofits

• Who this is for: Lead Architects, Facade Consultants, Structural Engineers, and Heritage Conservation Officers.

• Core Value Proposition: Overcoming the "Impossible Trinity" of space, fire safety, and structural mass. This module demonstrates how replacing 200mm of thick mineral wool with a 20mm integrated system recovers millions in sellable floor area (GIA) and eliminates skyscraper "Gravity Taxes" without violating Class A1 non-combustible mandates.

• Technical Application Index:

• The Space Recovery Mechanics: How 20mm Stainless Steel VIPs Recover Massive GIA Compared to 200mm Mineral Wool.




• Slicing the Structural Load: Eliminating Skyscraper Foundation Mass and Secondary Steelwork via Weight Reduction.




• The Zero-Step Threshold Design: Achieving Flawless Luxury Balcony Transitions within 20mm Sub-Floor Constraints.




• High-Rise Fire Safety Engineering: Meeting UK BSA 2022 and EWS1 Sign-offs with True Class A1 Non-Combustible VIPs.




• The 100°C Thermal Durability Test: Guaranteeing Vacuum Stability Against the Daily Facade "Spandrel Oven Effect."




• Surviving the Construction Site: Analyzing the 79N Impact and Puncture Resistance of Laser-Welded Stainless Steel Armor.




• Interstitial Moisture Mitigation: Why Zero-Permeability VIP Envelopes Demand Patented Micro-Ventilation Cavities.




• Eradicating Point Thermal Bridges: Utilizing FRP Cross-Anchors and Compressible Aerogel Cap-Insulation Systems.

 Zone 2: Heavy Infrastructure & Municipal Networks

• Who this is for: Municipal EPC Contractors, District Heating Utility Operators, and LNG Facility Planners.

• Core Value Proposition: Securing radical thermal resistance within strictly locked spatial envelopes and hostile underground environments. This module provides the physical blueprints to bypass exponential civil works budgets, eliminate utility relocation penalties during urban network retrofits, and slash Boil-Off Gas (BOG) losses in congested cryogenic pipe racks.

• Technical Application Index:

• The Cryogenic Frontier: Maximizing Congested LNG Terminal Pipe Racks and Reducing BOG via Curved Stainless VIPs.




• The Urban Trench Bypass: Solving the European District Heating Trench Squeeze via Pre-formed VIR Half-Shell Encapsulation.

Zone 3: Cold Chain Logistics & Commercial Retail

• Who this is for: Pharma Supply Chain Directors, Cold Chain Logistics Managers, and Commercial Refrigeration OEM Specifiers.

• Core Value Proposition: Guaranteeing absolute thermal security and regulatory compliance while expanding active payload volumes. This section details how replacing traditional, bulky EPS and PU foams stabilizes internal micro-environments, ensures strict EU GDP zero-excursion cold chain compliance for high-value biologics, and reclaims up to 20% internal retail capacity within locked supermarket freezer footprints.

• Technical Application Index:

• EU GDP Biologics Logistics: Maximizing Payload Ratios and Slashing Volumetric Air Freight Costs via Ultra-Thin VIP Shippers.




• Commercial Supermarket Economics: Replacing Bulky PU Foam to Reclaim Retail Display Volume and Stabilize Micro-Charge Systems.

The Science Behind the 50-Year TCO Verification

The most severe limitation of conventional polymer-foil Vacuum Insulation Panels is their short operational lifecycle. Because plasticized foils are susceptible to microscopic vapor transmission and slow gas permeation over time, standard VIPs suffer from rapid vacuum decay, limiting their reliable operational lifespan to approximately 15 years. Specifying such materials behind a permanent stone facade or within a geologically locked municipal trench creates an unacceptable risk of long-term failure and catastrophic rework costs.

The Hebei Woqin integrated system fundamentally rewrites this lifecycle equation. By swapping out fragile polymer films for a laser-welded, 0.1mm 304 Stainless Steel envelope, we achieve an absolute, verified zero gas and vapor transmission rate.

To validate our 50-Year Total Cost of Ownership (TCO) claims, our panels have been subjected to rigorous accelerated thermal aging protocols based on Arrhenius modeling and simulated per ASTM C1484 criteria. The data demonstrates that while standard foils collapse within two decades, the Vacu-Armor™ stainless barrier maintains its core internal vacuum stability indefinitely. This engineering durability transforms your insulation from a decaying consumable into a permanent, structural building asset that protects your cash flow for half a century.

Call to Action: Evaluate Your Project's Feasibility

Do not let outdated, space-stealing insulation or short-lived materials jeopardize your project's compliance, fire safety, and long-term asset value. Elevate your engineering standards to an integrated thermal ecosystem.

• Secure Your System Feasibility Assessment: Submit your architectural facade sections, district heating trench drawings, or cold chain packaging schematics to the Hebei Woqin engineering desk. Our technical team will provide a preliminary U-value evaluation and structural feasibility assessment tailored to your local building codes.
