Engineering for 100°C Facade Cavities: Why Stainless Steel VIPs Define 50-Year Longevity

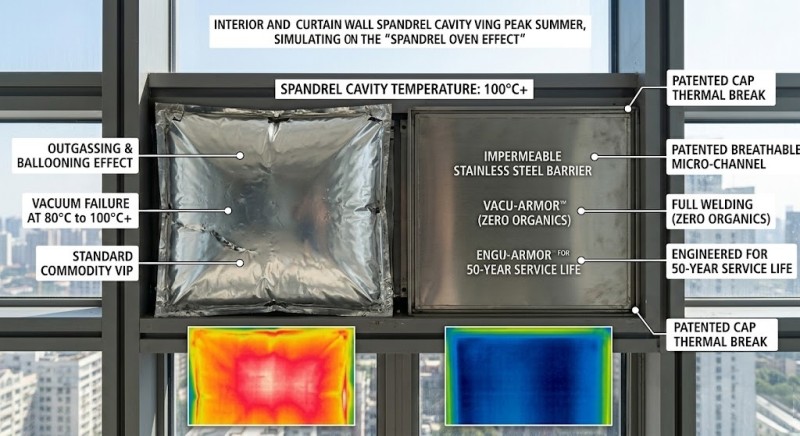

Part 1: The Invisible Killer: The "Spandrel Oven" Effect

Beyond Fire Safety: The Daily Thermal War Inside the Facade While strict fire regulations rightfully dictate the use of non-combustible building materials, the greatest threat to a skyscraper's long-term energy efficiency is an invisible, daily phenomenon: Extreme Heat Degradation.

In modern architectural design, thermal insulation is frequently installed within the closed cavities of spandrel panels, or directly behind dark-colored metal, stone, or glass rainscreens. According to building physics data and facade engineering guidelines (specifically referencing ASHRAE Handbook — Fundamentals, Chapter 17 and CIBSE Guide A, Section 3.3), solar radiation hitting these external surfaces creates a profound greenhouse effect. With minimal ventilation to dissipate the trapped thermal energy, internal cavity temperatures routinely exceed 80°C (176°F) and can frequently spike up to 100°C (212°F) during peak summer months.

The Arrhenius Reality & Thermal Cycling This "Spandrel Oven" is not merely a design nuance; it is a relentless chemical catalyst for material failure. Based on the Arrhenius equation in physical chemistry, the rate of polymer degradation and chemical reactions roughly doubles for every 10°C increase in temperature.

When insulation materials are subjected to 80°C+ continuous baking, compounded by thousands of cycles of daily thermal expansion and contraction (swelling in the midday heat and shrinking at night), standard laboratory performance metrics become entirely obsolete. A "50-year lifespan" predicted at a benign 20°C laboratory baseline can be severely compromised in actual high-heat facade applications. To ensure true facade longevity, architects must engineer for these extreme thermodynamic realities.

 Part 2: The Failure of Organic Logic: Why Commodity-Grade VIPs Balloon

The Permeability Crisis at 80°C+

Typical commodity-grade Vacuum Insulation Panels (VIPs), which utilize PET/PE (Polyethylene Terephthalate / Polyethylene) laminated films and thermoplastic adhesives, face significant physical limitations in the "Spandrel Oven." While these materials perform adequately at 20°C, their Moisture Vapor Transmission Rate (MVTR) and Oxygen Transmission Rate (OTR)—the measures of how much water vapor and gas can pass through the barrier—increase exponentially as temperatures reach 80°C and above.

The Physics of Vacuum Loss and Ballooning

This increased permeability drives atmospheric gases through the microscopic pores of the polymer envelope. Inside the panel, these gases are initially captured by getters and desiccants (internal chemical agents designed to maintain vacuum). However, the "Spandrel Oven" accelerates this process until the getter capacity is saturated.

Once saturation occurs, internal gas pressure begins to equalize with the exterior atmosphere. This pressure shift, coupled with the softening of the thermoplastic edge seams under high heat, leads to layer delamination and the fatal "ballooning" effect. The flexible envelope swells, the vacuum is permanently compromised, and the panel’s thermal conductivity (λ) degrades from an initial 0.004 W/(m·K) to over 0.020 W/(m·K). In these extreme conditions, the real-world service life of such panels can be reduced significantly.

 Part 3: Vacu-Armor™: The Physics of Absolute Stability

Inorganic Material Integrity

To ensure 50-year facade performance under brutal thermal cycling, the use of organic polymers must be eliminated. Vacu-Armor™ Stainless Steel VIPs employ a 0.1mm 304 Stainless Steel barrier to provide a fundamentally different level of protection.

1. Fully Laser-Welded Encapsulation: By replacing thermoplastic adhesives with precision laser welding, Vacu-Armor™ creates a hermetic seal that remains stable far beyond 100°C. Gas and vapor penetration (MVTR/OTR) is reduced to a negligible level, effectively zero for all engineering purposes, regardless of ambient temperature.

2. Engineered Dimensional Stability: Unlike plastic films that warp or delaminate, 304 stainless steel has an extremely low Coefficient of Thermal Expansion (CTE), approximately 17.3 × 10⁻⁶ /°C. This ensures the panel remains structurally rigid and airtight despite the relentless mechanical stress of summer-to-winter thermal expansion and contraction.

3. Verified 50-Year Thermal Baseline: Composed of a 100% inorganic fumed silica core within a welded steel shield, Vacu-Armor™ is physically incapable of outgassing. Based on accelerated aging test data (using Arrhenius modeling), Vacu-Armor™ is engineered to maintain its limit thermal conductivity (λ) of 0.002 W/(m·K) throughout a 50-year service life*.

 The 50-Year Facade Longevity Matrix

Material behavior comparison under prolonged 80°C+ enclosed facade cavity conditions.

*Note: Longevity claims are based on accelerated aging test data and Arrhenius modeling under equivalent facade thermal loads.

 Part 4: Patented Innovation: Defeating CUI with Breathable Micro-Channels

The Condensation Crisis in Sealed Facades Even when a Vacuum Insulation Panel (VIP) can withstand high heat, a perfectly sealed facade introduces a secondary structural risk: trapped moisture. Extreme day-night temperature swings within the spandrel cavity generate interstitial condensation. If insulation panels are installed flush against the substrate, this moisture becomes trapped, leading to severe Corrosion Under Insulation (CUI) on the metal framework and potential mold growth within the building envelope.

The "Breathable" Vacuum Anchoring System To neutralize this, Hebei Woqin has developed a proprietary installation methodology: The Vacuum Insulation Anchoring System with Breathable Micro-channels and Cap Thermal Breaks (China Patent Application Nos. 202610285364.1 & 202620288388.8 - Pending).

The 3mm-5mm Breathable Micro-channel: Instead of mounting the panel flat, our system utilizes precisely calibrated structural adhesive points to create a continuous 3mm to 5mm micro-cavity between the Vacu-Armor™ VIP and the substrate wall. This network acts as a passive moisture exhaust, allowing water vapor to diffuse outward. The precision-engineered gap is designed to maintain functional ventilation while resisting common construction debris accumulation.

The Cap Thermal Break: Addressing the edge conductivity inherent in metallic encapsulation, we utilize specialized cross-shaped insulated anchors. Once mechanically fixed, the entire joint and anchor assembly is overlaid with high-performance Aerogel Edge Thermal Break Strips.

This dual-action system virtually eliminates thermal bridging to a negligible level at the panel joints, delivering a continuous System Thermal Conductivity (System λ) of 0.007 W/(m·K).

 Part 5: Commercial Peace of Mind: Protecting Your Asset

Mitigating Long-Term Financial Risks Insulation failure in a high-rise facade is a delayed commercial catastrophe. The risks associated with standard commodity-grade VIPs are rarely visible on day one; they manifest in the medium term, resulting in significantly reduced thermal performance and increased operational energy costs.

Replacing failed insulation on a sealed skyscraper requires astronomical scaffolding costs and facade dismantling, creating massive legal and financial liabilities for developers and consultants. Vacu-Armor™ is engineered to mitigate these risks. By combining heat-resistant stainless steel encapsulation with a patent-pending breathable anchoring system, Vacu-Armor™ ceases to be a consumable material and becomes a permanent structural asset, guaranteeing performance for decades.

Call to Action: Engineer for the Next 50 Years

Don't Let the "Spandrel Oven" Compromise Your Project Secure your facade’s longevity with the only VIP engineered to survive extreme thermal cycling and high-heat environments.

Request the Accelerated Aging Report: Email our engineering desk to receive comprehensive accelerated aging test data (based on Arrhenius modeling), proving our 0.002 W/(m·K) stability and ultra-low CTE variance.

Download the Patented Anchoring CAD Details: Access the technical drawings for our 3mm-5mm breathable micro-channels and cap thermal breaks.

Contact Ruibin An (CEO, Hebei Woqin) for technical integrations:  Email: [email protected]  Web: www.cn-aerogel.com
