Retrofitting European District Heating: Overcoming the Trench Squeeze with VIR (Pre-formed VIP Half-Shells)

May 09, 2026

Content Part 1: The Trench Squeeze & The Civil Works Trap

The Underground Labyrinth & The True Cost of DHN Retrofits

As Europe aggressively accelerates its decarbonization mandates, upgrading aging District Heating Networks (DHNs) has become a critical municipal priority. However, for Engineering, Procurement, and Construction (EPC) contractors operating in historical cities like Munich, Vienna, or Copenhagen, the primary bottleneck is no longer just thermal physics—it is the brutal reality of urban real estate. The underground is completely locked, packed tightly with a labyrinth of fiber-optic cables, gas mains, and sewage lines.

Fatal Flaw 1: The "Trench Widening" Financial Black Hole

To mitigate thermal hemorrhage in old, uninsulated steel pipes (which typically operate at high temperatures of 80°C to 120°C), traditional engineering dictates upgrading to thicker pre-insulated Polyurethane (PUR) jackets.

This creates an immediate engineering nightmare: Thicker insulation demands wider trenches. While the initial excavation to reach the buried pipe is unavoidable in any retrofit, widening that existing trench is financially catastrophic. Expanding the trench cross-section to accommodate bulky PUR foam forces EPCs to cut more asphalt, deploy heavier shoring, and critically, relocate adjacent municipal utilities. This surplus civil work—moving dirt and untangling cables—causes project budgets to spiral out of control. Ultimately, contractors are not spending millions on advanced piping; they are spending millions on trench widening.

Fatal Flaw 2: 4GDH and the Cubic Surge in Pumping Power

This spatial crisis collides directly with the transition to 4th Generation District Heating (4GDH). 4GDH relies on low-grade heat sources, dropping supply temperatures down to 50°C, and in some Nordic projects, even lower.

To prepare for 4GDH, the current 80°C–120°C networks must be perfectly insulated today. When the initial supply temperature drops to 50°C, any thermal leak along the aging network is fatal—the water reaching the residential end-user will simply drop below usable heating thresholds.

To compensate for this massive thermal loss without upgrading the insulation, municipal operators are forced to drastically increase the circulation flow rate. However, fluid dynamics dictate a harsh penalty: pumping power surges exponentially (following the cubic law). What starts as a thermal leak quickly morphs into a massive, hidden electricity black hole for the pump stations.

While this pumping surge is triggered by thermal losses, its underlying cause is the absolute inability to upgrade insulation thickness within the locked trench geometry. Thus, the pump electricity black hole and the trench squeeze are two faces of the exact same crisis.

The Structural Reality: Encapsulation over Excavation

Contractors cannot simply stuff more PUR foam or wrap bulky mineral wool into these cramped, wet trenches. Furthermore, traditional materials degrade rapidly under continuous 120°C stress.

To break this deadlock, EPCs do not need thicker pipes; they need an ultra-thin, high-tech encapsulation strategy engineered for continuous high-temperature exposure. They need a structural VIP half-shell system that seamlessly wraps around the existing pipe infrastructure, locking in the heat without demanding a single extra millimeter of trench width.

Content Part 2: The VIR Solution & The DHN Retrofit Benchmark

The Physical Cheat Code: Pre-formed VIP Half-Shells

To permanently bypass the trench widening crisis, Hebei Woqin engineered a structural encapsulation strategy: the Vacuum Insulated Pipe (VIR) System. Instead of injecting bulky PUR foam into the trench, our technology utilizes Pre-formed Double Half-Shell VIPs.

These vacuum-sealed half-shells are precision-engineered to clamp directly over existing high-temperature carrier pipes. By relying on a micro-porous core under deep vacuum, the VIR shells deliver a certified limit thermal conductivity of ≤ 0.005 W/(m·K) (tested per EN 12667 standards). This allows contractors to achieve maximum thermal resistance using a fraction of the traditional space.

The Aerogel Innovation: Zero Thermal Bridging & Expansion Buffering

Rigid VIP half-shells inherently present two engineering challenges: longitudinal micro-gaps at the seams, and vulnerability to the significant thermal expansion of steel pipes operating at 120°C.

To resolve both simultaneously, the Hebei Woqin system integrates our proprietary, ultra-hydrophobic Aerogel Thermal Break Tape. By seamlessly wrapping the longitudinal seams and complex pipe elbows with this flexible aerogel layer, the installation achieves a 100% zero-thermal-bridge seal. Furthermore, the natural compressibility of the aerogel acts as a crucial Thermal Expansion Buffer. It absorbs the mechanical stress generated by the expanding steel pipe, safely protecting the rigid VIP's high-barrier encapsulation from rupture.

Defeating Moisture Ingress and CUI

Beyond severe spatial constraints, municipal trenches are notoriously hostile and damp. When aging outer jackets crack, traditional PUR foam and mineral wool absorb groundwater, transforming into "wet sponges." This thermal collapse rapidly accelerates Corrosion Under Insulation (CUI), destroying the steel carrier pipes from the outside in.

Hebei Woqin’s VIR half-shells are hermetically sealed within ultra-high-barrier films. When installed under standard HDPE protective casings alongside our water-repellent aerogel tape, this hybrid system effectively blocks liquid water ingress and maintains its designed ultra-low thermal conductivity for decades. By refusing to act as a sponge, the VIR matrix drastically mitigates the risk of CUI.

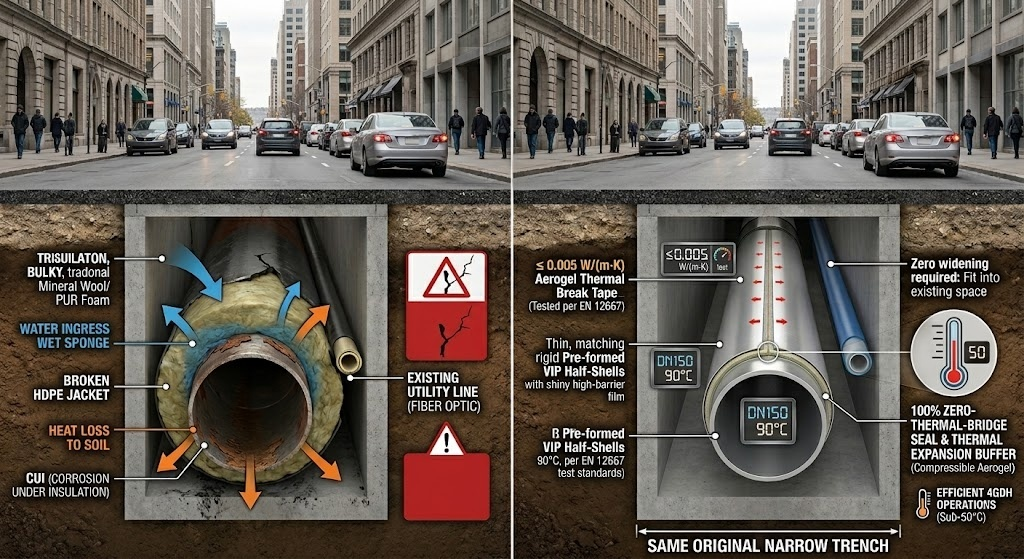

The DHN Retrofit Benchmark: Traditional Foam vs. VIR Hybrid System

For EPC contractors, upgrading to the VIR + Aerogel system is a calculated engineering maneuver to buy back underground space.

DHN Retrofit Metrics	Traditional PUR Insulation	Hebei Woqin VIR System (VIP Half-Shells + Aerogel Tape)
Certified Limit Thermal Conductivity	approx. 0.025 W/(m·K)	≤ 0.005 W/(m·K) (Tested per EN 12667)
Equivalent Insulation Thickness (Example baseline: DN100 carrier pipe, 90°C continuous operation, achieving identical U-value under standard HDPE casing)	80 mm (Demands bulky outer casing)	20 mm (Ultra-compact profile)
Trench Widening Requirement	Mandatory (Requires exponential civil spend to relocate utilities)	Zero widening required (Fits the exact existing trench footprint)
Joint & Expansion Treatment	Messy on-site foaming (Prone to execution failure)	Aerogel Thermal Break Tape (Zero thermal bridging + mechanical stress buffering)
Moisture & CUI Defense	Extremely High Risk (Acts as a wet sponge)	High-barrier encapsulation (Effectively blocks water ingress & prevents CUI)

Content Part 3: Total Cost of Ownership (TCO) & Engineering ROI

The Ultimate ROI: Buying Space with Advanced Materials

For European EPC contractors and municipal operators, upgrading to the Hebei Woqin VIR system is not simply a material procurement decision; it is a fundamental restructuring of the project's Total Cost of Ownership (TCO).

While the unit cost of VIP half-shells and Aerogel Tape is inherently higher than traditional PUR foam, this material premium is instantly dwarfed by the massive reduction in surplus civil spend. You are fundamentally using advanced materials to buy back underground space. By achieving the required U-value within the original trench footprint, you entirely eliminate the exponential costs of cutting additional asphalt, deploying heavier shoring, and the nightmare of relocating adjacent fiber-optic or gas lines.

Mini-Case Study: The Trench Bypass in Action

To illustrate the financial impact, consider a standard urban retrofit of a 200-meter DN150 carrier pipe in a congested European city center:

The Traditional PUR Scenario: To meet modern U-values, the trench must be widened by at least 300mm to 400mm. This triggers asphalt re-cutting, complex shoring, and the highly sensitive relocation of adjacent telecom lines.

Estimated Surplus Civil Works Cost: €120,000+ (including extended road closure penalties).

The Hebei Woqin VIR Scenario: Utilizing 20mm Pre-formed VIP Half-Shells, the target U-value is achieved within the exact existing trench geometry. No adjacent utilities are disturbed.

Surplus Civil Works Cost: €0.
Material Premium: ~€25,000 (Compared to basic foam).

The Net Result: The EPC contractor secures a net project saving of nearly €100,000, completes the installation weeks ahead of schedule with the "snap-on and tape" method, and fully future-proofs the network for 50°C 4GDH operations.

Call to Action: Validate Your Trench Bypass

Do not let outdated PUR foam dictate your civil works budget or disqualify your aging network from the low-temperature 4GDH transition.

Claim Your Free DHN Retrofit Simulation: Submit your most congested municipal trench cross-section drawings (DWG/PDF) and your target 4GDH supply temperature to the Hebei Woqin engineering desk. Our team will calculate your exact outer-diameter reduction, U-value improvements, and the projected savings in trench-widening civil works.
