The Condensation Trap: Why Stainless Steel VIPs Fail & Woqin's Micro-Ventilation Solution

Content Part 1: Introduction & Structural Disasters

The Invisible Crisis: The "Plastic Bag Effect" on High-Rise Facades

The architectural world is rightfully obsessed with the 0.007 W/(m·K) thermal conductivity of Stainless Steel Vacuum Insulation Panels (VIPs). It is a thermodynamic miracle. However, when specifying these ultra-efficient panels, many European facade engineers and EPC contractors completely overlook a fatal material property: Absolute Zero Vapor Permeability.

Unlike traditional mineral wool or EPS, a stainless steel envelope does not breathe. Not even slightly.

When inexperienced contractors install these panels using the traditional "Full-Bed Adhesion" method (smearing mortar or structural silicone across the entire back of the panel to glue it tightly to the masonry), they commit a catastrophic building physics error. They are effectively wrapping the entire building in a sealed, suffocating plastic bag. The results are structural disasters waiting to happen.

The Physics of Failure: 3 Ways Traditional Installations Collapse

If you seal a zero-permeability stainless steel VIP directly against a substrate without a dynamic ventilation strategy, you trigger a deadly chain reaction of structural failures:

Disaster 1: The Condensation Trap & Toxic Black Mold (Interstitial Condensation)

In cold and damp climates like London, Paris, or Berlin, warm, moisture-laden indoor air naturally migrates outward through the structural wall. When this vapor hits the impenetrable barrier of the full-bonded stainless steel VIP, it has nowhere to go. Because the temperature drops across the wall assembly, the Dew Point typically occurs precisely at the interface between the substrate and the back of the VIP. Liquid water rapidly accumulates, turning the sealed, dark gap into a permanent micro-greenhouse. Within months, this interstitial condensation breeds severe Toxic Black Mold, causing fungal rot that eats into the masonry and triggers "Sick Building Syndrome" for the occupants inside.

Disaster 2: Adhesive Saponification & Fatal Detachment (The Falling Hazard)

Standard polymer mortars and structural adhesives are incredibly strong when dry. But what happens when they are permanently submerged in a trapped layer of condensation? Under constant hydrostatic exposure, the chemical bonds of the adhesive undergo severe saponification, hydrolysis, and pulverization. Industry literature and accelerated testing per EN 1348 show that after 12 months of high relative humidity (RH) exposure, rigid bond strength can drop by over 80%. Considering that a heavy-duty stainless steel VIP has significant self-weight, relying solely on degraded adhesive—without mechanical anchors—turns the panel into a ticking time bomb. A heavy steel plate plummeting from a 30-story commercial facade is the ultimate nightmare for any developer.

Disaster 3: Freeze-Thaw Micro-Blasting

If the trapped moisture and mold aren't destructive enough, winter introduces a violent mechanical force. When the trapped liquid water behind the VIP freezes, it expands by approximately 9% in volume. This brutal Freeze-Thaw Cycle acts like millions of micro-explosions within the saturated mortar layer. The relentless expansion and contraction create terrifying shear stresses that literally blast the surface of the substrate apart, leading to deep, unrepairable brittle fractures across the entire facade root system.

Content Part 2: Thermodynamic & Commercial Disasters + The Ultimate Comparison Table

The Physics of Failure (Continued): Thermodynamic & Commercial Disasters

Beyond structural collapse, trapping moisture behind a stainless steel VIP destroys both its thermal performance and your project's financial viability.

Disaster 4: Water-Bridge Thermal Leaks (The Conductivity Superhighway)

According to the ASHRAE Handbook of Fundamentals, liquid water is an excellent conductor of heat—its thermal conductivity is approximately 25 times higher than that of trapped air. When the full-bed adhesive layer becomes saturated with interstitial condensation, it forms a continuous liquid film behind the VIP. This water layer acts as a "thermal superhighway," bypassing the VIP's incredible 0.007 W/(m·K) resistance. Heat rapidly leaks through the panel edges and the wet substrate, rendering your expensive vacuum insulation thermodynamically useless.

Disaster 5: Rigid Shear Stress Tearing (The Vacuum Killer)

Stainless steel has a specific coefficient of thermal expansion. Under the intense summer sun, facades suffer from the "Spandrel Oven" effect—referring to the extreme high-temperature environment within sealed facade cavities under direct solar radiation, which routinely exceeds 80°C. Under these conditions, the steel envelope naturally expands. If the panel is rigidly glued to the substrate with full-bed adhesion, it has zero room to move. This restricted expansion generates massive shear stress directly along the panel's delicate laser-welded sealing seams. Eventually, the seams tear, atmospheric pressure breaches the envelope, and the vacuum is permanently destroyed.

Disaster 6: Suffocating Heritage Masonry (The Planning Permission Nightmare)

In the UK, guidelines such as BS 7913 (Guide to the Conservation of Historic Buildings) emphasize the critical need to maintain the natural moisture permeability of historic brick and stone. If you retrofit these facades by gluing zero-permeability stainless steel VIPs directly onto the masonry, you are suffocating the building. This traps rising damp, accelerates masonry decay, and fundamentally alters the building physics. Combined with potential alterations to the facade profile, conservation officers and architectural planners will generally reject this approach, halting your project completely.

Disaster 7: Astronomical Remediation & Litigation Costs

Interstitial condensation does not dry out naturally. Once the mold starts and the adhesive degrades, the only structural cure is catastrophic: complete dismantling of the exterior cladding, removal of the failed VIPs, and rebuilding the substrate. This type of rework typically costs 3 to 5 times the original installation budget, triggering endless litigation between developers, main contractors, and material suppliers.

The Ultimate Benchmark: Traditional Installation vs. Woqin Engineered System

To prevent these disasters, the installation method must respect the physics of zero-permeability materials. Here is exactly why engineering-driven EPCs are abandoning full-bed adhesion in favor of Hebei Woqin's patented Micro-Ventilation & Cap-Thermal-Break System:

Content Part 3: The Dual-Patented Solution & Ultimate Integration

The Woqin Paradigm: Dual-Patented Micro-Ventilation & Anchoring System

To solve the inherent physical conflicts of zero-permeability stainless steel, Hebei Woqin has shifted the paradigm from simply manufacturing panels to engineering a complete, fail-safe installation architecture.

Backed by dual National Patents (Invention Patent: 202610285364.1 [Pending] & Utility Model: 202620288388.8 [Pending]), the Woqin Cap-Thermal-Break & Micro-Ventilation System completely redefines high-rise VIP installation:

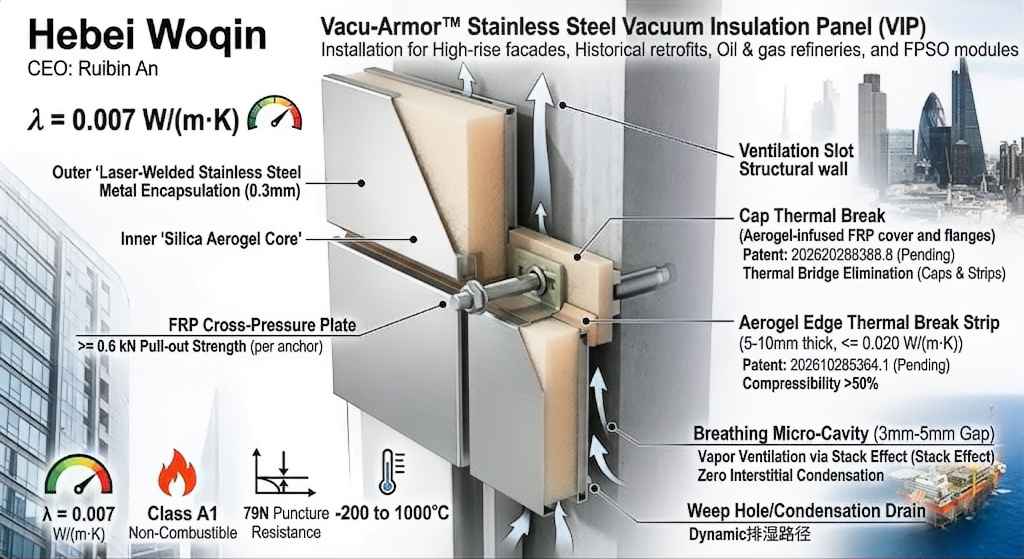

Core Innovation 1: The 3-5mm Breathable Micro-Cavity (The Stack Effect)

Instead of the suffocating "full-bed adhesion," our system utilizes a highly calculated matrix of structural adhesive beads. Once cured, this adhesive matrix physically holds the panel slightly off the substrate, creating a precise 3mm to 5mm micro-gap cavity behind the entire VIP array.

Crucially, this cavity is not sealed. Engineered with dedicated bottom weep holes and top exhaust gaps, it utilizes the natural Stack Effect (thermal buoyancy) to create a dynamic vertical airflow. Any interstitial moisture escaping from the building's interior is constantly exhausted outwards. The wall breathes, the masonry remains bone-dry, and mold is physically impossible.

Core Innovation 2: FRP Cross-Anchors & Aerogel Cap Thermal Breaks

To guarantee absolute protection against the "falling hazard," the Woqin system deploys mechanical Cross-Pressure Anchors at the intersecting joints of the VIP flanges. Made from high-strength, low-conductivity FRP (Fiber Reinforced Polymer), these anchors physically lock the steel panels to the structural substrate, delivering a robust pull-out strength of >= 0.6 kN per anchor.

 To eliminate the resulting mechanical thermal bridge, the entire anchoring joint and panel flanges are subsequently encapsulated by a dedicated Aerogel Edge Thermal Break Strip. With a thickness of 5-10mm, a thermal conductivity of <= 0.020 W/(m·K), and a compressibility of >50%, this "Cap" design tightly seals out cold air convection and creates a flawless, uniform thermal barrier across the facade.

The Ultimate System: Tying It All Together

At Hebei Woqin, we do not merely sell a 0.007 W/(m·K) insulation board. We deliver a meticulously engineered, 50-year fail-safe system.

When you specify the Vacu-Armor Stainless Steel VIP matrix, you are securing every vulnerability on your project:

• The Systemic Safety (This Article): Patented micro-ventilation and 0.6 kN mechanical anchors guarantee your facade will never suffer from toxic black mold, thermal stress tearing, or catastrophic detachment.

• The Site Survival (Part 6): The heavy-duty stainless steel encapsulation delivers a brutal 79N of puncture resistance, surviving the harshest construction environments without hidden vacuum failures.

• The Fire Guarantee (Part 4): The inorganic silica core and steel barrier provide absolute Class A1 Non-Combustible performance, easily securing EWS1 sign-offs.

• The Spatial ROI (Part 1): By replacing 200mm of mineral wool with just 20mm of Vacu-Armor, developers recover millions of pounds in sellable Gross Internal Area (GIA).

• The Structural Relief (Part 2): Slicing the insulation thickness by 90% removes the "Gravity Tax," reducing facade dead loads by over 50% and saving massive secondary steel costs.

• Precision Detailing (Part 3): Achieves flawless, zero-step level thresholds for luxury balconies without compromising Passive House U-values.

• The Thermal Longevity (Part 5): Laser-welded steel construction ensures zero outgassing, maintaining peak vacuum stability even when trapped in 100°C "Spandrel Ovens."

Call to Action: Engineer a Fail-Safe Facade

Do not let outdated installation methods turn your cutting-edge insulation into a structural liability. It is time to upgrade to a system engineered for the laws of physics.

• Request the Patented CAD Details: Email our engineering desk to receive the complete DWG/PDF node drawings showing the exact weep holes, adhesive layouts, and FRP cap thermal breaks.

• Claim Your "Steel Armor" Sample Kit: Experience the heavy-duty stainless steel encapsulation and our Aerogel edge strips for yourself. We ship physical sample kits directly to facade consultants and EPC headquarters worldwide.
