Cryogenic Insulation in Europe: Applying VIR Systems and Curved Stainless VIPs in LNG Terminals

Content Part 1: The LNG Rush & The Volumetric Space Crisis

The Cryogenic Frontier of European Energy Sovereignty

Following a historic restructuring of its natural gas supply chain, Europe is redrawing its energy map at an unprecedented pace. Seaborne Liquefied Natural Gas (LNG) has become the absolute core of industrial and civil energy lifelines. From Wilhelmshaven in Germany to Rotterdam in the Netherlands, European ports are frantically constructing and expanding onshore LNG terminals and FSRU (Floating Storage Regasification Unit) vessels.

However, operating within the strict safety frameworks of EN 1473 (Standard for the Design of Onshore LNG Installations) demands absolute control over the core physical attribute of LNG: its extreme temperature of -162°C. In this unforgiving cryogenic environment, a single millimeter of insulation failure on the piping network triggers catastrophic heat ingress and cold energy loss. European EPC contractors are facing unprecedented thermodynamic and logistical challenges.

The Hidden Catastrophes of Traditional Insulation

To withstand the -162°C deep freeze, cryogenic engineering has relied heavily on multi-layered Cellular Glass or PIR (Polyisocyanurate) foam for decades. But as the density of LNG infrastructure scales geometrically, these traditional materials are becoming crippling financial and structural liabilities:

Fatal Flaw 1: The Pipe Rack Space Crunch (The Volumetric Assassin)

Cellular glass has relatively low thermal efficiency. To meet strict cryogenic anti-freezing and anti-condensation standards, the exterior insulation wall thickness of LNG pipelines must routinely exceed 250 mm to 300 mm.

This creates a spatial disaster. Once a standard steel pipe is wrapped in such massive insulation, its outer diameter expands exponentially. In the highly congested, premium real estate of port terminals and FSRU vessels, this "volumetric assassin" completely overwhelms the Pipe Racks. Furthermore, to support these massive, heavy, and wind-loading insulated pipeline networks, EPCs are forced to invest millions in massive steel structural supports, causing overall CAPEX (Capital Expenditure) to skyrocket.

Fatal Flaw 2: The Multimillion-Dollar BOG Hemorrhage

Beyond brute spatial consumption, the poor thermal resistance of traditional insulation is a financial black hole. Ambient heat inevitably penetrates the thick cellular glass, causing the liquid natural gas inside the pipes to boil and vaporize, generating massive volumes of BOG (Boil-Off Gas).

This is not a negligible operational metric; it is pure financial hemorrhage. Let us look at the raw math: For a standard 5 MTPA (Million Tonnes Per Annum) LNG terminal, reducing BOG generation by a mere 0.1% saves over $1,000,000 annually. Conversely, when inefficient traditional insulation drives internal pipeline pressures up due to excess vaporization, operators are often forced to flare the precious gas to prevent catastrophic explosions. This results in devastating financial losses and exposes energy giants to severe ESG carbon penalties.

Content Part 2: Vapor Drive Nightmares & The Cryogenic Benchmark

The Physical Destruction: Vapor Drive, CUI, and Thermal Stress

Under the extreme temperature differential of -162°C, insulation materials face more than just thermal conduction; they are subjected to violent physical destructive forces. Traditional Cellular Glass and PIR systems inevitably face physical collapse in this extreme environment:

Fatal Flaw 3: Vapor Drive & Interstitial Ice Formation

When the internal temperature of an LNG pipeline drops to -162°C, a massive vapor pressure differential is created between the pipe and the ambient environment. This triggers a terrifying physical phenomenon known as "Vapor Drive." Acting like a high-powered vacuum, it relentlessly sucks high-salinity moisture from the marine air into the microscopic joints and seams of traditional insulation.

Traditional cellular glass has a Water Vapor Transmission Rate (WVTR) of > 0.01 g/(m·h·mmHg). Moisture penetrates, contacts the cryogenic steel, and instantly freezes. As ice accumulates and expands, it generates immense mechanical stress, shattering the fragile foam shells from within. Once breached, ambient heat floods in, creating a vicious cycle of massive "ice balls" and total system failure.

Fatal Flaw 4: The Hidden Catastrophe - CUI (Corrosion Under Insulation)

This is the ultimate nightmare for European EPCs. Once traditional insulation joints crack, highly corrosive marine moisture is trapped tightly beneath 300 mm of thick insulation.

This triggers the highly concealed and fatal Corrosion Under Insulation (CUI). Hidden beneath the massive outer casing, visual inspections cannot detect the rusting steel, eventually leading to catastrophic LNG leaks. Hebei Woqin’s solutions, however, provide a 100% airtight barrier. Tested strictly per ASTM C692, the stainless steel enclosure ensures zero moisture penetration, recording absolutely zero cracking or corrosion, fundamentally eliminating the CUI threat.

Fatal Flaw 5: Thermal Contraction & Expansion Joint Costs

Under cryogenic shock, stainless steel pipelines undergo severe thermal contraction. When dropping from an ambient 20°C down to -162°C, a standard 30-meter pipeline will contract by approximately 9.3 cm.

 Traditional cellular glass is rigid and cannot contract synchronously. As the pipe shrinks, immense shear forces violently tear the insulation joints apart. To mitigate this, EPCs are forced to install complex "Contraction Joints," which typically add 15% to 20% to the total pipeline insulation cost. These joints inevitably become the weakest links, acting as primary pathways for heat leaks.

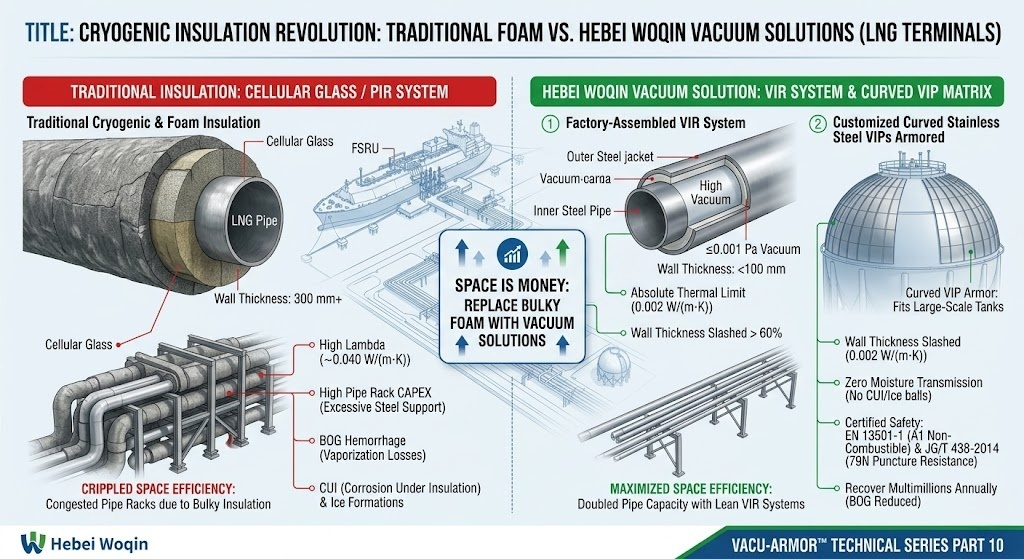

The Ultimate Cryogenic Benchmark: Traditional Foam vs. Hebei Woqin

To permanently eliminate these physics-driven disasters, top-tier energy giants are turning to Hebei Woqin's VIR Systems and Curved Stainless VIPs.

Content Part 3: The VIR Technical Edge & Engineering ROI

Hebei Woqin’s Cryogenic Counterattack: VIR Systems & Curved VIPs

To fundamentally eradicate the physical limitations of cellular glass, it is crucial to apply the precise vacuum technology to the right infrastructure. Hebei Woqin has engineered a dual-matrix solution tailored for top-tier LNG terminals:

• VIR (Vacuum Insulation Pipe) System: Refers to a factory-assembled, fully welded double-wall pipe with an evacuated annular space, supported by internal low-thermal-conductivity isolators. It is the absolute optimal choice for straight pipe runs and spool pieces.

• Customized Curved Stainless Steel VIPs: Designed specifically for large-scale LNG storage tanks and existing pipe retrofits, these panels are custom-curved to perfectly match the tank radius, providing flawless modular insulation coverage.

1. Absolute Thermal Authority & System Durability

Engineered for extreme zones down to -269°C (the theoretical limit of Liquid Helium), Hebei Woqin makes -162°C LNG operations essentially stress-free. The VIR System features an ultra-high annular vacuum level of ≤0.001 Pa, validated for a lifespan of ≥20 years. Spool pieces can be seamlessly integrated into the pipeline network via field welding or specialized flanged connections, ensuring continuity of the vacuum barrier.

2. Marine-Grade Armor & Certified Safety

The exterior jackets are meticulously engineered from 304L austenitic stainless steel for general service, and 316L for harsh coastal and marine environments.

For massive LNG storage tanks, our Curved Stainless VIPs have been rigorously tested. Per JG/T 438-2014 (NBEC Report No. NBEC-2025CX-0024), they withstand an extreme puncture resistance of 79N, ensuring robust site survivability. Furthermore, validated by EN 13501-1 (Report No. 2025110054), the entire matrix achieves a strict Euroclass A1 Non-Combustible fire rating, guaranteeing maximum terminal safety.

The ROI Formula: Rewriting Cryogenic CAPEX

Upgrading to Hebei Woqin’s vacuum insulation is not merely a technical switch—it is a massive financial reclamation project.

Let us compare the raw economics: A 1km LNG pipeline insulated with traditional cellular glass requires massive material volume, an additional 15-20% budget purely for expansion joints, and enormous steel support structures to carry the dead load. By switching to Hebei Woqin's VIR System, EPCs eliminate the need for complex contraction joints and drastically reduce pipe rack footprints, reducing the total installed cost by over 40%.

Call to Action: Engineer Your Cryogenic Advantage

Do not let outdated cellular glass dictate the spatial constraints of your LNG terminal or bleed your natural gas profits through BOG losses.

• Claim Your Free Cryogenic Simulation: Please provide your pipe diameter, wall thickness, current insulation type (if any), design temperature, and ambient conditions to the Hebei Woqin engineering desk. We will conduct a comprehensive thermal simulation and deliver a precise ROI report within 7 business days.

• Contact Ruibin An (CEO, Hebei Woqin) for technical procurement and EPC consulting:

   Email: an@cn-aerogel.com

   Web:www.cn-aerogel.com
