Maximizing Retail Space: Ultra-Thin VIPs for Commercial Refrigerators in European Supermarkets

Content Part 1: The Floor Space War & The Micro-Charge Dilemma

The "Per Square Meter" Survival War in European Retail

In the fiercely competitive European retail landscape dominated by giants like Aldi, Lidl, and Tesco, the absolute core metric of profitability is "Revenue per Square Meter." In these premium retail environments, aisle widths and the external footprints of commercial refrigeration cabinets are strictly locked. Therefore, the internal display volume (payload) of a freezer directly dictates the maximum profit a store can generate. However, traditional refrigeration design is actively cannibalizing this critical space.

Fatal Flaw 1: The 20% Volume Trap Cannibalizing Profits

To maintain a deep-freeze environment of -18°C, equipment manufacturers have relied on bulky Polyurethane (PU) foam for decades. To meet basic thermal and anti-condensation requirements, the insulation wall thickness of these commercial freezers routinely dictates an 80 mm to 100 mm profile.

This creates a quantifiable volumetric disaster. For example, a standard 2000 mm wide commercial cabinet utilizing 100 mm foam walls on each side instantly loses 200 mm of internal width. Depending on depth and height, this literal "space assassin" devours 15% to 20% of the usable display volume. For retail giants, this means surrendering highly profitable space that should be stocked with premium frozen foods. This severe shrinkage destroys the store's revenue density and forces frequent restocking, driving up hidden operational labor costs.

Fatal Flaw 2: F-Gas Regulations and the R290 Micro-Charge Limit

Beyond brute spatial consumption, European Original Equipment Manufacturers (OEMs) are facing a severe regulatory crisis. Under the aggressive enforcement of the EU F-Gas Regulation (EU 2024/573), traditional high-GWP refrigerants are being strictly phased out, making R290 (Propane) the mandatory standard.

However, because propane is highly flammable, safety standard EN 378-1 imposes a draconian limit on the refrigerant charge for commercial refrigerators with self-contained condensing units—capping it at a strict 150 grams.

This presents a brutal thermodynamic challenge. Let us look at the raw engineering math: For a typical 600L commercial freezer relying on 80 mm PU foam, the high thermal ingress creates a constant heat load of approximately 50W. To compensate for this massive leak using only 150g of R290, the compressor must run over 80% of the time. This inevitable compressor overload leads to catastrophic energy consumption, frequent system failures, and equipment burnouts, making traditional foam completely incompatible with modern F-Gas compliance.

Content Part 2: The Energy Black Hole & The VIP Benchmark

The Efficiency Crisis: Ecodesign and Foam Degradation

While floor space dictates the absolute ceiling for single-store revenue, energy consumption dictates the survival of the enterprise. Commercial refrigeration systems devour up to 50% of a supermarket's total electricity. Facing skyrocketing energy costs and stringent compliance mandates, traditional Polyurethane (PU) foam has completely failed to protect the razor-thin profit margins (typically 1-3%) of European retailers:

Fatal Flaw 3: The Ecodesign Guillotine & Energy Labels

The European Union has enforced the unforgiving Ecodesign Directive (specifically under implementation regulation EU 2019/2024), mandating strict Energy Efficiency Index (EEI) labels for all commercial refrigerators. Today, major European retail groups will automatically disqualify any equipment that fails to achieve a Class A or Class B energy rating during the initial tender process.

Traditional PU foam has hit a thermodynamic brick wall. Stuck at a physical limit of approximately 0.024 W/(m·K), it cannot provide better insulation without absurd increases in wall thickness. Without a fundamental breakthrough in core insulation technology, OEMs face the immediate threat of being locked out of the lucrative European market.

Fatal Flaw 4: Foam Degradation & The Ice-Up Black Hole

Traditional PU foam is not a permanent thermal barrier. Over time, the chemical blowing agents trapped inside the foam cells escape through a process known as "outgassing." Engineering data reveals a harsh reality: traditional PU foam typically loses 10% to 20% of its insulation performance within just 5 to 7 years of operation.

This severe thermal degradation leads to massive exterior condensation ("sweating") on the cabinet, destroying product visibility and the shopper experience. Worse, it causes rapid internal frosting, forcing the freezer into continuous, high-energy defrost cycles. This creates an operational black hole, driving electricity bills to unsustainable levels and ultimately burning out compressors.

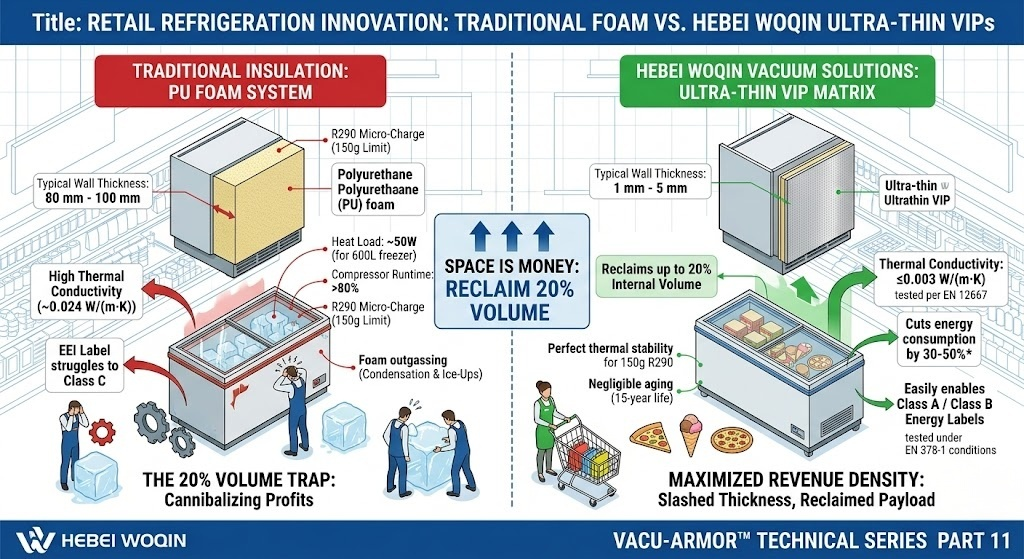

The Commercial Refrigeration Benchmark: PU Foam vs. Ultra-Thin VIP

To permanently resolve these spatial and thermodynamic crises, top-tier European OEMs are upgrading their production lines to Hebei Woqin's Ultra-Thin VIP technology (leveraging our proven Vacu-Slim series core technology).

(Note: VIP thickness can be precisely customized based on the specific physical dimensions and target temperature requirements of the commercial cabinet.)

Content Part 3: The Ultra-Thin Limit & Engineering ROI

Hebei Woqin’s Ultra-Thin VIP: The Ultimate Space Assassin

To shatter the constraints of traditional foam, Hebei Woqin engineered an extreme thermodynamic barrier specifically tailored for commercial refrigeration. Leveraging our proven Vacu-Slim series core technology—originally developed and rigorously validated to protect high-density EV battery packs under extreme thermal stress—our Ultra-Thin VIP matrix is now fully adapted for the retail sector.

It achieves a staggering initial thermal conductivity of ≤0.003 W/(m·K), tested strictly per EN 12667 standards, within an astonishingly slim profile of just 1 mm to 5 mm. By utilizing a specialized micro-porous core material sealed under a deep vacuum with proprietary ultra-high barrier films, these panels eradicate air convection. Delivering up to 8 times the insulating power of standard PU foam, Hebei Woqin’s VIPs effectively rewrite the physical rules of freezer cabinet design.

The Engineering ROI: Monetizing the Payload Recovery

Upgrading to Hebei Woqin’s Ultra-Thin VIP technology is not merely an engineering tweak; it is a profound financial lever for both equipment manufacturers (OEMs) and retail giants.

• Maximized Revenue Density: By slashing the insulation wall thickness down to a fraction of its original size, OEMs can instantly recover up to 20% of internal display volume without expanding the cabinet's external footprint. This allows supermarkets to stock significantly more high-margin products per square meter, drastically boosting single-store profitability while reducing the labor costs associated with frequent restocking.

• R290 & Ecodesign Dominance: The absolute thermal resistance perfectly stabilizes the internal freezer environment. It allows the strict 150g R290 micro-charge to operate effortlessly, cutting compressor runtime and reducing overall energy consumption by 30% to 50%. This eliminates the nightmare of external sweating and internal ice-ups, guaranteeing that the equipment easily secures the coveted Class A or Class B Ecodesign Energy Label—ensuring OEMs win major European procurement tenders.

Call to Action: Engineer Your Retail Advantage

Do not let outdated PU foam steal your display volume, sabotage your energy ratings, or disqualify you from the lucrative European market.

• Claim Your Free Thermal & Volume Simulation: Submit your commercial freezer's 3D CAD drawings or dimensional constraints to the Hebei Woqin engineering desk. Please also specify your target internal temperature (e.g., -18°C) and maximum ambient conditions (e.g., 32°C). Our team will calculate your exact internal volume gain, R290 thermal stability, and projected Ecodesign rating upgrade, delivering a comprehensive ROI report within 5 business days.

• Contact Ruibin An (CEO, Hebei Woqin) for technical procurement and OEM consulting:

   Email: an@cn-aerogel.com

   Web:www.cn-aerogel.com
