Zero Thermal Bridging in VIP Installations: The Aerogel Cap-Anchoring Technique

Content Part 1: The Paradox & Thermodynamic Disasters

The Paradox of the Perfect Material

In the realm of advanced building physics, the "Wooden Barrel Theory" dictates that the thermal performance of a facade is only as strong as its weakest link.

Today, architects and developers are heavily investing in Stainless Steel Vacuum Insulation Panels (VIPs) to achieve the ultimate center-of-panel thermal conductivity of 0.007 W/(m·K). On paper, it is a thermodynamic masterpiece. However, when these panels are installed on a cold European construction site using traditional methods, a harsh reality is revealed under infrared thermal imaging: a glowing red grid of heat loss outlining every single panel joint and anchor point.

This is the paradox of the perfect material. If you achieve near-absolute insulation at the center of the board, but allow massive heat leaks at the seams and fixing points, your investment in vacuum technology is entirely wasted.

The 6 Fatal Flaws of Traditional VIP Joints

To understand why a 0.007 W/(m·K) panel often degrades to a system-level performance of 0.015 W/(m·K) or worse, we must expose the fatal flaws of traditional VIP jointing and anchoring. The first two flaws are deeply rooted in extreme thermodynamic failures:

Fatal Flaw 1: The "Thermal Nail" Effect (Point Thermal Bridging / Chi-value)

To prevent high-rise facade detachment under extreme wind loads, heavy-duty mechanical anchors are mandatory. Traditionally, contractors drive standard carbon steel expansion bolts directly through the insulation gaps and into the structural wall (such as standard C25/30 concrete substrates).

This creates a catastrophic point thermal bridge. Because carbon steel has a thermal conductivity of around 50 W/(m·K), these bolts act precisely like "thermal nails." They physically pierce the thermal envelope, continuously vacuuming warm air from the interior structure and dumping it directly into the freezing exterior cavity.

Fatal Flaw 2: The "Thermal Highway" of Metal Flanges (Linear Thermal Bridging / Psi-value)

Unlike standard mineral wool, vacuum insulation panels cannot be cut on-site and must be manufactured with protective sealing edges. For heavy-duty Stainless Steel VIPs, these edges are laser-welded metal flanges.

 When two panels are butt-jointed together, these metal flanges touch. Heat is highly opportunistic; rather than fighting through the 0.007 W/(m·K) vacuum core, thermal energy will instantly take the path of least resistance. It travels sideways, hitting the highly conductive stainless steel flanges, and rapidly escapes along the entire perimeter of the panel. This creates a continuous, high-speed "thermal highway" around every single VIP, destroying the overall thermal resistance of the wall assembly.

Content Part 2: Site, Health & Compliance Disasters + The Ultimate Benchmark

The 6 Fatal Flaws of Traditional VIP Joints

Beyond the direct thermodynamic leaks of metal flanges and steel anchors, traditional jointing methods trigger a cascade of secondary failures across the construction site and the building's lifespan.

Fatal Flaw 3: The PU Foam Degradation Trap

In real-world construction, structural walls are never perfectly flat, and VIPs cannot be trimmed to fit. This inevitably leaves physical gaps between panels. To bridge these gaps and cover the anchor points, contractors routinely inject standard Polyurethane (PU) foam.

 This is a desperate compromise. PU foam has a thermal conductivity of around 0.035 W/(m·K)—five times worse than the VIP itself. Furthermore, accelerated aging tests demonstrate that under continuous hygrothermal cycling, PU foam shrinks, degrades, and pulverizes over time. Within a few seasons, these degraded joints transform into massive open air corridors, allowing freezing convection drafts to bypass the insulation layer entirely.

Fatal Flaw 4: Grid-Pattern Interstitial Condensation

Because traditional steel anchors and exposed metal flanges act as heavy thermal bridges, the temperature at the panel joints drops significantly compared to the insulated center of the panel. In cold European climates, this sharp temperature localized drop precisely hits the dew point.

Trapped moisture condenses exactly along the panel perimeters and anchor points. Over time, this localized interstitial condensation breeds a terrifying, grid-like pattern of toxic black mold deep within the wall assembly, quietly rotting the structural tracking, damaging masonry, and compromising indoor air quality.

Fatal Flaw 5: Thermal Expansion Fatigue (The Seam Tearer)

Under direct summer sun, sealed facade cavities suffer from the Spandrel Oven effect—which refers to the extreme high-temperature environment within sealed facade cavities under direct solar radiation, routinely exceeding 80°C. Metal-encapsulated VIPs naturally undergo significant thermal expansion and contraction in this environment.

 If these panels are bolted down tightly with rigid steel anchors, there is zero elastic tolerance to accommodate this movement (which can reach up to ±2 mm of thermal expansion per 1 meter of panel width). The immense shear stress generated has nowhere to dissipate. This force concentrates directly on the delicate laser-welded sealing edges, eventually tearing the welds apart. Atmospheric pressure breaches the envelope, and the vacuum is permanently destroyed.

Fatal Flaw 6: The Performance Gap & Certification Failure

Developers pay a steep premium for 0.007 W/(m·K) materials to achieve strict Passivhaus, BREEAM, or LEED certifications. However, due to the severe linear and point thermal bridges at the joints, the actual "System Thermal Conductivity" (System Lambda) often degrades to 0.015 W/(m·K) or worse.

When third-party assessors conduct post-completion thermographic testing, the building fails its energy targets. This "Performance Gap" exposes developers to severe legal liabilities, missed green-building subsidies, and astronomical remediation costs.

The Ultimate Benchmark: Traditional Jointing vs. Woqin Patented Cap-Anchoring System

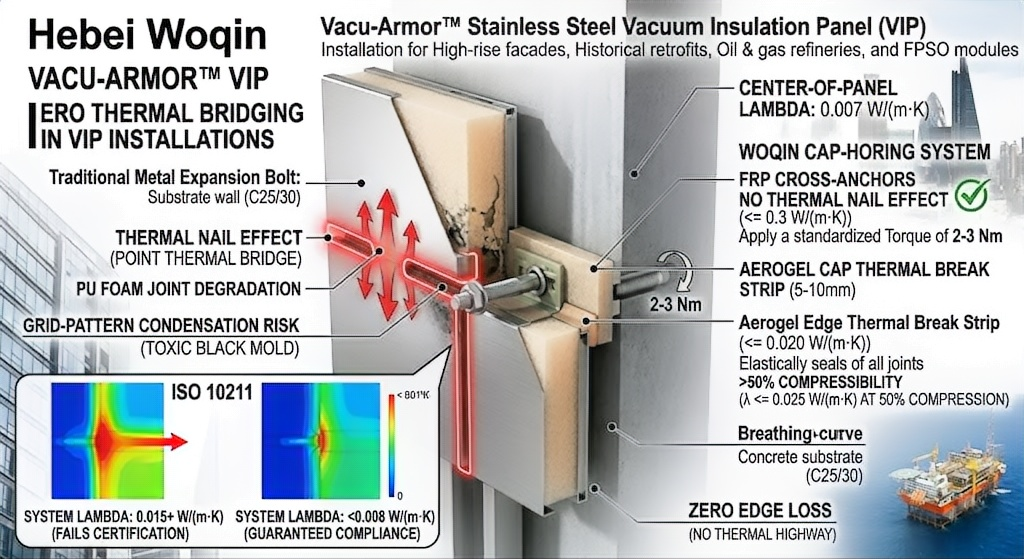

To preserve the 0.007 W/(m·K) performance of the VIP, the joints must be as advanced as the panel itself. Based on 3D thermal bridge simulations per ISO 10211, here is why engineering-driven EPCs are abandoning crude site fixes in favor of Hebei Woqin's dual-patented Cap-Anchoring System:

Content Part 3: The Patented Cap-Anchoring Architecture & Matrix Navigation

The Woqin Paradigm: Patented Cap-Anchoring Architecture

To resolve the inherent physical conflicts of linear and point thermal bridging at panel joints, Hebei Woqin has shifted the paradigm from simply manufacturing insulation boards to engineering a complete, zero-thermal-bridge installation architecture.

Backed by dual National Patents (Invention Patent: 202610285364.1 [Pending] and Utility Model: 202620288388.8 [Pending]), the Woqin Cap-Anchoring & Edge Thermal Break System completely redefines high-rise VIP installation:

Core Innovation 1: FRP Cross-Anchors (Eliminating Point Thermal Bridging)

To completely eliminate the "thermal nail effect" and thermal expansion fatigue, the Woqin system rejects the primitive practice of letting metal fasteners directly touch the stainless steel flanges. Instead, we deploy mechanical Cross-Pressure Anchors precisely at the intersecting joints of the panels.

Made from high-strength, low-conductivity FRP (Fiber Reinforced Polymer, with a thermal conductivity of <= 0.3 W/(m·K)), these anchors deliver a robust pull-out strength of >= 0.6 kN per anchor when fixed to standard concrete substrates C25/30, tested in accordance with ETAG 020. Installed with a regulated torque of 2-3 Nm, this non-rigid, point-clamping design provides critical Elastic Tolerance, allowing the heavy-duty stainless steel panels to safely accommodate up to ±2 mm of thermal expansion per 1 meter of panel width without tearing the laser-welded vacuum seams.

Core Innovation 2: High-Compressibility Aerogel Cap Strips (Eliminating Linear Thermal Bridging)

Once the FRP anchors are locked, a specialized Aerogel Edge Thermal Break Strip (5-10 mm thick, with an uncompressed thermal conductivity of <= 0.020 W/(m·K)) is applied directly over the entire joint profile and the touching steel flanges.

 Unlike standard PU foam which inevitably shrinks and degrades, this aerogel strip boasts an exceptional compressibility of >50%. When the external curtain wall bracketry or cladding profiles are tightened, the aerogel strip undergoes regulated elastic deformation, acting precisely like a high-density sponge to dynamically seal every micro-gap between the metal flanges. Even at a maximum 50% compression state, its thermal conductivity remains exceptional at <= 0.025 W/(m·K). This "Cap" design completely blocks cold air convection and permanently erases the risk of grid-pattern interstitial condensation.

Thermodynamic Proof: System Lambda vs. Center-of-Panel Lambda

In strict Passivhaus and green building audits, looking solely at the "center-of-panel thermal conductivity" is an engineering illusion. The ultimate metric that dictates energy compliance is the System Lambda (System Thermal Conductivity), which incorporates all joint and anchor thermal bridges.

Validated by 3D thermal bridge simulations performed in strict accordance with ISO 10211, traditional full-bed adhesion and steel bolts degrade the overall system performance to 0.015 W/(m·K) or worse—causing severe performance gaps and BREEAM/LEED certification failures. The Woqin system solves this. By combining stainless steel encapsulation with FRP anchors and aerogel caps, we hold the real-world System Lambda tightly under 0.008 W/(m·K). This is true zero thermal bridging, closing the gap between architectural theory and site performance.

Call to Action: Erase Your Facade's Thermal Bridges

Do not let outdated installation methods turn your cutting-edge insulation into a thermodynamic liability. It is time to upgrade to a system engineered for the laws of physics.

• Request Patented CAD Details: Email our engineering desk to receive the complete DWG/PDF node drawings showing the exact layout of the Woqin zero-thermal-bridge anchoring architecture.

• Claim a Free Psi-value (Linear Thermal Bridge) Simulation: Send your current facade joint profiles to our thermal engineering desk. Our team will provide a comprehensive, software-backed thermal bridge simulation report for your project within 10 business days free of charge.

• Get Your "Zero Thermal Bridge" Sample Kit: Experience the structural rigidity of our FRP cross-anchors and the engineering elasticity of our compressible aerogel strips. We ship physical assembly kits directly to facade consultants and EPC headquarters worldwide.

• Contact Ruibin An (CEO, Hebei Woqin) for technical procurement:

  Email: an@cn-aerogel.com

  Web: www.cn-aerogel.com
