The Gravity Tax: Cutting Skyscraper Dead Load with Vacu-Armor™ Stainless Steel VIPs

The Invisible Burden of Gravity: Why Your Facade is a "Structural Tax"

In the design of modern super-tall skyscrapers (300m+), structural engineers and developers are locked in a constant battle with a silent, expensive enemy: Gravity.

As energy regulations (such as UK Part L or EU Green Deal) tighten, traditional insulation layers have ballooned to 150mm - 200mm in thickness. When you stack these bulky fibrous materials across a 50,000 m² facade, you aren't just adding insulation; you are imposing a massive "Gravity Tax" on the entire building. This "Tax" manifests as oversized beams, thicker columns, and deeper, more expensive foundations required to carry the unnecessary mass.

Introducing Vacu-Armor™: The "Steel-Clad" Paradigm Shift

At Hebei Woqin, we have engineered a solution that stops the Gravity Tax at its source. Vacu-Armor™ is an ultra-thin, stainless-steel encapsulated vacuum insulation panel (VIP) that delivers superior thermal performance at a fraction of the mass and volume of legacy materials.

Dimension 1: The Economic Ripple Effect of Mass

1. The Foundation and Framing Savings

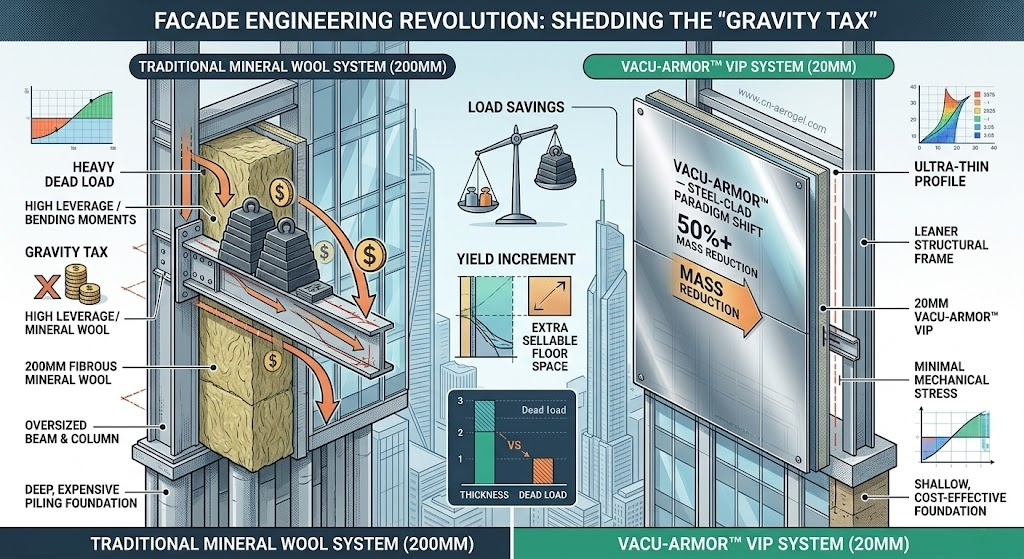

To maintain a high-performance thermal envelope, a skyscraper typically requires 200mm of mineral wool. The Panel-Only Dead Load of such a system is roughly 15-20 kg/m² (excluding brackets). In contrast, a 20mm Vacu-Armor™ panel weighs only ~9.2 kg/m² (Panel-only, Tested per NBEC standards).

The Math of Mass: On a typical 50-story tower with 40,000 m² of facade, switching to Vacu-Armor™ eliminates over 400 tons of unnecessary dead load. For the developer, this translates to a massive reduction in structural steel and concrete—essentially saving the equivalent of an entire floor’s worth of structural support costs.

2. Eliminating the Leverage Stress (Bending Moments)

The physical thickness of insulation directly dictates the length of the facade brackets. A 200mm cavity creates a significant Leverage Effect , generating high bending moments on every connection point. To counter this, engineers must specify expensive, heavy-duty steel brackets.

Because Vacu-Armor™ is only 20mm thick, it brings the facade cladding closer to the structural core. This reduces the mechanical stress on brackets, allows for lighter, more cost-effective fixings, and significantly speeds up high-altitude installation.

3. Technical Transparency: Center vs. System Performance

At Hebei Woqin, we value engineering integrity over marketing hype. It is crucial to distinguish between two key values:

• Center-of-Panel Conductivity: 0.002 W/(m·K). This is the core thermal baseline verified by the National Center of Quality Inspection (NBEC-2025CX-0024).

• System Equivalent Conductivity: 0.007 W/(m·K). Unlike other suppliers, we explicitly account for the thermal bridging of the SUS304 stainless steel edges. Even with this rigorous calculation, Vacu-Armor™ remains 10-15 times more efficient than any traditional material on the market.

Dimension 2: The Safety Redline and Physical Limits

Beyond the hidden financial cost of a "Gravity Tax," relying on excessively heavy and thick insulation introduces severe physical risks to a skyscraper's operational lifespan.

3. The "Water-Saturation Weight Bomb"

Traditional fibrous materials like mineral wool are inherently porous. Even with premium vapor barriers, high-altitude facade seals inevitably degrade over time. Once moisture penetrates, mineral wool acts like a functional sponge. Under fully saturated conditions (at 100% volumetric moisture content), wet mineral wool can weigh 5 to 10 times more than its dry state. This sudden, uncalculated mass creates a "weight bomb" that pushes support brackets past their safety limits, risking catastrophic cladding failure.

The Vacu-Armor™ Advantage: Encased in a laser-welded SUS304 stainless steel envelope, Vacu-Armor™ is 100% impermeable. It will never absorb moisture, ensuring the facade weight remains constant from Day 1 to Year 50.

4. Seismic Mass Inertia (The F=ma Problem)

In seismic zones, the destructive force acting on a building is directly proportional to its mass. A heavier curtain wall generates significantly higher inertial forces during an earthquake. By utilizing the ultra-thin, lightweight Vacu-Armor™ system (~9.2 kg/m² panel weight) instead of 200mm mineral wool, structural engineers drastically reduce the facade’s mass, minimizing seismic stress on the primary skeleton and increasing the building's earthquake resilience.

5. Wind Load and Metal Fatigue

At 300+ meters, skyscrapers endure brutal wind loads. Heavy, extended facade brackets experience constant micro-movements under dynamic pressures. Over decades, this flexing of long brackets leads to metal fatigue. The ultra-thin profile of Vacu-Armor™ allows for shorter, stiffer brackets that are far less susceptible to wind-induced fatigue, ensuring long-term structural safety.

Dimension 3: High-Altitude Logistics & Sustainability

6. The Crane-Time Crisis

In high-rise construction, crane time is one of the most expensive and bottlenecked resources. With Vacu-Armor™, a single crane cycle can transport up to 10 times more insulation coverage than bulky traditional materials. This drastically accelerates the facade installation schedule and cuts high-altitude labor costs.

7. Embedded Carbon & Foundation Optimization

Trimming the facade's dead load with Vacu-Armor™ allows for a leaner superstructure.

The Impact: On a typical tower, reducing 500 tons of structural dead load can save dozens of foundation piles and hundreds of tons of structural steel, significantly lowering the project's total "Embedded Carbon" and foundation costs.

Comparison Table: Traditional Insulation vs. Vacu-Armor™ VIP

Phase 3: Hard Data, TCO Logic, and Call to Action

The "Steel Armor" Solution: Hard Data from National Laboratories

For decades, the industry’s main hesitation with Vacuum Insulation Panels (VIPs) has been their perceived fragility. Standard aluminum-foil wrappers are prone to on-site punctures, which compromise the vacuum and destroy thermal performance.

Vacu-Armor™ eliminates this vulnerability. By encasing the micro-porous core in a laser-welded SUS304 stainless steel envelope, we have moved from "fragile component" to "site-proof structural asset." The data from the world's most rigorous testing bodies confirms its resilience:

• 79N Puncture Resistance (The "Body Armor" Standard): Tested by the National Center of Quality Inspection and Testing for Building Energy Conservation (NBEC-2025CX-0024), Vacu-Armor™ achieved a staggering 79N of puncture resistance (per JG/T 438-2014). It is virtually immune to typical on-site handling damage, dropped tools, or rough installation.

• 118kPa Compressive Strength: Verified per JG/T 438-2014, this ensures the panels maintain absolute geometric stability even under the extreme dynamic wind pressures found at 300+ meters.

• Acoustic Synergy (Tsinghua University Test): Modern skyscrapers demand superior soundproofing. Testing conducted by Tsinghua University shows that the high-density, vacuum-sealed structure of Vacu-Armor™ effectively dampens airborne sound transmission (Rw rating), blocking urban traffic and mechanical noise far more effectively than traditional low-density wool.

• Marine-Grade Corrosion Resistance: Our SUS304 stainless steel encapsulation ensures the material is protected against salt-spray and oxidation, making it the ideal choice for high-rise coastal developments where "Marine Grade" durability is mandatory.

• Class A1 Fire Safety: Certified by the National Quality Inspection Center for Fire Building Materials (Report No. 2025110054). Vacu-Armor™ is non-combustible and meets EN 13501-1 standards, providing critical passive fire protection with zero toxic smoke emissions.

The Total Cost of Ownership (TCO): A Paradigm Shift

Let’s run a final ROI simulation. On a 50,000 m² curtain wall project:

• The Traditional Route (200mm Mineral Wool): Low material price, but high "Gravity Tax." You pay for 500+ tons of unnecessary dead load, hundreds of tons of extra structural steel, long and heavy-duty brackets, and a massive carbon penalty.

• The Vacu-Armor™ Route: Higher initial material cost, but significant Total Cost Savings. By eliminating over 400 tons of dead load, you reduce foundation piling requirements and secondary steelwork. Most importantly, you recover sellable floor area (GIA) that adds millions to the project's bottom line.

The Math of Reality: Reducing 500 tons of structural load is equivalent to removing the weight of an entire floor of structural steel. That is the profit margin Vacu-Armor™ returns to you.

Conclusion: Stop Paying the Gravity Tax

Your facade should be a high-performance shield, not a burden that your building’s skeleton has to carry. It is time to stop over-engineering your structures just to support outdated, heavy, and water-absorbing insulation. By upgrading to Vacu-Armor™, you are optimizing the very structural DNA of your skyscraper.

Take Action: Engineer a Leaner Skyscraper Today

Don't let legacy materials inflate your construction budget or compromise your building's safety.

• Request a Structural Dead Load Audit: Send your facade sections to an@cn-aerogel.com. Our engineers will calculate the exact mass and bracketry costs you can eliminate by switching to Vacu-Armor™.

• Download the Full Technical Data Pack: Email us with the subject "Vacu-Armor Data Pack" to receive unredacted NBEC Puncture (JG/T 438) and Tsinghua Acoustic reports.

• Claim Your "Steel Armor" Sample Kit: Test the 79N puncture resistance yourself. We ship physical Vacu-Armor™ samples directly to architectural and engineering firms worldwide.

Contact Ruibin An (CEO, Hebei Woqin):

Email: an@cn-aerogel.com

Web:www.cn-aerogel.com
