May 06, 2026
Europe remains the undisputed global hub for the research and manufacturing of high-value biologicals, targeted therapies, and mRNA vaccines. However, operating within this highly lucrative market requires navigating the EU Guidelines on Good Distribution Practice of Medicinal Products for Human Use (2013/C 343/01)—a set of regulations characterized by absolute, zero-tolerance temperature control.
Whether a shipment requires standard refrigeration (2°C to 8°C) or extreme deep-freeze conditions (-20°C to -80°C), the rules are ruthless. A single "thermal excursion"—even a minor temperature deviation lasting only a few hours—violates GDP protocols. The result is not a simple warning; it mandates the immediate quarantine and destruction of the entire shipment, turning millions of euros of life-saving medicine into hazardous waste.
During transcontinental air freight or extended ground transit, shipments are frequently disconnected from active power sources for 72 to 120 hours. Survival relies entirely on the passive physical barrier of the shipper box.
To combat these extreme temperature risks, the pharmaceutical industry has historically relied on Expanded Polystyrene (EPS) or Polyurethane (PU) foam boxes. However, in modern, space-constrained logistics, these outdated materials commit two unforgivable financial sins:
Fatal Flaw 1: The Volumetric Weight Trap (The Freight Assassin)
Because EPS and PU foams have extremely low thermal efficiency, maintaining a stable internal temperature for 120 hours requires massive wall thicknesses, routinely reaching 150 mm. In aviation logistics, airlines charge based on "Volumetric Weight"—a calculation that severely penalizes large, bulky items. Let us look at the raw math: A typical EPS box with a 150 mm wall thickness might have exterior dimensions of 600x600x600 mm (a gross volume of 216 Liters). However, the internal usable space is only 300x300x300 mm (a payload volume of 27 Liters). This results in an abysmal payload ratio of exactly 12.5%. This means when a pharmaceutical company ships a traditional EPS box, an astonishing 87.5% of their premium transoceanic air freight budget is wasted entirely on shipping cheap styrofoam and trapped air, rather than the actual medicine.
Fatal Flaw 2: Crippling Payload Efficiency
In supply chain economics, space is money. The massive exterior dimensions of traditional PU/EPS shippers severely restrict the number of vaccine vials or clinical trial kits that can fit onto a standard PMC air cargo pallet or inside a refrigerated light truck.
During peak flu seasons, global pandemics, or critical clinical trial rollouts, supply chains are instantly bottlenecked by their own packaging. The inability to maximize the internal cargo volume forces logistics providers to charter additional flights and dispatch more vehicles, bleeding operational budgets dry and delaying critical medical deliveries.
Beyond the staggering financial losses of volumetric air freight, traditional insulation exposes pharmaceutical companies to catastrophic regulatory risks.
Fatal Flaw 3: Temperature Excursions & Payload Write-offs
The thermal resistance of traditional EPS and PU degrades rapidly under extreme external temperature fluctuations. For example, without heavy coolants, a typical EPS box allows internal temperatures to rise from 2°C to 8°C in under 24 hours. Once the internal temperature breaches the strict EU GDP limits, a "thermal excursion" is recorded. The entire payload—often containing millions of euros worth of targeted therapies or mRNA vaccines—is immediately written off and destroyed.
Fatal Flaw 4: Condensation and Traceability Failure
Because traditional shippers provide weak thermal barriers, severe temperature differentials cause the exterior packaging to sweat. This condensation degrades and smears the pharmaceutical tracking barcodes and compliance labels. Conversely, Woqin VIP shippers, when tested with a -20°C interior and a 40°C exterior at 80% RH, show absolutely zero condensation on the outer surface even after 48 hours. Under EU regulations, a biologic without a perfectly intact traceability barcode is legally treated as counterfeit and will be unconditionally rejected.
Fatal Flaw 5: The FAA/EASA Aviation Dry Ice LimitTo survive a 72-hour journey at -20°C, a standard EPS shipper requires approximately 15 kg of dry ice. However, dry ice sublimates into carbon dioxide gas. To prevent crew asphyxiation, global aviation authorities (FAA and EASA) enforce strict limits on the total weight of dry ice allowed per aircraft (often capped around 1,000 kg).
By upgrading to a Woqin VIP shipper, dry ice requirements plummet to less than 5 kg per box. This massive reduction allows airlines to safely load exactly 3 times more shipments per aircraft (e.g., 200 VIP boxes vs. only 66 EPS boxes under a 1,000 kg limit), preventing life-saving cargo from being stranded on the tarmac.
Fatal Flaw 6: Disposal Taxes & Scope 3 ESG DisastersEurope enforces the world’s strictest Extended Producer Responsibility (EPR) regulations. Traditional EPS foam is a single-use plastic nightmare. Receiving hospitals are hit with exorbitant disposal taxes, and this massive generation of plastic waste is directly added to the pharmaceutical company’s Scope 3 value-chain carbon emissions, devastating their global ESG (Environmental, Social, and Governance) ratings.
To eliminate these logistical and regulatory nightmares, top-tier EPCs and pharmaceutical giants are upgrading to Hebei Woqin’s Vacu-Slim™ and Vacu-Core™ VIP matrices.

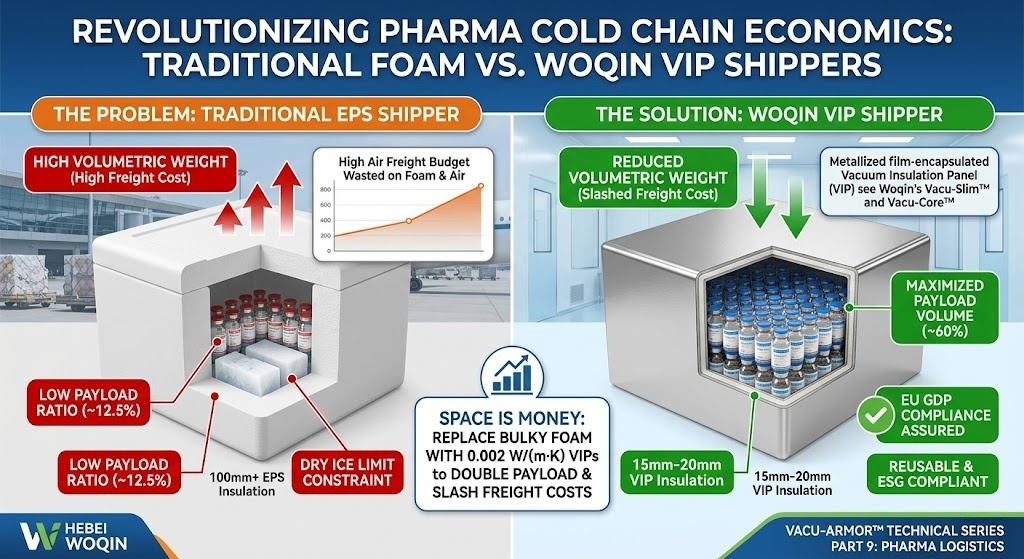

| Logistics Metric | Traditional EPS/PU Shippers | Woqin VIP Shippers (Vacu-Slim™ & Vacu-Core™) |
| Thermal Conductivity | Low efficiency (~0.035 W/(m·K)) | Absolute mastery (≤ 0.003 to 0.002 W/(m·K)) |
| Volumetric Efficiency | < 15% (Assuming 150 mm wall thickness) | Up to 60% (Wall thickness reduced to 15-20 mm) |
| Dry Ice Dependency | ~15 kg per standard -20°C shipper | < 5 kg (Allows 3x more cargo under FAA limits) |
| Temperature Hold Time | 48-72 hours (Based on typical 20 mm EPS) | 120+ to 168 hours (Zero excursion risk) |
| Air Freight Costs | Extremely High (Hit by volumetric weight penalties) | Slashed by up to 50% (Higher payload density) |
| Traceability Risk | High (Condensation ruins barcodes) | Zero Risk (Validated at 40°C / 80% RH) |
| ESG & Lifespan | Single-use plastic; high disposal tax | Core lasts 60 years; reusable for 50+ validated cycles |
To permanently break the volumetric freight trap and ensure 100% compliance with EU GDP regulations, Hebei Woqin has engineered a VIP matrix that fundamentally rewrites the economics of cold chain logistics.
Vacu-Slim™ (The Extreme Space Assassin)
Engineered specifically for extreme aviation cargo constraints where every single millimeter is highly monetized.
Extreme Profile: With standard thicknesses ranging from only 1.0 mm to 5.0 mm, it utilizes a high-barrier metallized film encapsulation to maximize the internal payload space.
Unrivaled Insulation: Despite being paper-thin, its initial thermal conductivity is strictly locked at ≤ 0.003 W/(m·K).
Climate Resilience: To guarantee zero thermal degradation across diverse global climate zones and tarmac conditions, Vacu-Slim™ is tested in strict accordance with IEC 60068-2-67, successfully surviving 1,000 hours of extreme "Double 85" (85°C/85% RH) damp-heat aging tests.
Vacu-Core™ (The Heavy-Duty Standard)
Designed for large temperature-controlled air freight containers (RMP/RAP) and refrigerated truck bodies (reefers), delivering unbeatable absolute thermal resistance.
Absolute Thermal Limit: Achieves an astounding thermal conductivity limit of 0.002 W/(m·K).
Multi-Decade Durability: Validated by ASTM C1455 accelerated aging standards, its integrated proprietary getters ensure the core vacuum remains ≤ 1.0 mbar even after 60 years. This robust core lifespan ensures the shipper can withstand 50+ validated global logistics cycles, turning a disposable box into a long-term asset.
In the strict economics of pharmaceutical logistics, the core rule is simple: "Space is Money."
By collapsing the insulation wall thickness of a vaccine shipper from a bulky 150 mm down to just 15 mm, logistics providers can maintain deep-freeze conditions while instantly multiplying their internal payload volume by two to three times.
This exponential increase in payload ratio means a pharmaceutical company can pack three times as many vaccines onto a single aviation pallet. Looking at the raw financial balance sheet: this directly saves tens of thousands of euros in air freight per transoceanic flight. It drastically slashes dry ice dependency, perfectly bypasses FAA/EASA cargo weight limits, and through its 50+ cycle lifespan, eliminates single-use plastic taxes while actively reducing a pharmaceutical giant's Scope 3 value-chain carbon emissions.
Do not let bulky styrofoam devour your air freight budget, and never expose high-value biologics to EU GDP compliance risks. It is time to upgrade your supply chain to the absolute physical limits of thermodynamics.
Claim Your Free VIP Payload Simulation: Send your current EPS/PU shipper dimensions to our engineering team. We will calculate exactly how much payload space you can reclaim and the specific air freight costs you will save per flight, delivering a comprehensive report within 5 business days.
Secure Engineering Support: For project-specific thermal guarantees and customized 3D thermal bridge simulations, consult the Hebei Woqin engineering desk.
Contact Ruibin An (CEO, Hebei Woqin) for technical procurement:
