The Balcony Dilemma in High-Rise Luxury: Achieving Zero-Step Level Thresholds with 0.007 W/(m·K) Stainless Steel VIPs

Part 1: The Hook & The Math

The Detailer’s Nightmare: The Zero-Step Paradox in Luxury High-Rises

In the architectural detailing of luxury high-rise apartments across Europe and North America, a seamless, "zero-step" transition between the interior hardwood flooring and the exterior balcony terrace is a mandatory design standard.

However, achieving this Level Threshold is widely considered an engineering nightmare. The physical paradox is brutal: to keep the indoor and outdoor floors perfectly flush, the sub-floor cavity permitted for thermal insulation is strictly limited to a mere 20mm to 30mm.

If you attempt to use traditional materials like Mineral Wool or Extruded Polystyrene (XPS), eradicating the structural thermal bridge would require 100mm to 150mm of thickness. The inevitable result? You are forced to build an unsightly "step-up" right at the balcony door, entirely destroying the architect's sleek, minimalist vision.

Conversely, if you sacrifice the insulation thickness to maintain the flush design, you create a massive structural cold bridge. The concrete slab will draw heat out rapidly, leading to immediate interstitial condensation, rotting timber, and the proliferation of toxic black mold right at the threshold track.

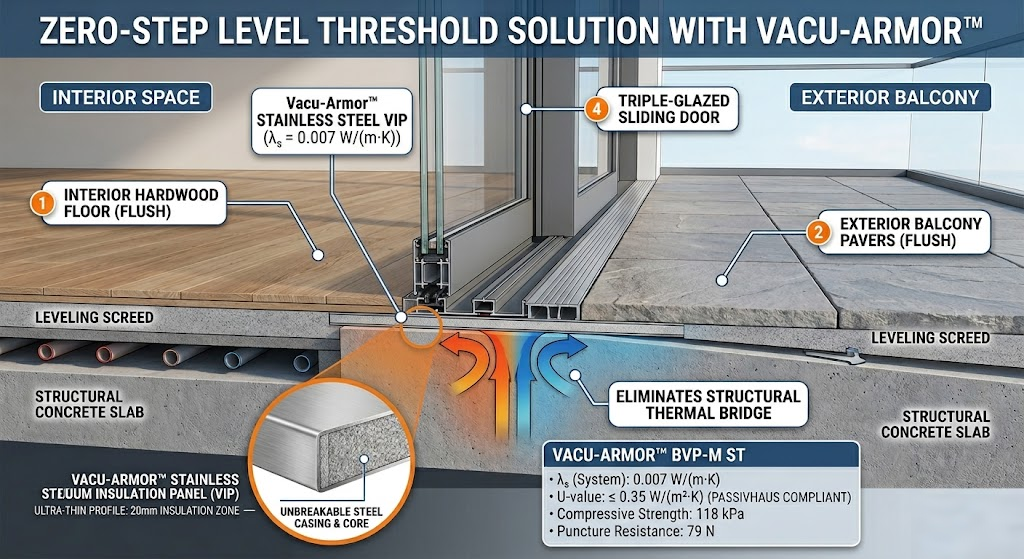

The Math of Reality: Calculating the 0.35 U-Value in a 20mm Gap

To solve this space paradox, architects need a material that operates on a different thermodynamic baseline. Enter Vacu-Armor™ (Supertech BVP-M ST)—a heavy-duty vacuum insulation panel fully encapsulated in laser-welded 304 stainless steel.

In the realm of advanced thermal engineering, transparency is critical. While Vacu-Armor™ boasts a staggering center thermal conductivity of 0.002 W/(m·K), we rigorously calculate for real-world structural detailing. Accounting for the stainless steel edge effects, the declared Overall System Thermal Conductivity is 0.007 W/(m·K).

Let the math speak for itself: If you deploy a single 20mm thick Vacu-Armor™ panel at the balcony threshold:

Thermal Resistance (R-value): R = d / λ = 0.020 m / 0.007 W/(m·K) = 2.85 m²·K/W

Thermal Transmittance (U-value): U = 1 / R ≈ 0.35 W/(m²·K)

A U-value of ≤ 0.35 W/(m²·K) is the magic threshold. It precisely meets the stringent requirements of Passivhaus (Passive House) detailing for connection joints. With Vacu-Armor™, you eradicate the cold bridge entirely within a 20mm profile, maintaining absolute architectural freedom without thermal compromise.

 Part 2: The Crush Zone & Data Matrix

The Crush Zone: Why Standard Foil VIPs Guarantee Frame Settlement

To achieve this 20mm profile, some contractors attempt to squeeze standard aluminum foil VIPs beneath the threshold. This is a high-risk gamble that almost universally ends in structural failure.

Standard foil VIPs are essentially soft envelopes. They typically possess a compressive strength of < 50 kPa. When subjected to the immense point loads of heavy, triple-glazed sliding door systems (e.g., Schüco, Reynaers, or Cortizo), the soft foil inevitably yields. This lack of structural rigidity leads to measurable door frame settlement within just 1 to 2 years. The result is catastrophic: expensive sliding mechanisms begin to jam, floor finishes crack, and contractor warranty claims skyrocket.

Vacu-Armor™: Heavy-Duty Structural Integrity & Site-Proof Resilience

Vacu-Armor™ eliminates this structural liability entirely. Engineered with a rigid 304 stainless steel envelope, it delivers an independently verified compressive strength of 118 kPa (at 10% compression). This equates to an extraordinary load-bearing capacity of ≈ 12 tons/m². It flawlessly supports the heaviest multi-track sliding doors without a millimeter of deflection.

Furthermore, sub-floor construction is a hazardous environment. A single sharp pebble or dropped trowel can puncture a standard foil VIP, instantly spiking its thermal conductivity from 0.004 back to 0.020+ W/(m·K), rendering it useless.

Vacu-Armor™ provides a "Site-Proof" 79 N of puncture resistance. It easily withstands dropped installation tools, sharp screed debris, and concentrated point impacts like high-heeled traffic. It ensures the vacuum seal—and the 0.007 W/(m·K) system performance—remains intact for the lifetime of the building.

The Ultimate Threshold Insulation Matrix

(Engineering data based on Passivhaus detailing requirements)

*Estimated thickness required to completely eliminate balcony thermal bridging (U ≤ 0.35 W/(m²·K)).

 Part 3: The Detailing Protocol, Acoustic Bonus & CTA

The Detailing Protocol: Eradicating Edge Thermal Bridging

Experienced architects know that a high-performance panel is only as effective as its installation geometry. Because the stainless steel envelope itself can conduct heat, improper installation leads to edge thermal bridging between the panels.

To ensure continuous thermal resistance and absolute Passivhaus compliance, Vacu-Armor™ is deployed using a strict, engineered installation sequence:

Preparation: 5mm leveling screed applied to the concrete slab to ensure a perfectly flat substrate.

Thermal Core: Installation of the Vacu-Armor™ Stainless Steel VIPs.

Edge Sealing (Critical Step): All joints between the steel panels are meticulously sealed with ultra-thin Aerogel Tape or expanding PU foam. This completely neutralizes residual edge conductivity.

Final Finish: 3mm adhesive applied directly over the panels, followed immediately by the luxury hardwood or stone floor finish.

The Acoustic Bonus: 24 dB Airborne Sound Reduction

Beyond thermal mastery, luxury high-rises demand absolute acoustic comfort. Balconies often face busy urban streets, and structurally continuous thresholds are notorious for transmitting external noise into the living space.

Tested by the renowned Tsinghua University Center for Building Environment, a 20mm layer of Vacu-Armor™ delivers a weighted sound reduction index (Rw) of 24 dB (measured strictly for Airborne Sound Insulation). You are not merely embedding a thermal shield; you are seamlessly integrating a highly effective acoustic break right beneath the sliding door track.

Conclusion: Stop Compromising on Design

For decades, the architectural community has accepted a false dichotomy: either build an ugly step at the balcony door to accommodate bulky insulation, or sacrifice thermal performance to achieve a flush transition.

With Vacu-Armor™ Stainless Steel VIPs, that compromise is over. You can now deliver the flawless, zero-step level thresholds your clients demand, backed by the absolute assurance of Class A1 fire safety, 118 kPa structural stability, and Passivhaus-grade 0.007 W/(m·K) thermal mastery.
