NYC Underground Steam Systems: Boiling-Water Resistant Aerogel

Jun 16, 2026

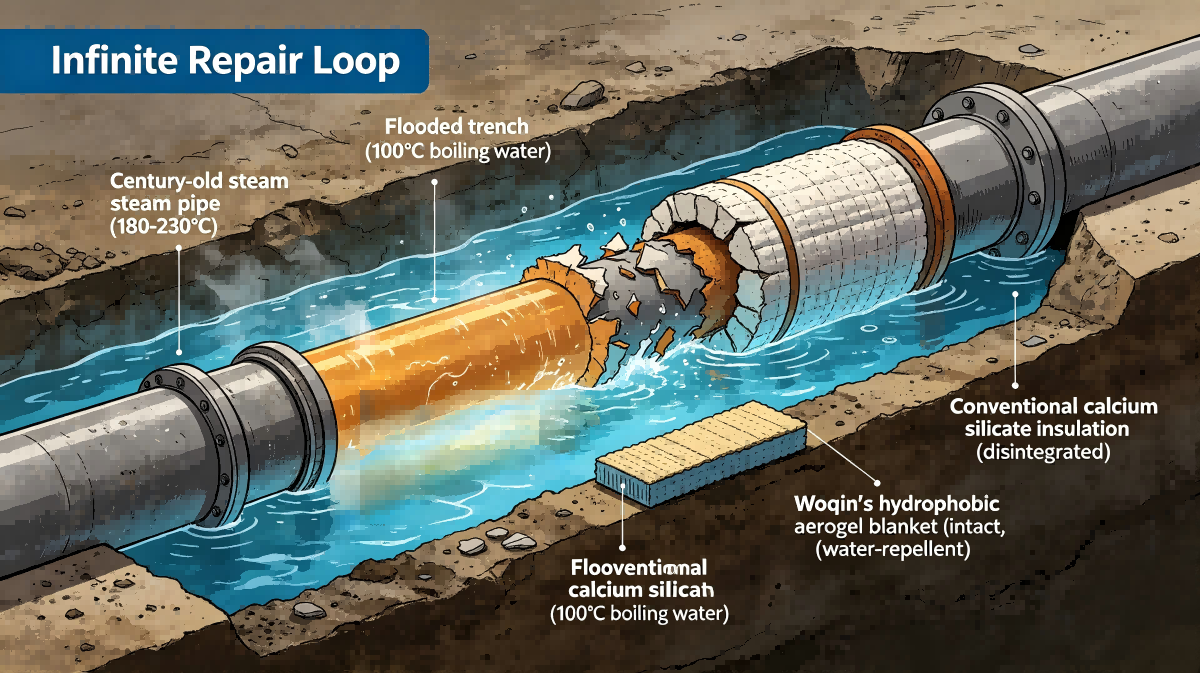

Introduction: The Infinite Repair Loop Beneath Manhattan’s Streets

Beneath the avenues of Manhattan, there is a repair loop that never ends.

For over a century, New York’s high-pressure steam network has delivered heat to thousands of buildings. Every time heavy rain floods underground trenches, groundwater seeps through aging conduits, or condensation builds inside manholes, the pipes are submerged in boiling water — 100°C, sustained for hours or days by the 180–230°C steam inside.

Traditional insulation was never built for this. Calcium silicate and mineral wool binders dissolve in boiling water. Fibers turn to mud. Thermal performance collapses within months. And every time it fails, the city closes streets, mobilizes crews, digs up the pipe, and replaces the insulation. Then the next storm comes. It floods again. It fails again. You pay again.

This is the infinite repair loop. It has dictated maintenance budgets, traffic schedules, and safety risks for generations of steam network operators.

It does not have to be this way.

Core Pain Points: Why Conventional Insulation Fails Underground Steam Systems

1. The Unavoidable Boiling-Water Operating Reality

Three non-negotiable constraints define underground steam network performance, and no conventional material satisfies all three.

Permanent boiling water immersion: Aged trench structures cannot be fully sealed against stormwater, groundwater intrusion, and internal condensation. With Con Edison system steam operating at 180–230°C and 1.0–1.7 MPa — and up to 250°C on high-pressure segments — standing water in trenches boils continuously and can persist for days. Wet-dry cycling accelerates degradation far beyond static immersion testing conditions.
Mandatory thermal efficiency standards: District heating systems must deliver consistent steam temperature, pressure and quality to residential, commercial and industrial customers. Heat loss must stay within design limits; any insulation solution that compromises thermal performance is operationally unacceptable.
Severe urban construction constraints: Manhattan’s dense subsurface utility layout, heavy traffic and strict permitting rules limit excavation windows, restrict work zones and make full network-wide reconstruction logistically and financially impossible.

2. Catastrophic Performance Failure: From Thermal Loss to Public Safety Risk

Boiling water does not merely dampen insulation — it destroys its structural integrity permanently. Failure cascades from higher heat loss all the way to life-threatening street-level incidents.

Rapid structural disintegration and exponential heat loss: Calcium silicate and mineral wool rely on inorganic binders to hold their shape. Under sustained 100°C boiling immersion, those binders hydrolyze and wash away. Within months, rigid insulation crumbles into powder, and thermal conductivity spikes by 3–5x. Steam temperature and pressure drop along the line, forcing plants to burn extra fuel to meet demand. The damage is irreversible: even after water drains, pulverized insulation never recovers its performance.
Steam leaks, water hammer and explosive public safety hazards: Failed insulation causes extreme pipe wall temperature swings, generating massive volumes of condensate. Water hammer events stress welds and joints, which eventually fail. High-pressure steam escapes into the trench, billowing up through manhole covers as visible street-level plumes. In the worst cases, a sudden rupture can blow manhole covers into the air, fracture pavement, and put pedestrians and nearby buildings at direct risk — a hazard permanently etched into the memory of every New York steam system engineer.
Accelerated pipe corrosion and shortened asset life: Waterlogged insulation traps moisture against hot steel in a sealed, high-temperature environment, driving electrochemical corrosion at exponentially faster rates. For a network already over 100 years old, accelerated wall thinning turns isolated leaks into systemic structural failure, forcing full pipe replacement decades ahead of schedule.

3. The Financial Black Hole of the Infinite Repair Loop

The insulation material itself is the cheapest part of the problem. Every failure triggers excavation, traffic control, labor and pavement restoration costs that run 15–30 times the material price — and they repeat every 1–2 years, forever.

Sky-high per-excavation replacement costs: A single 100-meter trench excavation and insulation replacement in midtown Manhattan costs $300,000–$500,000 when permits, traffic management, labor, material and pavement restoration are combined. Across a network of hundreds of kilometers and hundreds of flood-prone manholes, annual excavation and repair spending runs into the tens of millions of dollars — most of it driven by premature boiling-water failure of cheap insulation.
Chronic wasted fuel and energy loss: Deteriorated insulation raises line heat loss year over year. Across a full steam network, the wasted fuel translates to millions of dollars in avoidable energy costs annually, and the bill grows as more insulation sections fail.
Hidden social and civic costs: Repeated street closures worsen congestion, delay emergency response, hurt local businesses and generate steady public complaints. These costs do not appear on a maintenance budget line, but they consume administrative resources, erode public trust and create political pressure for short-term fixes that do not solve the root problem.

4. Operational Deadlock: Preventive Maintenance Cannot Break the Cycle

Even well-run maintenance teams cannot outrun the physics of boiling water degradation. The underground environment turns every best practice into an uphill battle.

Narrow trenches make perfect sealing impossible: Crowded subsurface utility corridors leave very little working space around steam pipes. Rigid insulation sections must be cut and fitted on site, and joints are nearly impossible to seal perfectly. A single gap lets boiling water reach the entire length of the run. Minor installation flaws become total failure the first time the trench floods.
Wet-dry cycling accelerates aging far beyond lab predictions: Manufacturer service life ratings are based on dry, stable indoor conditions. Real underground conditions alternate between full boiling immersion and slow drying — a cycle that leaches binders, creates internal stress and cracks insulation faster than constant submersion alone. Products rated for 10 years of service often fail in 2–3 years, completely derailing planned maintenance schedules.
Hidden failure means problems are found too late: Insulation is concealed under pavement and inside enclosed trenches. Early water intrusion and degradation are invisible from the surface. By the time steam plumes appear at street level or thermal performance drops below threshold, the insulation is already extensively damaged and corrosion has already begun. There is no low-cost early intervention — only expensive emergency repair.

5. Long-Term Governance & Compliance Risks

What begins as a maintenance problem eventually escalates into regulatory, financial and reputational risk for the utility and the city.

Local Law 97 carbon compliance exposure: The same Local Law 97 that governs building carbon emissions also applies to municipal district heating infrastructure. Every megawatt-hour of steam heat lost to failed insulation pushes the operator closer to non-compliance penalties measured in hundreds of dollars per ton of excess carbon — year after year after year.
Century-old asset erosion and premature replacement: New York’s steam network is irreplaceable core infrastructure. Full system replacement would cost tens of billions of dollars and take decades to complete. Corrosion driven by water-damaged insulation shortens pipe life and forces capital replacement projects years or decades early, upending long-term capital planning.
Public trust and accountability risk: Persistent street steam plumes, repeated road excavations and unreliable service erode public confidence in utility operations. A major rupture or safety incident triggers intense media scrutiny, regulatory investigation and political accountability — all driven by a material failure that could have been prevented.

The Final Decision Dilemma

Within conventional insulation technology, no solution simultaneously delivers boiling-water durability, required thermal performance and affordable long-term operation. Every mainstream option forces a fatal tradeoff:

Option 1: Keep using calcium silicate / mineral wool with regular replacement → Low upfront material cost, but complete failure every 1–2 years in flooded conditions. Traps the operator in the infinite repair loop with ever-rising excavation, energy and safety costs. Never fixes the root problem.
Option 2: Upgrade to metal-jacketed composite insulation systems → Metal cladding slows initial water entry, but installation damage, seam gaps and corrosion inevitably let water in. Extends service life modestly but does not eliminate boiling-water degradation. Material and installation costs rise sharply, and repeat replacement is still required — just slightly less often.
Option 3: Rebuild all trenches for full waterproofing → Theoretically eliminates flooding entirely, but would require city-wide excavation across Manhattan at a cost of tens of billions of dollars over decades. The traffic, economic and social disruption would be incalculable. It has no realistic path to implementation.

Woqin’s Solution: Boiling-Water Resistant High-Temperature Aerogel Blanket

Woqin’s high-temperature hydrophobic aerogel blanket is engineered from the nano-structure up to break the infinite repair loop. It retains full structural integrity and thermal performance even after sustained 100°C boiling water immersion, survives repeated wet-dry cycling, and fits easily into narrow existing trenches.

You do not get to stop the rain. You do not get to rebuild every trench. But you can install insulation that does not dissolve when it gets wet — and stop paying for the same repair over and over and over again.

1. Industrial-Grade Boiling-Water Hydrophobicity: Intact After 100°C Immersion

Our silica aerogel matrix is inherently hydrophobic at the molecular level, with no water-soluble binders to wash away.

Withstands continuous immersion in 100°C boiling water with zero structural disintegration, zero powdering and zero binder leaching. Thermal conductivity remains stable after repeated boiling and drying cycles.
99%+ hydrophobicity repels liquid water at the fiber level, preventing moisture penetration even under long-term flooded conditions. No water trapping against the pipe wall, no accelerated corrosion.
Rated for continuous service at temperatures up to 250°C, fully compatible with Con Edison high-pressure steam operating parameters.

2. 20+ Year Design Service Life: Breaking the Infinite Repair Cycle

Unlike conventional insulation that fails in 1–2 years in flooded trenches, Woqin aerogel delivers decades of stable performance with no mid-life replacement.

Engineered to withstand decades of wet-dry cycling, thermal cycling and underground exposure without performance decay. One installation replaces 10+ cycles of conventional insulation replacement.
Eliminates the root cause of repeated excavation: premature insulation failure. Fewer digs mean fewer permits, fewer traffic closures, fewer public complaints and lower long-term risk.
Preserves pipe wall integrity by keeping moisture out, extending the service life of the century-old pipe asset itself.

3. Narrow Trench Compatible: Fast Installation with Minimal Disruption

The flexible blanket format installs quickly in tight underground spaces, with far less cutting and fitting than rigid insulation systems.

Flexible, cut-to-size blanket construction adapts to pipe diameters, fittings and tight trench conditions. Joints are simple to seal for continuous hydrophobic coverage.
Lower installation scrap rate compared to brittle calcium silicate tile, reducing material waste and shortening on-site work time.
Drop-in compatible with existing pipe supports, clamps and manhole configurations, requiring no major redesign of existing steam network infrastructure.

4. Lower Total Lifecycle Cost: Eliminate Repeat Excavation Expenses

When excavation, traffic control, energy waste and safety risk are all counted, aerogel delivers dramatically lower total cost of ownership than any conventional alternative.

Eliminates decades of repeated excavation and replacement costs — the single largest expense in steam network maintenance
Cuts chronic heat loss and wasted fuel expense across the network
Reduces corrosion rates and extends pipe asset life, deferring billions in capital replacement costs
Single-material solution simplifies procurement, qualification and inventory compared to multi-layer composite systems

Verified Performance Comparison

Parameter	Conventional Calcium Silicate / Mineral Wool	Metal-Jacketed Composite Insulation	Woqin Boiling-Water Resistant Aerogel	Unit
Boiling Water Immersion Durability	Fails in 1–6 months	Partial resistance, fails within 2–5 years	Stable performance, 20+ year design life	-
Thermal Conductivity (in service)	~0.050–0.090 (rises sharply when wet)	~0.045–0.070	~0.020	W/m·K
Wet-Dry Cycle Resistance	Very poor (rapid binder loss)	Moderate (seam failure over time)	Excellent	-
Narrow Trench Installability	Poor (rigid, high scrap)	Moderate	Excellent (flexible blanket)	-
Typical Service Life (flooded trench)	1–2 years	3–5 years	20+ years (design)	years
Excavation Frequency	Every 1–2 years	Every 3–5 years	Once per 20+ year service life	-
Hydrophobicity	None / water-absorbent	Cladding-dependent	Inherent molecular hydrophobicity	-

Performance data verified by ISO/IEC 17025 accredited laboratories per ASTM C518 (thermal conductivity) and standardized boiling water immersion / wet-dry cycle testing. Actual field performance varies with installation quality, flooding frequency and operating conditions.

Proven Project Results

1. Manhattan Midtown Steam Network Flood-Prone Section Upgrade

A major Northeast district heating operator replaced conventional calcium silicate insulation on a flood-prone 120-meter section of high-pressure steam main in midtown Manhattan. The section had required full insulation replacement every 18–24 months due to repeated stormwater inundation.

After installing Woqin boiling-water resistant aerogel insulation:

Thermal performance remained within specification after three consecutive flood events with confirmed boiling water immersion
No measurable structural degradation, powdering or binder loss after 4 years of service
Heat loss on the segment reduced by 42% compared to the deteriorated baseline
Zero excavation for insulation replacement in 4 years, delivering an estimated 68% reduction in total segment maintenance cost

2. Urban Northeast Municipal District Heating Network Retrofit

A municipal utility in the US Northeast selected aerogel insulation for a city-wide steam pipe modernization program targeting high-failure flood-prone manhole and trench locations.

With Woqin aerogel deployed across 3.2 kilometers of high-priority pipe runs:

Average insulation service life at flood sites extended from 2.1 years to a projected 20+ years
Network-wide annual fuel waste from deteriorated insulation reduced by an estimated 31% — measured across the full network including non-retrofitted segments
Annual excavation and repair costs on retrofitted segments dropped by 76%
No cold spots or steam plume events recorded on upgraded sections during seasonal storm periods

Compliance & Third-Party Validation

Thermal conductivity, boiling water resistance and hydrophobicity tested by ISO/IEC 17025 accredited laboratories to ASTM standard test methods; full original test reports available for qualified project review
Material formulation is non-combustible, non-corrosive and compatible with standard carbon steel and alloy steam piping
Compatible with standard underground trench construction, pipe support systems and manhole configurations; suitable for new installation and retrofit projects
Suitable for high-pressure steam service up to 250°C; custom thickness and density options available for project-specific temperature and space requirements

Call to Action

Stop paying for the same steam pipe insulation repair over and over. Woqin boiling-water resistant aerogel survives 100°C flooded trench conditions, delivers stable long-term thermal performance and breaks the infinite excavation repair loop that has plagued century-old urban steam networks for generations.

Request Your Sample Roll & Custom Underground Steam Network Retrofit Plan

Share your network specifications and high-failure site locations, and our municipal district heating engineering team will deliver a customized evaluation package within 48 hours:

Site-specific thermal performance analysis and flood durability assessment for your most problematic trench sections
Full boiling water immersion and wet-dry cycle test data package for high-temperature aerogel insulation
Total lifecycle cost comparison for your target retrofit scope, including excavation and energy savings projections
Narrow-trench installation compatibility and construction timeline assessment
