Heritage Building Retrofit: Ultra-Thin Aero-Plaster IWI for Boston & Montreal Historic Walls

Jun 09, 2026

The $3M Historic Value Eraser Hiding in Your Retrofit Plan

On premium historic streets in Boston and Montreal’s cobblestone old town, century-old brownstones and rowhouses are more than buildings — they are cultural landmarks and premium assets commanding $1,000–$1,500 per square foot in market value. Yet every energy retrofit today forces owners and architects into a no-win choice: violate heritage protection laws by adding exterior insulation, or sacrifice the very character and space that make the properties valuable by installing thick internal wall insulation.

For a typical 2,500 sq ft historic apartment, conventional 150mm mineral wool IWI eats up 250 sq ft of usable living space — an entire bedroom — and requires cutting or covering original wood window casings, plaster crown moldings, stone baseboards, and fireplace mantels. This irreversible damage strips the property of its heritage premium, which typically accounts for 15–25% of total market value, erasing $2.5–$3.75 million in asset value before the project even opens.

Worse still is the invisible damage no budget sheet accounts for. Traditional IWI traps moisture inside century-old masonry walls, triggering freeze-thaw decay that crumbles brick from the inside out and breeds toxic mold that sparks seven-figure tenant litigation. Between heritage commission rejections, energy code failures, and long-term structural risk, most historic retrofits end up over budget, behind schedule, and burdened with decades of hidden liability.

Core Pain Points: Why Traditional IWI Fails Every Heritage Retrofit

1. The Regulatory Double Bind: Facade Protection Laws vs. Carbon Mandates

Historic preservation rules in both markets are non-negotiable. Local landmark commissions and heritage conservation councils strictly prohibit any modification to exterior facades, including brickwork, window frames, cornices, and stone trim. Exterior wall insulation (EWI) is ruled out entirely, leaving IWI as the only permitted path.

At the same time, tightening energy codes — Massachusetts’ 2024 IECC-aligned building energy code and Quebec’s Code de construction du Québec (CCQ) energy efficiency requirements — mandate steep reductions in building heat loss. Conventional thick IWI frequently underperforms in real-world applications due to thermal bridging at studs and seam gaps, which commonly contributes to energy audit shortfalls and delayed occupancy permits. Designs that alter key original interior heritage details typically face pushback from preservation boards, which can add 3–6 months of approval cycles and result in hundreds of thousands of dollars in liquidated damages for mid-sized projects.

2. The Space Penalty: Erasing 10% of Your Most Valuable Real Estate

To hit minimum R-values, standard mineral wool IWI with gypsum board and vapor barrier reaches 120–180mm in total thickness. For every linear meter of exterior wall, the interior is pushed inward by 6–7 inches. In a 200㎡ historic apartment, this translates to 20–28㎡ of lost floor area — roughly the size of a full bedroom or home office.

The greater loss, however, is historic character. Hand-carved wood window surrounds, plaster cornices, marble baseboards, and original fireplace surrounds must either be cut back, covered over, or fully removed. This irreversible damage strips the property of its heritage premium, devolving a one-of-a-kind historic residence into a cramped, generic older building with no distinguishing market value.

3. The Hidden Moisture Time Bomb: Freeze-Thaw Decay & Mold Litigation

This is the most catastrophic long-term flaw of conventional IWI, and the one almost never disclosed at bid time. Adding insulation to the interior side of a masonry wall drops the brick’s temperature well below the indoor dew point during cold winters. Warm, moist indoor air seeps through drywall seams and condenses on the cold brick face, creating a permanently wet sandwiched layer between insulation and wall.

In Boston and Montreal, where winter temperatures regularly drop below -10°C, this trapped water freezes and thaws in repeating cycles. Each freeze expands water by 9%, gradually pulverizing the internal structure of the brick. Within 5–10 years, masonry begins to crumble from the inside out, cutting the building’s structural lifespan in half.

The trapped moisture also creates a perfect breeding ground for toxic mold. Spores spread into living spaces, triggering Sick Building Syndrome, respiratory illness, and class-action tenant lawsuits. A single mold verdict in a historic multi-unit building can exceed $5 million. Remediation requires full removal of the insulation system, costing 3–5 times the original installation and causing further damage to historic fabric.

4. The Lifecycle Cost Trap: Disruption & Repeat Renovations

Historic building sites come with severe work restrictions: no heavy power tools, no structural modifications, and strict dust and noise controls. Conventional IWI requires a minimum of six steps — framing, insulation placement, vapor barrier installation, drywall hanging, taping, and finishing — all performed by hand in tight quarters. Labor productivity drops by 60% compared to new construction, doubling installed cost.

Worse, standard mineral wool IWI has a service life of only 10–15 years in historic masonry applications, due to moisture degradation and settling. Over the remaining 80+ year lifespan of a 100-year-old building, the insulation system must be fully replaced 4–5 times. Each replacement requires full tenant relocation, business interruption, and additional damage to historic finishes. Total lifecycle cost reaches 6–8 times the initial investment.

Woqin’s Solution: 22mm Aero-Plaster Composite System – Non-Destructive Heritage IWI

Woqin’s Aero-Plaster composite system was engineered specifically to solve the historic retrofit paradox. By integrating high-performance aerogel or VIP core material directly into a precision gypsum board substrate, we deliver full code-compliant thermal performance in a total thickness of just 22mm — minimizing space loss, protecting historic details, and mitigating moisture damage in one factory-prefabricated panel.

1. 22mm Ultra-Thin Profile: Preserve 98% of Space & Nearly All Historic Details

At only 22mm total thickness, the Aero-Plaster system is 1/7 the depth of conventional 150mm mineral wool IWI. For a 200㎡ apartment, total floor area loss drops from 20–28㎡ to less than 4㎡ — a difference barely perceptible to occupants.

Most critically, the slim profile eliminates any need to alter original interior heritage features. Window casings, crown moldings, baseboards, fireplace surrounds, and door frames remain fully exposed and intact. There is no cutting, no trimming, and no permanent covering of historic fabric. The non-destructive design supports first-pass heritage commission approval, preserving the full cultural and market value of the property.

2. Breathable Moisture Regulation: Mitigate Condensation & Structural Decay Risks

Unlike traditional vapor-barrier systems that trap moisture inside walls, the Aero-Plaster system incorporates an integrated polymer moisture-control layer with one-way breathability. It allows trapped moisture inside the masonry to diffuse outward and dry naturally, while blocking liquid water and bulk humidity from migrating inward from the interior.

This keeps the brick substrate in a stable, dry state year-round, effectively mitigating the freeze-thaw degradation cycle that damages historic masonry. Wall surface temperatures remain consistently 3°C above the dew point under standard operating conditions, significantly reducing condensation risk and eliminating the core conditions that drive mold growth. The century-old structural wall is protected, not damaged, by the retrofit.

3. A1 Fire Safety & 50-Year Design Life: Match Historic Building Longevity

The aerogel and VIP core materials are 100% inorganic, achieving a Class A1 non-combustible rating — one of the highest fire safety classifications for historic buildings. There is no toxic smoke, no flame spread, and no additional fire load added to the structure.

Accelerated aging per ASTM C1512 methodology confirms less than 5% thermal performance degradation over 50 years of simulated service life, verified by ISO/IEC 17025 accredited third-party laboratories. One installation matches the remaining design life of the historic building, eliminating the cycle of rip-and-replace renovations that plague conventional IWI. There is no mid-life replacement cost, no repeated tenant disruption, and no cumulative damage to historic fabric.

4. Fast, Low-Disruption Installation: Cut Labor & Downtime by an Estimated 60%

Aero-Plaster panels are factory-fabricated to exact project dimensions and installed via direct adhesive application. No framing, no loose insulation, no separate vapor barrier, and no multi-layer finishing. The single-panel installation cuts on-site steps from six to two.

In constrained historic building sites, installation speed is 2.5 times faster than conventional IWI. A typical mid-rise floor that would take 8 weeks to complete with mineral wool can be finished in 1.5 weeks. At Boston’s prevailing historic restoration wage of $85–$110 per hour, this translates to an estimated $95,000–$110,000 in direct labor savings per floor. Dust and noise are minimized, allowing phased renovation in occupied hotels, apartment buildings, and offices without full tenant relocation, reducing rental and revenue losses during construction by an estimated 75%.

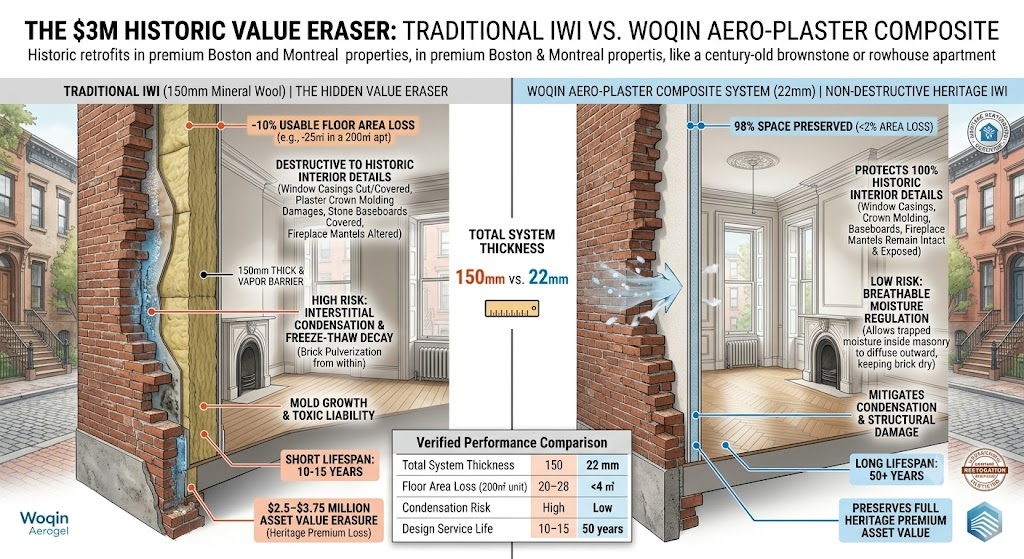

Verified Performance Comparison

Parameter	Traditional Mineral Wool IWI (150mm)	Woqin Aero-Plaster System (22mm)	Unit
Total System Thickness	150	22	mm
Floor Area Loss (200㎡ unit)	20–28	<4	㎡
Wall U-Value	0.28	0.22	W/(m²·K)
Condensation & Freeze-Thaw Risk	High (severe structural decay risk)	Low (breathable moisture regulation)	-
Historic Interior Detail Compatibility	Incompatible (covers/trims features)	Highly compatible (no permanent modification)	-
Installation Time (per typical mid-rise floor)	8 weeks	1.5 weeks	-
Design Service Life	10–15	50	years
Fire Safety Classification	Class A1	Class A1	-

Performance data verified by ISO/IEC 17025 accredited laboratories per ASTM C518 standards. Actual on-site results may vary based on wall construction and local climate.

Proven Project Results

1. Landmarked Brownstone Apartment Retrofit, Northeast U.S. Historic District

A 1910 landmarked brownstone in a major Northeast historic district required an energy upgrade to meet 2024 IECC requirements. The initial 150mm mineral wool IWI plan was flagged by the local landmarks commission for its impact on original wood window casings and a historic marble fireplace, with an estimated 22㎡ loss of living space projected.

When the project team adopted the Woqin Aero-Plaster system:

Total insulation thickness of 22mm preserved 100% of visible historic interior details, and its non-destructive profile was a key factor in securing first-pass commission approval
Wall U-value reached 0.22 W/(m²·K), exceeding IECC 2024 requirements
Full apartment installation completed in 10 days with no resident relocation
Three years post-installation: no observed condensation or mold growth, and original masonry remains structurally intact

2. Boutique Heritage Hotel Renovation, Core Canadian Historic District

A 120-year-old boutique hotel in a core Canadian historic district, listed on the provincial heritage register, needed a carbon reduction upgrade to maintain its luxury market positioning. Conventional IWI would have reduced guest room area by 12% and damaged original stone baseboards and plaster ceilings.

With Woqin Aero-Plaster + VIP composite system:

Guest room floor area loss limited to 1.2%, invisible to guests and preserving full nightly premium rates
Building heating energy use reduced by 32%, meeting provincial carbon targets
Phased floor-by-floor installation allowed the hotel to remain fully operational throughout the project
Delivering a simple payback period of 4.2 years for this specific project, including energy savings and avoided revenue disruption

Compliance & Third-Party Validation

Thermal performance tested in accordance with ASTM C518 by ISO/IEC 17025 accredited laboratories, with full test reports available for qualified project review
Fire classification tested to EN 13501-1 Class A1, with performance characteristics aligned to the most stringent fire safety expectations for North American historic buildings. Full test data is available for code official review on qualified projects
Breathable moisture control system validated to reduce interstitial condensation risk in cold-climate masonry walls, aligned with international historic building science best practices
Engineered to align with interior alteration guidelines set by North American heritage commissions, supporting first-pass approval when installed per project specifications, with no permanent modification to exterior facades or historic interior features

Call to Action

Don’t let outdated insulation technology force you to choose between preserving historic character and meeting modern energy standards. The Aero-Plaster system delivers both — without the hidden structural damage, legal risk, and lifecycle cost of traditional IWI.

Download Your Free Heritage Building IWI Retrofit Package

Submit your project specifications, and our historic building engineering team will deliver a customized package within 24 hours:

Site-specific thermal simulation for Boston / Montreal climate conditions
Standard construction detail library for window surrounds, baseboards, corners, and fireplace interfaces, with project-specific adaptation guidance
20-year lifecycle ROI comparison vs. conventional IWI
Free Aero-Plaster sample panel to verify thickness, finish, and installation simplicity

[ Download the Technical Whitepaper & Detail Set ]

Explore Our Full Extreme Insulation Solution Series

Disclaimer

All performance data and project examples are for informational purposes only. Actual results vary based on site conditions, installation quality, and local climate. This document does not constitute a guarantee of code compliance, energy savings, or project approval. All projects should be evaluated by a licensed engineer and local code official.
