Introduction: Breaking the Thermal Protection Trilemma of the Commercial Space Age

Every gram added to a rocket is paid for three times over: in launch cost, in lost payload capacity, and in mission safety margin.

As commercial space programs push for lower launch costs, faster turnaround, and deeper solar system reach, thermal protection systems are no longer a secondary component — they are a core bottleneck of vehicle performance. A single rocket must simultaneously withstand thousands of degrees of engine exhaust and maintain -253°C liquid hydrogen fuel storage, all while surviving 3–6G launch acceleration and high-frequency vibration.

For decades, the industry has operated under an unspoken rule: you can only optimize for two out of three. Wide temperature range and reliability come with crippling dead weight. Lightweight design trades away structural integrity under vibration. High strength comes with narrow thermal limits. This is the aerospace thermal protection trilemma — and it has constrained every launch vehicle design for a generation.

It does not have to be this way.

Core Pain Points: Why Conventional Insulation Fails Modern Aerospace Missions

1. The Unbreakable Trilemma: Three Constraints That Lock Material Selection

Thermal protection design for spacecraft is governed by three non-negotiable physical laws. No conventional material satisfies all three at once.

Extreme cross-temperature range requirement: A single vehicle faces dual thermal extremes: engine plume and aerodynamic heating reach over 1000°C, while liquid hydrogen (LH₂) tanks must hold steady at -253°C and liquid oxygen (LOX) at -183°C — a total temperature span exceeding 1200°C. Standard insulation materials only perform within a narrow temperature band, forcing engineers to stack multiple layers and add system weight.
Non-negotiable gram-level weight discipline: For commercial launch vehicles, every kilogram of mass to orbit carries a direct price tag of approximately $2,700 for LEO missions, and multiples higher for deep space. Every gram of insulation dead weight displaces one gram of revenue-generating payload. Thick conventional insulation systems add hundreds of kilograms of unnecessary mass, eroding the core economics of each launch.
High-vibration launch structural mandate: Launch exposes all materials to 3–6G longitudinal acceleration, transonic buffeting, and high-frequency engine vibration. Insulation must remain fully intact — no cracking, delamination, or dust shedding. Brittle materials that fracture under vibration do not just lose thermal performance; they release debris that can damage precision instruments and become a mission-critical hazard.

2. Performance Failure Catastrophe: Thermal Runaway as a Mission-Level Risk

Thermal insulation failure is not a minor efficiency loss — it triggers propellant waste, equipment shutdown, and total mission loss. It is the direct consequence of prioritizing weight and cost over full-envelope performance.

Cryogenic side: Uncontrolled boil-off compresses launch windows and threatens precisionUnder conventional cryogenic insulation schemes, liquid hydrogen boil-off rates can reach 3–5% per day, while mission-critical specifications require boil-off to stay below 1%. On the ground, daily boil-off of tons of expensive LH₂ does not just waste propellant — it continuously shrinks the launch window. A 24-hour delay can accumulate enough boil-off to leave insufficient propellant for the mission, forcing a full scrub and wasting millions in launch preparation costs. On orbit, even a 1% propellant error can alter trajectory enough to miss a target orbit or deep space encounter, rendering the entire mission worthless.
High-temperature side: Thermal radiation penetration endangers structure and avionicsEngine plume radiation and re-entry aerodynamic heating will rapidly conduct through underperforming insulation, degrading structural strength and causing avionics overheating and failure. Traditional ceramic thermal protection tiles offer high temperature resistance but are inherently brittle; crack propagation under thermal stress can cause total TPS (Thermal Protection System) failure, a root cause of multiple historical aerospace accidents.
Thermal cycle fatigue: The hidden killer of reusable rocketsReusability is the foundation of commercial space cost reduction. Conventional insulation materials degrade rapidly under repeated cycles of ambient → high temperature → cryogenic cold. Each flight requires extensive inspection, repair, and replacement, driving up maintenance man-hours and extending turnaround time. The result: the cost savings promised by reusable technology are erased by insulation system upkeep.

3. The Hidden Financial Burden: Dead Mass That Costs Millions

The purchase price of insulation is negligible compared to the cost of launching its weight. This is the invisible expense most programs underestimate.

Exponential launch cost amplification: Achieving equivalent thermal performance with conventional materials requires 3–5 times the mass of advanced aerogel. For a medium-lift vehicle, this can add hundreds of kilograms of insulation dead weight — corresponding to millions of dollars in wasted launch capacity, orders of magnitude higher than the material cost itself.
Lost payload revenue: A rocket’s lift capacity is fixed. Every kilogram occupied by insulation is one kilogram less of satellite, cargo, or experiment payload. For commercial launch providers, this directly reduces revenue per flight and weakens pricing competitiveness in a crowded market.
Hidden design iteration costs: Compensating for excess insulation mass requires structural optimization, engine thrust upgrades, and extended engineering cycles. In a fast-iterating commercial space market, weight drag from legacy materials slows development timelines and closes windows of market opportunity.

4. Structural Reliability Breakdown: Vibration, Contamination, and Maintenance Drag

Mechanical failure of insulation creates cascading risks across the entire mission lifecycle — from integration on the ground to operation in space.

Cracking and delamination under launch vibrationBrittle ceramic tiles, standard CO₂-dried aerogel, and even conventional MLI (Multi-Layer Insulation) are prone to cracking, delamination, and inter-layer tearing under high-frequency launch vibration. Local insulation failure triggers cascading thermal damage to vehicle structure; liberated debris can impact vehicle surfaces and damage external sensors, causing unforeseen and potentially catastrophic faults.
Irreversible dust contamination of precision hardwareDust-shedding insulation materials release nanoscale particles under vibration. Spacecraft optical sensors, precision electronics, bearings, and fluid lines require aerospace-grade cleanliness. Dust deposition causes sensor drift, optic contamination, and moving part seizing — faults that are effectively unreachable on orbit and can render high-value payloads completely useless.
Sky-high integration and maintenance complexityCeramic tiles and MLI require extremely tight installation tolerances, suffer high scrap rates from minor handling damage, and demand long integration timelines. For reusable vehicles, post-flight tile-by-tile inspection and repair is labor-intensive and expensive, preventing the rapid turnaround required for high-flight-rate commercial operations.

5. Competitive Erosion: The Three-Stage Elimination Chain

For leading commercial space firms, thermal protection technology is not a commodity part — it is a core competitive differentiator. Falling behind in this technology triggers a cascading loss of market position.

Stage 1: Losing the LEO price warCompetitors with lighter, more efficient insulation deliver more payload at lower cost per kilogram. In competitive commercial launch bidding, cost and payload capacity are the primary award criteria. Inferior thermal technology directly loses launch contracts and erodes core low-Earth orbit market share.
Stage 2: Falling behind in reusable flight rateThe value of reusability rests on rapid turnaround and low maintenance cost. Short-lived, high-maintenance insulation prevents high flight frequency, eliminating the cost advantage of reusable architecture. Competitors flying once per week will outcompete a vehicle flying once per month, creating a generational gap in operational economics.
Stage 3: Locked out of high-value deep space missionsHuman spaceflight, lunar landing, and deep science missions impose exponentially stricter requirements for thermal reliability and mass efficiency. Insufficient thermal protection technology disqualifies vendors from the highest-margin, highest-prestige missions, confining them to low-margin commodity launch services.

The Final Decision Dilemma

Within conventional thermal protection technology, no solution resolves all three corners of the trilemma. Every choice requires a fatal tradeoff:

Option 1: Heavy conventional insulation (ceramic tiles / thick fiber blankets) → Delivers full temperature range and mechanical durability, but carries extreme dead weight that consumes launch capacity and inflates mission cost.
Option 2: MLI (Multi-Layer Insulation) → Extremely light and thin with excellent vacuum thermal performance, but highly susceptible to inter-layer tearing under launch vibration and limited to single-temperature-zone operation, unable to span both cryogenic and high-temperature environments.
Option 3: Stacked multi-layer hybrid insulation systems → Partially addresses temperature range and saves some weight, but adds extreme system complexity, high integration and maintenance cost, and elevated delamination risk under vibration, driving total lifecycle cost sharply higher.

Woqin’s Solution: Aerospace-Grade Ethanol-Dried Aerogel – Breaking the Trilemma

Woqin’s aerospace-grade ultra-thin aerogel blanket is engineered from the molecular level to resolve the thermal protection trilemma. Built on our proprietary ethanol supercritical drying platform, it delivers wide-temperature thermal performance, gram-level mass efficiency, and vibration-resistant structural integrity — all in a single material.

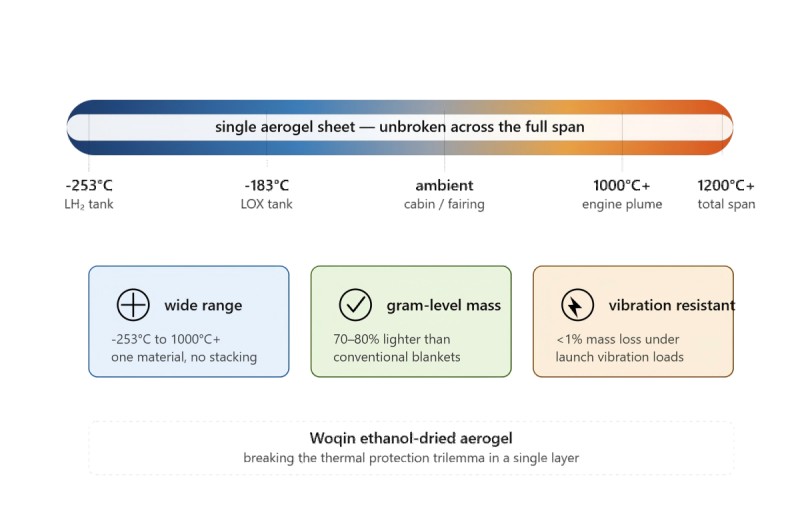

The ethanol-dried aerogel platform is engineered to resolve the aerospace thermal protection trilemma — delivering sub-1% dust loss under simulated launch vibration, stable thermal performance across a 1200°C temperature span, and a density profile that adds grams, not kilograms, to the vehicle mass budget.

1. 1200°C Temperature Span: Stable Performance From Cryogenic to High Heat

A single material handles both sides of the vehicle’s thermal environment, eliminating the need for multi-material stacked systems.

Stable thermal performance from -253°C LH₂ service up to high-temperature environments exceeding 1000°C, covering the full operating range of launch vehicle fuel tanks, fairings, engine bays, and deep space probes.
Cryogenic testing verifies LH₂ boil-off rates well below 1% per day, preserving propellant, extending launch windows, and improving orbital insertion accuracy.
Consistent thermal conductivity across the full temperature range, with no low-temperature brittleness or high-temperature degradation, ideal for reusable vehicle thermal cycling.

2. Ultra-Low Density: Gram-Level Savings, Kilogram-Level Impact

Aerogel’s legendary thermal efficiency means far less material mass for the same insulation performance.

Up to 70–80% weight reduction compared to conventional fiber blanket insulation at equal thermal performance, removing hundreds of kilograms of dead weight from a typical launch vehicle and directly translating to additional payload capacity.
Ultra-thin form factor saves volume as well as mass, freeing up internal space for propellant or payload in constrained vehicle geometries.
Drop-in compatible with existing thermal system designs, enabling immediate mass savings without full vehicle redesign.

3. Vibration-Resistant Ethanol Matrix: <1% Mass Loss Under Launch Loads

Our ethanol supercritical drying process creates a highly crosslinked silica network that resists fracture under high vibration — solving the dust and delamination problem that plagues both CO₂ aerogel and MLI.

Independent vibration testing simulating launch conditions confirms <1% mass loss, eliminating dust shedding and structural fracture risks.
No particle contamination risk for precision optics, avionics, and sensor systems, maintaining aerospace-grade cleanliness in the payload bay and instrument compartments.
Flexible, tough sheet format resists handling damage during integration, reducing installation scrap rates and simplifying reusable vehicle inspection and maintenance.

4. Lower Total Mission Cost, Higher Competitive Performance

When launch cost, payload revenue, maintenance expense, and mission reliability are all factored in, aerospace aerogel delivers lower total program cost than conventional thermal protection.

Eliminates hundreds of kilograms of dead weight, directly increasing payload revenue per launch
Reduces integration and maintenance man-hours for reusable vehicles, accelerating flight turnaround
Eliminates dust-related contamination risk and vibration failure risk, improving mission reliability
Single-material solution simplifies supply chain and engineering qualification compared to multi-layer hybrid systems

Verified Performance Comparison

Parameter	Conventional Ceramic / Fiber Blanket	Standard MLI	Woqin Aerospace Aerogel	Unit
Operating Temperature Range	-196 ~ 1200	-253 ~ 300	-253 ~ 1000+	°C
Areal Weight (equal performance)	12–18	2–4	3–5	kg/m²
Vibration Mass Loss	Moderate (cracking risk)	High (inter-layer tear)	<1%	%
Thermal Conductivity (ambient)	~0.040–0.060	~0.005 (vacuum only)	~0.020	W/m·K
LH₂ Boil-Off Rate	~3–5% / day	~1–2% / day	<1% / day	-
Launch Vibration Reliability	Low (brittle fracture)	Low (layer shift / tear)	Very High	-
Reusable Cycle Life	Low (high repair)	Very Low (fragile)	High	-

Performance data verified by ISO/IEC 17025 accredited laboratories per ASTM C518 (thermal conductivity), ASTM C1512 (vibration mass loss), and cryogenic boil-off testing. Actual on-orbit performance varies with mission profile, installation quality, and operating environment.

Proven Program Results

1. Cryogenic Propulsion Tank Test Program, US Aerospace Contractor

A major commercial space firm evaluated next-generation insulation for a 12-cubic-meter LH₂ test tank, targeting reduced boil-off and lower system mass compared to legacy MLI and foam systems.

After adopting Woqin aerospace-grade aerogel for the test tank insulation:

LH₂ boil-off rate measured at 0.82% per day, meeting strict mission specifications and extending available launch window duration
System mass reduced by 62% compared to the baseline fiber-foam hybrid insulation stack
Vibration qualification testing completed with zero delamination, zero cracking, and <0.7% mass loss
No particulate contamination detected on test instrumentation after vibration cycling

2. Commercial Rocket Fairing Thermal Upgrade

A launch vehicle developer upgraded payload fairing thermal insulation to improve temperature stability for sensitive satellite payloads while preserving mass budget for additional payload capacity.

With Woqin ultra-thin aerogel installed across an 8-meter payload fairing:

Fairing insulation mass reduced by 58% compared to the original blanket system, freeing 42 kg of additional payload capacity
Payload bay temperature stability improved by 40% during ascent aerodynamic heating
Installation completed 35% faster than the baseline insulation system, with lower handling scrap
Post-vibration inspection required zero repairs, supporting rapid turnaround reusable architecture

Compliance & Third-Party Validation

Thermal conductivity, vibration mass loss, and cryogenic performance tested by ISO/IEC 17025 accredited laboratories to ASTM and industry-standard test methods; full original test reports available for qualified program review
Material composition free of asbestos and hazardous respirable crystalline silica above threshold levels, supporting cleanroom and aerospace cleanliness requirements
Compatible with standard aerospace fabrication, cutting, and installation practices, requiring no special tooling or extensive crew retraining
Suitable for use in fairing, payload bay, cryogenic tank, and engine bay thermal applications; custom thickness and format options available for mission-specific requirements

Call to Action

Stop letting the thermal protection trilemma constrain your vehicle’s payload capacity, flight rate, and mission reliability. Woqin aerospace-grade aerogel delivers wide-temperature performance, ultra-light mass, and launch vibration simulated tested vibration resistance — breaking the tradeoffs that have limited aerospace thermal design for decades.

Request Your Aerospace Thermal Management Custom Whitepaper & Sample Kit

Share your mission profile and thermal system requirements, and our advanced materials laboratory team will deliver a customized evaluation package within 48 hours:

Mission-specific thermal and mass savings analysis for your vehicle architecture
Full cryogenic and vibration test data package for aerospace-grade aerogel
Compliant sample set for in-house material evaluation and qualification testing
Technical whitepaper: Resolving the Aerospace Thermal Protection Trilemma

[ Request Custom Whitepaper & Sample Kit ]
