Breaking the Cold Bridge: Aerogel Thermal Break Tape for Steel Stud Construction

Jun 08, 2026

Introduction: The Hidden Energy Drain in North American Steel Buildings

Steel stud framing dominates residential and commercial construction across North America, but it comes with an inherent physical flaw: steel conducts heat 300 to 400 times faster than conventional insulation materials. Metal studs act as linear thermal bridges running through wall assemblies, creating an invisible leak that drains building energy continuously.

This widespread cold bridge effect causes buildings to lose 25% to 30% of total designed energy consumption. Taking a standard 100,000 square feet steel-framed office building as a benchmark, extra electricity bills reach over $82,000 per year. Over a 10-year holding period, cumulative energy losses exceed $820,000. For luxury high-rises and cold chain facilities with larger indoor-outdoor temperature differences, energy waste will rise even further. What seems like a minor structural detail has turned into a persistent cash flow leak for building owners and investors.

Core Pain Points: Deadlocks of Traditional Solutions & Hidden Building Risks

Facing thermal bridging in steel stud construction, the North American construction industry is trapped in a no-win dilemma with three mainstream options, all carrying fatal drawbacks.

The Ultimate Decision Dilemma

Option 1: Only fill cavities with standard insulationThermal bridges remain fully active. Excessive energy loss makes the building fail ASHRAE 90.1 energy modeling review. Projects cannot obtain the Certificate of Occupancy (CO), leading to prolonged delivery delays.

Option 2: Adopt conventional Continuous Insulation (CI)CI systems require multiple construction procedures, driving up labor costs dramatically. More importantly, it greatly increases overall wall thickness, which is unacceptable for luxury real estate, Class A office towers and cold chain facilities that pursue maximum usable space. Even with extra investment, CI can only weaken rather than completely eliminate thermal bridging.

Option 3: Take no remedial measuresPersistent temperature differences inside walls generate continuous condensation. Damp cavities breed mold, corrode steel studs and damage structural stability. Mold and poor indoor air quality will trigger Sick Building Syndrome, which may lead to costly tenant lawsuits. In addition, under tightening carbon tax policies, energy-inefficient buildings will face ongoing fines and asset devaluation.

Extra Risks for Special Scenarios

For luxury high-end real estate, thicker walls reduce leasable area and damage facade design, while mold and poor air quality will drive away high-end tenants and ruin brand reputation. For cold chain buildings, extreme temperature gaps amplify thermal bridging, resulting in unstable indoor temperature, accelerated structural damage and soaring operating costs.

Costly Rework After Compliance Failure

ASHRAE 90.1 is a mandatory energy code across North America with zero tolerance for violations. Once a project fails official review and receives a rectification notice, retrofitting with CI systems brings staggering extra costs: Total retrofitting cost ranges from $18 to $25 per square foot for materials and labor. A 100,000 square feet building will face$1.8 million to $2.5 million in one-time rework expenses. Meanwhile, the whole project will be delayed for 25 to 35 days, bringing additional liquidated damages. All these extra costs directly erode project profits.

Woqin’s Solution: Aerogel Thermal Break Tape

1. Product Overview & Application

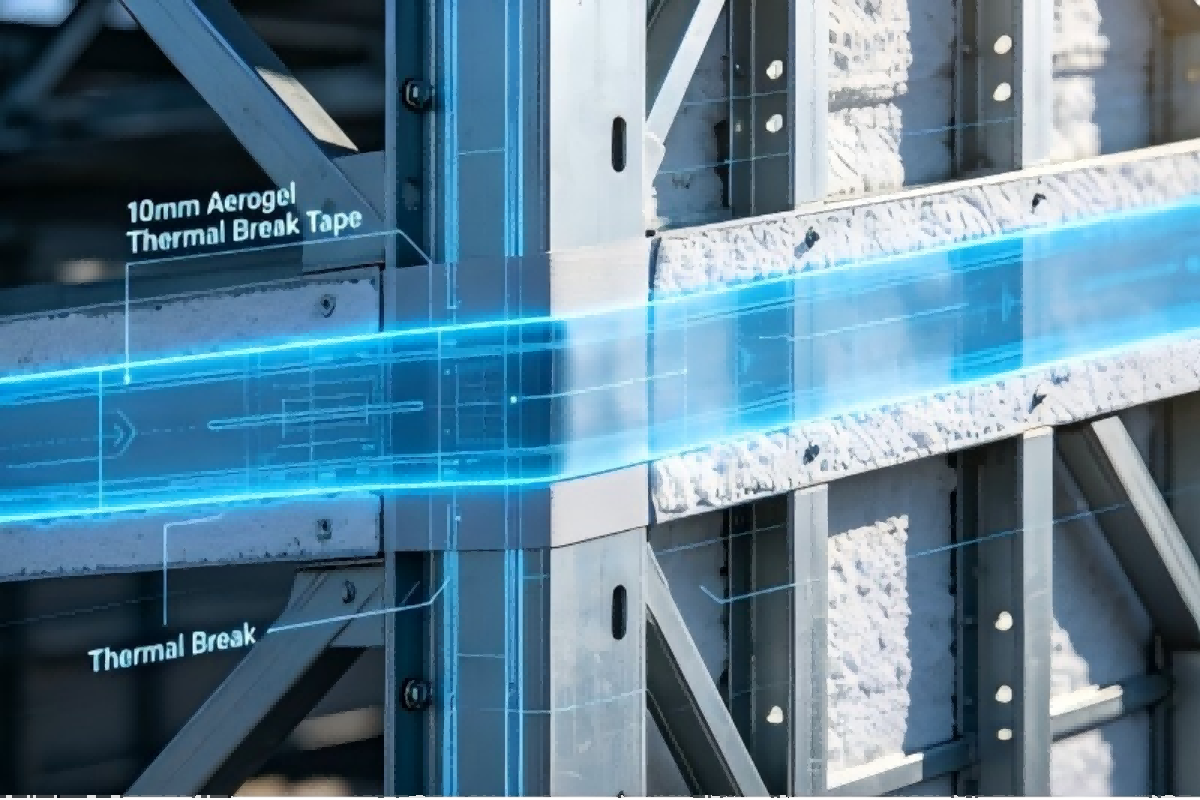

Woqin launches Aerogel Thermal Break Tape, a dedicated thermal bridging solution tailored for North American steel stud framing. The ultra-thin tape is simply applied to the outer surface of metal studs during construction, requiring no modification to original wall structure or design. With a total thickness of only 10mm, it adds no extra bulk to curtain walls, drywall assemblies or exterior cladding systems.

2. Core Thermal Insulation Mechanism

Aerogel features an extremely low thermal conductivity, far outperforming traditional rockwool, fiberglass and common insulation materials. As a high-performance thermal interlayer between metal studs and exterior structures, Aerogel Thermal Break Tape cuts off the linear heat transfer path of steel frames from the source, solving the root cause of thermal bridging in steel construction.

3. Verified Performance & Data Comparison

Under standard North American test conditions (steel stud size: 3-5/8 inch, temperature difference: 22°C), independent testing confirms Aerogel Thermal Break Tape blocks up to 80% of heat transfer through metal framing. The intuitive performance comparison below fully demonstrates its advantages over traditional solutions:

Parameter	No Thermal Protection	Conventional CI System	Woqin 10mm Aerogel Thermal Break Tape	Unit
Thermal Conductivity	0.042	0.038	0.012	W/(m·K)
Effective Thermal Bridging Factor	100% (Full cold bridge)	45% (Partially weakened)	20% (80% blocked)	%
Overall Wall U-Value	0.32	0.21	0.18	W/(m²·K)
Wall Thickness Increase	0mm	50~75mm	10mm	mm
ASHRAE 90.1 Compliance	Fail	Conditional Pass	Full Pass	—

Calculated based on standard steel stud (3-5/8 inch) and 22°C temperature difference per North American industry test conditions. Thermal bridging factors derived from heat flux measurements per ASTM C177.

4. Long-Term Durability & Environmental Adaptability

Aerogel Thermal Break Tape is engineered to withstand harsh North American climate conditions. Accelerated aging and freeze-thaw cycle tests prove the product maintains over 94% of its original thermal performance after 50 years of simulated service life. The integrated high-tack adhesive backing retains stable adhesion under wide temperature fluctuations, no peeling or falling off occurs in long-term service.

Service performance is estimated based on professional installation and normal operating environment. Improper installation (e.g., incomplete stud flange coverage, application to wet or dusty surfaces) or severe physical damage may affect actual results.

5. Thermodynamic Simulation Tool Introduction

We also provide a professional steel stud thermal bridge thermodynamic simulation tool. By inputting steel frame specifications, local climate data and wall structure, you can generate a detailed performance report, including real-time heat transfer data, energy consumption forecast and cold bridge improvement curves. You can preview the optimization effect before construction starts.

Construction Economics: Cut Labor Costs Without Changing Existing Workflow

Aerogel Thermal Break Tape features integrated high-tack adhesive backing, supporting simple peel-and-stick installation. The entire application process requires no complex tools, on-site cutting or additional auxiliary procedures. Most importantly, it is fully compatible with existing construction workflows for drywall, curtain walls and exterior cladding. Contractors do not need to adjust construction sequences or retrain workers.

We have quantified on-site working hours based on North American standard construction conditions:

Conventional CI system: 88 man-hours per 1,000 square feet of wall area

Woqin Aerogel Thermal Break Tape: 26 man-hours per 1,000 square feet of wall area

Based on the average North American construction hourly wage of $72, every 1,000 square feet of wall can save approximately $4,464 in labor costs. For a 100,000 square feet project, the total labor savings exceed $446,400.

The simplified installation greatly shortens the overall construction cycle, eliminates rework risks caused by complicated multi-layer procedures, and helps general contractors lock in project profits and guarantee on-time delivery.

Call to Action

Stop letting thermal bridging eat up your project profits and bring compliance risks.

Request your free Aerogel Thermal Break Tape trial roll and thermodynamic simulation report for steel stud thermal bridge improvement

Get professional data to verify performance, and explore the most cost-effective thermal break solution for your steel framing projects.

[Apply for Free Trial & Simulation Report]

Disclaimer: The thermodynamic simulation report and on-site performance are based on standard construction conditions. Actual results may vary due to project design, material matching and local climate. Please contact our technical team for customized project solutions.
