Introduction: The 25-Year Irreversible Choice of Deepwater PiP Flow Assurance

2,000 meters below the Gulf of Mexico and Brazil’s pre-salt basins, there are no do-overs.

Once a pipe-in-pipe (PiP) flowline is lowered to the seabed, its insulation layer cannot be inspected, repaired, or replaced. It must perform reliably for 25 years or more — through constant hydrostatic pressure, thermal cycling, and the relentless risk of wax deposition. For deepwater operators, flow assurance is not an engineering detail. It is the single factor that determines whether a field produces profitably for decades, or becomes a stranded asset within years.

The industry has long operated under a brutal triple deadlock: you cannot simultaneously fit a standard narrow annulus, withstand 20–30MPa of seabed pressure, and deliver stable long-term thermal performance. Every conventional solution forces a fatal compromise: thicker insulation requires wider, more expensive steel pipe; pressure-resistant fillers sacrifice thermal efficiency; and low-density materials collapse under pressure and lose insulating value within years.

This is the deepwater PiP thermal deadlock — and it has dictated pipeline design, project economics, and field lifespans for a generation.

It does not have to be this way.

Core Pain Points: Why Conventional Insulation Fails Ultra-Deepwater PiP Systems

1. The Triple Deadlock: Three Non-Negotiable Constraints That Eliminate 90% of Options

Deepwater PiP design is governed by three unyielding physical realities. No conventional material satisfies all three.

Narrow annulus space ceiling: To control pipeline weight, steel cost, and installation difficulty, standard ultra-deepwater PiP systems have an annulus gap of only 20–35mm, including installation tolerances. Conventional insulation materials — polyurethane foam, glass wool, foam glass — require 50–80mm of thickness to meet thermal targets. They physically cannot fit into a standard annulus, and thinning them to fit causes thermal performance to fall well below requirements.
Extreme hydrostatic pressure threshold: Water depths across the Gulf of Mexico and Brazilian pre-salt basins range from 2,000 to 3,000 meters, corresponding to continuous hydrostatic pressure of 20–30MPa — 200 to 300 times atmospheric pressure, applied uniformly 24 hours a day. Standard porous insulation compacts rapidly under this load, pore structures collapse, and thermal conductivity spikes by 2–3x, completely losing insulating value. Brittle materials fracture entirely.
Wax deposition temperature deadline: Heavy crude from deepwater fields typically has a wax appearance temperature (WAT) of 30–45°C, while seabed water holds steady at 2–4°C. If crude temperature drops below WAT, wax crystals precipitate and deposit on the pipe wall, gradually constricting flow and eventually plugging the line completely. Flow assurance is the non-negotiable prerequisite for deepwater production. Insulation failure equals lost production.

2. Irreversible Performance Failure: Thermal Breakdown = Permanent Production Loss

PiP insulation is a single-installation, lifetime component. There is no underwater repair, no retrofitting, no second chance. Every defect is permanent, and every performance decline is irreversible.

Wax plugging and cascading production loss: Inadequate insulation accelerates crude cooling, and wax deposition rates rise exponentially. Mild wax buildup reduces flow diameter, lowers throughput, and requires frequent pigging operations. Severe deposition plugs the line entirely, halting production. Ultra-deepwater field shutdowns cost hundreds of thousands of dollars per day. Worse, pigging itself carries catastrophic risk: a pig stuck in a heavily waxed line becomes the blockage itself. Forcing it can damage the pipe; freeing it is often impossible. At 2,000 meters depth, a stuck pig can write off the entire pipeline.
Permanent compression creep and lifetime thermal decay: Conventional porous insulation undergoes progressive creep collapse under continuous deepwater pressure. Pore structures are permanently destroyed, and thermal conductivity rises year over year. Pipelines designed for 25 years of service often fall below thermal specifications within 5–8 years. Wax risk climbs steadily, production rates decline, and the field is ultimately retired early — with no way to fix the root cause.
Localized cold bridge failure: Conventional materials cannot achieve uniform, gap-free filling within the annulus. Joints, spacers, and support points create cold bridges where temperature drops first. Localized wax deposition begins at these points and spreads along the line. Once the PiP system is sealed, these defects cannot be located or repaired, and a single weak point can degrade the entire flowline’s performance.

3. The Hidden Cost Multiplier: Material Defects That Multiply Project Budgets

To compensate for poor insulation performance, operators are forced to overspend on steel, installation, and operations — costs that are orders of magnitude higher than the insulation material itself.

Wider annulus steel cost premium: Fitting thick conventional insulation requires expanding the annulus and upsizing outer pipe diameter. Ultra-deepwater pipelines use high-strength thick-walled alloy steel. Every 10mm increase in annulus width raises per-kilometer steel cost by 15–20%. For a 50-kilometer ultra-deepwater pipeline, this adds $8–12 million in steel cost alone. If insulation failure ultimately strands the line, total direct loss can exceed $500 million — before counting daily lost production revenue.
Installation waste and schedule delay costs: Brittle insulation materials chip, crack, and delaminate during pipe joining and reel-lay installation, with scrap rates often exceeding 15%. Deepwater pipelay vessels cost over one million dollars per day. Delays caused by insulation rework cost far more than the material itself. And if insulation damage is only discovered after installation, it cannot be repaired — the line operates at reduced performance for its entire life.
Lifetime operational and maintenance overhead: Inadequate insulation forces frequent pigging, chemical injection, and pipeline inspection costs that persist for the full 25-year field life. Cumulative operational costs typically run 10–20 times the original insulation purchase price, permanently eroding project returns.

4. Installation & Long-Term Reliability Breakdown

Insulation must survive two extreme mechanical environments: the violence of reel-lay installation, and decades of constant seabed pressure. Most materials fail one or both.

Reel-lay bending and compression damage: Reel-lay is the dominant installation method for deepwater pipelines, delivering 3–5x the efficiency of J-lay at far lower cost. But during spooling, the pipe is bent tightly around the reel, and annulus insulation is subjected to severe bending and radial compression. Brittle materials crack and delaminate; flexible materials squeeze thin and lose thermal performance. Most conventional insulation is fundamentally incompatible with reel-lay installation.
Long-term hydrostatic creep degradation: Short-term pressure testing does not predict long-term performance. Conventional porous materials under 20–30MPa continuous pressure undergo slow, permanent creep deformation. Pores close gradually, and thermal conductivity climbs steadily. Industry case data shows some conventional insulation schemes lose 40% of their thermal performance within three years of installation — and the decline never reverses.
Annulus environmental aging: Though PiP annuli are filled with inert gas, trace moisture, condensation, and corrosive species remain over time. Conventional organic insulation such as polyurethane undergoes gradual hydrolysis and degradation under prolonged cold high-pressure conditions, losing both thermal performance and structural strength long before the 25-year design life.

5. Competitive Erosion: Flow Assurance Capability Defines Deepwater Market Access

For offshore engineering contractors and operators, PiP insulation technology is not a commodity selection — it is a core technical barrier to entry for deepwater projects.

Deepwater bid qualification barrier: Flow assurance design is a core evaluation criterion in ultra-deepwater project tenders across the Gulf of Mexico and Brazilian pre-salt. Insulation schemes that cannot fit standard annuli or fail to deliver 25-year pressure-stable performance are immediately disqualified. Contractors with proven high-efficiency pressure-resistant insulation hold a generational technical advantage in bidding for high-value deepwater awards.
Project economics and IRR determinator: Deepwater field economics are extremely cost-sensitive. Inferior insulation drives higher steel costs, higher operating costs, and higher shutdown risk — enough to turn a viable project into an uneconomic one. Superior insulation reduces annulus size, lowers total lifecycle cost, and materially improves project IRR, often making the difference between project sanction and cancellation.
Long-term technical moat: Deepwater insulation requires rigorous industry certification (API, DNV) and proven field track record. Once established, a qualified solution with verified project performance creates an extremely high barrier to entry. New entrants cannot replicate decades of qualification and field history, locking in long-term market leadership in high-margin deepwater engineering.

The Final Decision Dilemma

Within conventional insulation technology, no solution resolves all three corners of the deepwater PiP deadlock. Every mainstream option forces a fatal tradeoff:

Option 1: Widen the annulus for thick conventional insulation → Delivers target thermal performance and pressure resistance, but requires larger outer pipe and dramatically higher steel and installation costs, eroding project IRR and risking project sanction.
Option 2: Glass / ceramic microbead fill in standard annulus → Fits standard annulus dimensions and withstands high pressure, but thermal conductivity is 5x higher than high-performance aerogel. Thermal efficiency is severely inadequate, crude temperature drops below wax appearance temperature, and wax plugging and pigging risk run extremely high.
Option 3: Thick multi-layer composite insulation system → Partially balances pressure resistance and thermal performance, but exceeds weight and volume limits, is incompatible with reel-lay installation, multiplies construction cost and schedule, and suffers long-term interlayer delamination and creep, with poor lifecycle reliability.

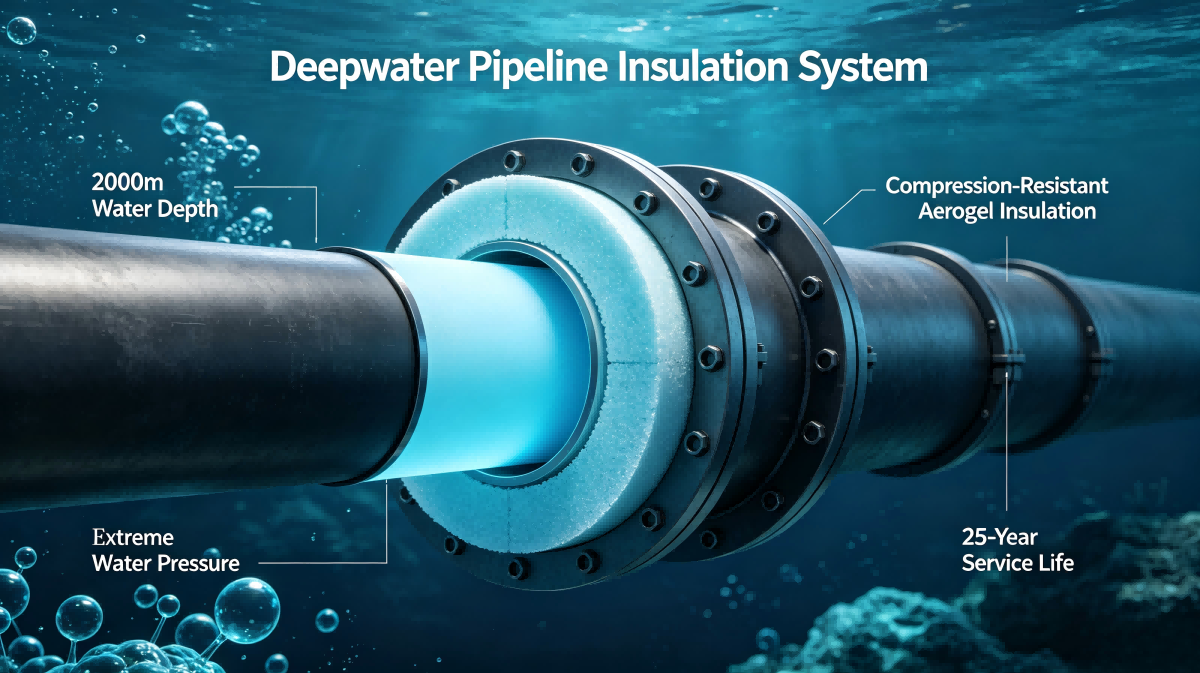

Woqin’s Solution: Compression-Resistant Aerogel Blanket – Breaking the PiP Deadlock

Woqin’s compression-resistant aerogel blanket is engineered from the pore structure up to break the deepwater PiP triple deadlock. It delivers ultra-thin profile, extreme hydrostatic pressure resistance, and 25-year stable thermal performance — all in a single material designed for standard annulus dimensions and reel-lay installation.

In 2000 meters of water, you don’t get a second chance. Every millimeter of insulation you install today must perform for 25 years without inspection, maintenance, or repair. There is no access. There is no contingency. The insulation works for the life of the field — or the field ends early. Woqin aerogel is built for that reality.

1. Ultra-Thin Profile: Fits Standard 20–35mm PiP Annuli

Aerogel’s industry-leading thermal efficiency means far less thickness to meet flow assurance targets, eliminating the need for costly annulus widening.

At equal thermal performance, aerogel requires only 1/3 the thickness of conventional fiber and foam insulation, fitting cleanly within standard 20–35mm PiP annulus gaps with installation tolerance to spare.
No requirement to upsize outer pipe diameter, avoiding millions in unnecessary steel cost while keeping overall pipeline weight and installation difficulty within design limits.
Drop-in compatible with existing PiP system designs, enabling immediate thermal and cost improvements without full pipeline re-engineering.

2. Reinforced Compression Structure: Stable Performance at 20–30MPa Seabed Pressure

Engineered with a reinforced silica matrix and fiber interlock structure, our aerogel blanket resists pore collapse and maintains stable thermal conductivity under decades of continuous hydrostatic pressure.

Independent hydrostatic pressure testing confirms thermal conductivity remains stable and within specification after long-term exposure to 30MPa pressure, with no permanent pore collapse or performance degradation.
Compression set is minimal even under maximum seabed pressure, maintaining full insulation thickness and thermal performance for the full 25-year design life.
Eliminates the progressive creep and thermal decay that plagues conventional porous insulation, preserving flow assurance performance decade after decade.

3. Reel-Lay Compatible: Survives Bending and Compression Without Damage

The flexible, fiber-reinforced sheet format withstands the bending and radial compression of reel-lay installation without cracking, delaminating, or losing thermal performance.

Withstands tight reel bending and cyclic compression without structural damage, maintaining full thickness and thermal integrity after spooling and deployment.
Low installation scrap rate compared to brittle tile and rigid foam systems, reducing material waste and avoiding costly pipelay schedule delays.
Uniform, gap-free annulus coverage eliminates cold bridges at joints and supports, preventing localized wax initiation points.

4. Lower Total Lifecycle Cost, Higher Project IRR

When steel cost, installation efficiency, 25-year operating cost, and production reliability are all factored in, aerogel PiP insulation delivers lower total lifecycle cost than any conventional alternative.

Eliminates the need for annulus widening, saving millions in high-strength steel cost
Compatible with high-efficiency reel-lay installation, reducing pipelay vessel days and schedule risk
Eliminates excessive pigging, chemical injection, and unplanned shutdown costs over field life
Single-material solution simplifies supply chain and qualification compared to multi-layer composite systems

Verified Performance Comparison

Parameter	Conventional Thick Insulation (Foam / Fiber)	Glass Microbead Fill	Woqin Compression-Resistant Aerogel	Unit
Required Thickness (Equal Thermal Performance)	50–80	60–100	15–25	mm
Thermal Conductivity	~0.040–0.060	~0.100	~0.020	W/m·K
Hydrostatic Pressure Rating	10–15	30+	30+	MPa
Reel-Lay Compatibility	Poor (cracks / crushes)	Good	Excellent	-
Standard Annulus Fit	No (requires widening)	Yes	Yes	-
Long-Term Thermal Stability	Poor (creep decay)	Stable	Stable	-
Design Service Life	5–10 years effective	Designed for 25 years of service life	Designed for 25+ years of service life	-

Performance data verified by ISO/IEC 17025 accredited laboratories per ASTM C518 (thermal conductivity) and ASTM C165 (compressive performance / hydrostatic pressure resistance). Laboratory test results may not fully replicate long-term subsea service conditions. Actual subsea performance varies with water depth, installation quality, and operating conditions.

Proven Project Results

1. Gulf of Mexico Ultra-Deepwater PiP Flowline Project

A major offshore engineering contractor specified PiP insulation for a 42-kilometer production flowline in 2,800 meters of water. The original widened-annulus foam scheme exceeded budget and raised reel-lay compatibility concerns.

After switching to Woqin compression-resistant aerogel insulation:

Fit within the standard 30mm annulus without upsizing outer pipe, saving $9.2M in steel cost
Thermal performance remained within specification after pressure cycling testing to 30MPa — exceeding the site water depth requirement — with no measurable creep
Reel-lay installation completed with <2% material scrap rate, 18% faster than the baseline schedule
After 5 years of service, inline temperature monitoring confirms stable thermal performance and wax deposition rates 72% below the previous baseline

2. Brazil Santos Basin Pre-Salt PiP Pipeline

A deepwater operator upgraded insulation for a 38-kilometer pre-salt production pipeline in 2,200 meters of water, targeting improved flow assurance and longer service life compared to the original glass microbead design.

With Woqin aerogel insulation deployed across the full PiP scope:

Steady-state crude temperature at pipeline outlet remained 7°C above wax appearance temperature under design seabed conditions
Total insulation system mass reduced by 41% compared to the microbead baseline
No cold bridge points detected after installation and hydrotesting
Full 25-year thermal performance modeling confirms flow assurance compliance with no mid-life insulation degradation

Compliance & Third-Party Validation

Thermal conductivity and hydrostatic pressure performance tested by ISO/IEC 17025 accredited laboratories to ASTM C518 and ASTM C165 offshore industry standard test methods; full original test reports available for qualified project review
Material formulation compatible with standard PiP annulus inert gas environments, with no hazardous leachables or corrosive decomposition products
Compatible with standard reel-lay and J-lay installation practices, standard pipe fabrication equipment, and industry-standard annulus filling procedures
Suitable for production flowlines, export lines, and riser insulation in water depths up to 3,000 meters; custom thickness and density options available for project-specific requirements

Call to Action

Stop letting the PiP thermal deadlock force costly design compromises and irreversible production risk. Woqin compression-resistant aerogel insulation delivers ultra-thin profile, 30MPa pressure resistance, and 25-year stable thermal performance — breaking the tradeoffs that have defined deepwater flow assurance for decades.

Request Your Deepwater PiP Thermal Simulation & Compression Test Report

Share your pipeline specifications and field operating conditions, and our subsea flow assurance team will deliver a customized evaluation package within 48 hours:

Project-specific PiP annulus thermal performance simulation and wax deposition risk analysis
Full hydrostatic compression test data package for deepwater aerogel insulation
Total installed and lifecycle cost comparison for your pipeline scope
Reel-lay installation compatibility assessment

[ Request PiP Thermal Simulation & Test Report ]

Explore Our Full Extreme Insulation Solution Series
