Aluminum Curtain Walls and the Cold Bridge Dilemma: A Peel-and-Stick Aerogel Solution

1. Introduction: "The 5% That Ruins 50%"

Modern glazed curtain walls are architectural marvels, designed to deliver stunning aesthetics and high energy efficiency. Yet, hidden behind the sleek exterior lies a fundamental thermodynamic flaw. In advanced facade engineering, there is a notorious rule of thumb based on thermal modeling studies: "The 5% that ruins 50%."

While the vast majority of a building's envelope is covered in thick Continuous Insulation (CI), heavy aluminum curtain walls must be anchored back to the concrete or steel superstructure. These fixing brackets, cleats, and mullion connections often account for less than 5% of the total facade area. However, if left without proper thermal decoupling, these millimeter-sized metal penetrations can degrade the overall thermal resistance of the entire wall by up to 50%.

2. The Thermodynamic Black Hole: Point Thermal Bridges (χ-value)

The root of this energy hemorrhage is the thermal conductivity of the anchoring materials. Aluminum possesses a staggering thermal conductivity of approximately 230 W/(m·K), while galvanized steel sits at around 50 W/(m·K).

When a structural aluminum bracket pierces through the building's insulation layer, it creates a Point Thermal Bridge (quantified in building physics as the χ-value, or point thermal transmittance). Instead of blocking heat, the bracket acts as a "thermal superhighway," rapidly siphoning indoor heat out into the winter air. Ignoring the χ-value in modern THERM or Flixo software modeling guarantees that the building will fail to meet Passive House or net-zero energy standards.

3. The Structural "Seesaw": Thermal Thickness vs. Shear Stress

To mitigate these point thermal bridges, facade contractors traditionally insert insulating pads—usually made of EPDM rubber, Nylon, or PVC—between the structural wall and the metal bracket. However, this introduces a severe structural compromise.

The Shear Deflection Reality: A Quantitative Risk

Traditional rubber pads have poor thermal resistance (typical values ~0.25 W/(m·K)). To achieve meaningful thermal decoupling, these pads must be manufactured exceptionally thick—often 15mm to 20mm.Example: A standard 20mm EPDM pad compressed by a 500kg curtain wall bracket dead load can deflect by 2-3mm. This induces a 5-7 degree tilt in the anchor bolt, reducing the designed clamp load by up to 30% and causing the facade to "sag." Over time, this structural "play" under high wind loads can lead to catastrophic fastener fatigue.

The Woqin Aero-Tape Breakthrough: 3mm Absolute Rigidity

Hebei Woqin’s Aero-Tape (Aerogel Thermal Break Tape) solves the facade engineer's dilemma. By utilizing a high-purity silica aerogel core, we deliver an ultra-low thermal conductivity of 0.018 W/(m·K).

This extreme performance means that a mere 3mm strip of Aero-Tape provides the identical thermal isolation of a 15mm thick rubber pad. Because the profile is so thin, the heavy structural bracket remains virtually flush against the substrate. It eliminates the dangerous shear stress and deflection associated with thick pads, providing both thermodynamic perfection and rock-solid structural integrity.

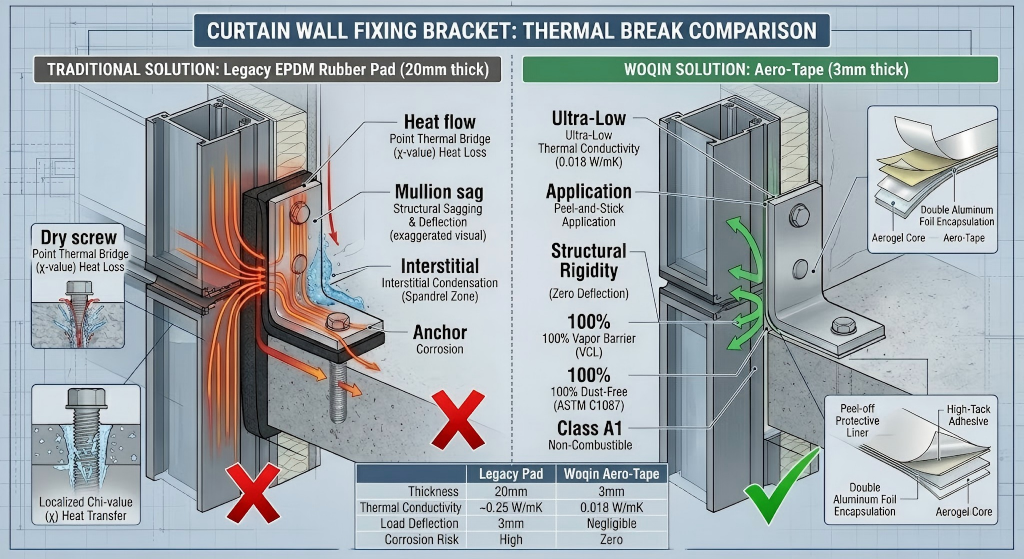

The Thermal Decoupling Matrix: Aero-Tape vs. Legacy Materials

*Typical values based on industry-standard engineering data.

4. The "Invisible Cancer": Spandrel Condensation and Anchor Corrosion

Beyond immediate energy loss, un-isolated metal brackets create a catastrophic moisture crisis within the curtain wall's hidden cavities, specifically in the spandrel zones (the opaque architectural areas between floors).

In these enclosed, non-ventilated zones, the highly conductive aluminum bracket acts as a thermal conduit, drawing freezing exterior temperatures deep into the building's structural interface. This causes the bracket's internal surface temperature to plummet below the dew point. When warm, humid indoor air migrates into the wall cavity, it contacts the freezing metal, triggering interstitial condensation. This "sweating" occurs silently behind the facade panels, creating a permanent high-humidity micro-environment.

Over time, this moisture leads to the invisible oxidation and corrosion of the primary structural fixings. This "invisible cancer" compromises the load-bearing capacity of the anchors, creating a high-stakes safety risk that is often only discovered when structural failure begins.

5. The 207 MPa Threat: Ice Jacking and Anchor Pull-out

In cold climates, this condensation cycle introduces a violent physical threat known as Ice Jacking. When trapped condensation in the microscopic gaps between the bracket and the concrete slab freezes, it undergoes a ~9% volumetric expansion.

According to thermodynamic studies, this phase change generates an internal hydrostatic pressure of up to 207 MPa (approx. 30,000 psi).

• Engineering Consequence: A 207 MPa internal ice pressure exerts a localized pull-out force of approximately 15 kN on a standard M12 anchor bolt.

• Structural Risk: This force is often enough to exceed the design resistance of the anchor, causing plastic deformation or "unseating" the bolt. This leads to catastrophic loosening of the facade brackets, making the curtain wall vulnerable to fatigue under high wind loads.

6. The "Dual-Armor" Solution: 100% Vapor Control

To eradicate the risk of corrosion and ice jacking, a thermal break must do more than insulate; it must act as an impenetrable Vapor Control Layer (VCL).

Hebei Woqin’s Aero-Tape features a proprietary Dual-Armor Encapsulation. The silica aerogel core is hermetically sealed between two layers of high-tensile, vapor-impermeable aluminum foil.

• Absolute Vapor Blockade: The double foil layers ensure zero moisture vapor transmission (VMT). By keeping the structural interface bone-dry at the molecular level, Woqin's Aero-Tape renders Spandrel Condensation physically impossible.

• Corrosion Defense: By eliminating the dew point shift at the bracket interface, the Aero-Tape preserves the pristine condition of the anchor bolts, securing the 50-year structural design life of the facade's anchoring system.

7. The "Clean Room" Requirement: Structural Silicone Compatibility

In curtain wall and glazing installations, the structural integrity and weatherproofing of the facade heavily rely on Structural Silicone Sealants. For these sealants to achieve their designed bonding strength, the application surface must be absolutely pristine.

This presents a massive engineering challenge when using traditional aerogel blankets, which are notorious for shedding fine silica dust during cutting and handling. If this aerogel dust settles on the aluminum mullions or transoms, it acts as a release agent, destroying the adhesion of the structural silicone and leading to catastrophic water ingress or glass displacement.

100% Dust-Free & ASTM C1087 Compliant

Hebei Woqin’s Aero-Tape is explicitly engineered for the "clean room" requirements of facade glazing. Our Dual-Armor Encapsulation locks the aerogel matrix permanently inside the aluminum foil. This renders the tape 100% Dust-Free, guaranteeing uncompromised adhesion compatibility for structural silicones in strict accordance with ASTM C1087 guidelines.

High-Altitude Efficiency: Peel-and-Stick

Applying traditional thermal break pads requires technicians to painstakingly align and pre-drill thick rubber blocks while balancing in suspended cradles hundreds of feet in the air. Woqin eliminates this high-risk hassle with our Peel-and-Stick Application. Backed with a high-tack industrial acrylic adhesive, facade technicians simply peel the protective release liner and press the tape directly onto the bracket or window reveal. It bonds instantly, accelerating installation speed by up to 300%.

8. Fire Compliance: The Post-Grenfell Mandate

The ventilated cavity behind a curtain wall acts as a natural chimney. In the event of a fire, this "chimney effect" can draw flames and toxic smoke up the facade in minutes. In the heavily regulated post-Grenfell era, European and global Building Control authorities have zero tolerance for combustible materials in the facade cavity.

Traditional PVC pads, EPDM rubber, and expanding PU foams are highly combustible and release dense, toxic smoke when ignited. Hebei Woqin’s Aero-Tape utilizes a purely inorganic silica aerogel core, achieving the ultimate Class A1 Non-Combustible rating. It will not melt, ignite, or emit toxic fumes, ensuring your facade assembly easily passes the strictest global fire safety inspections.

9. Conclusion: Do Not Let Millimeters Ruin Millions

A multi-million-dollar curtain wall system should not fail because of a millimeter-sized metal bracket. Specifying traditional thick rubber pads forces you into a dangerous compromise between point thermal bridging, structural shear deflection, and spandrel corrosion.

Hebei Woqin’s Peel-and-Stick Aerogel Thermal Break Tape is the definitive engineering solution. By delivering 0.018 W/(m·K) thermodynamic decoupling in an ultra-thin 3mm profile, zero structural shear, 100% vapor blockade, and ASTM C1087 dust-free compatibility, Woqin empowers facade engineers to achieve Passive House perfection without a single structural compromise.

Secure Your Evaluation Roll for THERM Modeling

Do not blindly accept the χ-value penalties of standard brackets. We invite Facade Engineers, Glazing Contractors, and Envelope Consultants to verify our claims.

Request a Free Aero-Tape Evaluation Roll (available in 38mm, 50mm, or custom widths). Apply it to your brackets, test the high-tack adhesive, and input our 0.018 W/(m·K) core data into your next THERM or Flixo software model to witness the dramatic reduction in point thermal transmittance.
