Insulating Heritage Curved Facades and Columns: The Aesthetic Flexibility of Aero-Stone Veneers

Introduction: The Architectural Dilemma of European Curves

The soul of European architecture resides in its elegant curves—Victorian bay windows, Baroque cylindrical columns, and the sweeping arched facades of historic town centers. However, for modern energy retrofit engineers, these curves are a high-stakes challenge.

To meet the strictly enforced Energy Performance Certificate (EPC) standards, contractors have historically been forced to "rape" these curves with rigid, inorganic insulation boards. This results in a catastrophic loss of Geometric Fidelity, where a smooth Roman column is reduced to a clumsy, multi-sided prism—a violation that often leads to the immediate rejection of Planning Permission for Listed Buildings.

Hebei Woqin’s Aero-Stone (Aerogel MCM Flexible Veneer) ends this era of compromise. Strictly compliant with the principles of BS 7913 (Guide to the conservation of historic buildings), our system allows for high-performance insulation that mirrors the building's original architectural DNA.

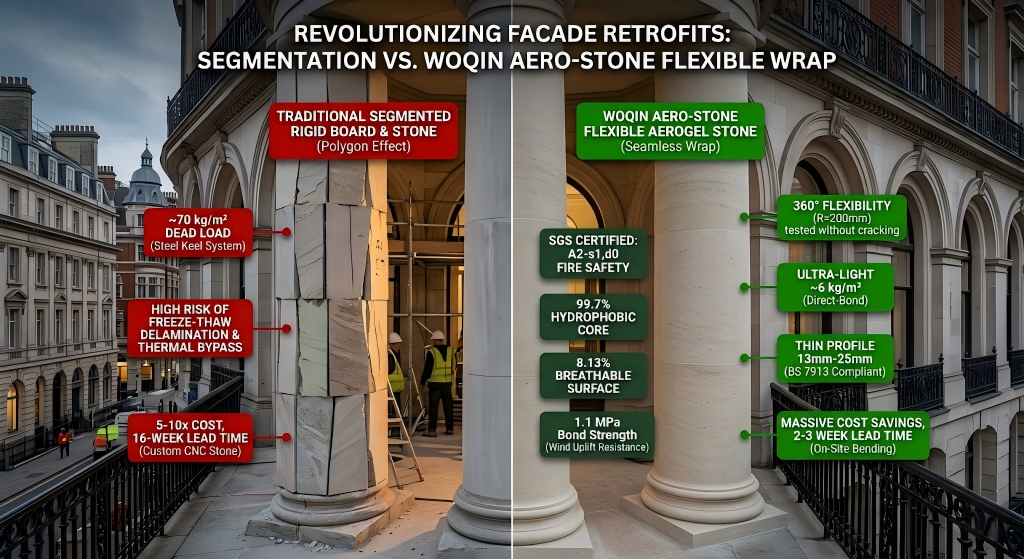

1. The "Polygon Effect" vs. 360° Seamless Continuity

The Flaw of Rigid Boards: Thermodynamic Discontinuity

When a rigid insulation board is applied to a curved surface, it must be cut into narrow strips (segmentation). This creates the "Polygon Effect" (or Faceting). Not only is this aesthetically unacceptable, but every joint creates a potential Thermal Bypass. In high-humidity European climates, these gaps become breeding grounds for interstitial condensation, leading to internal black mold.

The Woqin Edge: Isotropic Flexibility and Hydrophobic Protection

Aero-Stone is engineered for Seamless Continuity. Our proprietary matrix allows the entire 13mm to 25mm composite to bend and wrap around a cylindrical column with a radius as small as 200mm (tested without cracking or delamination).

Note on Moisture Management: Unlike non-breathable "waterproof" membranes, our system is highly hydrophobic yet vapor-permeable. The MCM surface features controlled micro-porosity to allow trapped internal vapor to escape (breathability), while the core aerogel matrix remains 99.7% hydrophobic. This ensures that liquid driving rain is repelled, but the historic masonry can still "breathe," preventing the structural rot associated with non-permeable synthetic coatings.

2. Dead Load Mitigation: Eliminating the Heavy Steel Keel

The Flaw of Traditional Cladding: The Cost of Weight

To achieve a curved stone finish traditionally, architects specify Custom-Curved Natural Stone. This requires expensive CNC carving or mold casting, costing 5-10x more than flat stone and demanding a 12-16 week lead time. Furthermore, these systems require heavy, bespoke curved steel frameworks (Keels) that add immense Imposed Dead Loads (>60 kg/m²) to fragile heritage walls.

The Woqin Edge: The Direct-Bond Revolution

Hebei Woqin’s Aero-Stone weighs only ~6 kg/m²—less than 10% of the weight of a steel-framed system. It utilizes a Direct-Bond System with a staggering 1.1 MPa pull-off strength, chemically locking the veneer to the substrate to neutralize extreme Wind Uplift at curved corners.

High-Rise Safety: For high-rise zones above 22m, supplementary mechanical anchors can be easily integrated. Because the material is so lightweight, even a single anchor per 2m² provides a 10x safety factor against gravity—delivering absolute peace of mind for structural engineers while slashing lead times from months to just 2-3 weeks.

3. Heritage Compliance: Bulky Proportions vs. 13mm Precision

The Flaw of Thick Insulation: Profile Distortion

European Conservation Areas and Listed Buildings are governed by uncompromising heritage regulations. A fundamental principle of facade retrofitting is that the original Architectural Profile and sightlines must remain visually unaltered.

When contractors attempt to achieve EPC compliance using traditional 100mm+ rigid insulation, the aesthetic results are disastrous. Slender columns become bloated and disproportionate. Intricate cornices, architraves, and window mouldings are either entirely swallowed by the insulation thickness or awkwardly recessed. Consequently, these "bulky" proposals are routinely rejected by Heritage Officers during the Planning Permission stage.

The Woqin Edge: Ultra-Thin Profile Preservation

Hebei Woqin’s Aero-Stone guarantees maximum thermal performance with zero aesthetic compromise. By utilizing a pure silica aerogel core boasting a thermal conductivity of just 0.018 - 0.022 W/(m·K), we achieve rigorous U-value targets at a fraction of the thickness.

With a total system thickness of just 13mm to 25mm, Aero-Stone perfectly hugs the existing masonry. It preserves the exact slenderness of historic columns and allows delicate facade mouldings to remain prominent. You deliver modern passive-level insulation while keeping the Heritage Officers entirely satisfied and strictly adhering to BS 7913 principles.

4. Freeze-Thaw Detachment vs. Breathable Hydrophobic Defense

The Flaw of Segmented Boards: Water Ingress and Delamination

In regions plagued by driving rain and freezing winters, the "Polygon Effect" of segmented rigid boards hides a far more dangerous threat than just thermal bridging: Water Ingress.

Rainwater inevitably penetrates the thousands of exposed joints and seams. When temperatures drop below freezing, the trapped water turns to ice, expanding by 9%. This relentless Freeze-Thaw Cycle exerts immense hydrostatic pressure, eventually forcing the heavy stone cladding to crack and detach from the wall. In high-rise retrofits or busy historic streets, falling masonry is a catastrophic Public Liability nightmare.

The Woqin Edge: 8.13% Breathability & 99.7% Hydrophobicity

Aero-Stone is engineered to act as an advanced thermodynamic skin, completely neutralizing the freeze-thaw threat.

According to rigorous independent testing by SGS (Report No. XMIN2404000776CM01), our MCM surface layer exhibits an 8.13% water absorption rate. This is not a flaw; it is an engineered micro-porosity designed for Breathability, allowing trapped internal water vapor to safely escape the aging masonry. Simultaneously, the underlying aerogel matrix acts as the ultimate barrier, remaining 99.7% hydrophobic. It physically repels driving rain, preventing moisture from ever reaching the structural wall. By locking liquid water out while letting vapor breathe, Aero-Stone is physically immune to freeze-thaw delamination.

 The Ultimate Retrofit Comparison: Rigid Cladding vs. Aero-Stone

When engineering a curved or heritage facade retrofit, relying on outdated rigid boards and heavy steel keels is a compromise you can no longer afford. Here is how Woqin’s flexible technology rewrites the project economics:

5. High-Rise Fire Regulations vs. The A2-s1,d0 Standard

The Flaw of Polymer-Based Veneers: The Combustibility Trap

While some "flexible stone" products exist on the market, they rely heavily on combustible polymer resins and plastics to achieve their bending properties. In the strictly regulated, post-Grenfell environment of the UK and Europe, specifying combustible materials on mid-to-high-rise facades or public heritage buildings is a criminal liability.

If a facade material catches fire, produces toxic black smoke, or drops flaming debris, the building will instantly fail its Building Control inspections, rendering the entire retrofit illegal and uninsurable.

The Woqin Edge: Certified A2-s1,d0 Fire Safety

Hebei Woqin’s Aero-Stone achieves 360° flexibility without sacrificing a fraction of fire safety. Because our composite relies on an inorganic modified clay surface and a pure silica aerogel core, its organic polymer load is kept to an absolute minimum.

Subjected to the most grueling independent fire tests by SGS (Report No. SDFS2405003053FF_CN), Aero-Stone has achieved the elite GB 8624 Class A rating, directly corresponding to the European EN 13501-1 A2-s1, d0 standard.

• A2: Non-combustible under intense thermal attack.

• s1 (Smoke): Negligible smoke production, ensuring safe evacuation routes.

• d0 (Droplets): Zero flaming droplets, physically preventing downward fire spread.

You deliver the beautiful curve of natural stone, backed by the absolute highest tier of life-safety fire compliance.

Conclusion: Mastering the Retrofit "Impossible Triangle"

For decades, European architects and facade engineers have struggled against the "Impossible Triangle" of retrofitting curved historical structures: You could not simultaneously achieve passive-level thermal performance, preserve delicate heritage aesthetics (BS 7913), and maintain structural dead-load safety.

Hebei Woqin’s Aero-Stone (Flexible Aerogel MCM) shatters this deadlock. By replacing 150mm of rigid PIR and heavy custom-carved stone with a highly advanced, 13mm-25mm flexible aerogel composite, you eliminate the "Polygon Effect." You wrap the building in an unbroken, breathable, yet highly hydrophobic thermal skin. It satisfies stringent EPC regulations, delights Heritage Officers, and protects your structural masonry from catastrophic dead loads and freeze-thaw damage—all while saving you up to 16 weeks in custom fabrication lead times.

Secure Your "Aero-Stone Prototype Box" Today

Do not compromise your heritage facade with rigid, heavy, and combustible cladding. Stop specifying blind—request a physical engineering sample directly to your architectural practice or EPC headquarters.

Experience the staggering lightness (6 kg/m²), test the 360-degree flexibility of our matrix around a physical column model, and review our unredacted SGS test reports for A2-s1,d0 fire safety and 8.13% water absorption.

Contact our lead engineering team immediately to discuss your building’s dimensions, U-value targets, and to secure your prototype box:
