When upgrading the thermal envelope of UK heritage buildings (such as Victorian or Edwardian properties), architects and contractors face a harsh reality: you cannot alter the exterior facade. This leaves Internal Wall Insulation (IWI) as the only viable path to meet modern EPC standards.

However, in the world of solid brick retrofits, your greatest enemy is not the cold—it is water.

According to UK building surveys, over 60% of solid wall retrofits using traditional IWI show signs of interstitial mold within 5 years. Executing an IWI project with the wrong materials does not just result in a loss of carpet area; it creates a ticking time bomb of black mold, structural degradation, and severe health hazards.

 The Physics of Failure: Why Traditional IWI Destroys Solid Walls

To understand the ultimate solution, we must first examine the building physics behind the failure. Traditional solid brick walls were historically designed to be vapor-permeable. They absorb external moisture and dry out naturally by absorbing ambient heat from inside the house.

The Dew Point Shift

Disaster strikes when contractors install 100mm to 150mm of traditional bulk insulation (like standard PIR boards or mineral wool) against the internal masonry. While this thick layer blocks heat from escaping the room, it also completely isolates the original brick wall from the home's internal warmth. During the harsh UK winter, that solid brick wall is starved of heat and turns into a freezing block of masonry.

The Nightmare of Interstitial Condensation

Modern living—cooking, showering, and central heating—generates high-pressure water vapor. As this warm, moist indoor air travels through traditional, vapor-permeable insulation, it eventually collides with the newly frozen brick wall behind it. The sudden drop in temperature forces the vapor to reach its "Dew Point," causing it to condense instantly into liquid water trapped within the wall structure. This is Interstitial Condensation.

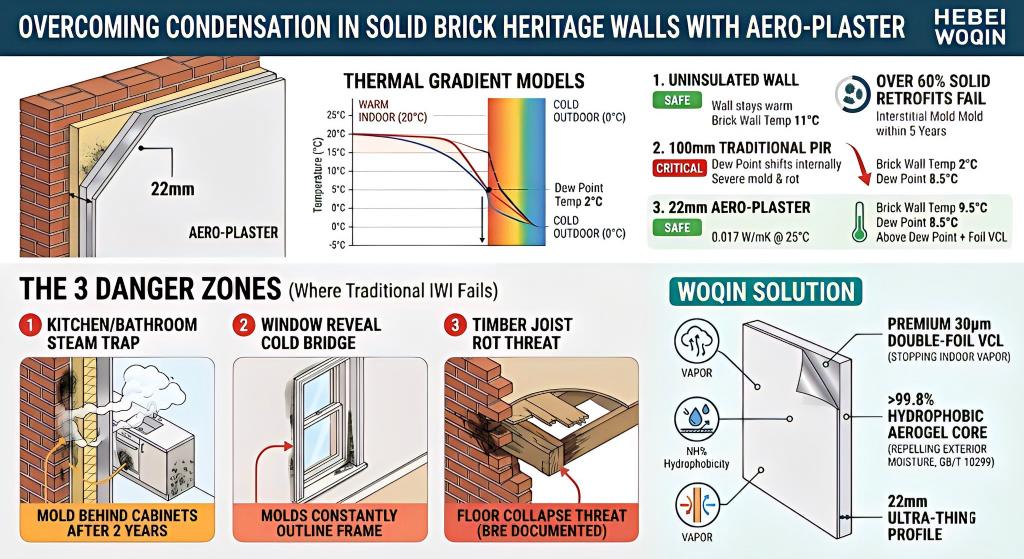

Thermal Gradient Model: The Condensation Risk

To illustrate this, let us look at a typical thermal model for a UK winter scenario (Indoor air at 20°C, Outdoor air at 0°C, typical indoor dew point at 8.5°C):

Note: Based on typical thermal modeling. Actual values depend on specific wall build-ups.

The Aerogel Paradigm Shift

To stop this destructive cycle, the industry needs a material that provides absolute vapor control while remaining thin enough to mitigate extreme temperature drops within the substrate.

This is where Hebei Woqin's Silica Aerogel technology changes the paradigm. By leveraging an ultra-low core thermal conductivity of 0.020 W/(m·K) (Standard Grade) or an industry-leading 0.017 W/(m·K) (S-Class Grade)—both strictly tested at a standard 25°C room temperature—we can replace 100mm of traditional bulk insulation with an ultra-thin 22mm profile. This extreme efficiency forms the foundation of our condensation-proof system.

The 3 Danger Zones in UK Solid Wall Retrofits

When dealing with solid masonry, moisture does not attack evenly. There are three specific high-risk zones where traditional IWI materials almost universally fail, leading to catastrophic mold and rot.

Zone 1: The Steam Trap in Kitchens and Bathrooms

Modern kitchens and bathrooms generate relentless vapor pressure. If a contractor installs highly breathable, traditional bulk insulation in these areas, the moisture barrier is easily compromised. Steam penetrates the insulation, soaking the material. This is exactly why many UK landlords find extensive black mold hidden behind their kitchen cabinets just two years after a retrofit.

Zone 2: The Unsolvable Window Reveal Cold Bridge

Victorian and Edwardian window reveals are notoriously narrow, often leaving less than 30mm of clearance. You simply cannot fit 100mm of PIR board into these gaps without blocking the window operations. As a result, contractors often leave these perimeters uninsulated. This creates a massive cold bridge where indoor humidity rapidly condenses, ensuring that mold will constantly outline your historic window frames.

Zone 3: The Structural Threat to Embedded Timber Joists

This is the most dangerous consequence of interstitial condensation. In UK heritage properties, timber floor joists are physically embedded directly into the solid brick walls. The Building Research Establishment (BRE) has documented numerous cases of floor collapse due to IWI-induced timber rot. When traditional IWI traps moisture in the masonry, the embedded timber ends absorb the water, triggering wet or dry rot.

The Hebei Woqin Solution: Dual-Defense Aero-Plaster

To permanently eliminate condensation risks while maximizing internal space, Hebei Woqin engineered the Aero-Plaster 3-in-1 Composite Board. Starting at an ultra-thin profile of just 22mm, it offers a revolutionary moisture management system designed specifically for heritage solid walls.

Defense 1: Premium 30μm Double-Sided Aluminum Foil VCL

We do not rely on installers taping flimsy plastic sheets on-site. The Aero-Plaster panel features an integrated Premium 30μm Double-Sided Aluminum Foil layer, laminated directly between the plasterboard and the aerogel core. This creates an absolute, impermeable Vapor Control Layer (VCL) that stops high-pressure steam dead in its tracks.

Defense 2: The >99.8% Hydrophobic Aerogel Core

While the foil stops indoor vapor, our aerogel core protects against outdoor threats. Heritage solid walls are subjected to driving rain. Based on rigorous laboratory testing (GB/T 10299), our silica aerogel core demonstrates an astonishing hydrophobicity rate of >99.8%. Even if the external brickwork becomes saturated, the aerogel physically repels the water, ensuring it never degrades or loses its thermal efficiency.

Defense 3: Eradicating Window Reveal Cold Bridges

At a mere 22mm total thickness, the Aero-Plaster board easily slides into the tightest historic window reveals. By keeping the brickwork temperature above the dew point and providing unbroken coverage, it completely eliminates the need for complex thermal break details at window perimeters.

Protect the Heritage, Eliminate the Risk

Retrofitting solid walls is not just about achieving a target U-value; it is about managing building physics. Specifying thick, traditional insulation puts your client's heritage asset at severe risk of interstitial condensation and timber rot. With Hebei Woqin’s Aero-Plaster, you can deliver extreme thermal performance without sacrificing valuable carpet area, all while deploying an impenetrable shield against condensation.

Related Solutions:

For space-saving financial benefits, read our previous guide: How 22mm Aerogel Saves £36,000 in Property Value.

Get a Free Dew Point Analysis for Your Project

Do not let condensation destroy your engineering reputation or your client's property. Send us your wall build-up (brick thickness, current insulation type, and indoor conditions) and our engineering team will calculate the exact temperature profile and condensation risk for free.

Contact our technical team today with the subject "Dew Point Analysis" to secure your data and request an Aerogel Evaluation Kit.
