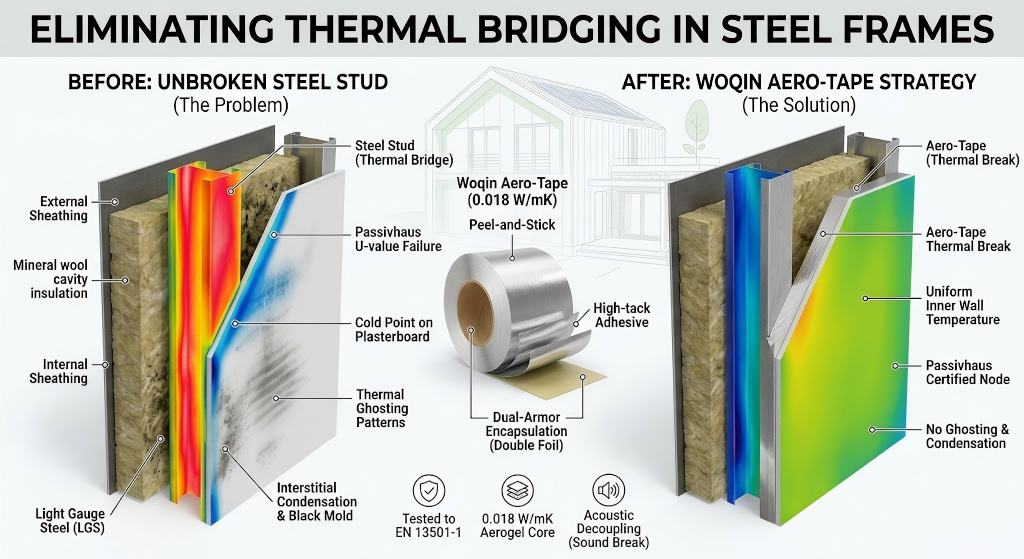

Eliminating Thermal Bridging in Steel Frame Construction: The Aerogel Thermal Break Tape Strategy

Introduction: The Passivhaus Paradox & The "5% That Ruins 50%"

As the European construction sector races towards net-zero emissions, Light Gauge Steel (LGS) framing has become the backbone of modern commercial and residential builds. It is lightweight, dimensionally stable, and incredibly fast to erect. However, when trying to achieve rigorous Passivhaus (Passive House) standards, steel presents a fatal thermodynamic flaw: it conducts heat up to 300 times faster than timber.

Architects often specify thick layers of premium mineral wool between the steel studs, assuming the wall is fully insulated. This is a costly misconception. According to building physics models and Passivhaus Institute guidelines, the exposed metal studs—which typically make up only 5% of the wall's surface area—act as a thermal superhighway. They bypass the cavity insulation and can account for up to 50% of the building’s total heat loss. If you do not permanently sever this thermal bridge, passing the strict Passivhaus U-value threshold (≤ 0.15 W/(m²K)) is virtually impossible.

The Fatal Symptoms: Thermal Ghosting, Condensation, and Hidden Corrosion

Ignoring the thermal bridge on a steel stud does not just inflate heating bills; it physically damages the building. In colder UK and European climates, the indoor face of an uninsulated steel stud becomes significantly colder than the surrounding surfaces, triggering a cascade of failures:

1. Thermal Ghosting (The "Rib" Pattern)

This is the most common visual complaint from property owners. Because the wall temperature is lower where the studs are located, airborne dust and soot are accelerated toward these cold strips via a process called thermophoresis. Within months of occupancy, dark, dirty vertical lines—perfectly outlining the structural steel grid—appear on interior wallpaper or paint. This "ghosting" effect is a clear indicator of poor building physics and often leads to expensive insurance claims and redecoration.

2. Interstitial Condensation and Black Mold

When warm, moist indoor air migrates through the plasterboard and hits the freezing cold surface of the steel stud, it reaches its dew point and liquefies instantly. This moisture accumulates deep inside the wall cavity, creating a perfect breeding ground for toxic black mold. This hidden moisture is the primary cause of poor Indoor Air Quality (IAQ) and respiratory issues for occupants.

3. Hidden Structural Corrosion

In the high-humidity environments of the UK and Northern Europe, persistent condensation leads to a much more dangerous issue: the premature corrosion of the galvanized steel studs. This "hidden rot" compromises the structural integrity of the frame over time, leading to catastrophic failures that are often only discovered after the wall finish is removed.

The Fallacy of Legacy Solutions: Why EPDM and Foam Tapes Fail in High-Performance Builds

For decades, the construction industry has attempted to mitigate thermal bridging using cheap EPDM rubber strips or polyurethane (PU) foam tapes. While these materials are common, they are fundamentally unfit for the rigorous requirements of modern steel frame retrofits and Passivhaus standards.

1. Structural Compression and Thermal Loss

Soft foam and rubber are "sacrificial" materials. When installing heavy internal wall linings—such as double-layered 15mm fireproof plasterboard—the mechanical torque of the screws exerts massive pressure on the stud face. Traditional foam tapes flatten instantly. Once compressed, their cell structure collapses, and their thermal resistance (R-value) effectively vanishes.

Woqin’s Aero-Tape possesses extreme compressive resilience. It maintains its physical separation and its ultra-low 0.018 W/m·K performance even under heavy structural loads, ensuring a permanent thermal break.

2. The Fire Safety Liability (EN 13501-1 Compliance)

Most legacy isolation tapes are petroleum-based and highly combustible (Euroclass E or F). In the post-Grenfell regulatory landscape of the UK and Europe, installing a continuous strip of flammable material behind interior wall linings is a significant legal and safety liability.

Technical Comparison: Aero-Tape vs. Legacy Materials

The Ultimate Thermal Severance: Introducing Woqin Aero-Tape Technology

To bridge the gap between high-speed construction and extreme thermal efficiency, Hebei Woqin has engineered the Aero-Tape—a specialized thermal break solution that integrates aerospace-grade insulation into a contractor-friendly, "peel-and-stick" format.

1. Unrivaled Thermal Performance (0.018 W/m·K)

Utilizing high-purity silica aerogel, Aero-Tape offers a thermal conductivity as low as 0.018 W/m·K. To put this in perspective: a 10mm strip of Aero-Tape provides more thermal resistance than 50mm of standard mineral wool or a thick rubber gasket. This allows architects to achieve ultra-low Psi-values (Ψ) without altering the wall's thickness or encroaching on internal floor space.

2. The "Dual-Armor" Encapsulation (Double Aluminum Foil Layer)

Standard aerogel can be notoriously dusty, which typically destroys the bond of any adhesive. Woqin’s "Dual-Armor" design solves this engineering challenge. The aerogel core is encapsulated between two layers of high-tensile aluminum foil:

• 100% Dust-Free: Ensures a clean job site and a perfect, permanent bond to the metal stud.

• 100% Vapor Barrier: The aluminum foil creates an impenetrable seal, preventing moisture from ever reaching the structural steel, thus eliminating the risk of corrosion.

3. Industrial High-Tack Adhesive for Rapid Site Work

Time is money on a construction site. Our Aero-Tape features a high-performance, pressure-sensitive acrylic adhesive with a heavy-duty release liner. It bonds instantly to galvanized steel, aluminum, or timber, even in humid conditions. Simply peel and stick—it requires no additional fixings to stay in place before the wallboards are applied.

Beyond Insulation: The Triple Decoupling Advantage of Aero-Tape

In high-performance architectural engineering, Aero-Tape is more than just a thermal barrier; it acts as a multifunctional "decoupling matrix" that solves three hidden structural challenges that traditional materials often ignore.

1. Acoustic Decoupling (Preventing Lateral Sound Bridging)

Light gauge steel studs are not only thermal superhighways but also excellent conductors of acoustic vibration. In multi-family residential or luxury hotel projects, sound travels through the plasterboard and vibrates directly through the rigid steel frame, leading to poor acoustic privacy between rooms.

The nanoporous network of the silica aerogel core in Aero-Tape acts as a high-performance acoustic decoupler. By breaking the rigid "metal-to-board" contact, it significantly reduces lateral sound transmission and dampens structural vibrations. This results in a superior acoustic environment, helping your project meet strict decibel (dB) ratings without the need for additional heavy acoustic membranes.

2. Absorbing Thermal Movement (Preventing "Screw Popping" and Cracks)

Uninsulated steel frames are subject to constant thermal expansion and contraction as temperatures fluctuate between the exterior facade and the interior environment. This localized stress often leads to two major maintenance headaches:

• "Screw Popping": Where the fastener heads eventually push through the plasterboard finish as the metal expands.

• Hairline Cracks: Particularly at the stress points where walls meet ceilings. By maintaining a stable, uniform temperature across the entire metal stud, Aero-Tape minimizes thermal-induced movement. Its resilient core also acts as a "stress buffer," absorbing micro-shifts in the frame and protecting expensive interior finishes. For contractors, this eliminates costly post-occupancy callbacks and saves thousands in maintenance costs over the building’s lifecycle.

3. The Ultimate Fire & Smoke Gasket (Integrity in Extreme Heat)

In a fire event, traditional EPDM or plastic foam tapes melt or vaporize within minutes, leaving a dangerous gap between the wallboard and the metal frame. This gap allows toxic smoke and hot gases to bypass fire-rated partitions.

 Because the core of Aero-Tape is Class A1 Non-Combustible silica, it remains physically stable even under extreme heat (tested to EN 13501-1). It functions as a permanent Fire & Smoke Gasket. Even as temperatures rise, the aerogel maintains its thickness and keeps the seal between your plasterboard and frame airtight, preventing smoke migration and buying critical time for evacuation.

Conclusion: The Most Cost-Effective Insurance for Passivhaus Compliance

Achieving a Passivhaus or Net-Zero rating in steel frame construction is a game of millimeters. You cannot afford to let the "5% area" of your metal studs ruin the "50% performance" of your building envelope.

Hebei Woqin’s Aero-Tape is more than just an insulation product; it is an engineering insurance policy. It eliminates thermal ghosting, prevents interstitial condensation, improves acoustic privacy, and ensures high-rise fire compliance—all in a thin, 100% dust-free, "peel-and-stick" format.

Secure Your Aero-Tape Evaluation Roll Today

Do not wait for "ghosting" patterns to ruin your engineering reputation. We invite EPC contractors, structural engineers, and Passivhaus consultants to verify the performance of our technology firsthand.

Request a Free Aero-Tape Evaluation Roll (available in 38mm/50mm widths or custom dimensions) directly to your office. Test the extreme tackiness of our adhesive, experience the zero-dust "Dual-Armor" encapsulation, and put our 0.018 W/m·K core to the test.
