Silica Aerogel Particle Technology & Application White Paper: Redefining the Physics of Thermal Management

Introduction

Under the dual pressures of global carbon neutrality goals and increasingly extreme industrial operating environments, traditional insulation materials (such as mineral wool, EPS, and polyurethane) have reached their physical limits regarding thickness, fire safety, and moisture resistance. To break through these bottlenecks, engineering must shift from macro-structures to the nanoscale.

This white paper delves into the underlying physics of Silica Aerogel Particles—the lightest solid known to humanity. By analyzing its thermodynamic behavior, structural properties, and system-level applications, we demonstrate how this material serves as the "genetic foundation" to reshape thermal management across modern industry and architecture.

Chapter 1: The Underlying Physics of Aerogel at the Nanoscale

The reason silica aerogel consistently outperforms traditional insulation lies in its ability to simultaneously neutralize the three modes of heat transfer: convection, conduction, and radiation.

• 1.1 Terminating Gas Conduction: The Knudsen Effect

  In traditional insulation, trapped air provides the thermal resistance. However, the pore sizes of generic materials are too large to stop air molecules from colliding and transferring heat. Silica aerogel features a mesoporous structure with pore sizes concentrated between 10 to 50 nanometers. Because this diameter is smaller than the mean free path of air molecules (~70nm), the molecules are severely restricted. They lose their ability to undergo free collision, effectively "locking" the gas in place and eliminating convective heat transfer. This phenomenon is known as the Knudsen Effect.

• 1.2 The Labyrinth of Solid Conduction: An "Infinite" Path

  Silica aerogel boasts an astonishing porosity of 80% to 99%. Its solid skeleton consists of silica nanoparticles forming a continuous, fractal-like "pearl necklace" network. Because the solid fraction is extremely low, the cross-sectional area available for heat conduction approaches zero. Furthermore, the heat must travel through an infinitely elongated, tortuous path across the fragile nano-skeleton, reducing solid thermal conductivity to negligible levels.

• 1.3 The Infrared Shield: Radiation Scattering

  At medium to high temperatures, radiant heat transfer becomes dominant. The unique three-dimensional nano-network of silica aerogel interacts with specific infrared wavelengths, acting as a highly effective scattering and absorption shield. This heavily attenuates the penetration of thermal radiation, maintaining stability even in intense industrial heat zones.

Chapter 2: Core Material Properties & The "Survival" Metrics

Evaluating premium aerogel particles requires looking beyond basic datasheets. True performance is dictated by precise chemical engineering and structural integrity.

• 2.1 Boundary-Pushing Thermodynamic Data

  Due to the synergistic physical effects mentioned above, premium silica aerogel particles achieve a room-temperature thermal conductivity as low as 0.013 to 0.018 W/(m·K)—significantly lower than that of still air (0.026 W/(m·K)). Combined with a specific surface area of up to ~715 m²/g and a bulk density of ≤0.1 g/ml, it provides maximum thermal resistance with near-zero deadweight.

• 2.2 Hydrophobic Physics: The "Sink or Float" Deathline

  Water is the ultimate enemy of thermal insulation (water conducts heat over 20 times faster than air). Natural, unmodified aerogel is highly hydrophilic due to surface hydroxyl (-OH) groups. Premium aerogel manufacturers must perform an extremely complex surface modification process—typically substituting hydroxyls with hydrophobic methyl (-CH3) groups—to achieve a >99% hydrophobic rate.

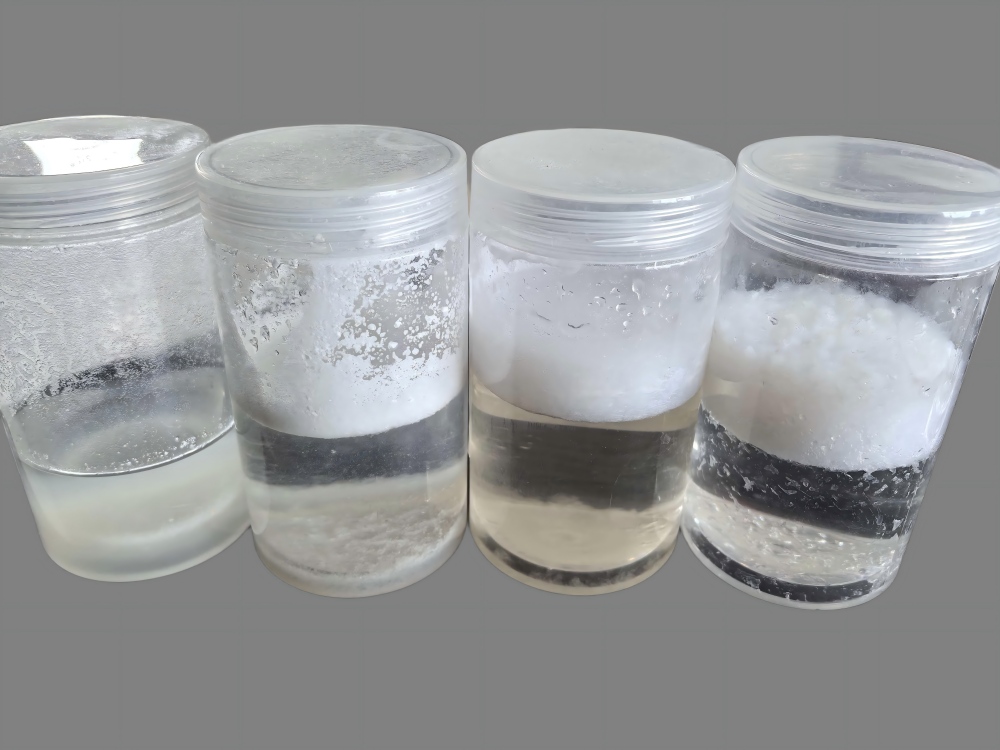

• The Flotation Truth: When subjected to a water immersion test, poorly modified or counterfeit aerogel particles will eventually sink. Water infiltrates the unprotected nanopores, and the resulting capillary forces literally crush the fragile silica skeleton, displacing the trapped air and destroying its insulation value. Conversely, properly modified aerogel completely repels water at the molecular level, remaining permanently suspended and dry. This absolute hydrophobicity is the only guarantee against Moisture-Induced Failure and severe Corrosion Under Insulation (CUI) in industrial pipelines.

• 2.3 Absolute Inorganic Safety: Class A1 Fire Rating

  Composed of pure inorganic silica (SiO2), aerogel particles are inherently non-combustible. Laboratory tests confirm that the material exhibits no structural collapse or deformation even under 800°C continuous exposure. It achieves a strict Class A1 Fire Rating, releasing zero toxic smoke or flaming droplets, making it the ultimate safe additive for high-rise building facades, electric vehicle (EV) battery shields, and petrochemical plants.

Chapter 3: From Particles to Systems—Core Application Scenarios

The true value of silica aerogel particles is realized when they are engineered into macroscopic systems. By leveraging its thermal and hydrophobic physics, aerogel serves as the core functional filler for next-generation insulation solutions.

• 3.1 Ultra-Thin Anti-Condensation Systems

  Condensation occurs when a surface temperature drops below the ambient Dew Point. Traditional solutions rely on bulky insulation to raise surface temperatures, which is impossible in space-restricted environments like subway HVAC grilles or outdoor substation cabinets.

  By integrating aerogel particles into ultra-thin coatings or flexible substrates, engineers can achieve immense thermal resistance in millimeters. Real-world testing in transit systems demonstrates that under aggressive conditions (15°C cooling air, 80% relative humidity), standard anti-condensation paints fail within 20 minutes. In contrast, an aerogel-enhanced matrix maintains a condensation-free surface for over 5 hours, permanently stabilizing the microclimate inside sensitive electrical cabinets without taking up spatial volume.

• 3.2 Class A1 Inorganic Composite Boards (Aero-Plaster / Aero-MgO / Aero-Stone)

  The construction sector faces a paradox: highly efficient organic foams (EPS/PIR) are dangerously flammable, while non-combustible mineral wool is thick and highly susceptible to moisture degradation.

  Aerogel particles solve this by acting as the ultimate inorganic filler. When compounded with active mineral powders and cementitious binders, they create extreme-performance architectural panels. Whether it's Aero-Plaster saving massive amounts of internal floor space (IWI), Aero-MgO providing high-impact moisture defense, or Aero-Stone (MCM) enabling zero-wet-trade heritage facade retrofits (EWI), the aerogel core delivers Class A1 non-combustibility and ultra-low thermal conductivity in a fraction of the traditional thickness.

• 3.3 Industrial Pipeline Coatings & CUI Eradication

  For petrochemical pipelines and marine offshore platforms, aerogel particles are revolutionizing thermal coatings. Traditional insulation paints suffer from high shrinkage and low build thickness (often requiring 14 spray passes to achieve a 2mm thickness). Advanced aerogel thermal coatings, formulated with an aerogel volume ratio exceeding 35%, drastically simplify application. Engineers can achieve a 1mm build per pass, requiring only 2 coats to reach 2mm. This slashes labor time, minimizes facility downtime, and most importantly, utilizes the >99% hydrophobicity of the particles to completely seal out electrolytes, definitively halting Corrosion Under Insulation (CUI).

Chapter 4: Formulation & Integration Engineering Guide

For R&D chemists and material scientists, aerogel particles are not standard fillers; they are delicate nanostructures requiring precise handling.

• 4.1 Particle Size Matrix Optimization

  Silica aerogel particles are typically synthesized in distributions ranging from 10 to 1000 μm. Selecting the right cut is critical. Fine powders (10-50 μm) are optimal for ultra-thin coatings and precision slurries where a smooth surface finish is required. Conversely, larger granules (100-1000 μm) are ideal for thick-build composite boards, plasters, and cavity fills, maximizing the volume-to-binder ratio for superior thermal performance.

• 4.2 Overcoming Shear Force: Protecting the Nano-Skeleton

  The most common point of failure in aerogel formulation is aggressive mixing. High-speed dispersion equipment generates immense mechanical shear forces that can crush the fragile mesoporous silica skeleton. If the pores are destroyed, the trapped air is lost, and the insulation fails. Advanced formulation requires low-shear folding techniques, optimized viscosity rheology, and specific wetting agents to uniformly disperse the hydrophobic particles without breaking their structural integrity.

• 4.3 Binder Compatibility Physics

  Because premium aerogel particles are heavily methylated (hydrophobic), they naturally repel aqueous binders. Successful integration into water-based acrylics, silica sols, or inorganic cements requires highly specialized surfactants. The goal is to bind the exterior of the particle to the matrix without allowing the binder to penetrate the nanopores, which would otherwise ruin the Knudsen effect.

Chapter 5: Conclusion—The "Genetic" Foundation of Superior Thermal Ecosystems

Silica aerogel particles are not merely an additive; they are the "underlying DNA" that dictates the absolute performance ceiling of any downstream thermal material.

Only a particle synthesized with flawless mesoporous geometry, absolute >99% hydrophobicity, and stringent carbon-chain surface modification can survive the brutal demands of real-world industrial and architectural environments. It is exactly this profound mastery over the raw "genetic material" that empowers Woqin to engineer our industry-dominating ecosystem of finished products.

Because we control the particle physics, we produce superior Aerogel Blankets, ultra-efficient Aerogel Coatings, and revolutionary Aerogel Composite Panels. Whether your engineering team is looking to procure the highest-grade raw particles to develop proprietary formulations, or seeking turnkey, ready-to-install composite systems, we provide the ultimate foundation.

The physical boundaries of thermal management have been redrawn. The nanoscale era is here.
