Lowering PUE in the Desert: Advanced Thermal Barriers for Middle East Data Centers

0. Introduction: The Thermodynamic Nightmare and the PUE Black Hole

In the race to build the ultimate AI infrastructure, Middle Eastern cloud providers and EPC contractors are facing a thermodynamic nightmare. Globally, the average Power Usage Effectiveness (PUE) for data centers hovers around 1.5. However, in the extreme climate of the GCC, the average PUE skyrockets to 1.82.

This is a financial black hole. It means for every megawatt of power consumed by the servers, nearly another megawatt is wasted purely on running the air conditioning. In the desert, cooling systems account for a staggering 60% to 70% of a data center's total operating expenses (OPEX).

To make matters worse, the rules of thermal management have violently shifted. Traditional data centers were designed for rack densities of 5kW to 10kW. Today, hyperscale AI facilities packed with GPU clusters are pushing 30kW+ per rack. Inside the server room, it is a localized furnace; outside, the ambient temperature routinely breaches 50°C, with direct solar radiation pushing metal roof surfaces to a blistering 75°C.

Under this "dual-sided" thermal assault, legacy building envelopes—relying on thick, inefficient mineral wool or space-consuming polyurethane (PUR)—have completely collapsed. When 55°C heat effortlessly penetrates the facility's walls, the Computer Room Air Conditioning (CRAC) units are forced into endless overdrive. Free cooling is non-existent for half the year, and chilling the facility becomes a brute-force battle against nature.

To achieve aggressive PUE targets in the Middle East, engineers cannot simply upgrade the internal liquid cooling systems; they must fundamentally fortify the exterior building envelope. It is time to deploy the ultimate thermal armor: Zero-Dust Aerogel Insulation Systems.

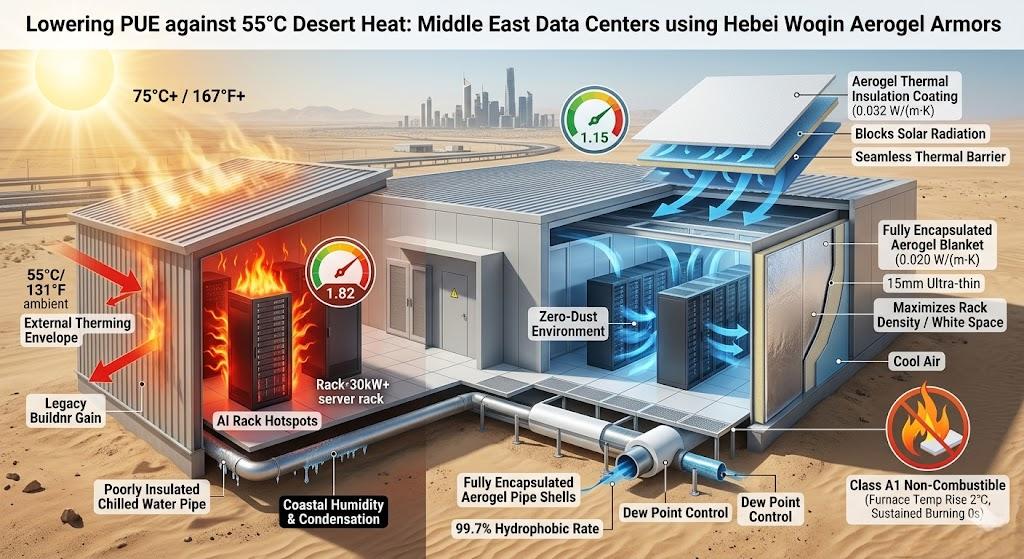

1. The Ultimate Thermal Armor for Modular Data Centers

To meet the explosive demand for AI computing, the Middle East is rapidly deploying Prefabricated Modular Data Centers (MDCs). However, these steel-framed structures are highly susceptible to the desert climate. When exposed to the harsh sun, the metal roof and walls can easily reach 75°C, turning the module into a literal oven.

Traditional insulation like 150mm mineral wool or thick PIR panels consumes precious interior space, significantly reducing the number of server racks that can be deployed within a standard footprint. Hebei Woqin solves this spatial and thermal crisis through a dual-layered, space-saving system:

• The Roof Defense (Aerogel Coating): For the exterior metal roof, we apply our highly advanced Aerogel Thermal Insulation Coating. With a tested thermal conductivity of just 0.032 W/(m·K), this liquid-applied thermal barrier forms a seamless, joint-free shield. It aggressively blocks solar radiation and eliminates thermal bridging at structural joints, forcibly dropping the surface temperature before heat can even penetrate the module.

• The Wall Defense (Aerogel Blanket): Inside the thin modular walls, we deploy the Silica Aerogel Blanket. Boasting an ultra-low thermal conductivity of 0.020 W/(m·K) at 25°C, it achieves the same thermal resistance as traditional bulk insulation at just 1/3 to 1/4 of the thickness. By utilizing a 15mm or 20mm aerogel profile, facility owners can fully maximize their IT white space and rack density without compromising the U-value of the building envelope.

2. The Zero-Dust Mandate: Engineered for AI Cleanrooms

When mechanical engineers hear "aerogel," their first concern is often dusting. In a mission-critical data center, microscopic silica dust shedding into high-velocity GPU cooling fans is a catastrophic risk that can lead to hardware failure.

We understand strict cleanroom standards, which is why we do not supply raw, untreated aerogel blankets for indoor data center applications. We have engineered our materials to deliver absolute Zero-Dust Performance:

• Resin-Locked Coatings: Our anti-condensation aerogel coatings utilize an advanced, low-VOC resin matrix that tightly binds the aerogel particles. Once cured on HVAC supply grilles or structural beams, it provides permanent thermal resistance with zero particulate emission.

• 100% Fully Encapsulated Blankets: For wall cavities and under-floor plenums, our aerogel blankets are factory-sealed within a high-strength aluminum foil and fiberglass cloth vapor barrier. This full physical encapsulation ensures that not a single dust particle escapes into the server room environment, providing the ultimate peace of mind for IT infrastructure architects.

3. Defeating the Dew Point and CUI: Coastal Humidity & Chilled Water Networks

For data centers located in coastal hubs like Dubai, Doha, or Dammam, 50°C heat is accompanied by oppressive, near-100% relative humidity. In these facilities, massive chilled water pipes run across rooftops and under raised floors to feed the cooling units.

When traditional elastomeric foams (rubber sponge) are used to insulate these pipes, they eventually degrade under UV exposure or mechanical stress. Once the vapor barrier is compromised, the foam acts like a sponge, soaking up ambient moisture. This leads to two catastrophic outcomes:

1. Lethal Condensation: Inside the server room, dripping condensation from poorly insulated pipes can cause immediate short circuits in multi-million-dollar AI clusters.

2. Corrosion Under Insulation (CUI): On exterior pipes, the trapped saltwater moisture rapidly corrodes the steel, threatening the very lifeline of the facility's cooling system.

The engineering truth is simple: We do not dehumidify; we defeat the dew point. Hebei Woqin’s fully encapsulated aerogel pipe shells boast a tested Hydrophobic Rate of 99.7%. By utilizing its ultra-low thermal conductivity, our aerogel drastically raises the outer surface temperature of the chilled water pipes safely above the dew point. It physically rejects water intrusion, permanently preventing CUI on exterior pipes and ensuring absolutely zero condensation dripping inside the server room.

4. The Non-Negotiable Baseline: Class A1 Pure Inorganic Fire Safety

AI data centers operate with extreme electrical loads, making fire safety a non-negotiable priority. Unfortunately, legacy insulation materials like Polyurethane (PUR) and elastomeric foams are inherently combustible (typically Class B1 or B2). In the event of an electrical fire, they ignite easily and release thick, highly toxic, and corrosive black smoke that permanently destroys delicate server motherboards.

Hebei Woqin’s Silica Aerogel provides an indestructible, pure inorganic thermal armor. Tested under rigorous standards, our aerogel achieved a Furnace Temperature Rise of just 2℃, a Sustained Burning Time of 0 seconds, and an incredibly low Combustion Calorific Value of 1.9 MJ/kg.

Certified as Class A1 Non-Combustible, it will never ignite, will not spread flames, and emits zero toxic smoke. Even during a catastrophic power failure or localized fire, this thermal armor buys critical time for emergency protocols, safeguarding your irreplaceable IT assets.

Conclusion & Call to Action: Stop Funding the PUE Black Hole

In the extreme environments of the Middle East, continuing to specify 1970s-era bulk insulation for next-generation AI data centers is a critical design flaw. Aerogel insulation is no longer a premium material; it is a mandatory strategic investment to lower PUE, recover spatial footprint, and eliminate moisture-induced downtime.

Ready to drop your PUE and secure your cooling networks?

Stop battling 55°C heat with outdated foams. [Contact Hebei Woqin’s Engineering Team Today]. Submit your current PUE and cooling load data—we’ll run a free ‘Thermal Barrier ROI Model’ showing exactly how much you can cut your annual cooling OPEX.

If your facility's external chilled water networks are also battling severe coastal humidity, discover how our hydrophobic technology completely eliminates pipe degradation in our dedicated whitepaper: [Surviving 50°C: The Ultimate Pathology and Eradication of CUI in the Persian Gulf].
