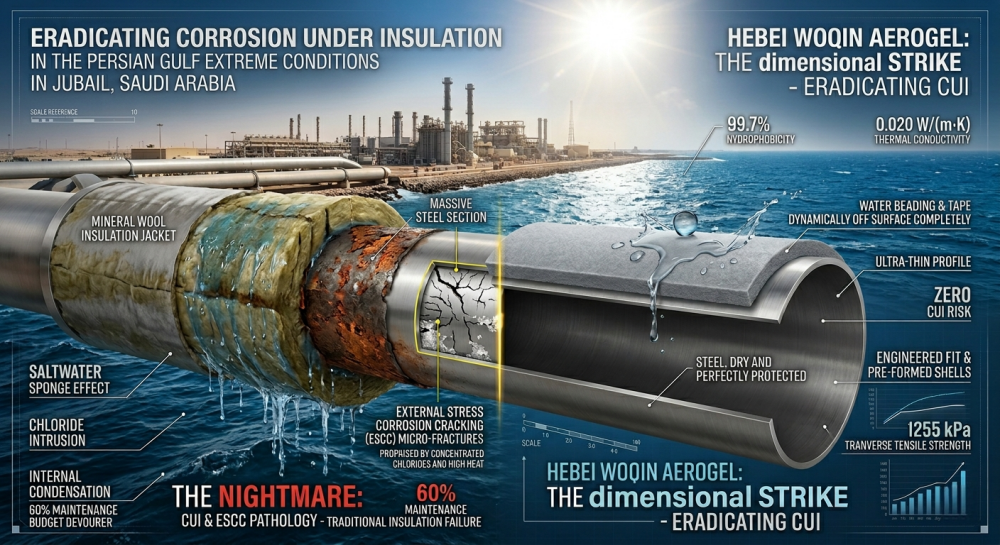

Surviving 50°C: The Ultimate Pathology and Eradication of CUI in the Persian Gulf

0. Executive Summary

In the global petrochemical and offshore (FPSO) sectors, no engineering environment is more destructive than the Persian Gulf. Here, Corrosion Under Insulation (CUI) is not just a technical headache; it is a financial black hole that devours millions of dollars in maintenance budgets annually.

Historically, the industry's approach to CUI has been fundamentally flawed: attempting to delay corrosion by endlessly patching metal cladding or applying thicker protective coatings, while completely ignoring the physical flaws of the insulation material itself. This whitepaper provides a rigorous pathological analysis of pipeline corrosion in the Middle East and presents a disruptive paradigm shift: eradicating CUI at its root using the dimensional strike of material physics—specifically, 99.7% hydrophobic silica aerogel.

Chapter 1: The Perfect Storm - Environmental Strangulation

Middle Eastern coastal pipe racks and offshore platforms are ground zero for the world’s most brutal thermodynamic and chemical meat grinder. The "lethal cocktail" climate that triggers CUI consists of three core pain points:

Pain Point 1: The Dual Extremes

Operations face not only blistering ambient temperatures exceeding 50°C (often pushing metal surface temps past 70°C), but also crippling coastal relative humidity ranging from 80% to 100%. This moisture-laden air provides endless ammunition for electrochemical corrosion.

Pain Point 2: "Internal Rain" and Invisible Condensation

The clash between desert and maritime climates creates violent diurnal temperature swings. During the day, the metal cladding absorbs heat and expands; at night, temperatures plummet, causing the moisture trapped within the insulation's air gaps to violently condense against the cold pipe walls. Even in the arid Middle East where it rarely rains, the inside of your insulation experiences a hidden "internal rainstorm" every single day.

Pain Point 3: Chloride Intrusion

Offshore platforms and coastal facilities are perpetually battered by splash zones and high-concentration marine salt fog. High winds and sandstorms easily compromise the sealant joints of the aluminum cladding. Once saltwater carrying aggressive chlorides infiltrates the system, it forms a highly conductive electrolyte—the ultimate catalyst for breaching the metal's defense.

Chapter 2: The "Original Sin" of Legacy Insulation Materials

Why does CUI continue to ravage Middle Eastern mega-projects despite massive maintenance budgets? The root cause is that we are wrapping our pipelines in a fatal "water-absorbing jacket." When exposed to the Persian Gulf climate, traditional materials like Calcium Silicate (Cal-Sil) and Mineral Wool expose their unforgivable physical flaws:

Pain Point 4: The Disastrous "Saltwater Sponge" Effect

Once moisture breaches the cladding, porous and hydrophilic legacy materials act like massive sponges, locking water and chlorides deep within their fibers. Terrifyingly, even when the outside weather returns to a bone-dry 50°C, the deep layers of mineral wool pressed against the pipe can remain saturated for months, leaving the steel permanently soaking in a hot saltwater bath.

Pain Point 5: The Thermal Cliff and Energy Black Hole

Water conducts heat over 20 times faster than trapped air. When traditional insulation becomes waterlogged, its thermal conductivity spikes catastrophically, increasing heat loss by 10 to 20 times compared to its dry state. This not only accelerates CUI but turns the plant into an "energy black hole," forcing operators to burn massive amounts of extra fuel (steam/electricity) just to maintain process temperatures.

Pain Point 6: Inherent Chemical Sabotage

To make matters worse, when inferior traditional industrial wools are soaked in water, the material itself can leach acidic/alkaline compounds or free chlorides. This is the equivalent of wrapping a "slow-release hydrochloric acid patch" directly around an already vulnerable pipe wall, launching an irreversible chemical attack from the inside out.

Chapter 3: The Invisible Cancer – Deep Dive into Metal Pathology

CUI is essentially a "blind-box" phenomenon. The corrosion occurs silently beneath the aluminum cladding and insulation, remaining completely invisible until a catastrophic leak or fire breaks out. Depending on the metallurgy and operational parameters, this trapped saltwater acts differently, but always destructively:

Pain Point 7: The "Boiling Pot Effect" on Carbon Steel

For carbon steel piping operating in the critical CUI temperature range of -4°C to 175°C, the trapped moisture continuously boils, evaporates, and re-condenses against the hot pipe wall. This rapid wet-dry cycling drastically accelerates localized pitting corrosion. Due to gravity, this aggressive attack is often concentrated at the 6 o'clock position of the pipe, rapidly eating through the wall thickness and causing sudden ruptures.

Pain Point 8: The ESCC "Time Bomb" on Stainless Steel

For austenitic and duplex stainless steel pipelines operating between 50°C and 175°C, the combination of concentrated marine chlorides and heat triggers External Stress Corrosion Cracking (ESCC). This is arguably the most terrifying form of CUI. The exterior surface of the pipe may appear rust-free to the naked eye, but a microscopic web of cracks is aggressively propagating through the metal's grain boundaries. It is an invisible time bomb that can lead to sudden, explosive structural failures in high-pressure gas or chemical lines.

Pain Point 9: The Deadly Trap of Cyclic Service

Pipelines subjected to cyclic operations (frequent start-stop or alternating hot/cold phases) are the ultimate CUI disaster zones. The constant thermal expansion and contraction relentlessly fatigue and tear the cladding joints. Furthermore, the alternating temperatures guarantee high-frequency condensation. Industry data shows that pipelines in cyclic service suffer a CUI incidence rate at least 3 times higher than those operating at constant temperatures.

Chapter 4: The Financial Black Hole of Maintenance & Inspection

When CUI strikes, the cost of the compromised steel pipe is often the cheapest part of the problem. The true nightmare lies in the astronomical cost of detection and remediation.

Pain Point 10: The "Blind-Box" Inspection Dilemma

Because traditional insulation like Mineral Wool masks the pipe, inspectors cannot visually assess the steel. While advanced Non-Destructive Testing (NDT) exists, waterlogged insulation severely disrupts the readings. Facility managers are left guessing the condition of their multi-million-dollar assets.

Pain Point 11: Brute-Force Dismantling & Scaffolding Costs

Currently, the standard protocol for investigating suspected CUI is primitive and wildly expensive: erect heavy scaffolding, strip away the metal cladding, tear off the wet legacy insulation, sandblast the rusted steel, weld patches, and finally re-insulate and re-clad. On an offshore platform or a congested Persian Gulf petrochemical rack, the labor and scaffolding costs for this "brute-force" inspection often exceed the cost of the insulation material by a staggering 10 to 1 ratio.

Pain Point 12: The 60% Budget Devourer

The cumulative financial toll of these factors is staggering. According to major oil and gas operators, CUI-related inspections, repairs, and associated unplanned downtime routinely consume between 40% and 60% of a petrochemical facility's entire piping maintenance budget. You are not just paying for new pipes; you are paying a massive annual tax for using the wrong insulation material.

Chapter 5: Engineering Dead Ends – Geometry and Space Constraints

Beyond the chemical and financial nightmares, traditional insulation creates severe physical roadblocks on offshore platforms and petrochemical plants where space is at an absolute premium.

Pain Point 13: The High-Risk Geometry Blind Spots (The Small-Bore Gap)

CUI rarely starts on a straight, unobstructed pipe. The most vulnerable points are the complex geometries: valves, flanges, dead-legs, pipe supports, and small-bore piping (under 2 inches). Traditional rigid materials (like Cal-Sil) or bulky mineral wool cannot tightly conform to these irregular shapes. The resulting gaps act as perfect "water catchers," funnelling saltwater directly to the most critical joints.

Pain Point 14: Pipe Rack Clashes and Congestion

To meet the stringent U-value requirements in the 50°C Middle Eastern heat, traditional insulation must be applied in massive thicknesses (often 100mm to 150mm). This leads to severe "pipe rack clashes"—pipes physically interfering with one another. It forces EPCs to design wider, heavier, and more expensive structural racks, and makes it physically impossible for maintenance crews to access the pipes later.

Chapter 6: The Dimensional Strike – Hebei Woqin's Aerogel Eradication Strategy

Patching an obsolete system is a losing battle. To exceed Aramco’s and global EPCs' zero-tolerance CUI standards, Hebei Woqin leverages the dimensional strike of material physics: High-Purity Silica Aerogel Systems.

Based on rigorous independent testing, here is how our aerogel directly neutralizes every pathology mentioned above:

1. The Ultimate Moisture Barrier: 99.7% Hydrophobicity

Our aerogel blankets achieve a tested Hydrophobic Rate of 99.7%. Liquid water and aggressive marine chlorides simply cannot penetrate the nanoporous structure. It completely eradicates the "saltwater sponge" effect. Furthermore, the material is highly vapor permeable (breathable)—meaning any trace amounts of internal moisture or vapor can freely escape, keeping the steel surface bone-dry.

2. Reclaiming the Pipe Rack: 0.020 W/(m·K) Thermal Conductivity

With a tested room-temperature thermal conductivity of 0.020 W/(m·K), aerogel allows engineers to slash insulation thickness by up to 75% compared to mineral wool. This instantly resolves pipe rack clashes, dramatically reduces the footprint on weight-sensitive offshore FPSOs, and provides ample clearance for maintenance access.

3. Ending Brute-Force Maintenance: Pre-formed Shells & Flexibility

To conquer the "Small-Bore Gap," our highly flexible aerogel blankets effortlessly wrap around complex valves and flanges with zero air gaps. To drastically cut the astronomical scaffolding and labor costs, Hebei Woqin introduces Pre-formed Aerogel Pipe Shells. These rigid/semi-rigid shells "snap" onto the pipe instantly. During routine UT (Ultrasonic Testing) inspections, they can be easily removed and reinstalled without degradation, ending the cycle of destructive dismantling.

4. Indestructible Armor for Offshore Operations

Offshore facilities face constant structural vibrations. Legacy materials sag and pulverize over time. Our aerogel boasts a staggering transverse Tensile Strength of 1255 kPa and a remarkably low Vibration Mass Loss Rate of just 0.3%. Combined with its Class A1 Non-Combustible fire rating, it provides permanent, maintenance-free thermal armor that outlasts the lifespan of the pipeline itself.

7. Conclusion & Call to Action

In the extreme environments of the Persian Gulf, continuing to specify traditional, water-absorbing insulation is an active investment in a corrosion time bomb. The true cost of insulation is not the price per square meter; it is the millions of dollars lost to CUI inspections, scaffolding, and unplanned downtime.

Hebei Woqin’s Aerogel Insulation is not an expense—it is an eradication strategy.

Stop funding the CUI maintenance loop. Whether you are engineering a new offshore platform or retrofitting a severely corroded petrochemical pipe rack, we have the factory-direct solution.

[Contact our engineering team today] Submit your pipe specs (temperature, diameter, fluid, location) and we’ll send you back a CUI Risk Scorecard—ranking your current system against the 12 failure modes in this whitepaper. Free of charge.
