Revolutionizing Facade Retrofits: Why Flexible Aerogel Stone is Replacing Heavy Steel-Framed Cladding

Introduction: The "Impossible Triangle" of European Facades

When executing facade retrofits on high-rises or century-old heritage buildings across Europe, property developers and lead architects face an "Impossible Triangle." You must simultaneously satisfy strictly enforced EU Energy Performance Certificate (EPC) standards, unyielding heritage preservation laws, and the extremely fragile load-bearing capacity of aging substrates.

The industry’s default solution—thick insulation boards combined with heavy Steel-Framed Dry Hanging Stone (mechanical cladding)—is an engineering nightmare. It is not only a financial drain regarding labor and logistics but also a structural liability that often compromises the very assets it aims to protect.

Enter Hebei Woqin’s Aero-Stone (Aerogel Flexible Stone Composite). By fusing a 3-5mm Modified Clay Material (MCM) face with a 10mm or 20mm Silica Aerogel core, we have engineered a system with a total profile of just 13mm to 25mm. Weighing only 6 kg/m², this "Patent Pending" (CN Appl. No. 202610254198.9) technology officially marks the end of the clumsy, heavy, and dangerous mechanical cladding era.

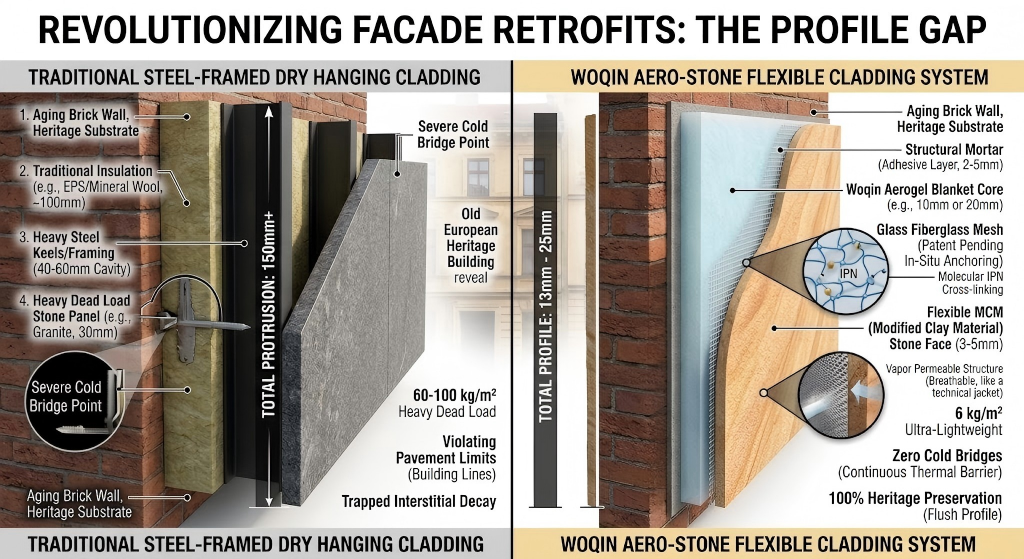

Visual Contrast: The Profile Gap

• Traditional System: A 150mm+ protrusion that swallows historic window reveals and breaches public pavement limits (Building Lines).

• Aero-Stone: A flush, 13-25mm profile that preserves the original architectural contours as if the building were "born" with modern thermal efficiency.

Chapter 1: The 5 Fatal Flaws of Traditional Dry Hanging

Before adopting outdated mechanical cladding for your next high-rise or heritage retrofit, you must understand the severe structural and financial liabilities associated with steel-framed systems.

1. The "Unbearable" Structural Dead Load

Traditional stone panels and their heavy steel keels impose massive dead loads on aging brickwork or brittle concrete. Driving deep expansion bolts into century-old, friable mortar joints often induces internal micro-fractures. Instead of reinforcing the facade, this violent installation process risks localized wall collapse and catastrophic structural degradation.

2. High-Altitude Drop Hazards & Severe Thermal Bridges

Mechanical slotting creates invisible stress fractures within natural stone. Combined with UV-degraded epoxy resin (AB glue) exposed to extreme temperature fluctuations, these heavy stone panels frequently become lethal high-altitude drop hazards. Furthermore, the dense network of metal anchors pierces directly through the insulation layer, creating thousands of severe Cold Bridges. These thermal bypasses bleed indoor heat and invite localized condensation, while the on-site welding required for the steel framework introduces extreme fire hazards.

3. Violating Heritage Compliance & Pavement Limits

To achieve modern U-values using legacy insulation (like EPS or mineral wool), walls must often be thickened by over 150mm. This aggressive protrusion violently breaches pavement limits, swallows historic window reveals, and distorts original roof eaves. Local Planning Officers will universally reject any design that mutates the historical profile or encroaches on public pedestrian space.

4. The "Choking Wall" and Interstitial Decay

Pre-1920s European properties lack modern Damp-Proof Courses (DPCs); their masonry must be allowed to "breathe." Slapping impermeable foam boards and dense stone facades onto these structures cuts off vital vapor permeability.

The Solution? Think of a High-End Waterproof Breathable Jacket. Just like a premium Gore-Tex shell, a building envelope must repel driving rain while allowing sweat (internal vapor) to escape. Traditional cladding "chokes" the wall, triggering Interstitial Condensation. This trapped moisture pulverizes historic brickwork and rots embedded timber joists from the inside out. Aero-Stone mimics the physics of high-end outdoor gear—rain beads up and rolls off the surface, but water vapor molecules pass through the microporous matrix freely.

5. Extortionate Scaffolding & Municipal Penalties

In prime locations like London, Paris, or Berlin, time and space are your most expensive assets. The heavy lifting, concrete drilling, and steel welding required for mechanical cladding drag out project timelines for months. Developers bleed capital through astronomical heavy-duty scaffolding rentals and extortionate municipal Street Closure Permits. While material costs are one factor, the hidden labor and logistical overhead of traditional cladding often accounts for 70% of the total retrofit budget.

Chapter 2: The Aero-Stone Revolution: Eliminating the Keel

To overcome the "Impossible Triangle" of heritage preservation, structural limits, and thermal efficiency, Hebei Woqin engineered the Aero-Stone Composite Board. This system completely discards outdated mechanical fastening in favor of advanced materials science.

Weapon 1: 1/10th the Weight, Zero Steel Keels

The Aero-Stone system weighs approximately 6 kg/m²—a staggering 1/10th the weight of traditional dry-hanging stone. This extreme lightweight profile means your aging brickwork feels virtually zero dead load.

Because it is so light, the entire system is applied via Direct Adhesion using high-strength structural mortar. We have completely eliminated the need for heavy steel keels, deep concrete drilling, and mechanical anchors. No steel framework means zero on-site welding fire hazards and zero risk of heavy stone panels dropping onto the pavement below.

Weapon 2: Ultra-Thin Profile & 360° Flexibility

Traditional EWI systems push your facade 150mm+ into the street. Aero-Stone stops this spatial theft. By fusing a 3-5mm Modified Clay Material (MCM) decorative face with a 10mm or 20mm Silica Aerogel core, the total system thickness is strictly contained between 13mm and 25mm.

This preserves the original building lines, window reveals, and roof eaves, guaranteeing compliance with local heritage planning officers. Furthermore, both the MCM face and the aerogel core are engineered with dual-flexibility. The panel can bend up to 360 degrees without the surface cracking, seamlessly wrapping around historic cylindrical pillars, arches, and curved domes. With over 90% visual replication accuracy for historic red brick, rammed earth, and natural stone, your facade remains authentically preserved.

Weapon 3: The Breathable Fire & Water Shield

In high-rise and heritage retrofits, fire safety and moisture management are non-negotiable.

• Fireproof Armor: Tested by SGS, the MCM surface layer achieves a stringent GB 8624 Class A2-s1, d0 rating (strictly flame-retardant, extremely low smoke, zero flaming droplets). Paired with the Class A1 aerogel core, the facade becomes an impenetrable fire shield.

• The "Breathing" Wall: Remember the waterproof breathable jacket metaphor? While the surface violently repels driving rain (SGS-tested water absorption of just 8.13%) and the core boasts a 99.7% hydrophobicity, the micro-porous structure remains highly vapor-permeable. Liquid water droplets are too large to enter the micropores, but trapped internal moisture molecules effortlessly pass through. This permanently eradicates interstitial condensation and timber rot.

The Ultimate Retrofit Showdown: Steel-Framed Cladding vs. Aero-Stone

To truly understand the financial and engineering leap Aero-Stone represents, look at the physical realities of both systems side-by-side:

Chapter 3: The Invisible Moat - Patented "In-Situ" Anchoring

A common objection from structural engineers regarding direct-bonded composites is the fear of long-term delamination. The market is flooded with cheap laminates that use a flawed "post-bonding" method—simply gluing two finished materials together. Under severe UV exposure and freeze-thaw cycles, these superficial adhesive layers degrade, causing the facade to peel off.

Hebei Woqin has permanently engineered this flaw out of existence through our proprietary "In-Situ Penetration Anchoring" technology (Patent Pending: CN Appl. No. 202610254198.9).

Instead of using standard adhesives, we employ a wet-process gradient thermal pressing technique. During the low-pressure phase (60-80°C), the active MCM slurry is forced through a reinforcing fiberglass mesh, physically penetrating the aerogel matrix up to a depth of 1.0mm. Under subsequent high-temperature curing (120-150°C), the silane coupling agents cross-link, creating a molecular Interpenetrating Polymer Network (IPN).

This process creates millions of microscopic "anchors" between the stone face and the aerogel core. Destructive lab testing proves that the interface peel strength actually exceeds the cohesive strength of the aerogel itself. The result: An Aero-Stone board will never delaminate.

Chapter 4: The Economic Reality - Reclaiming Your ROI

Engineering is ultimately about economics. While advanced silica aerogel carries a premium material cost, specifying the Aero-Stone system results in a massive net reduction in your Total Installed Cost (TIC).

Traditional European facade retrofits demand five grueling steps: applying adhesive -> embedding mesh -> base coating -> priming -> final dry-hanging or rendering. Each step requires specific curing times, keeping highly-paid contractors on scaffolding for weeks.

Aero-Stone is a factory-finished, all-in-one system. You are compressing a 5-step ordeal into a 1-step Direct Bonding process.

Consider the true cost of a central London retrofit. The material itself is only a fraction of the budget; the real financial hemorrhage comes from hidden overheads. By completely eliminating heavy steel procurement, removing the need for concrete drilling teams, dramatically shrinking the rental period for heavy-duty scaffolding, and avoiding extended municipal Street Closure penalties, developers routinely see their overall facade retrofit costs plummet by over 60%.

Conclusion: Stop Specifying Blind, Start Building Smart

The Aero-Stone Composite System is not just another insulation product; it is a structural rescue mission for European heritage buildings and high-rises. It defends the architectural profile, protects the aging substrate from catastrophic dead loads, completely eradicates thermal bridges, and aggressively protects your project margins.

Why compromise with 150mm of rigid, heavy, and hazardous cladding when you can achieve passive-house efficiency with just 13mm to 25mm of flexible, fireproof aerogel stone?

Secure Your "Aero-Stone Prototype Box" Today

Do not risk your next multi-million Euro retrofit on outdated mechanical cladding technology. Request a physical engineering sample directly to your desk.

Experience the staggering lightness (6 kg/m²), test the 360-degree flexibility of our 3-5mm MCM / 10-20mm Aerogel matrix with your own hands, and review our unredacted SGS test reports for Class A2-s1,d0 fire safety and 8.13% water absorption.

Contact our lead engineering team immediately to discuss your project dimensions and secure your sample box:  an@cn-aerogel.com
