Underfloor Heating (UFH) and Basement Conversions: Achieving Max Efficiency with 10mm Aerogel MgO Boards

The High-Stakes Basement Dilemma: Wealth vs. Ruin

In the UK and across Europe, retrofitting a heritage basement into a luxury cinema room or wellness gym is one of the highest-yielding property investments. Naturally, Underfloor Heating (UFH) is a mandatory requirement for these premium spaces. However, deploying the wrong sub-floor insulation can instantly turn a six-figure investment into a damp, toxic, and non-compliant disaster.

Contractors relying on legacy materials like thick PIR or EPS foam boards inevitably trigger a chain reaction of structural, thermal, and health crises. Hebei Woqin’s 10mm Aero-Mag (Aerogel Magnesium Board) was engineered to neutralize these exact failures, ensuring your project meets modern EPC standards without compromising architectural integrity.

Chapter 1: The Space & Compliance Trap

In heritage basement conversions, every millimeter of vertical space is worth its weight in gold. Traditional UFH buildups demand 100mm to 150mm of thick foam insulation beneath the screed. This triggers two catastrophic architectural traps that can derail any project:

1. The "Headroom Crisis" & Exorbitant Underpinning

Victorian and Edwardian basements were never designed with generous ceiling heights. If traditional insulation steals 150mm from the floor, the space often falls below the "habitable room" height standard. To reclaim this lost headroom, contractors are forced into

Underpinning (digging downwards to deepen the foundations)—a highly dangerous structural excavation that can cost upwards of £3,000 to £5,000 per linear meter and risks the entire building's structural stability.

2. The Part K Staircase Violation (The ±2mm Red Line)

Raising the floor level to accommodate thick insulation causes a fatal compliance issue: it alters the height of the bottom step of the staircase. According to the UK Building Regulations (Approved Document K), the rise of each step in a flight must be uniform. The allowable tolerance for riser height variation is a strict ±2mm.

Raising a floor by 100mm causes a massive deviation from this limit, creating a severe trip hazard. Building Control inspectors will immediately fail the project, forcing the contractor to either rip up the newly laid UFH floor or undergo the agonizing expense of rebuilding the entire historic staircase to match the new floor height.

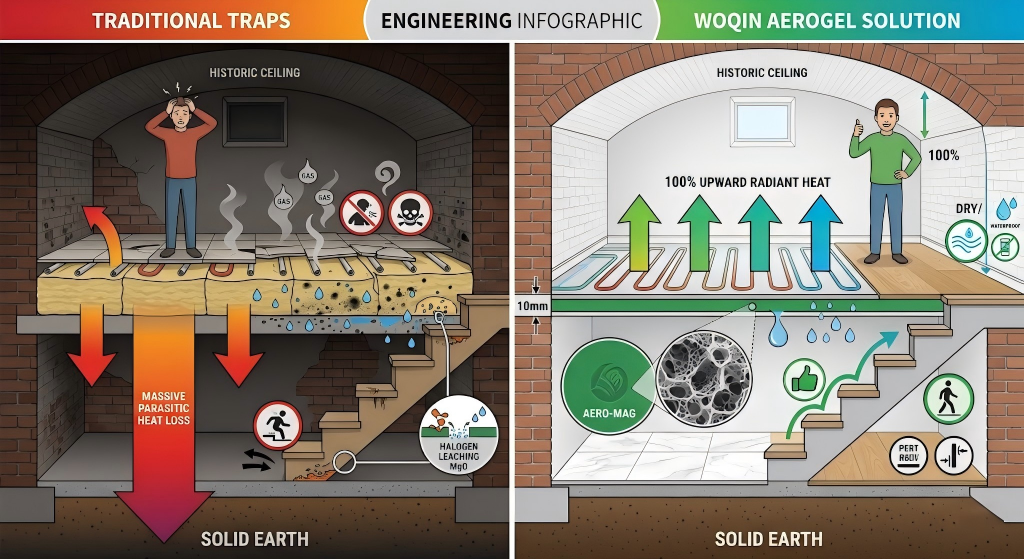

Performance Comparison: Traditional Insulation vs. Woqin 10mm Aero-Mag

The Woqin Solution: The 10mm Aero-Mag Intervention

Hebei Woqin eliminates the space crisis entirely. Our Aero-Mag Composite Board delivers a reliable thermal conductivity of 0.020 W/(m·K) at a mere 10mm thickness. By integrating high-purity silica aerogel into a rigid, fireproof magnesium matrix, contractors can lay UFH pipes directly over our ultra-thin boards without sacrificing the room's utility.

By specifying 10mm Aero-Mag, you preserve maximum headroom, completely bypass the need for costly underpinning, and ensure flawless compliance with strict staircase and door-clearance regulations from day one.

Chapter 2: The Thermal Sink & Moisture Nightmare

Beyond the physical space limitations, subterranean environments present aggressive thermodynamic and moisture challenges. Placing UFH on top of standard insulation in a basement is a recipe for complete system failure and long-term structural rot.

3. The 40% "Earth Heat Sink" Trap

Heat naturally flows towards cold. According to building physics studies and CIBSE guidelines, installing a 40°C underfloor heating system over a cold, uninsulated solid earth base (typically around 9°C in Europe) creates a massive thermal gradient.

Without a high-performance thermal break, up to 40% of the UFH heat is sucked directly downwards into the earth—a phenomenon known as the "Earth Heat Sink." The result is a parasitic energy drain: the boiler or heat pump runs 24/7, energy bills skyrocket, yet the room never reaches its target temperature.

Woqin’s Defense: The core of our Aero-Mag board utilizes high-purity silica aerogel, delivering a thermal conductivity of just 0.020 W/(m·K). This ultra-low thermal transfer acts as a "thermal mirror," reflecting 100% of the radiant heat upwards into the living space and permanently sealing off the cold earth below.

4. Interstitial Condensation & The "Sponge Effect"

The extreme temperature difference between hot UFH pipes and cold ground creates a powerful vapor pressure that drives moisture upwards. Traditional PIR or EPS foam boards often suffer from moisture ingress over time. Once these materials absorb water, they lose their R-value, trigger black mold growth, and cause the basement's waterproofing layer (tanking) to fail.

Woqin’s Defense: Our aerogel core is engineered for extreme moisture resistance. Tested according to the GB/T 10299 standard, Woqin Aerogel achieved an astonishing 99.7% Hydrophobic Rate. It physically repels liquid water while remaining vapor-permeable, ensuring the insulation never acts as a sponge and the thermal efficiency remains intact for the life of the building.

5. The Fatal Flaw of Cheap MgO: Halogen Leaching (Sweating)

To avoid the flammability of foam, some contractors specify standard Magnesium Oxide (MgO) boards. However, in high-humidity basements, low-quality MgO boards suffer from a catastrophic chemical breakdown known as "Halogen Leaching" or "Sweating." The boards exude corrosive chloride droplets that rot expensive engineered timber or solid oak floors from the underside up.

Woqin’s Defense: Woqin’s Aero-Mag boards utilize an advanced, purified magnesium formula. Rigorously tested under the GB/T 33544-2017 standard, our boards are officially certified to exhibit "Zero water drops, zero moisture return, and zero halogen leaching." With leachable chloride levels far below industry safety limits (tested at just 3.88%), your premium floor finishes are permanently safe from chemical and moisture-induced rot.

Chapter 3: Toxic Off-Gassing & Structural Collapse

Even if you manage to solve the moisture and space issues, placing a high-temperature heating system over chemical-based foams introduces severe health and structural risks to the property's inhabitants.

6. The UFH "Toxic Chamber" Effect (VOCs & Formaldehyde)

Basements naturally suffer from poor ventilation. When underfloor heating pipes—operating between 35°C and 50°C—are laid directly over traditional PIR or EPS foam boards, a dangerous chemical reaction occurs. The continuous thermal baking drastically accelerates the off-gassing of Volatile Organic Compounds (VOCs) and Formaldehyde hidden within the foam. Within months, the luxury basement cinema or home gym is transformed into a "toxic chamber," triggering respiratory issues and asthma.

Woqin’s Defense (Zero Toxicity): Woqin’s Aero-Mag boards are crafted from pure inorganic silica aerogel and magnesium. Tested under the strict GB 18580-2017 and GB/T 17657-2013 standards by the National Building Material Test Center, our boards achieved a flawless "Formaldehyde Not Detected" rating. Furthermore, the aerogel core has passed the stringent European SGS REACH certification (with all 240 SVHCs tested completely clear). Heating our boards produces zero odors and zero toxic emissions, ensuring absolute indoor air quality.

7. Insulation Yielding & Premium Tile Cracking

High-end basement conversions frequently feature heavy marble tiles, solid oak, or weighty equipment like billiard tables and heavy gym machinery. Traditional foam insulation is inherently soft. Under sustained compressive loads and foot traffic, the foam yields and compresses over time. This micro-settlement causes the rigid screed above to fracture, resulting in the catastrophic cracking of expensive floor tiles.

Woqin’s Defense: The rigid magnesium matrix of our Aero-Mag board delivers extreme compressive strength. It acts as an indestructible, rock-solid substrate that will not compress or deflect under heavy static or dynamic loads, guaranteeing the lifelong integrity of premium floor finishes.(For extreme impact-resistant wall applications in the same room, read our UK Heritage IWI Dual-Line Strategy Guide).

Conclusion: Secure Your Basement Investment

Do not let cheap, non-compliant sub-floor insulation ruin a six-figure heritage basement conversion. Specifying traditional thick foam guarantees headroom loss, strict Part K staircase violations, structural cracking, and toxic off-gassing.

By upgrading to Hebei Woqin’s 10mm Aero-Mag Composite Boards, you preserve maximum vertical space, bypass exorbitant underpinning costs, and deliver an impenetrable, zero-formaldehyde thermal barrier that maximizes UFH efficiency.

Take Action Now to Upgrade Your UFH Strategy:

Download the Technical Data Sheet (TDS): Get the complete engineering specs, including our 0.020 W/(m·K) thermal conductivity, A1 Fire Rating, and GB/T 10299 hydrophobic test results.

Request Your 10mm Aero-Mag Evaluation Kit: Stop guessing. Email our engineering team to request a physical sample box. Test its extreme rigidity and zero-dust composition with your own hands before your next basement project.

Contact our UFH engineering team today: an@cn-aerogel.com
