Stop Ignoring the 5%: How Aerogel Nodes Eradicate Thermal Bridges in Retrofits

You can wrap a building in the thickest mineral wool available, but if you ignore the microscopic thermal bridges, the entire thermal envelope is compromised.

In the European Internal Wall Insulation (IWI) retrofit and Passive House sectors, architects are waking up to a harsh thermodynamic reality: The 5% of uninsulated framing and junctions cause 50% of the building's heat loss and 100% of the interstitial condensation risks.

At Hebei Woqin, we are shifting the focus from macro-insulation boards to micro-detailing. Building insulation's future is not about making walls thicker; it's about treating the weakest nodes. Here is how our advanced aerogel composites are solving the four deadliest thermal bridging pain points in modern construction.

Node 1: The Steel Stud "Cooling Fin" Effect & Aerogel Tapes

In metal-framed buildings and commercial retrofits, steel studs act as highly conductive thermal highways (λ ≈ 50 W/m·K). Winter cold travels right through the stud to the warm drywall, dropping the interior surface temperature below the dew point. This causes "ghosting" (parallel black mold lines) and structural rust.

The Fatal Flaw of Traditional Solutions: Contractors often use cheap PE foam or rubber strips to decouple the stud. However, these materials typically sport a poor thermal conductivity of >0.04 W/m·K and a highly flammable Class E fire rating. They quickly lose elasticity, offer terrible R-values, and in a fire event, release toxic black smoke—strictly violating modern European building safety codes.

The Woqin Aerogel Vision: 3mm-10mm Thermal Break Tapes

Hebei Woqin introduces the Aerogel Thermal Break Tape. Applied directly to the stud flanges, a mere 3mm to 10mm aerogel strip instantly severs the thermal conductive path. Crucially, inheriting the DNA of our silica aerogel, these tapes are Class A1 Non-combustible. They provide extreme thermal resistance (λ ≤ 0.016 W/(m·K) at 0°C) with zero toxic smoke emissions.

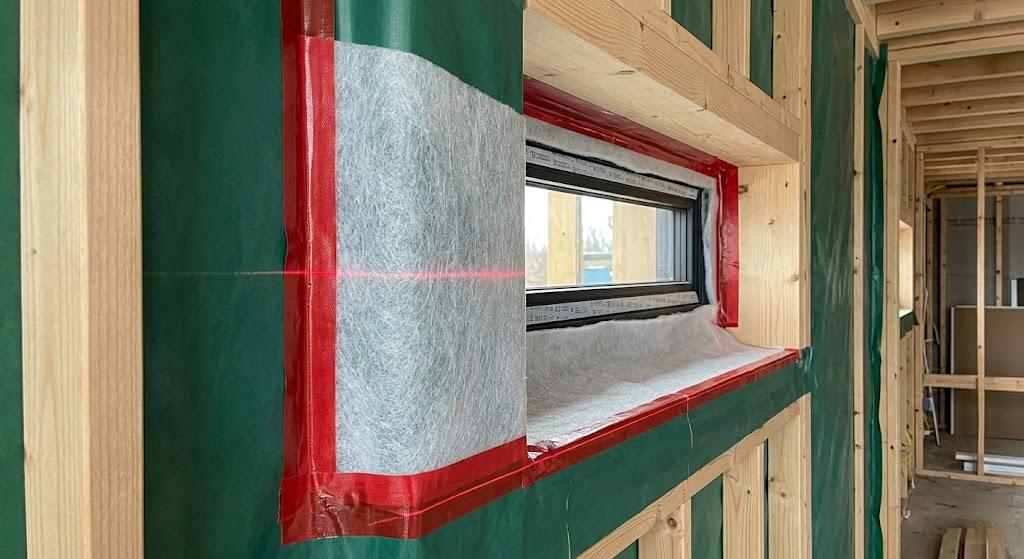

Node 2: Heritage Window Reveals (The Mold Trap)

Retrofitting historical solid-masonry buildings in the UK and Ireland presents a geometric nightmare: Window Reveals. If you apply 50mm of rigid foam here, you block the glass and destroy historical sightlines. If left uninsulated, the reveal becomes a magnet for humidity, leading to severe localized mold.

The Aerogel Breakthrough: 10mm Gypsum-Aerogel Panels

Space constraints require extreme thermal resistance. Hebei Woqin's 10mm Gypsum-Aerogel Composite Panel provides the ultimate IWI solution. It delivers the thermal resistance of 30mm of traditional EPS foam in a fraction of the space. Furthermore, it features an integrated Aluminum Foil layer acting as a Vapour Control Layer (VCL), eliminating condensation risks while preserving architectural beauty.

Node 3: The "Joist End Rot" Crisis in Solid Masonry

When insulating old brick houses internally, the outer masonry becomes significantly colder. The timber floor joists embedded directly into these cold bricks are suddenly at risk. Moisture condenses on the cold joist ends, causing them to rot and eventually collapse—a mechanism responsible for up to 30% of structural failures in pre-1920s UK housing retrofits.

The Woqin Solution: 10mm Aerogel Joist Shoes

Wrapping the joist ends with standard insulation traps water and accelerates rotting. Hebei Woqin's solution is the 10mm Aerogel Joist Shoe. Utilizing our raw silica aerogel blanket, this ultra-thin wrap is 99.7% hydrophobic (blocking liquid water from the wet brick) but remains 100% vapor permeable (breathable). It keeps the joist end warm while allowing existing wood moisture to escape freely, permanently preventing timber decay.

Node 4: Facade Bracket Thermal Pads

In External Wall Insulation (EWI) and ventilated facade systems, the aluminum brackets supporting the cladding penetrate the insulation layer, creating thousands of point thermal bridges that can account for 15-20% of total envelope heat loss in high-rises.

The Woqin Solution: Heavy-Duty Aerogel Thermal Pads

Hebei Woqin manufactures die-cut 5mm-10mm Aerogel Thermal Pads designed to sit between the metal bracket and the concrete substrate. With high compressive strength and a Class A1 fire rating, these pads dramatically reduce point thermal transmittance without compromising the facade's structural integrity or fire safety.

Partner with the Source Manufacturer

Defeating thermal bridges requires precision engineering and material science, not just bulk materials.

As a factory-direct R&D manufacturer, Hebei Woqin goes beyond supplying bulk aerogel blankets. We possess deep OEM/ODM manufacturing capabilities. Whether you need large-scale MgO-Aerogel composite boards or precision-slit Aerogel Thermal Break Tapes and die-cut Pads, we have the agility to co-develop solutions with European Passive House system integrators.

Stop compromising your building envelopes at the nodes. Contact our engineering team today to integrate the ultimate thermal break solutions into your next project.
