Aero-Plaster | Ultra-Thin Thermal Laminate Board (15mm - 32mm Range)

Stop Losing Space to Insulation.

Patented Technology (Patent Pending App No: 202620256678.4)

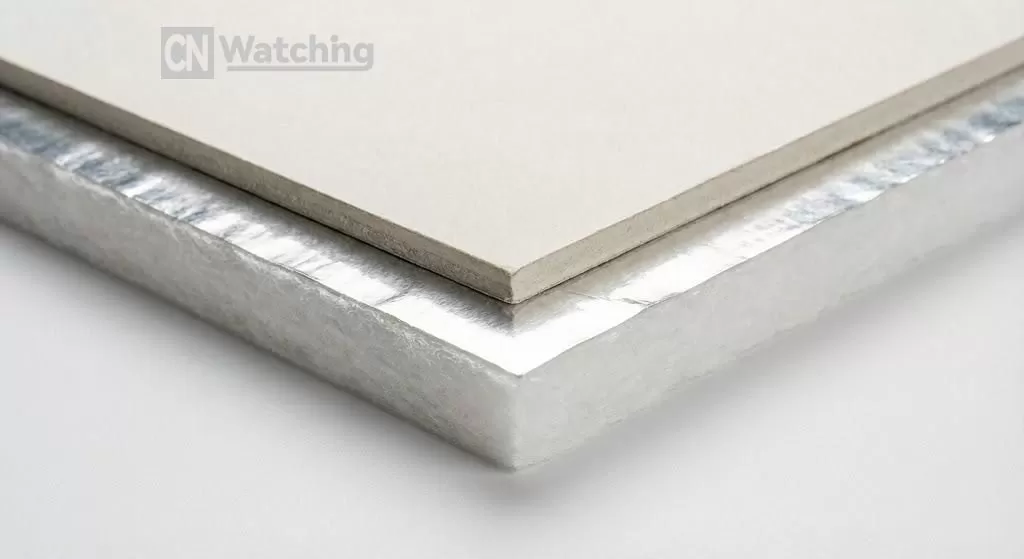

Woqin Aero-Plaster is an ultra-thin thermal laminate designed to upgrade solid walls without sacrificing floor space. By seamlessly bonding our proprietary Hydrophobic Aerogel to a Foil-Backed Plasterboard, we provide a high-performance solution that offers both extreme insulation and vapour control in one install.

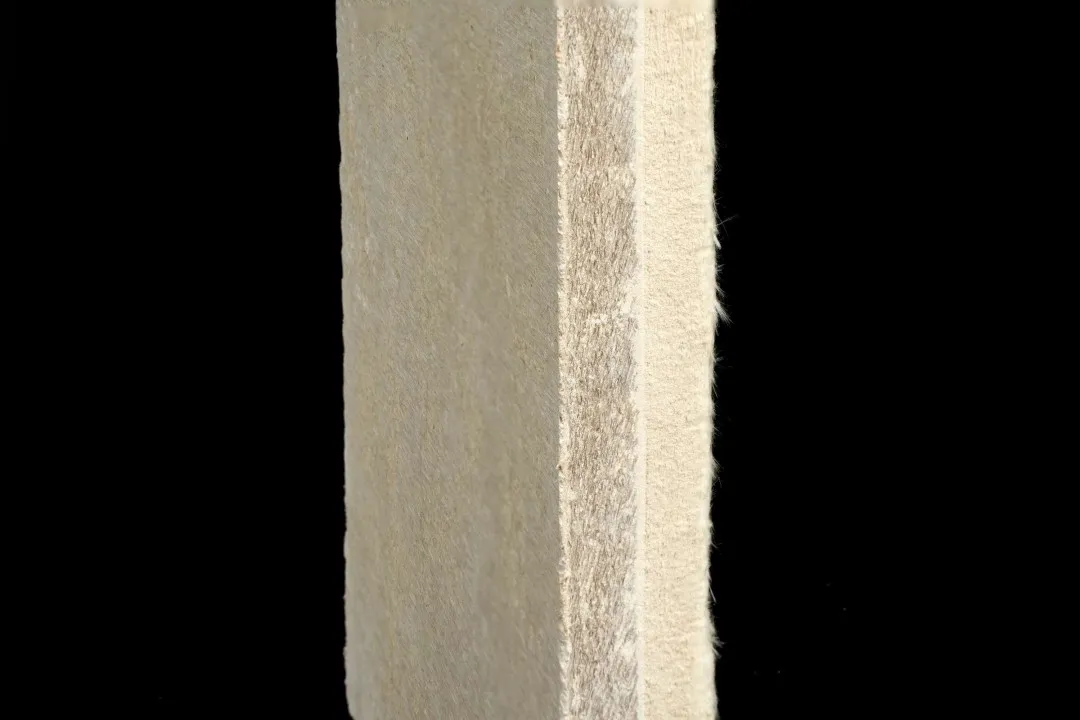

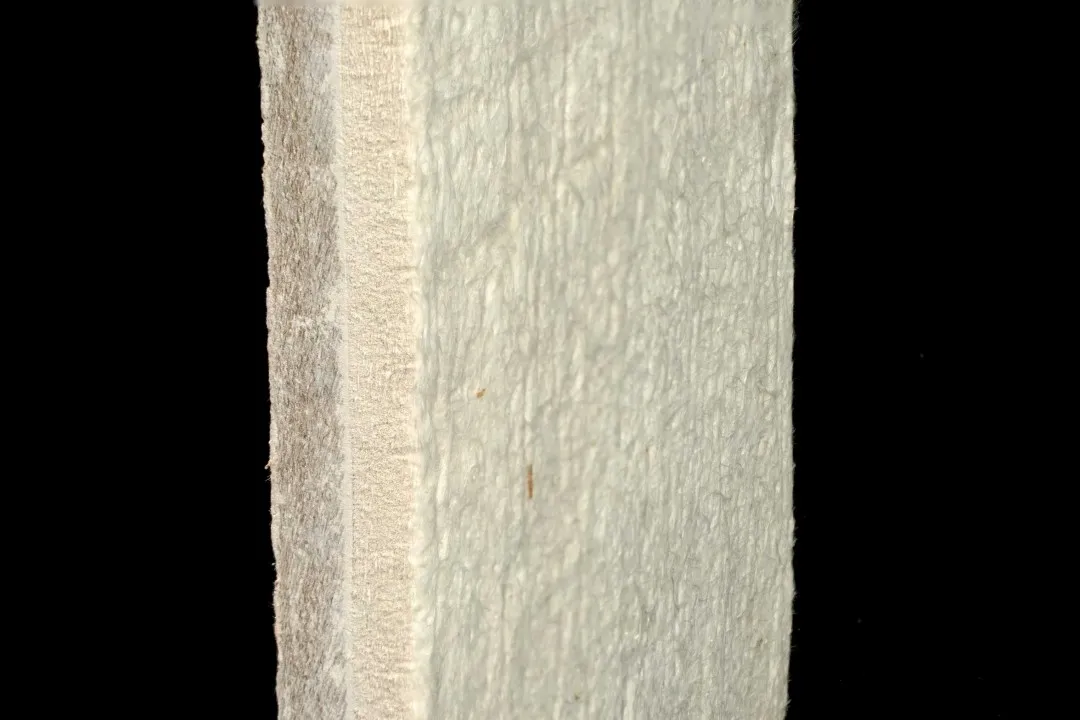

1.Most Popular Size: 22mm Total Thickness (10mm Aerogel + 12mm Board)
2.Core Thermal Conductivity: 0.020 W/(m·K)
3.Application: Direct fix or batten fix to solid walls

INQUIRIES Next Product

Description

Product OverviewWoqin Aero-Plaster is a direct, cost-effective alternative to market-leading aerogel laminates. Equipped with our newly patented stepped-bite structure (App No: 202620256678.4) for seamless thermal bridging prevention, it is specifically engineered for hard-to-treat solid walls in Victorian terraces, London apartments, and historic building retrofits.

Key Benefits

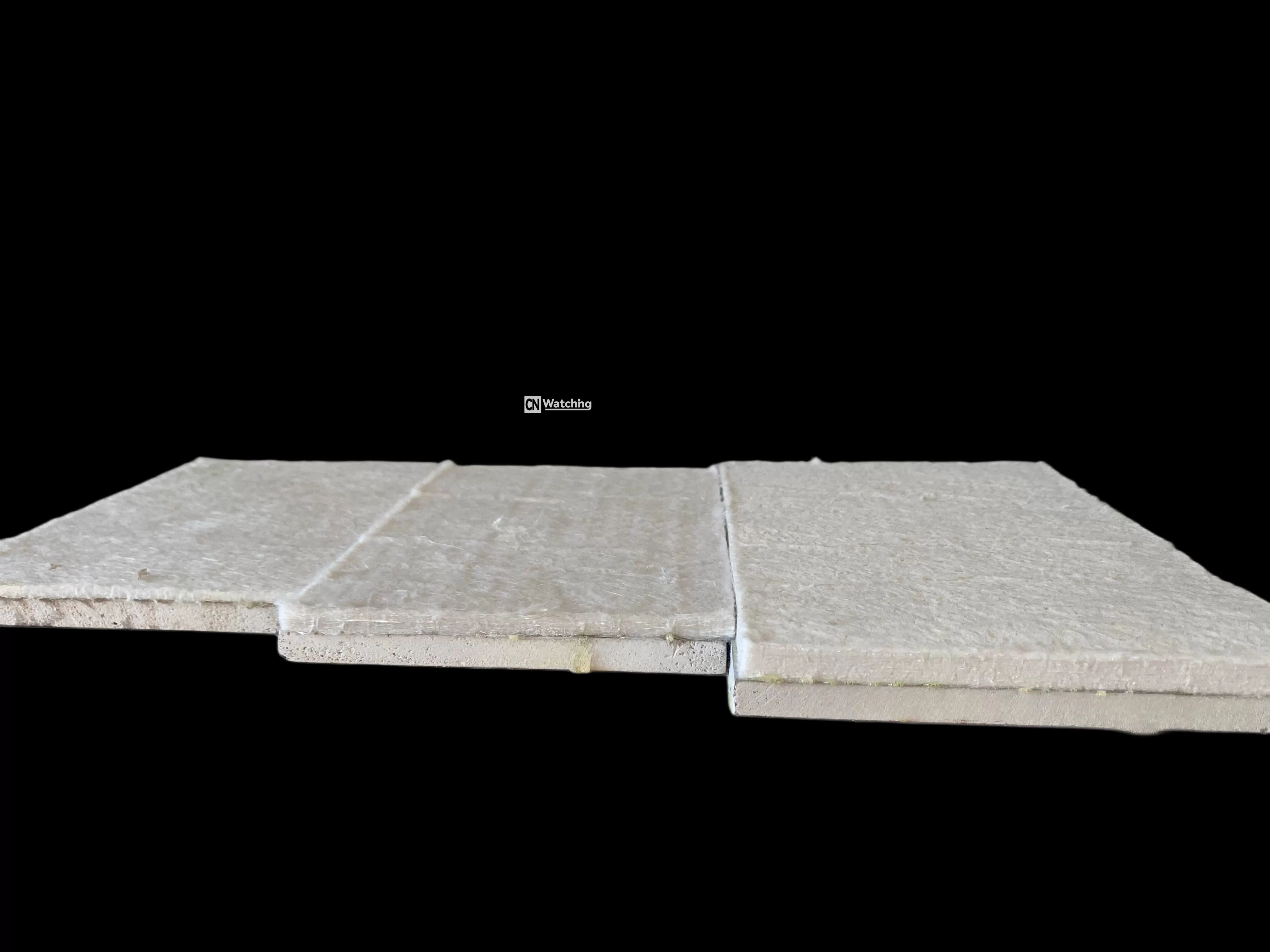

Exclusive Patent Design: Ensures structural integrity and eliminates thermal bridging at the joints.
Multiple Thickness Options (New!): As a direct manufacturer, we offer full customization.

Ultra-Slim: 15mm (3mm Aerogel + 12mm Board)
Slim: 17mm (5mm Aerogel + 12mm Board)
Standard: 22mm (10mm Aerogel + 12mm Board)
High-Performance: 27mm (15mm Aerogel + 12mm Board) & 32mm (20mm Aerogel + 12mm Board)

Integrated Vapour Control: Features a foil-backed layer acting as a continuous Vapour Control Layer (VCL).

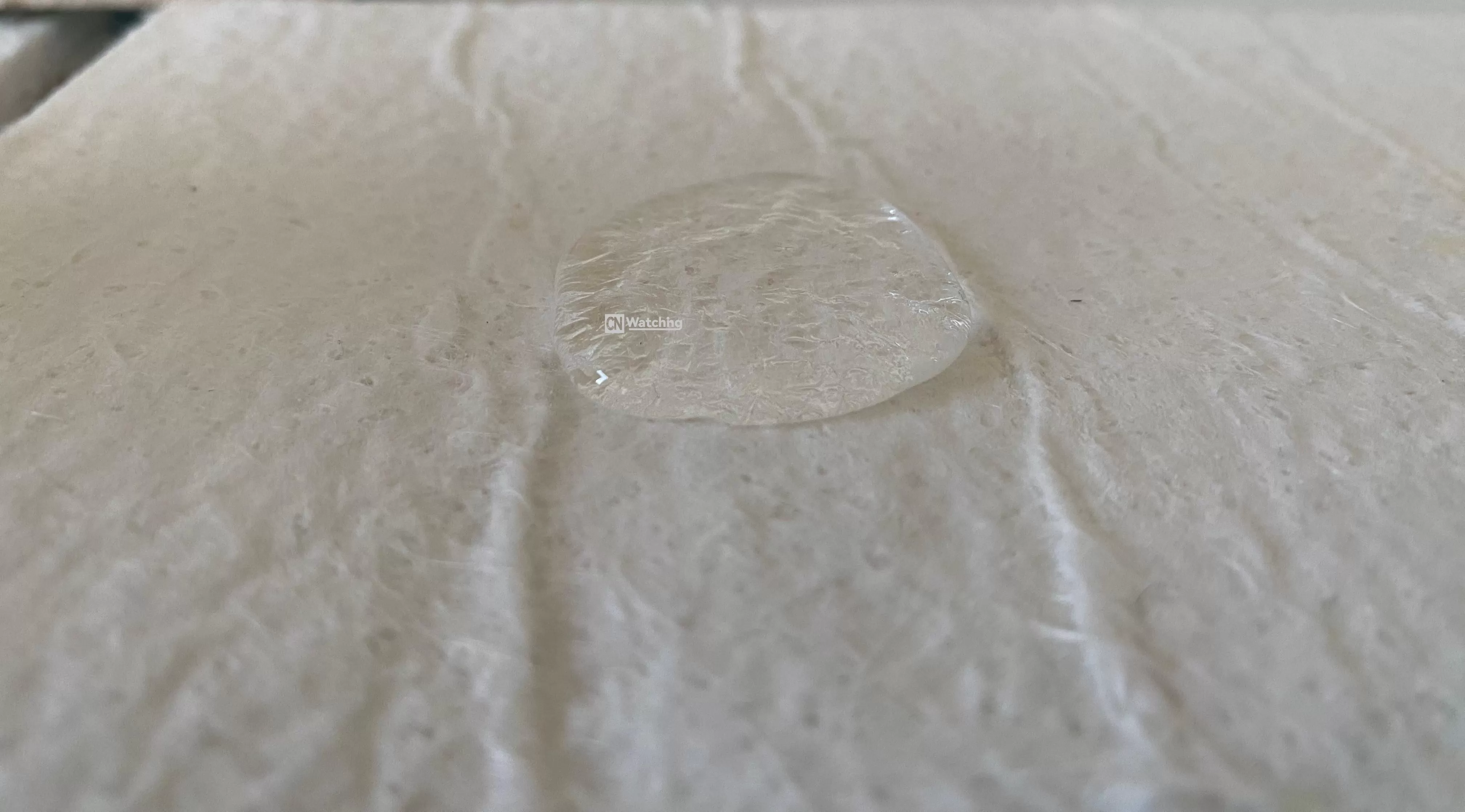

Moisture Control: The aerogel core is >99.7% water repellent, preventing interstitial condensation.
Fire Safety: The aerogel insulation core is strictly rated Class A1 (Non-combustible).

Technical Specification

Property	Woqin Aero-Plaster	Test Standard
Total Thickness	15, 17, 22, 27, 32 mm	-
Insulation Thickness	3, 5, 10, 15, 20 mm	-
Plasterboard Thickness	12 mm	-
Thermal Conductivity (Core)	0.020 W/(m·K)	GB/T 10295 / EN 12667
Reaction to Fire (Core)	Class A1	GB 8624 / EN 13501-1
Hydrophobic Rate	≥ 99.7%	GB/T 10299
Tensile Strength	> 1200 kPa	GB/T 17911
Board Dimensions	2400 x 1200 mm	Standard

(Disclaimer: "Spacetherm" is a registered trademark of The A. Proctor Group. Woqin Technology is an independent manufacturer and is not affiliated with The A. Proctor Group.)

Aero-Plaster | Ultra-Thin Thermal Laminate Board (15mm - 32mm Range)

Installation Guidance (Easy Retrofit)

Woqin Aero-Plaster boards are designed for straightforward installation:

Cutting: Can be cut using a standard jigsaw or circular saw. For small cut-outs (sockets/switches), a sharp knife can be used. Wear a dust mask when cutting.
Fixing:

Timber Batten: Screw directly into timber straps at 300mm-500mm centers.
Direct Bond: Can be bonded to sound walls using appropriate PU adhesive foams.

Finishing: Tapered edges allow for standard tape-and-joint finishing. Fill joints, sand, and paint.

Frequently Asked Questions (FAQ)

Q: Can I hang pictures or shelves on this board?
A: For light items, standard plasterboard fixings work. For heavy items (TVs, radiators), fixings must go through to the solid wall.
Q: Is it moisture resistant?
A: Yes, the Aerogel core is hydrophobic (>99% water repellent), making it excellent for damp-prone walls.
Q: How does this compare to Spacetherm Wallboard?
A: Woqin Aero-Plaster offers comparable thermal performance (0.020 W/mK) and uses the same A1-rated aerogel technology, but is available at a factory-direct price for maximum cost efficiency.
Q: What thicknesses are available?
A: While our 22mm board is the industry standard and most popular, as the direct Aerogel manufacturer, we supply 15mm, 17mm, 27mm, and 32mm total thicknesses to meet your specific U-value or space-saving requirements.

Q: What does your "Patent Pending" status mean?
A: We have developed a proprietary composite technique (App No: 202620256678.4) that permanently bonds the aerogel to the board without compromising its thermal structure, ensuring zero delamination during installation.
