The Ultimate Practical Guide: Top 18 FAQs on Aerogel Composite Systems for European Contractors & Developers

Introduction: Breaking the "Space-Age" Myth

Because aerogel was originally developed for aerospace applications, many traditional contractors and developers assume it must be extremely difficult, dangerous, or overly complex to install on a standard building site.

This is a myth.

At Hebei Woqin, we have engineered our Aerogel Composite Systems (Aero-Plaster and Aero-Stone) to handle almost exactly like premium gypsum boards or standard flexible veneers. Armed with the right tools and a basic understanding of building physics, your team can install these systems flawlessly, saving massive amounts of interior space and project time.

Here are the top 18 questions European contractors and developers ask us before specifying our aerogel matrix.

Section 1: ROI & Space Economics (For Developers & Landlords)

Q1: Aerogel is more expensive upfront. How does it actually save money for my project?

A: When developers only look at the cost per square meter of material, aerogel seems expensive. However, experienced EPCs look at the Total Installed Cost. Because our aerogel composites are ultra-thin and lightweight, you drastically reduce labor hours. You eliminate the need for expensive, heavy custom-steel frameworks (especially on facades). More importantly, in residential retrofits, the extreme thinness means you can often complete the Internal Wall Insulation (IWI) without forcing tenants to relocate, saving thousands in lost rental income.

Q2: Exactly how much floor space (carpet area) can I save compared to PIR or Mineral Wool?

A: The financial savings are staggering when you calculate the real estate preserved. To achieve a compliant U-value of 0.30 W/(m²K) on a typical solid brick wall, you need roughly 100mm of PIR board or 150mm of mineral wool. With Woqin’s Aero-Plaster, you only need 22mm.

 If you are insulating 20 linear meters of external walls in a flat, 150mm traditional insulation will "steal" 3.0 square meters of your living space. Based on typical Prime London property values (£10,000+ per sqm), losing that space effectively costs you £30,000 in property value. Aerogel preserves that wealth.

 Table 1: Internal Wall Insulation (IWI) Space & ROI Comparison Matrix

(Scenario: Insulating 20 linear meters of external wall)

*Note: Financial estimates are based on typical Prime Central London property values of £10,000 per m². Your exact ROI will vary by local market rates.

Q3: Does upgrading with Aerogel boards help landlords avoid MEES (EPC) fines?

A: Absolutely. Under current UK Minimum Energy Efficiency Standards (MEES), leasing an EPC Band F or G property can result in fines up to £5,000 per breach. Installing just 22mm of Aero-Plaster on solid external walls is typically enough to catapult a failing heritage property straight into a safe Band C rating, making it 100% legal to let while preserving the internal room dimensions.

Section 2: Aesthetics & Heritage Integration (For Architects & Heritage Officers)

Q4: Can the Aero-Stone flexible veneer match the exact color and texture of my heritage building?

A: Yes. We understand that Heritage Conservation Officers (BS 7913) are strictly against cheap "imitations." Woqin’s Aero-Stone utilizes a proprietary mineral pigmentation technology that achieves a >90% aesthetic match to natural granite, limestone, or rare historical masonry. Because we use inorganic pigments, it is highly UV-resistant and will not fade over the decades.

Q5: How do we install Aero-Stone on curved facades and cylindrical columns without the "polygon effect"?

A: Traditional rigid boards force contractors to cut insulation into narrow strips to wrap a column, creating a clumsy, multi-sided "polygon effect" that ruins the architectural curve. Aero-Stone features 360° flexibility. At only 13mm to 25mm thick, it bends seamlessly around tight radii (≥200mm) directly on-site. You simply wrap the column in one continuous, unbroken thermal skin, preserving the perfect original geometry of the heritage structure.

Q6: What specific adhesive is required to bond Aero-Stone to exterior masonry?

A: To ensure a permanent bond that withstands severe weather and thermal expansion, you must use a breathable, polymer-modified flexible cementitious mortar. This specific mortar shares the same thermal expansion coefficient as the aging masonry substrate beneath it. This prevents the veneer from cracking, shearing, or delaminating during extreme freeze-thaw cycles.

Section 3: Health, Safety & Site Handling (For Site Managers & HSE Teams)

Q7: Is aerogel dust toxic or dangerous to my installation team?

A: This is a top priority for any safety-conscious site manager. Our aerogel is made from Amorphous Silica, which is fundamentally different from the "crystalline silica" found in concrete or stone. It is non-carcinogenic and non-toxic. However, because it is a super-desiccant, the dust will rapidly absorb moisture from the skin and eyes. It is a mechanical irritant, not a chemical one. For more information on how our materials handle extreme conditions safely, refer to our [Class A1 Fire Safety & Compliance Guide].

Q8: What PPE (Personal Protective Equipment) is strictly required on-site?

A: Standard construction PPE is more than sufficient. We recommend:

• Respiratory: N95 or FFP2 dust mask to prevent throat and nose dryness.

• Eye Protection: Safety goggles (crucial when cutting or overhead fixing).

• Skin Protection: Standard work gloves and long sleeves to prevent skin dryness.

• Pro-Tip: After the shift, wash with mild soap and apply a standard moisturizing cream. This resets the skin’s moisture balance immediately.

Q9: How should we store Aerogel Composite Boards on a busy construction site?

A: Proper storage ensures the integrity of the facing materials.

• Orientation: Boards must be stored flat on a level surface (ideally on pallets). Never lean them against walls for long periods, as this can cause slight bowing in the gypsum or MgO face.

• Protection: While the aerogel core is 100% hydrophobic, the gypsum/MgO facings are not. Keep them covered and away from standing water or heavy rain to protect the finish for skimming.

• Shelf Life: Unlike chemicals or resins, aerogel has no shelf life—it remains thermally stable for decades as long as it is physically protected.

Q10: What happens if the aerogel material gets wet during a rainstorm?

A: This is where aerogel outperforms mineral wool or PIR. Our core is >99.7% hydrophobic. Water cannot penetrate the aerogel matrix. If a board gets wet, simply wipe down the face and let it air dry. Unlike mineral wool, which collapses and loses all R-value when wet, Woqin's aerogel will retain 100% of its thermal efficiency once the surface is dry.

Section 4: Cutting, Tooling & Edge Sealing (The "Cutting Station" SOP)

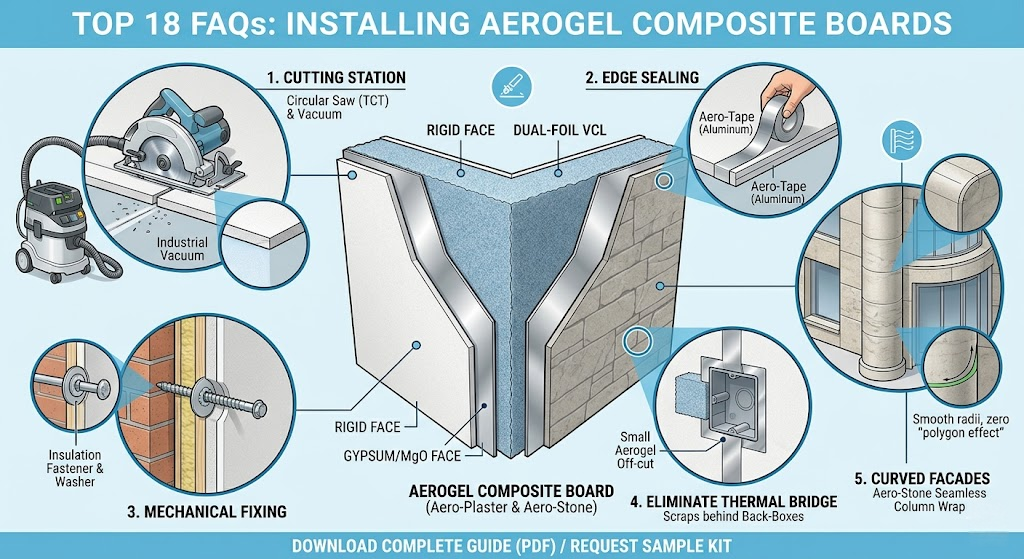

Q11: What are the exact tools needed to cut Aerogel Plasterboard and Aero-Stone?

A: To minimize dust and ensure clean joints, tool selection is critical. For Aero-Plaster (Rigid Boards): Use a circular or plunge saw with a Tungsten Carbide Tipped (TCT) blade, ideally connected to an M-Class vacuum extractor. For Aero-Stone & Raw Blankets: A heavy-duty utility knife or electric fabric shears provide the cleanest results without generating airborne dust.

Table 2: Aerogel Composite Systems - Cutting Tools & Operations Matrix

Q12: How do I seal the cut edges to prevent aerogel dust from shedding?

A: Once a board is cut, the "exposed" aerogel core may shed a small amount of dust during handling.

• Quick Seal: Apply a strip of our Aero-Tape (Aluminum Thermal Break Tape) along the cut edge. This creates a 100% dust-proof seal and maintains the vapor barrier.

• Wet Seal: Alternatively, apply standard plaster jointing compound directly to the edge during the fixing process.

Q13: Can we reuse the off-cuts and scrap materials to save costs?

A: Absolutely. Waste not, want not. Aerogel is a high-value asset. Instruct your team to save all off-cuts. These are the perfect "gap-fillers" for:

• Packing around window and door reveals.

• Filling voids around pipe penetrations through floors.

• Stuffing behind electrical back-boxes where rigid boards cannot fit. Using scraps ensures a seamless thermal envelope and drastically reduces your project's waste-to-landfill ratio.

Section 5: Fixing, Drilling & Penetrations (For Structural Installers)

Q14: Should I use dot-and-dab (adhesive) or mechanical fixings for the Aerogel Plasterboard?

A: For maximum structural safety and longevity, we strongly recommend a hybrid approach or full mechanical fixing. While you can use a minimal amount of dot-and-dab adhesive to level the board against an uneven heritage masonry wall, you must secure it using 3 to 5 mechanical insulation fasteners per square meter. Always use fasteners with large plastic or stainless steel retaining washers to prevent the screw head from tearing through the board. This guarantees the board will never detach under the heavy moisture load of wet skim plaster.

Q15: How do I install electrical back-boxes and pipe penetrations without creating a thermal bridge?

A: Wall penetrations are notorious for causing localized cold spots and condensation. When cutting out a void for a plastic electrical back-box, do not leave the cold masonry exposed. Simply insert a thin (3mm or 5mm) aerogel off-cut directly behind the back-box, and seal the perimeter gaps with our aluminum Aero-Tape. This takes only seconds but ensures a 100% continuous thermal envelope around all electrical and plumbing fittings.

Q16: How do I safely drill into the aerogel composite board to hang heavy items (e.g., TVs, cabinets)?

A: Drilling through aerogel boards is simple but requires a minor technique adjustment. Apply firm pressure against the wall before engaging the drill bit to prevent it from snagging and pulling the internal aerogel fibers. Most importantly: Aerogel boards are for insulation, not structural load-bearing. To hang heavy items like flat-screen TVs or kitchen cabinets, you must use long, heavy-duty masonry anchors that pass completely through the aerogel board and bite deeply into the solid brick wall or steel stud framework behind it. (Disclaimer: Maximum recommended load per anchor depends on the structural substrate; always consult a structural engineer for heavy installations.)

Section 6: Joints, Plastering & Physics (For Quality Inspectors & Plasterers)

Q17: How do we prevent thermal bridging at the joints between the boards?

A: Thermal bypassing at the joints can ruin a passive-house U-value calculation. Boards must be butted tightly together. To guarantee zero heat loss at the seams, run a strip of our Aero-Tape (Aerogel Thermal Break Tape) over the joints before plastering. If there are accidental wide gaps due to extremely uneven walls, tightly pack them with flexible aerogel scraps before applying your standard fiberglass scrim tape.

Q18: Can I apply standard gypsum or lime plaster directly over the aerogel board?

A: Yes, absolutely. The outward-facing surface of our Aero-Plaster is simply standard drywall (gypsum) or impact-resistant Magnesium Oxide (MgO). There is no need for exotic or expensive proprietary plasters. Ensure your primer is compatible with the board surface: use a standard PVA primer for our gypsum-faced boards, or an acrylic primer for our Aero-Mag (MgO) boards. Once primed, simply skim it using your traditional multi-finish or breathable lime plaster.

Q19: Is the Aerogel IWI system breathable enough to prevent interstitial condensation?

A: This is a critical building physics question. Internal Wall Insulation (IWI) on solid brick often traps moisture, causing interstitial condensation (hidden mold). Our Aero-Plaster is engineered with a built-in double-sided aluminum foil layer located between the rigid board and the aerogel core. This acts as a flawless Vapor Control Layer (VCL). It stops warm, moist indoor air from penetrating into the cold masonry, 100% eliminating the risk of black mold inside the wall structure. (For a deep dive into building physics, read our full [Stop Interstitial Condensation Guide]).

 Table 3: Aerogel Installation Quick Reference Matrix

(A cheat-sheet for your site managers and plastering teams)

Call to Action: Stop Guessing, Start Installing

Aerogel is no longer an experimental material reserved for spacecraft—it is the definitive, space-saving solution for the European retrofit sector. By understanding these basic handling, fixing, and finishing principles, your contracting team can deliver unprecedented thermal performance, preserve valuable real estate, and protect architectural heritage without the headache of steep learning curves.

Empower Your Installation Team Today:

Do not let outdated insulation methods compromise your high-value projects. Hebei Woqin is your factory-direct partner for extreme thermal performance.

• Download the Complete Installation Guideline (PDF): Get detailed CAD node diagrams for window reveals, skirting boards, and ceiling junctions.

• Request an "Installer’s Sample Box": Stop guessing and start touching. Request physical off-cuts of our Aero-Plaster and Aero-Stone. Test cutting it with your circular saw, try driving a screw through it, and feel the extreme lightness yourself.

• Contact our Lead Engineering Team: Have a complex retrofit layout? Email your floor plans to an@cn-aerogel.com or visit www.cn-aerogel.com for a free U-value and Dew Point calculation.
