Defeating Condensation: Aerogel Insulation for Middle East District Cooling Networks

1. Introduction: The Extreme Contrast of Middle East Infrastructure

Above ground, the bustling downtowns of Dubai and Riyadh bake under a relentless 50°C summer sun. But just a few meters below the surface, a massive, hidden lifeline operates at a chilling 5°C. District Cooling (DC) networks are the beating heart of Middle Eastern mega-cities, pumping millions of tons of chilled water to keep skyscrapers habitable.

However, operating in this "fire and ice" environment exposes underground piping to severe thermal and moisture stress. For years, DC operators like Empower and Tabreed have relied on pre-insulated pipes utilizing Polyurethane (PUR) foam and High-Density Polyethylene (HDPE) jackets. But in the harsh reality of Middle Eastern soils, these traditional systems are failing. Once the insulation barrier is breached, operators face massive energy penalties and catastrophic pipe corrosion.

In this article, we reveal the three silent killers of underground chilled water networks and explore how Hebei Woqin’s ultra-thin aerogel insulation is rewriting the economics of district cooling.

2. The 3 Silent Killers of Underground Chilled Water Pipes

1. High Water Tables & The "Submerged Sponge" Nightmare

Many coastal cities in the Middle East, such as Dubai and Abu Dhabi, struggle with exceptionally high water tables heavily saturated with corrosive salts. During installation or due to natural ground settlement, the rigid HDPE outer casing of traditional pipes can suffer micro-cracks.

Once breached, the highly corrosive groundwater floods into the PUR foam. Because water conducts heat 25 times faster than trapped air, the soaked PUR foam acts like a "submerged sponge," instantly losing its thermal resistance. Worse yet, it transforms the chilled water pipe into an ice-cold saltwater conduit, triggering aggressive and deeply hidden Corrosion Under Insulation (CUI).

2. Vulnerable Field Joints & The Condensation Chain Reaction

While factory-prefabricated straight pipes are generally reliable, the true Achilles' heel lies in the field joints. Constructing kilometers of piping requires welding and on-site insulation in 50°C heat with up to 90% humidity.

On-site foam pouring is notoriously difficult to control in such conditions, often leaving hidden voids and air pockets. Furthermore, the extreme day-to-night temperature swings in the desert cause severe thermal expansion and contraction (thermal movement) across the pipeline. This movement easily tears the fragile vapor barriers at the joints. The moment humid air makes contact with the 5°C steel pipe, massive condensation (sweating) occurs. This water quickly travels down the pipeline, rotting the insulation from the inside out.

3. The Urban Space Crunch & Astronomical Excavation Penalties

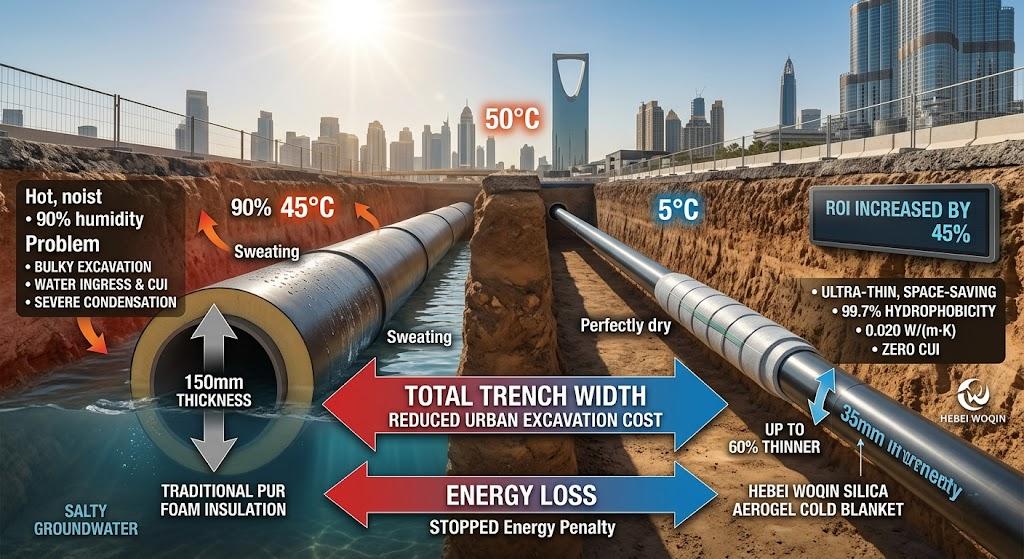

Routing massive chilled water mains—often exceeding 1000mm in diameter—through densely populated urban centers is an engineering nightmare. To achieve the required thermal resistance, traditional PUR or cellular glass insulation often demands a thickness of 100mm to 150mm.

 This significantly increases the outer diameter of the pipe. In civil engineering, every extra centimeter of pipe diameter means a wider and deeper trench. The costs for urban soil excavation, trenching, backfilling, and road closures grow exponentially. Furthermore, overly bulky pipes frequently clash with existing underground utilities (power lines, sewage, telecom), leading to costly design reroutes and project delays.

3. The Aerogel Dimensional Strike: Thinner, Drier, and Smarter

To solve these compounding issues, top EPCs and DC operators are turning to advanced nanotechnology. Hebei Woqin’s Silica Aerogel Cold Blankets provide a multidimensional upgrade over traditional foams.

99.7% Absolute Hydrophobicity: Severing the Root of Condensation

Tested under rigorous standards, Hebei Woqin's aerogel blankets boast a hydrophobic rate of ≥99.7%. This means the material naturally repels water at the molecular level. Even if the outer jacket is severely damaged and the pipe is entirely submerged in high-salinity groundwater, moisture cannot penetrate the aerogel structure. It acts as an unbreakable, built-in vapor barrier, completely eradicating the risk of pipe sweating, condensation, and CUI.

0.020 W/(m·K) Thermal Conductivity: Giving Space Back to the City

According to standard laboratory testing, our aerogel achieves an astonishingly low thermal conductivity of 0.020 W/(m·K) at room temperature. at 25°C, with even lower values at cryogenic temperatures

For district cooling engineers, this translates to an insulation profile that is up to 60% thinner than PUR foam or cellular glass while delivering identical or superior thermal resistance. A dramatically reduced outer pipe diameter allows for narrower trenches, faster excavation, and effortless navigation through crowded underground utility corridors.

Seamless Flexible Wrapping: Ending Joint Sweating

Say goodbye to the unreliable and messy process of on-site foam pouring. Aerogel blankets are highly flexible and robust. During field joint installation, workers simply wrap the aerogel blanket tightly around the welded joint and secure it with specific cryogenic tapes. This ensures a 100% flush, void-free fit that effortlessly absorbs the pipe's thermal expansion without tearing, forever sealing out humid desert air.

4. Total Installed Cost (TIC): Why Top Middle East EPCs Choose Aerogel

Procurement managers often look at the initial material cost per square meter, but leading EPCs calculate the Total Installed Cost (TIC) and lifecycle ROI:

• Slashed Civil Works Costs: Thinner pipes mean significantly lower excavation, trenching, and backfilling expenses in expensive urban zones.

• Zero Energy Penalty: Because aerogel never absorbs water, its thermal performance never degrades. Chiller plants do not have to overwork to compensate for heat gain, saving millions in annual electricity costs.

• Maintenance-Free Longevity: By eliminating underground CUI, the operational lifespan of the piping network is extended from the typical 10-15 years to 20+ years, avoiding catastrophic mid-life replacement costs.

5. Conclusion & Call to Action

In the relentless battle to cool the Middle East, moisture and space are your greatest adversaries. Traditional bulky foams are no longer sufficient for the demands of modern mega-cities. Hebei Woqin’s ultra-thin, deeply hydrophobic aerogel insulation is the ultimate weapon to protect your district cooling networks.

Struggling with underground condensation or facing severe trench space limitations in your next DC project?

Stop compromising. Contact Hebei Woqin today. Send our engineering team your chilled water pipe specifications, and we will calculate your exact aerogel thickness, space savings, and project ROI.
