The VIP Paradox: Why the World's Best Insulator Fails Inside a Vacuum Panel (And the Glass Fiber Solution)

Introduction: The Illusion of the "Perfect Super-Panel"

There is a persistent, seductive illusion in the thermal insulation industry: "Since silica aerogel possesses the lowest thermal conductivity of any solid on Earth, vacuum-packing an aerogel blanket will naturally create the ultimate, unbeatable super-panel."

In a laboratory simulation, this sounds like flawless logic. But in a high-volume manufacturing plant and on a brutal construction site, it is an engineering disaster.

The paradox is this: the material that dominates ambient insulation becomes a mechanical and chemical liability under extreme vacuum. (Note: In this article, we are specifically addressing flexible aerogel blankets reinforced with organic carrier fibers, not specialized fumed silica powders which serve a completely different manufacturing niche.)

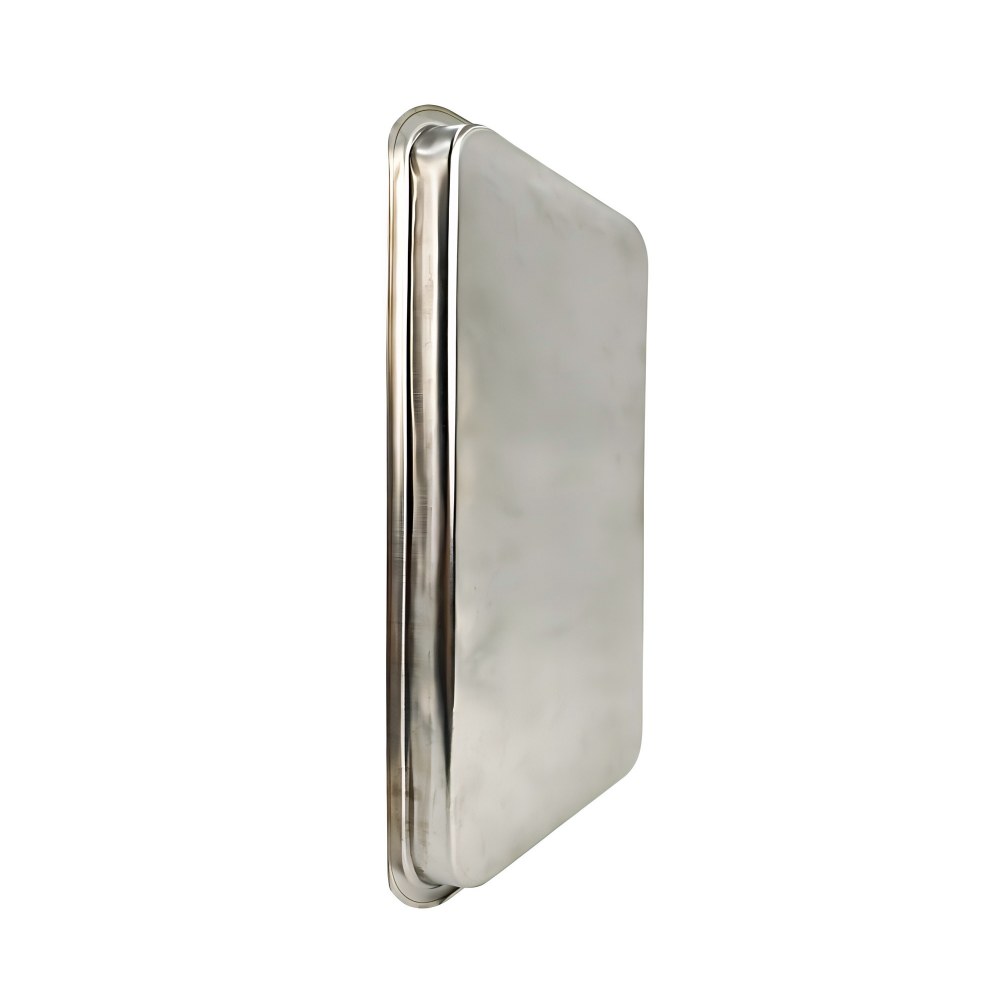

The gap between a theoretical data sheet and a 50-year structural design life is vast. Real-world thermodynamics and manufacturing tolerances do not forgive assumptions. This is exactly why global top-tier industrial VIPs—including Hebei Woqin's Vacu-Armor™ (Class A1 Stainless Steel encapsulation for extreme environments) and Vacu-Core™ (High-barrier metallized film for architectural facades)—strictly utilize 100% inorganic glass fiber as their core, absolutely rejecting the use of flexible aerogel blankets.

To understand why the world's best ambient insulator fails as a vacuum core, we must dissect the three unforgiving laws of VIP physics.

Chapter 1: The 3 Brutal Laws of VIP Cores

If you place a flexible aerogel blanket inside a high-barrier envelope and draw a deep vacuum, you immediately trigger a collision with three absolute laws of structural mechanics, chemistry, and manufacturing.

 1. Structural Mechanics: The 10-Ton Vacuum Crush

A Vacuum Insulation Panel is not just a thermal barrier; it is a mechanical load-bearing structure. When the internal environment is evacuated to near-absolute vacuum, the external atmosphere crushes the panel with immense isostatic pressure—roughly 10 tons of force per square meter.

• The Transverse Glass Fiber Advantage: Premium glass fiber cores are manufactured with a "transverse" (horizontal) layered orientation. Under a 10-ton atmospheric crush, these fibers act like stacked structural steel plates. They easily bear the compressive load while creating a tortuous path that perfectly blocks Z-axis (thickness direction) heat transfer.

• The Aerogel Blanket "Pore Collapse": Aerogel derives its magic from a 3D nanoporous silica skeleton. While incredibly light, this microscopic skeleton is inherently brittle. When subjected to the brutal, continuous atmospheric pressure of a vacuum state, the flexible blanket undergoes structural trauma. It suffers from "pore collapse". Internal lab data shows that under strict vacuum, this structural densification causes the thermal conductivity of a pure blanket to spike significantly—often exceeding a 50% increase—completely defeating the purpose of the vacuum chamber.

2. Vacuum Chemistry: The "Outgassing" Time Bomb

Many engineers mistakenly believe that once a panel is vacuum-sealed, its internal state is frozen in time. In reality, the chemical purity of the core dictates the lifespan of the vacuum.

• The Organic Compromise: To manufacture a flexible aerogel blanket, the silica must be reinforced with organic carrier fibers (such as PET) and binding agents.

• The Slow Death: In an extreme vacuum environment, these organic compounds are highly unstable. Over a period of 5 to 10 years, they slowly volatize, releasing trapped gas molecules into the sealed panel. This phenomenon, known as outgassing, acts as a ticking time bomb. The panel will slowly balloon, completely destroying the vacuum.

• The 50-Year Standard: A true industrial VIP guarantees longevity by eliminating the fuel for outgassing. High-density transverse glass fiber cores are 100% pure and inorganic. When combined with our manufacturing process, this ensures a 50-year lifecycle with zero thermal degradation, backed by rigorous 30-cycle thermal-moisture aging tests (NBEC Report No. NBEC-2025CX-0024).

3. Manufacturing Tolerances: The 0.000% Sealing Paradox

The ultimate point of failure for any VIP is its edge seal—whether achieved through high-barrier metallized films or laser-welded 304 stainless steel.

• The Dust Dilemma: At Hebei Woqin, we proudly manufacture aerospace-grade aerogel blankets with an ultra-low dusting rate of <0.3%. For high-temperature industrial piping or HVAC ducts, this is absolute perfection. But a VIP is a different beast entirely.

• Zero Tolerance: During the precision laser-welding or heat-sealing of a VIP flange, the tolerance for contamination is absolute zero. Because aerogel blankets naturally shed micro-dust when sheared or compressed, the risk of a microscopic silica particle settling on the weld seam is high. A single speck of dust on the seal creates a micro-capillary leak. The panel will pass the initial factory Quality Control (QC), only to mysteriously fail six months later on the job site. For a hermetic seal expected to last decades, "almost perfect" is simply unacceptable.

Chapter 2: The Edge-Effect Deception & The Glass Fiber Blind Spot

If Chapter 1 proved that aerogel blankets fail inside the vacuum, Chapter 2 exposes what happens on the outside.

In the thermal insulation industry, there is a widespread "data-sheet deception." Manufacturers routinely boast about a center-of-panel thermal conductivity of 0.002 W/(m·K). While technically true in a laboratory testing apparatus, quoting this isolated number to an architect or an EPC contractor building a real-world facade is borderline negligent.

The 0.002 Illusion and the Edge Thermal Bridge

To maintain a vacuum over decades, the core material must be encapsulated in a high-barrier envelope—typically a multi-layered metallized film (like our Vacu-Core™) or, in extreme cases, laser-welded 304 stainless steel (like our Vacu-Armor™).

Metals are exceptional thermal conductors. When heat hits the face of the VIP, the vacuum core stops it dead. However, the heat simply travels laterally along the metallic envelope, bypassing the vacuum entirely and leaking out through the sealed edges. This phenomenon is known as the Edge Thermal Bridge.

The Standard Glass Fiber "Blind Spot"

This brings us to a harsh engineering reality: Even if you use the perfect 100% inorganic glass fiber core to ensure a 50-year vacuum, a naked VIP is still structurally flawed.

Engineering simulations and real-world thermography show that if standard glass fiber VIPs are tightly abutted without edge protection, the thermal bridging through the metallic seams can degrade the overall wall's insulation performance by a staggering 20% to 23%.* You pay a premium for a super-material, but the unprotected joints steal a quarter of your ROI.

*Based on ISO 10211 3D thermal bridge simulations for standard metallized VIPs without thermal break edge mitigation.

The Hebei Woqin System-Level Solution: The Aerogel Gasket

Insulation is not a material; it is a system. You cannot sell a naked vacuum panel and expect the contractor to solve the thermodynamic leaks on site.

To eradicate the edge-effect deception, Hebei Woqin engineered a hybrid approach, combining the absolute limits of vacuum physics with the ambient dominance of silica aerogel:

• The 20mm Aerogel Edge-Gasket: We factory-bond a 20mm thick frame of our proprietary, hydrophobic aerogel blanket around the perimeter of every Stainless Steel VIP, completely encapsulating the highly conductive laser-welded flaps.

• The 40mm Thermal Break: When two panels are installed side-by-side, the opposing aerogel gaskets compress together. This creates a solid 40mm pure aerogel thermal break at every single joint. The steel flaps never touch.

• The Honest Design Value: Because we have physically neutralized the edge effect, we do not hide behind the 0.002 center-of-panel myth. We provide engineers with a rigorously tested, real-world system Design Value of 0.007 W/(m·K).

The Ultimate Core & System Comparison Matrix

To put these physical laws and edge-effects into perspective, we must look at how these materials actually behave when subjected to the harsh realities of construction and time.

Chapter 3: The On-Site Puncture Panic & The "Zero-Puncture Protocol"

A thermal system can possess flawless internal physics and perfectly calculated edge joints, but it must ultimately survive the most unpredictable variable in engineering: the chaotic reality of the construction site.

The Site "Shredder" Effect

Standard insulation boards (like PIR or mineral wool) are forgiving. Installers are accustomed to cutting, drilling, and aggressively handling them on site.

Vacuum Insulation Panels are the exact opposite. They are highly volatile thermodynamic assets. If a contractor accidentally grazes the metallic envelope with a utility knife, or drives a single screw through the panel to mount a facade bracket, the vacuum is instantly annihilated. In a fraction of a second, the thermal conductivity spikes from a theoretical 0.002 to standard atmospheric levels. You are left with a very expensive, highly conductive dead weight on your building.

The Hebei Woqin "Zero-Puncture Protocol"

To expect installers to construct a complex architectural facade without drilling or anchoring through the insulation layer is an engineering fantasy.

Instead of fighting site realities, Hebei Woqin integrated the solution directly into the Vacu-Armor™ system geometry through our patented 30mm Safe Zone.

• The Geometry of Safety: As detailed in Chapter 2, each VIP features a 5mm stainless steel welding flap, completely encapsulated within a 20mm Aerogel Edge-Gasket.

• The 30mm Aerogel Pathway: When two abutting panels are installed side-by-side, the opposing gaskets compress to form a 40mm joint. Because the internal steel flaps are only 5mm long, this leaves a continuous 30mm "Pure Aerogel Zone" dead center between the panels.

• Bulletproof Execution: This 30mm zone acts as a designated mechanical highway. Installers can drive anchors, shoot screws, or make deep "X-cuts" using utility knives to push heavy-duty rainscreen brackets directly through the insulation layer. The fixings pass safely through the pure aerogel—neutralizing the thermal bridge—while remaining physically isolated from the delicate vacuum envelopes.

Contractors can work at maximum speed, securing heavy cladding to the structural wall, with a mathematically guaranteed zero-percent chance of puncturing the vacuum cores.

Conclusion: Engineering Integrity & The Laws of Reality

In the realm of advanced thermal insulation, there are no "magic materials"—there is only rigorous system matching.

When you strip away the marketing hype and confront the brutal laws of physics, the path forward becomes undeniable:

1. For complex geometries, high-temperature industrial piping, and fighting Corrosion Under Insulation (CUI): Flexible, hydrophobic Silica Aerogel Blankets remain the undisputed king of ambient insulation.




2. For ultra-thin architectural facades and maximizing sellable commercial floor space: The 100% inorganic Transverse Glass Fiber VIP, fortified by an Aerogel Edge-Gasket, is the only system capable of delivering a certified 50-year structural lifespan.

At Hebei Woqin, we manufacture both. We do not force a single material to fight the wrong thermodynamic war. We design systems that respect the 10-ton vacuum crush, eradicate outgassing, and survive the chaos of the construction site.

Do Not Pay for Theoretical Data.

If your next mega-project demands extreme thermal resistance, absolute Class A1 non-combustibility, and decades of operational reliability, you cannot rely on isolated laboratory figures. You need a system engineered for the real world.

DM me "VIP GUIDE" to receive our 20-page Vacu-Armor System Integration Guide, or DM "VIP SAMPLE" to request a physical cross-section sample for your lab testing.

Let's build an envelope that defies both the elements and the test of time.

(Author: Ruibin An, CEO of Hebei Woqin Co., ltd. Backed by 13+ years of global site experience in extreme insulation systems.)
