The Ultimate Guide to IWI in UK Heritage Buildings: 22mm Aerogel Plasterboard for Solid Brick Walls

Introduction: The Heritage Dilemma

The United Kingdom boasts some of the world's most beautiful historic housing stock, defined by iconic Victorian and Edwardian solid brick architectures. However, as the government enforces increasingly stringent Energy Performance Certificate (EPC) regulations, landlords and property developers are trapped in a thermodynamic dilemma. Because conservation rules strictly prohibit External Wall Insulation (EWI) from altering the historic facades, the only viable path to compliance is Internal Wall Insulation (IWI). Yet, applying traditional insulation to the inside of a heritage property often introduces a cure that is worse than the disease.

Chapter 1: The Fatal Flaws of Traditional IWI

When EPC contractors specify legacy materials like thick mineral wool or rigid PIR boards (e.g., Kingspan or Celotex) for internal retrofits, they trigger a cascade of architectural and structural failures:

1. The "Carpet Area" Theft

Traditional IWI systems require the installation of timber stud frames, thick insulation blocks, vapor barriers, and final plasterboard. This multi-layered approach routinely adds 100mm to 150mm of thickness to every external-facing wall. In prime real estate markets like Central London, shrinking a room's perimeter by 10+ centimeters literally "steals" thousands of pounds in sellable carpet area.

Let's look at the mathematical reality of space loss:

You are paying a premium in construction costs just to make your rooms noticeably smaller.

2. The Interstitial Condensation Nightmare

Victorian solid brick walls are designed to be vapor-permeable (they "breathe"). When you trap a solid brick wall behind a thick layer of traditional internal insulation, the masonry is cut off from the home's internal heating. The brickwork temperature plummets.

[Visual Concept] Imagine warm, moisture-laden indoor air penetrating the imperfect seams of a traditional PIR board. As this warm air hits the freezing solid brickwork behind the insulation, it instantly liquefies. This creates interstitial condensation—moisture trapped deep inside the wall cavity. Within months, this invisible trapped water rots timber joists, degrades plaster, and causes highly toxic black mold to bloom across the wallpaper.

3. Destruction of Heritage Features

Heritage properties derive their immense market value from original period features. When you build a 150mm false wall for traditional insulation, you effectively bury original Victorian cornices, decorative covings, and deep skirting boards. To preserve them, contractors must painstakingly remove, modify, and re-fit these fragile historical elements onto the new false wall. This highly specialized carpentry work causes project timelines to spiral and sends labor costs through the roof.

4. The Window Reveal Cold Bridge

Perhaps the most notorious thermodynamic bottleneck in heritage retrofits is the window reveal—the narrow inner wall surrounding historic sash windows. Due to severe spatial restrictions, it is physically impossible to install 100mm of traditional insulation here without obstructing the window's operation or burying the original frame. Consequently, contractors often leave these perimeters uninsulated. While the main wall achieves a lower U-value, the uninsulated reveals become aggressive localized cold bridges. Heat rapidly funnels out through these gaps, guaranteeing rapid black mold accumulation exactly where it is most visible.

5. The Multi-Step Labor Trap

In the UK construction sector, labor often outpaces the cost of raw materials. Traditional IWI is a multi-tiered labor sink. It requires carpenters to build a timber stud wall, installers to friction-fit the PIR boards, technicians to meticulously tape a separate polyethylene vapor barrier, and finally, dryliners to screw on the plasterboard. This complex, multi-trade process generates excessive disruption and causes project budgets to spiral.

Chapter 2: The 3-in-1 Ultra-Thin Solution: Aero-Plaster

To resolve the "Space vs. U-Value" dilemma and eliminate interstitial condensation, EPC contractors must abandon the stud-wall methodology. Hebei Woqin introduces the Aero-Plaster Thermal Laminate Board—a space-saving, 3-in-1 structural shield engineered specifically for UK solid brick retrofits.

The Product Matrix: Standard vs. S-Grade Aerogel Cores

By utilizing high-purity Silica Aerogel, we deliver unprecedented thermal resistance in a fraction of the thickness. We offer two distinct performance tiers based on your U-value targets:

• Standard Series (0.020 Core): Features an aerogel blanket with a thermal conductivity of 0.020 W/(m·K) (tested at 25°C). This 22mm system upgrades solid brick walls to modern EPC standards while effortlessly sliding into tight window reveals, permanently eliminating cold bridges.

• S-Grade Series (0.017 Extreme Core): For projects demanding Passivhaus-level extreme U-values, we deploy our S-Grade aerogel boasting a staggering thermal conductivity of 0.017 W/(m·K) (tested at 25°C). It offers the absolute zenith of thermal performance available on the global market.

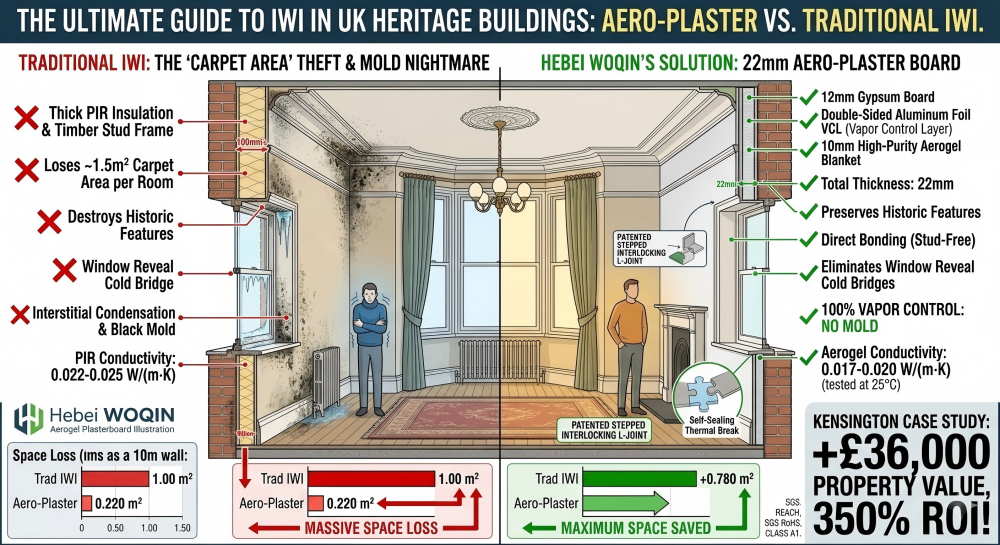

Engineering Showdown: Aero-Plaster vs. Traditional PIR

Built-In Vapor Control Layer (VCL)

We have engineered a highly durable, double-sided aluminum foil layer nestled directly between the 12mm gypsum board and the aerogel core. This acts as a flawless, 100% impermeable Vapor Control Layer. It completely blocks warm indoor moisture from penetrating the insulation, stopping interstitial condensation dead in its tracks and protecting the historical masonry behind the board.

Stud-Free Direct Bonding Installation

Aero-Plaster fundamentally revolutionizes site logistics. The exposed raw aerogel blanket on the rear face is designed for direct mortar application. Installers can apply proprietary adhesive directly to the aerogel and bond the monolithic panel straight onto the existing solid brick wall. No timber studs, no separate vapor membranes, and no drilling. The front face is standard gypsum, ready for immediate skimming. This 3-in-1 approach slashes installation time and multi-trade labor costs by up to 70%.

Chapter 3: Flexing R&D Muscle—The Patented Stepped Interlocking Design

While our standard straight-edge Aero-Plaster boards dominate the retrofit market, Hebei Woqin continuously pushes the boundaries of building physics. For projects demanding absolute perfection, we have developed and patented the Stepped Interlocking L-Joint Topology.

Traditional straight-edge boards are susceptible to through-joint thermal bridging—microscopic gaps between panels where heat can escape. Our patented stepped design eliminates this flaw entirely. Imagine two puzzle pieces locking together. The stepped L-joint creates a self-sealing thermal break that eliminates heat-leaking gaps—something flat-edge boards simply cannot achieve.

This design delivers three engineered advantages:

• Compressive Sealing Interface: Taking advantage of the silica aerogel’s natural compressibility, the overlapping L-joints press against each other during installation. This creates an airtight, physical seal that permanently blocks convective heat loss.

• Blind Alignment: The stepped edges act as an automatic physical guide. Installers achieve perfect surface flatness rapidly, without requiring highly specialized masonry skills.

• Dust Confinement: The overlapping structure physically encapsulates the raw aerogel edges, guaranteeing zero dust leakage during panel connection, ensuring a pristine working environment.

Chapter 4: The ROI of Space: A Kensington Property Case Study

In the high-stakes world of UK property development, specifying Aero-Plaster is not a material expense—it is a high-yield investment. Let’s examine the mathematical reality of a Central London retrofit.

Consider a 2-bedroom Victorian flat in Kensington with 30 linear meters of external wall.

• A traditional 100mm IWI system would lose 3.0m² of carpet area. At an average property value of £15,000/m², that is £45,000 of lost property value.

• The 22mm Aero-Plaster system recovers 2.4m² of that space, adding £36,000 in raw property value back to the flat.

The Financial Payback: If the entire IWI retrofit costs £8,000, and it preserves £36,000 in property value, your Return on Investment (ROI) is 350%. Even if you do not plan to sell, the drastic reduction in heating bills means the energy savings will pay back the material cost within 3 to 5 years.

Explore Related Heritage Retrofit Solutions:

• Window Reveal Cold Bridges? Seal the tightest gaps with our [Aero-Tape Thermal Break Peel-and-Stick Aerogel].

• Upgrading Basement or Floors? Maximize headroom with our [Aero-Mag Aerogel Magnesium Underfloor Heating Boards].

Conclusion: Secure Your Heritage Retrofit TodayStop compromising between modern thermal efficiency and historic architectural beauty. With Hebei Woqin’s Aero-Plaster Thermal Laminate Board, you can eradicate interstitial condensation, eliminate window reveal cold bridges, and maximize your property's market value.

Tested & Trusted:

• ✓ Tested and certified to UK Building Regulations (Document L)

• ✓ SGS REACH (240 SVHC) & RoHS Compliant

• ✓ Class A1 Non-Combustible core options available

Take Action Now:

• Explore Technical Specs:Visit the Aero-Plaster 22mm Product Page

• Get Your Free IWI Retrofit Cost Calculator: Input your room dimensions and local property values to see your exact space savings and ROI. Email [an@cn-aerogel.com] with the subject "IWI Calculator".

• Request a Sample Box: Email us to request physical off-cuts of our 0.020 and 0.017 S-Grade aerogel cores to test the direct-bonding application yourself.
