Surviving 50°C: The Full-Spectrum Aerogel Facade Guide for the Middle East

Part 1: Exterior Defense

The 50°C Dilemma: The Conflict Between U-Values and Floor Space

In the rapid development of Saudi Arabia's Vision 2030—spearheaded by futuristic mega-projects like NEOM, The Line, and Riyadh's expanding skyline—facade engineers face an impossible contradiction.

Summer ambient temperatures regularly exceed 50°C, with direct solar radiation pushing metal cladding surface temperatures to a scorching 75°C. To maintain a comfortable 22°C indoor climate and meet stringent green building standards (such as LEED Platinum or Estidama), the building envelope requires extreme thermal resistance.

Historically, the only way to achieve these low U-values was by packing 100mm to 150mm of traditional Mineral Wool or PIR foam into the curtain wall cavity. But in a high-rise luxury development, losing 150mm of perimeter space on every single floor equates to thousands of square meters of lost sellable real estate. At Hebei Woqin, we approach Middle Eastern facade engineering through a different lens. To solve the space-vs-performance dilemma, we developed the "Middle East Sandwich System"—starting with an impenetrable exterior defense.

Core Defense: The 20mm Space-Saving Paradigm

Let’s be clear: a single, ultra-thin layer of insulation cannot defy the laws of thermodynamics. However, material efficiency changes the equation entirely.

Instead of sacrificing interior space, leading architects are transitioning to high-density Silica Aerogel Blankets and Composite Panels. By utilizing aerogel's industry-leading thermal conductivity (0.018 - 0.022 W/m·K), engineers can deploy our maximum single-layer thickness of 20mm Aerogel to replace up to 100mm of traditional bulk insulation.

The Engineering ROI: By recovering 80mm of perimeter depth across a skyscraper, developers unlock massive amounts of premium "carpet area." The financial value of this recovered real estate significantly outweighs the initial investment in high-performance aerogel materials.

Killing the "Radiator Effect": Aerogel Thermal Break Tape

Even if you install premium insulation in the wall cavity, traditional curtain walls have a fatal thermodynamic flaw: The Metal Skeleton.

Aluminum mullions, transoms, and heavy steel brackets are excellent conductors of heat. In the Middle East, these structural components bypass the insulation cavity entirely, acting as "thermal highways" that pump 50°C+ heat directly into the building. This phenomenon, known as Thermal Bridging, forces HVAC cooling systems into overdrive and leads to massive energy waste.

The Structural Solution: We engineered the Aerogel Thermal Break Tape. Applied directly between the exterior cladding/glazing and the metal structural framing, this ultra-thin barrier (ranging from 3mm to 10mm) completely severs the thermal bridge. Encapsulated in double aluminum foil for a 100% vapor seal, it stops heat transfer dead in its tracks without adding structural bulk to the facade.

The Inert Armor: Lifetime Performance Without Degradation

In the relentless heat of the GCC, traditional insulation materials face a hidden enemy: time.

Under continuous extreme temperature cycles, polyurethane (PIR/PUR) foams gradually degrade and release off-gassing, losing their thermal efficiency over a few short years. Mineral wool, when subjected to wind loads and building vibration, often pulverizes and sags within the cavity.

Silica Aerogel is entirely different. Synthesized from inorganic silica, it possesses profound Chemical Inertness. It does not off-gas, it does not degrade under UV or extreme heat, and it will not slump. By installing aerogel, you are integrating a thermal armor that offers lifetime performance, ensuring the U-value of your facade remains exactly the same on day 5,000 as it was on day 1.

Part 2: Moisture, Fire, and Aesthetics

The "Coastal Sauna" Defense: Integrated Vapor Barriers

There is a common misconception that the Middle East is purely a dry desert. In reality, coastal mega-cities like Dubai, Abu Dhabi, and Jeddah experience brutal summer conditions combining 45°C+ temperatures with 80% to 90% relative humidity.

When the exterior is a hot, humid "sauna" and the interior is air-conditioned to a crisp 22°C, you face severe Vapor Drive. Moisture relentlessly tries to penetrate the building envelope, leading to interstitial condensation, mold growth, and the eventual failure of interior finishes.

The Solution: We implement Gypsum Boards with an Integrated Aluminum Foil Backing for the interior lining. While the gypsum provides a flawless, ready-to-finish surface, the aluminum foil acts as an absolute Vapor Control Layer (VCL). It physically blocks hot, humid air from penetrating the cooled interior spaces, eliminating condensation risks and significantly reducing the load on HVAC systems.

The A1 Structural Backbone: Halogen-Free MgO Boards

In coastal GCC environments, high humidity and salt spray quickly degrade traditional wood-based panels or standard calcium silicate boards. Furthermore, post-Grenfell fire regulations demand non-combustible substrates for high-rise construction.

To provide a resilient skeleton for our facade system, we utilize High-Strength Magnesium Oxide (MgO) Boards (10mm).

• A1 Fire-Rated: Completely non-combustible, providing a critical firebreak behind the insulation.

• Moisture & Halogen Resistant: Rigorously tested to contain ultra-low chloride levels (<10%). Unlike inferior magnesia boards, our MgO panels do not "sweat" or experience halogen-return  in high-humidity environments, making them the ultimate stable substrate for exterior cladding and interior wet areas.

Zero-Weight Luxury: MCM Flexible Stone Finishes

Middle Eastern architecture is globally renowned for its luxury, heavily favoring natural stone, marble, and travertine. However, hanging thousands of tons of natural stone on a 60-story skyscraper introduces massive structural dead-load, slow installation times, and extreme safety risks from falling debris.

The Solution: The exterior and high-end interior surfaces are finished with MCM Flexible Stone (Modified Clay Materials).

• 90% Visual Replication: It flawlessly mimics the texture, color, and veining of premium marble and travertine, offering bespoke luxury aesthetics.

• 1/10th the Weight: It dramatically reduces the structural dead-load on the steel framework.

• Safety & Performance: Certified Class A2 Fire-Retardant with an incredibly low water absorption rate (8.13%), ensuring it survives coastal rain and humidity. It is so flexible it can even wrap around structural columns, offering limitless design freedom for architects.

The Green Passport: REACH & RoHS Compliance

Mega-projects like NEOM and the Red Sea Project are not just building for the future; they are building for a zero-carbon, sustainable world. Materials that emit toxic VOCs or contain heavy metals are strictly prohibited.

At Hebei Woqin, our entire Aerogel Facade System is engineered for the highest environmental standards. Our silica aerogel has rigorously passed European RoHS and REACH testing. It contains zero heavy metals and no Substances of Very High Concern (SVHC). This provides EPC contractors and sustainability consultants with the "Green Passport" required to achieve LEED Platinum or Estidama Pearl ratings.

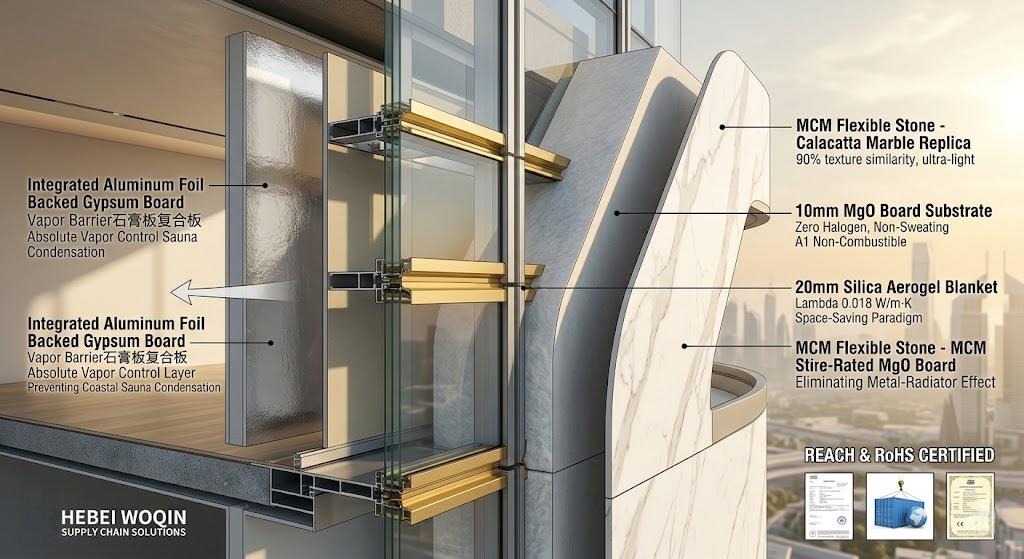

Conclusion: The Ultimate Middle East Sandwich System

You cannot conquer 50°C heat, coastal humidity, and strict fire codes with a single product. You need a highly engineered system.

By combining the structural integrity of A1 MgO Boards, the extreme thermal resistance of 20mm Aerogel and Thermal Break Tapes, the moisture defense of Aluminum Foil Gypsum, and the zero-weight luxury of MCM Flexible Stone, Hebei Woqin offers the definitive building envelope solution for the GCC.

Stop sacrificing valuable floor space and compromising on safety.

Are you engineering a facade or interior fit-out for a Middle Eastern mega-project? Contact our technical team today for system CAD details, U-value calculations, and factory-direct supply chain solutions.
