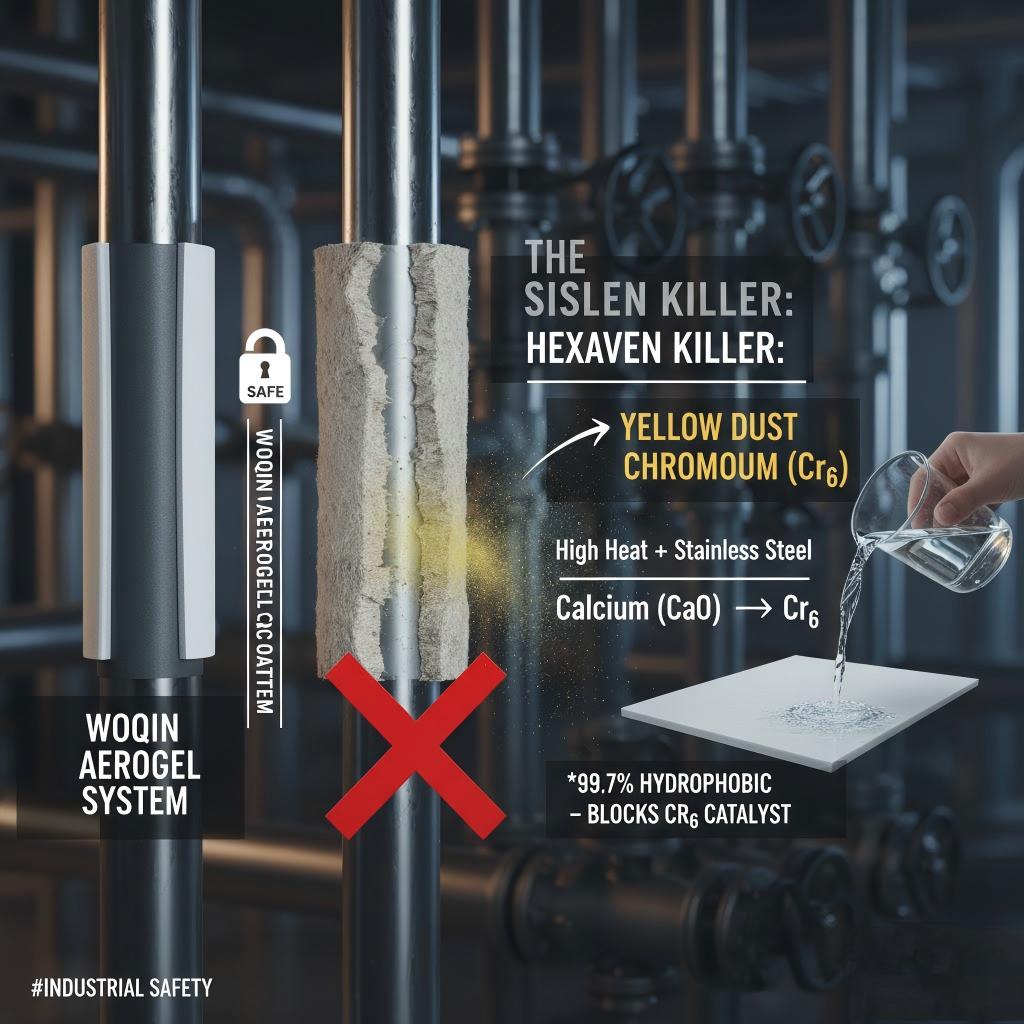

The Chromium VI Crisis: Achieving Intrinsic Safety via "De-Calcification" Systems

Introduction: The "Asbestos Moment" of the 21st Century

In the 20th century, the industry fought a long battle to eliminate Asbestos. Today, we face a new, silent chemical threat: Hexavalent Chromium (Cr6).

While Cr6 is currently in the "risk management" phase rather than a total ban like Asbestos, the trajectory of REACH regulations is clear. Maintenance teams across Europe are increasingly reporting a mysterious "Yellow Dust" on stainless steel turbines and valves. Chemical analysis confirms this is Calcium Chromate (CaCrO4)—a highly carcinogenic compound.

This is no longer just a thermal insulation issue; it is a critical HSE (Health, Safety, and Environment) compliance risk.

The Chemical Truth: The "Calcium-Chrome" Reaction

Why does insulation turn into poison? The mechanism is simple but deadly. It requires three elements (The Cr6 Triangle):

1. Source: Stainless Steel (contains Chromium).

2. Energy: Temperatures exceeding 300°C.

3. Reactant: Alkaline Oxides, specifically Calcium Oxide (CaO), migrating from the insulation material.

The "AES Trap": A Misunderstood Alternative

Many asset owners have switched from Rockwool to AES (Alkaline Earth Silicate) fibers, believing them to be the "safe" eco-friendly alternative.

The uncomfortable truth: While AES is bio-soluble in human lungs, it is chemically disastrous for stainless steel. According to standard industry material data sheets (SDS), AES fibers typically contain 30% - 40% Calcium Oxide (CaO). In terms of Chromium VI formation potential, AES acts as a massive calcium donor, potentially accelerating the toxicity risk rather than mitigating it.

The Solution: Physical & Chemical Shielding

To stop the reaction, we must remove the "Calcium" from the equation. Woqin Materials advocates for a shift from "Calcium-Dominant" to "Silica-Based (SiO2)" systems.

1. The Ultimate Barrier: Aerogel Coating

Before installing any insulation blanket, the most effective defense is to seal the stainless steel surface.Woqin Aerogel Coating acts as a "Chemical Skin."

• Seamless Encapsulation: Unlike blankets which have gaps, the coating bonds at a molecular level to the metal.

• Lab Verified: In our GB/T 1733 water resistance test, the coating showed "No abnormality for 96 hours." This proves it forms a dense, impenetrable shield that physically blocks external calcium ions from contacting the metal surface.

2. Silica-Based Blankets: The "De-Calcification" Strategy

For the insulation layer itself, we utilize Silica Aerogel Blankets.

• Scientific Honesty: In industrial mineralogy, achieving "100% Zero Calcium" is theoretically impossible due to trace elements in raw materials.

• Magnitude Control: However, there is a fundamental difference in magnitude. Traditional Rockwool/AES are Calcium-Dominant structures. Woqin Aerogel is a Silica-Dominant structure (SiO2 framework). By controlling Calcium at the "Trace Impurity Level" rather than the "Main Ingredient Level," we minimize the reaction potential to a negligible safety margin.

The Catalyst Blocker: Hydrophobicity Matters

Recent studies suggest that moisture acts as a catalyst for ion migration, accelerating Cr6 formation even during cool-down periods.

This is where Aerogel's physical properties become a safety feature.

• Data Evidence: According to our GB/T 10299 test report, Woqin Aerogel Blanket achieves a Hydrophobic Rate of 99.7%.

• The Safety Logic: By creating a permanently dry environment around the pipe, we remove the "transport medium" (water) required for the chemical reaction. No Water = No Ion Migration = Minimized Risk.

Conclusion: Engineering for Safety

Safety is not about marketing claims; it is about chemical compatibility.

Continuing to wrap stainless steel in high-calcium materials (Rockwool or AES) is a liability strategy. The future of industrial hygiene lies in Silica-Based Systems.

Safer Chemistry = Safer Sites.

Action Plan for HSE Managers

If you are responsible for HSE compliance at a high-temperature facility, ask your current insulation supplier these two questions:

1. "What is the exact percentage of Calcium Oxide (CaO) in your fiber?"

2. "Do you have a strategy to prevent Chromium VI formation under insulation?"

If they cannot answer, Woqin Materials can.

Technical Comparison: Calcium Risk Profile

Reference Data: Woqin Laboratory Test Reports (Ref: Hydrophobic Rate 99.7%, Coating Water Resistance 96h).
