Redefining Battery Thermal Boundaries: The Inside-Out Architecture for EV & BESS

Content Part 1: The "Life and Death" 5mm & The Inside-Out Architecture

In modern Gen 3 battery packs—whether utilizing prismatic or pouch cells—the physical gap between individual cells has been violently reduced to just 5mm, or even less.

This hyper-compressed space is the ultimate thermodynamic battlefield. When a single cell fails and enters thermal runaway, temperatures instantaneously spike. In this "life and death 5mm," legacy materials like traditional mica sheets or thick silicone foams simply collapse. They either lack the thermal resistance to prevent catastrophic heat propagation, or they consume too much valuable volumetric space within the module.

To solve this, Hebei Woqin is fundamentally redefining the thermodynamic boundaries of battery packs. We are moving beyond single-material patches to introduce the "Inside-Out" Total Thermal Architecture. This system deploys an invincible Aerogel Firewall inside the pack to isolate cell-to-cell thermal runaway, while equipping the outside of the battery casing with ultra-thin Vacuum Insulation Panels (VIP).

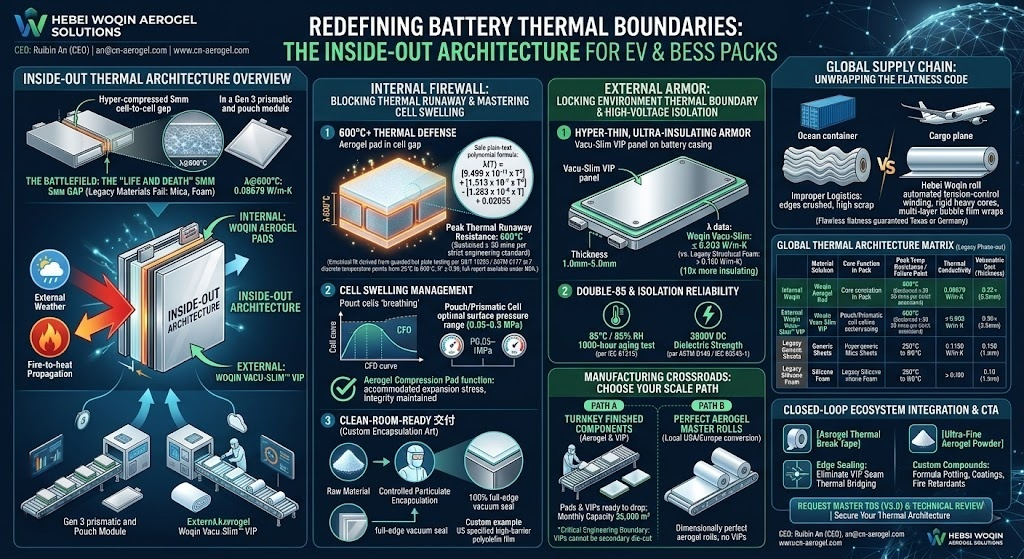

(Refer to Figure 1: Cross-section of the Inside-Out Thermal Architecture — available in our Master Edition TDS.)

INSIDE: The 600°C Aerogel Firewall & Cell Swelling Mastery

When thermal runaway occurs, every single second buys the Battery Management System (BMS) time to react and allows passengers time to safely evacuate. The internal barrier must be absolute.

Within a strict 5mm gap, our Silica Aerogel Composite provides unmatched Peak Thermal Runaway Resistance: 600°C (Sustained for ≥ 30 minutes without structural collapse, tested per internal protocol; higher transient spikes tolerated with progressive degradation).

Unlike competitors who rely on vague flammability claims, our engineering is rooted in rigorous mathematics. Based on our high-temperature laboratory testing, we have established a precise polynomial fitting curve for our aerogel's thermal conductivity at extreme heat:

λ(T) = [9.499 x 10^-11 x T^3] + [1.513 x 10^-7 x T^2] - [1.283 x 10^-5 x T] + 0.02055

(Empirical fit derived from guarded hot plate testing per GB/T 10295 / ASTM C177 at discrete temperature points from 25°C to 600°C; R² ≥ 0.99; full test report available under NDA.)

Following this precise thermodynamic model, even when subjected to a direct 600°C thermal assault, our aerogel maintains an astonishingly low thermal conductivity of exactly 0.08679 W/(m·K). It effectively traps the localized heat, preventing the devastating domino effect of thermal propagation across the adjacent cells.

However, intense heat is not the only enemy inside the battery pack. Throughout their lifecycle, lithium-ion cells continuously "breathe" and suffer from permanent volumetric expansion, known as Cell Swelling. For pouch or prismatic cells, the surface must typically be maintained within a strict optimal operating pressure range of 0.05 to 0.3 MPa. If a thermal barrier is too rigid, it will mechanically crush the expanding cell; if it is too soft, the expansion will permanently flatten the material, destroying its insulating nanopores.

This is exactly where our material acts as a highly engineered aerogel compression pad. It is specifically manufactured with a finely tuned Compression Force Deflection (CFD) profile. It functions as a resilient mechanical shock absorber, perfectly accommodating the expansion stress of the cells within the critical 0.05-0.3 MPa range over years of charge-discharge cycles, all while physically maintaining the structural integrity of its 600°C thermal firewall.

CONTENT PART 2: CONTROLLED PARTICULATES, VIP ARMOR & THE ARCHITECTURE MATRIX

The Particulate Challenge & Clean-Room-Ready Encapsulation

Even when thermodynamic performance is mathematically perfect, raw aerogel possesses a critical physical constraint in high-precision manufacturing: it is inherently a brittle, nanoporous material. In a pristine, automated EV or BESS assembly line, shedding uncontrolled silica particulates is strictly unacceptable. It contaminates the facility, interferes with sensitive battery electronics, and can lead to catastrophic short circuits over the vehicle's lifespan.

Many legacy suppliers attempt to solve this by simply wrapping their aerogel in cheap PET tape, leaving the edges vulnerable to micro-shedding during long-term vibration and thermal cycling. We refuse to deliver half-finished solutions. Hebei Woqin treats encapsulation as a high-precision engineering discipline.

Recently, a top-tier US energy storage giant approached us with a highly complex Gen 3 battery drawing. To meet their extreme environmental controls, they explicitly specified a highly strict encapsulation material: a US-specified high-barrier polyolefin heat shrink film (imported directly from the client's nominated supplier). Our engineering team seamlessly integrated this specific material to execute a flawless, 100% full-edge vacuum seal. The result? A factory-certified, clean-room-ready aerogel pad with strictly controlled particulate emissions, ready to be dropped directly onto a US assembly line without compromising the facility's pristine environment.

OUTSIDE: Vacu-Slim™ VIP and the External Environmental Armor

While the internal aerogel pad acts as the ultimate firewall against thermal runaway, the overall battery pack also faces a brutal external enemy: ambient weather. Extreme winter cold drastically slashes lithium-ion battery range, while scorching summer heat forces the liquid-cooling system into overdrive, severely draining parasitic power.

To achieve total thermal supremacy, the "Inside-Out" architecture deploys our Vacu-Slim™ Vacuum Insulation Panel (VIP) along the inner walls of the external battery casing.

At a hyper-thin profile of just 1.0mm to 5.0mm, the Vacu-Slim™ VIP delivers an unbelievable initial thermal conductivity of ≤ 0.003 W/(m·K)—nearly 10 times more insulating than traditional structural foams. It effectively locks the battery pack in a state of thermodynamic stasis, completely isolated from external temperature swings.

Furthermore, because modern BESS and EV packs operate under dangerous high-voltage conditions, the Vacu-Slim™ is not just a thermal barrier. It is engineered to survive the brutal 85°C / 85% RH 1000-hour aging test (per IEC 61215), ensuring long-term reliability. Simultaneously, it provides excellent electrical isolation with a tested dielectric strength of up to 3800V DC (per ASTM D149 / IEC 60243-1). It is the ultimate external environmental armor.

The Global Thermal Architecture Matrix

To clearly illustrate why legacy materials are being aggressively phased out by Tier-1 manufacturers, we have mapped out the precise performance boundaries of the "Inside-Out" architecture versus traditional single-patch solutions:

CONTENT PART 3: THE FLATNESS CODE, COMMERCIAL PATHS, & CALL TO ACTION

The Invisible Supply Chain Killer: Master Roll Flatness

Even with a mathematically perfect "Inside-Out" thermal architecture, there is a hidden engineering trap that frequently destroys overseas manufacturing operations: raw material logistics.

Many global EV and BESS manufacturers prefer to purchase aerogel in bulk Master Rolls, relying on their local partners in the US or Europe to perform the final die-cutting. However, because aerogel is highly compressible, improper packaging during long-haul ocean freight is catastrophic. When rolls are loosely wound or poorly secured, the mechanical stress and vibration of trans-Pacific transit crush the material. The result? Edges become wavy, the uniform thickness is irreversibly compromised, and when the roll is finally mounted on a high-speed die-cutting machine, the scrap rate skyrockets.

At Hebei Woqin, we treat logistics as an extension of our engineering baseline. Every single export master roll is wound using automated tension-control onto heavy-duty rigid cores. Furthermore, we reject flashy but ineffective packaging. We exclusively utilize multiple layers of high-cushion air bubble film wraps.

This is a grounded, highly scientific approach. The air bubble film not only provides superior moisture resistance but acts as a tailored shock absorber, perfectly dissipating mechanical vibrations inside the shipping container. We guarantee that when our aerogel master roll arrives at your facility in Texas or Germany, it will unroll onto your cutting table as flawlessly flat as a mirror.

The Manufacturing Crossroads: Strict Operational Pathways

To support the massive scaling required by the global energy transition while respecting the absolute laws of physics, Hebei Woqin offers two distinct delivery routes:

Path A (Turnkey Finished Components - Aerogel & VIP): If your goal is to streamline your supply chain, send us your Gen 3 battery drawings. Leveraging our dedicated production capacity of 25,000 m² per month, we will deliver precision die-cut, clean-room-ready aerogel pads directly to your assembly line.

(CRITICAL ENGINEERING BOUNDARY: Vacuum Insulation Panels cannot undergo secondary die-cutting. Puncturing the high-barrier film instantly destroys the vacuum and the thermal performance. Therefore, all Vacu-Slim™ VIPs are exclusively manufactured and delivered via Path A as 100% custom-sized, factory-sealed finished panels).

Path B (Perfect Aerogel Master Rolls): If your corporate strategy mandates localized manufacturing, or if you already have a trusted domestic converting partner, we will supply you with our dimensionally perfect aerogel master rolls. You receive world-class thermal materials with guaranteed flatness, empowering your "Made in USA/Europe" assembly process. (Note: This path is for aerogel only).

Call to Action: Secure Your Thermal Architecture

The era of relying on outdated, single-material patches to manage EV and BESS thermal loads is over. To survive the extreme spatial constraints of modern battery packs, you need a holistic architecture: an internal 600°C Aerogel Firewall combined with external Vacu-Slim™ VIP armor.

Send me a direct message to request our Master Edition TDS (V3.0), or let's schedule a technical review of your latest battery pack drawings to engineer a thermal boundary that never fails.

Advanced Integration Tips for Battery Engineers:

• Edge Sealing: Are you concerned about localized heat transfer at the seams where your VIP panels meet the battery casing? Eliminate edge thermal bridging instantly with our [Aerogel Thermal Break Tape].

• Custom Formulations: Are you developing your own liquid gap-fillers, potting compounds, or fire-retardant coatings for battery modules? Learn how to overcome the fatal viscosity traps and shear paradoxes with our [Ultra-Fine Aerogel Powder].
