Capturing the Sun: S-Class Aerogel for CSP Molten Salt Pipelines

Prevent Freezing at 220°C, Slash Tower Wind Drag by 50%, and Cut Heat Tracing OPEX

1. Introduction: The 565°C Solar Artery

In the vast deserts of the Middle East, projects like Dubai's Noor Energy 1 and Saudi Arabia's ACWA Power initiatives are pushing the boundaries of renewable energy. The core of these mega-projects is Concentrated Solar Power (CSP) with Molten Salt Energy Storage.

In a CSP plant, the molten salt (typically a nitrate mixture) acts as the thermodynamic lifeblood of the facility. During peak solar hours, it is heated to a blistering 565°C. However, this lifeblood has a critical vulnerability: its freezing point is exceptionally high, typically between 220°C and 240°C.

If the insulation fails and the temperature drops below this threshold at night, the salt solidifies into concrete-like rock inside the pipes. This is not a simple maintenance issue; it is a catastrophic system failure requiring the physical cutting and replacement of the pipeline. Designing insulation for CSP is not about energy efficiency—it is about flow assurance and asset survival.

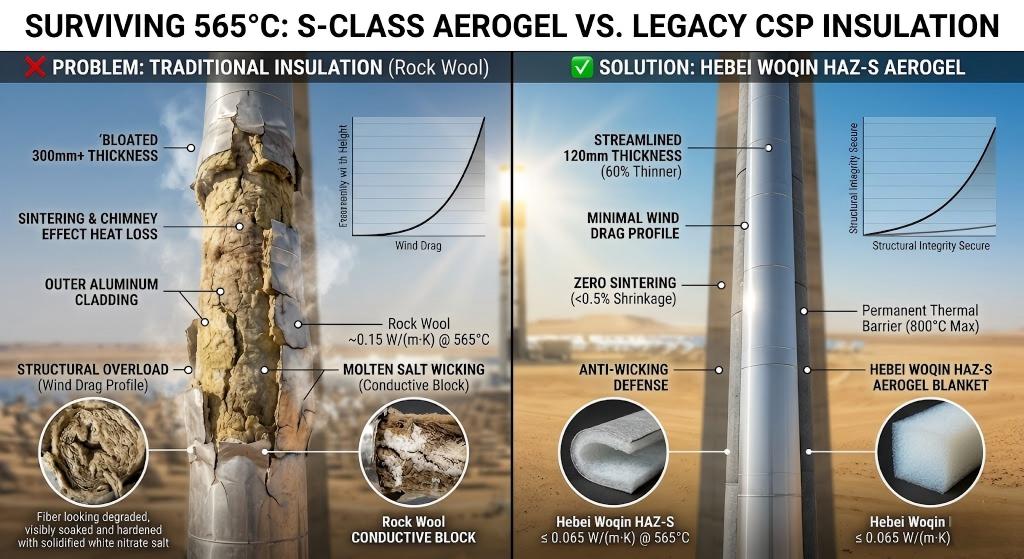

Technical Comparison Summary: Aerogel vs. Legacy Insulation

2. Tower Structural Overload & The Wind Drag Crisis

The most critical arteries of a Central Receiver System (Power Tower) are the vertical hot and cold salt pipelines running up the central tower, which often exceeds 200 meters in height.

To withstand 565°C using traditional legacy insulation like rock wool, engineers are forced to specify thicknesses of 300mm or more. Wrapping a massive pipe in 300mm of bulk insulation drastically increases the pipe's outer diameter. At 200 meters high in the desert, this creates a catastrophic structural problem: Wind Drag.

Quantitative Impact: For a 24-inch molten salt riser, a 300mm rock wool layer increases the outer diameter from 610mm to over 1200mm. At a 200m elevation, this massive profile more than triples the wind load on the tower, forcing EPCs to execute structural steel reinforcements that add $2 million to $3 million in CAPEX.

The S-Class Aerogel Solution: Hebei Woqin completely eliminates this structural overload. Our HAZ-S Class Aerogel Blanket features an officially certified room-temperature thermal conductivity of just 0.017 W/(m·K). Even at 565°C, it maintains outstanding thermal resistance. By utilizing HAZ-S Aerogel, EPCs can slash the required insulation thickness to under 120mm. This reduces the 24-inch pipe's final outer diameter to just 800mm, cutting the wind load profile by more than half and saving massive structural steel investments.

3. Defeating Molten Salt Freezing & Heat Tracing OPEX

To mitigate the risk of molten salt freezing, every inch of the piping network is wrapped in electrical heat tracing. However, heat tracing is intended to be a safety net, not a primary continuous heating source.

When traditional fiber insulation is deployed, it inevitably degrades and loses its thermal resistance. As the heat escapes into the cold desert night, the electrical heat tracing is forced to run continuously at maximum capacity just to keep the salt above 220°C. The CSP plant ends up consuming a vast percentage of the megawatt-hours it just generated.

The Aerogel Cooldown Advantage: Hebei Woqin’s S-Class Aerogel acts as a permanent, impenetrable thermal vault, drastically extending the Safe Cooldown Time.

Engineering Example: Consider a 100-meter horizontal molten salt pipe (DN300, 565°C salt, ambient 10°C). With 300mm of traditional rock wool, the cooldown to the critical 220°C threshold takes approximately 6 hours, forcing the heat tracing to activate almost immediately after sunset. With just 120mm of S-Class Aerogel, the cooldown period is extended to over 24 hours. This allows the heat tracing system to remain in true standby mode through the entire night, saving over 80% of parasitic power consumption.

4. Thermal Degradation & The 600°C Sintering Effect

Operating continuously at 565°C pushes traditional fibrous insulation to its absolute metallurgical limits. Materials like rock wool and standard aluminum silicate are highly susceptible to thermal degradation over their 25-year operational lifecycle.

Under sustained high heat, these traditional fibers experience Sintering and Crystallization. The internal binders burn off, causing the material to fuse and physically shrink. On horizontal molten salt pipelines, this thermal shrinkage creates a dangerous void at the top of the pipe interior, directly under the metal cladding. This void triggers a convective "Chimney Effect," accelerating heat loss and completely bypassing the remaining insulation.

The Aerogel Advantage: Hebei Woqin’s HAZ-S Aerogel Blanket is fundamentally engineered to resist high-temperature sintering. Formulated from a pure inorganic silica crystal matrix, it maintains unparalleled structural integrity. Tested according to high-temperature standards (e.g., GB/T 17911 / ASTM C356), our S-Class aerogel exhibits < 0.5% linear shrinkage even after prolonged exposure to 800°C. By preventing volume loss and settling, it locks in its original thermal resistance permanently, ensuring zero chimney effect over the plant's lifetime.

5. Extreme Thermal Cycling & The Molten Salt Soak

A CSP pipeline is not a static environment. Between peak solar generation (565°C) and nighttime standby (250°C), the steel pipeline undergoes violent dimensional changes. This extreme Thermal Cycling exerts massive mechanical stress on the insulation system. Legacy rigid or semi-rigid materials cannot compress and recover; they eventually transfer this stress outward, ripping the aluminum weather cladding apart and exposing the system to the desert environment.

Furthermore, CSP networks contain thousands of valves and flanges. At 565°C, molten nitrate salt possesses extremely low viscosity and high permeability. When micro-leaks inevitably occur, traditional fibrous insulation acts like a giant sponge. The salt wicks deep into the fiber matrix and freezes, transforming the insulation into a solid, highly conductive, and heavily corrosive "Salt Block."

The Aerogel Defense System:

• Dynamic Flexibility: The aerogel blanket is inherently flexible and possesses excellent compression recovery. It acts as a mechanical dampener, absorbing the extreme thermal expansion and contraction of the pipe without transferring stress to the outer cladding.

• Anti-Wicking (No Salt Sponge): The ultra-dense nanoporous structure of the aerogel physically rejects the deep penetration of molten salt. In laboratory validation, a Hebei Woqin aerogel sample was submerged in 565°C nitrate salt for 48 hours. Post-test analysis showed zero salt penetration beyond the surface layer, and the thermal conductivity remained unchanged. In contrast, standard aluminum silicate fibers wicked the molten salt to a depth of over 30mm, transforming into a solid, highly conductive block.

6. Water Ingress & Stress Corrosion Cracking (SCC)

While the desert is notoriously dry, CSP plants operate in complex microclimates. Occasional torrential desert rains, or nighttime condensation, can easily penetrate damaged or torn aluminum cladding.

When water enters a traditional insulation system, it creates a lethal chemical cocktail. The water dissolves leachable chlorides from the insulation itself, combining with any leaked nitrate salts. When this highly corrosive electrolyte contacts the hot austenitic stainless steel (e.g., SS347H) of the molten salt pipe, it triggers Stress Corrosion Cracking (SCC). SCC is the silent killer of high-temperature plants—it causes sudden, catastrophic pipe ruptures without any prior thinning of the metal wall.

The Chemical Defense (Zero SCC Risk): Hebei Woqin’s HAZ-S Aerogel is heavily engineered to prevent SCC. First, it is 99.7% hydrophobic, physically repelling liquid water and preventing the formation of an electrolyte on the pipe surface.

More importantly, it is chemically inert. Official testing by the National Center for Quality Supervision and Testing of Glass Fiber Products confirms a leachable chloride (Cl-) content of just 0.0017% and fluoride (F-) below 0.001%. In comparison, standard aluminum silicate blankets often contain 0.05% or higher chlorides, which actively promote SCC. By eliminating the source of corrosive ions and blocking water ingress, Hebei Woqin’s aerogel permanently breaks the chemical chain reaction that causes SCC.

7. Gamma-Ray Proven: Absolute Radiation Resistance

A frequent concern from EPCs when evaluating new materials for 25-year solar megaprojects is the absolute physical and structural stability under extreme environmental radiation and UV exposure in the desert.

To prove the indestructible nature of our inorganic silica matrix, Hebei Woqin subjected our aerogel blanket to extreme radiation testing. Conducted by Beijing Atom High-Tech, the aerogel was exposed to a Co-60 Gamma Ray Irradiation test, receiving a massive cumulative dose of 2.63 × 10^6 Gy.

The result? The aerogel exhibited no structural degradation, no embrittlement, and no loss of thermal or mechanical performance.

While CSP plants do not involve nuclear radiation, this test proves the absolute physical and chemical inertness of our inorganic matrix under extreme energy exposure. If Hebei Woqin’s S-Class Aerogel can withstand the destructive energy of a gamma-ray environment without structural compromise, the concentrated solar reflection and extreme UV radiation of the Middle Eastern desert will have absolutely no degrading effect on its performance over its 25-year design life.

8. Conclusion & High-Value Call to Action: Engineer the Future

In the high-stakes engineering of CSP and Molten Salt Energy Storage, traditional insulation is the weakest link. Using legacy rock wool or aluminum silicate guarantees structural overload on the tower, massive heat tracing OPEX, and the constant threat of molten salt freezing and stress corrosion cracking.

Hebei Woqin’s HAZ-S Class Aerogel (0.017 W/mK, 800°C) fundamentally re-engineers the thermal envelope of solar megaprojects. It slashes pipe thickness, cuts tower wind loads by over 50%, and provides a permanent, gamma-ray-proven defense against thermal degradation and corrosion.

Stop engineering your $700 million CSP plant around failing insulation. Secure your molten salt arteries today:

Download the CSP Technical Data Sheet (TDS)

Get immediate access to our thermal conductivity curves at 565°C, cooldown time simulation data, and installation guidelines. Email an@cn-aerogel.com with the subject "CSP TDS" for instant access to the engineering files.

Request the Thermal Calculation Report

Are you currently estimating the insulation BOQ for an upcoming ACWA Power or DEWA CSP project? Email us your molten salt line sizes and operating temperatures. Our thermal engineers will provide a customized Cooldown Time & Thickness Comparison Report, showing exactly how much steel CAPEX and heat tracing OPEX you can eliminate.

Request the Official Test Reports & High-Temp Sample

Do not just take our word for it. Email us to request the official laboratory testing documents (including the Gamma-Ray Radiation and Leachable Chloride reports). We will also ship a physical HAZ-S Aerogel evaluation sample directly to your facility. We invite you to take it to your engineering lab, blast it with your own 1000°C industrial blowtorch for 10 minutes, and test the backside temperature with your bare hands to witness the ultimate thermal armor.
