High-Temp Longevity: Insulating Steam Lines in Middle East Desalination Plants

0. Executive Summary

In the Middle East, water is synonymous with energy. The GCC region relies heavily on thermal desalination technologies to transform the Persian Gulf and Red Sea into potable water. However, the high-pressure steam networks that power these massive facilities operate in a thermodynamic nightmare. Traditional insulation materials are failing under the stress of corrosive saltwater, intense heat, and mechanical vibration, leading to catastrophic Corrosions Under Insulation (CUI) and massive energy losses. This guide explores why legacy insulation is crippling desalination efficiency and how advanced silica aerogel provides a permanent eradication strategy.

1. Introduction: The Thermodynamic Nightmare of MSF and MED Plants

At the heart of Multi-Stage Flash (MSF) and Multiple Effect Distillation (MED) plants are the steam export lines, brine heaters, and heat recovery networks. These critical arteries carry thermal energy from co-generation power plants directly into the evaporators.

The operating environment is brutal. Inside the pipe, steam temperatures routinely exceed 150°C to 250°C. Outside the pipe, the infrastructure is constantly bombarded by 100% coastal humidity, highly corrosive salt fog, and accidental brine spills. When extreme internal heat meets a corrosive coastal atmosphere, the choice of pipeline insulation dictates whether the plant will run efficiently for decades or become trapped in an endless, expensive maintenance loop.

2. The 6 Fatal Flaws of Legacy Insulation in Desalination Plants

For decades, EPC contractors have specified mineral wool or rigid Calcium Silicate (CalSil) for high-temperature steam lines. While these materials meet basic thermal requirements on paper, they suffer catastrophic physical and chemical failures in a live Middle Eastern desalination plant.

Here are the six fatal flaws destroying plant profitability:

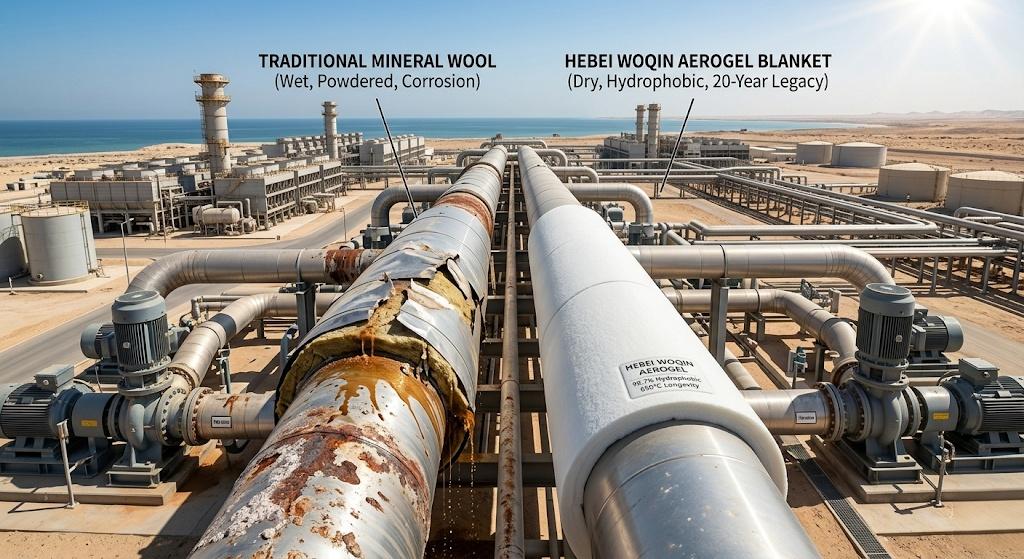

• Flaw 1: The "Saltwater Sponge" Effect (CUI & ESCC)

  In a coastal facility, the external aluminum cladding of a pipe is rarely 100% watertight. When saltwater spray or leaking brine penetrates the cladding, soft mineral wool acts like a sponge. The water evaporates against the 250°C hot pipe, leaving behind highly concentrated chlorides. On carbon steel, this triggers aggressive Corrosion Under Insulation (CUI). On expensive stainless steel or duplex pipes, it causes lethal External Chloride Stress Corrosion Cracking (ESCC), leading to sudden, unpredicted pipe ruptures.

• Flaw 2: The Catastrophic Drop in Performance Ratio (PR)

  In thermal desalination, the Performance Ratio (PR)—the tons of distillate produced per ton of steam—is the ultimate metric of profitability. When traditional fibrous insulation gets wet, it loses up to 80% of its thermal resistance. Heat bleeds out into the atmosphere before it can reach the evaporators. To maintain freshwater output, the co-generation plant is forced to burn significantly more natural gas or heavy fuel oil, devastating the facility's OPEX.

• Flaw 3: Mechanical Vibration & Internal Powdering

  Desalination plants are highly kinetic environments. Massive brine recirculation pumps and vacuum ejectors create continuous mechanical vibration along the pipe racks. Rigid insulation blocks, such as Calcium Silicate, cannot absorb these dynamic forces. Over time, the rigid blocks grind against the pipe and each other, cracking and pulverizing into fine dust. This "powdering" creates internal voids where heat escapes and corrosive moisture pools.

• Flaw 4: The "Broken Window" Effect from Foot Traffic

  Due to the dense layout of evaporators, maintenance workers frequently step directly onto insulated pipes during routine inspections. Soft mineral wool instantly crushes under human weight, permanently denting the aluminum cladding and breaking the waterproof mastic seals. Once the seal is broken, coastal rain and seawater pour directly into the insulation matrix.

• Flaw 5: The Endless, Expensive Maintenance Loop

  Because legacy materials absorb water and crumble under vibration, facility managers are forced into a reactive maintenance nightmare. The cost of erecting scaffolding, stripping wet insulation, sandblasting rusted pipes, and installing new mineral wool every few years far exceeds the initial cost of the insulation itself.

• Flaw 6: Pipe Clashing in Confined Spaces

  To achieve the necessary thermal resistance (R-value) for 250°C steam using outdated materials, the insulation must be exceptionally thick. In the tightly packed maze of an MSF or MED evaporator array, this excessive bulk leads to severe "pipe clashing"—where insulated pipes physically collide with each other or structural steel, creating engineering bottlenecks and installation nightmares.

3. The Aerogel Eradication Strategy: Engineered for the Extreme

To guarantee the resilience of Middle Eastern water infrastructure, facility managers must abandon materials that absorb water and crack under stress.

Hebei Woqin’s High-Temperature Silica Aerogel Blanket is a fundamentally different class of material. It does not just mitigate insulation failure; it eradicates the root causes of CUI and heat loss through advanced material science.

Here is how our aerogel provides permanent, maintenance-free thermal armor:

• Defense 1: 99.7% Extreme Hydrophobicity & Ultra-Low Chlorides

  Tested to extreme standards, our aerogel achieves a 99.7% hydrophobic rate. It chemically repels liquid water, seawater, and brine. Even if the outer aluminum cladding is severely breached during a coastal storm, the aerogel remains bone-dry. Furthermore, our aerogel matrix contains exceptionally low levels of leachable chlorides, completely eliminating the chemical catalysts required for CUI on carbon steel and ESCC on stainless steel.

• Defense 2: Vibration-Proof Matrix (0.3% Mass Loss Rate)

  Unlike rigid CalSil that shatters under kinetic stress, aerogel is a highly cohesive, flexible blanket. Under rigorous laboratory vibration testing (GB/T 34336-2017), our aerogel recorded an astonishingly low Vibration Mass Loss Rate of just 0.3%. It absorbs severe pump and ejector vibrations without sagging, cracking, or powdering, ensuring zero degradation in thermal performance over decades.

• Defense 3: Unyielding Compressive Strength

  Our aerogel blankets exhibit immense transverse tensile and compressive strength. When maintenance crews walk across the insulated pipes, the aerogel acts as a resilient cushion. It does not crush or deform, actively protecting the integrity of the external metal cladding and the waterproof seal.

• Defense 4: Ultra-Thin Profile for Tight Pipe Racks

  With a thermal conductivity as low as 0.020 W/(m·K), aerogel provides the same thermal resistance as mineral wool at a fraction of the thickness (often up to 70% thinner). This ultra-thin profile is a game-changer for MSF/MED retrofits, completely solving pipe clashing in dense evaporator arrays and dramatically reducing the footprint of the pipe racks.

• Defense 5: Class A1 Non-Combustible Safety

  Safety in co-generation plants is non-negotiable. Our aerogel has been rigorously tested, achieving a Combustion Calorific Value of just 1.9 MJ/kg and a furnace temperature rise of merely 2℃. It is certified as Class A1 Non-Combustible—it will never ignite, will not spread flames, and emits zero toxic smoke.

4. Total Cost of Ownership (TCO): From Reactive Maintenance to 20-Year Resilience

For institutions like SWCC and DEWA, the true cost of insulation is measured in plant uptime and sustained Performance Ratio (PR).

Procurement teams must shift their focus from the initial "price per square meter" of raw materials to the Total Cost of Ownership (TCO). By upgrading to Hebei Woqin’s Aerogel, desalination plants transition from a reactive maintenance cycle to a proactive resilience model. You eliminate the recurring costs of scaffolding, pipe sandblasting, and insulation replacement.

Most importantly, because the insulation never gets wet and never powders, heat loss is permanently halted. Your Performance Ratio stays locked at its design peak, saving millions of dollars in wasted fossil fuels over the facility's lifespan. You achieve a true 15 to 20-year maintenance-free lifespan, securing continuous freshwater production for the region.

5. Conclusion & Call to Action

You cannot protect the world's most critical water infrastructure with insulation that dissolves in saltwater and crumbles under vibration. In the extreme environments of the Persian Gulf and the Red Sea, specifying traditional, water-absorbing insulation is an active investment in a corrosion time bomb.

It is time to upgrade your steam lines to a material that fights back.

Stop funding the CUI maintenance loop and letting your Performance Ratio bleed away. Are you managing a desalination retrofit, battling pipe clashing, or engineering a new co-generation plant in the GCC?

[Contact Hebei Woqin’s Engineering Team Today]. Provide us with your steam line temperatures, pipe diameters, and ambient conditions. Our experts will deliver a customized Aerogel thermal thickness calculation and a complete ROI projection, proving exactly how much you will save by choosing permanent thermal armor.
