Defeat 800°C & Sodium Vapor: S-Class Aerogel for Middle East Aluminum Smelters

1. Introduction: The "Solidified Electricity" Industry and the True Thermodynamic Battleground

Aluminum smelting is fundamentally the industry of "solidified electricity"—consuming roughly 13 to 15 MWh of DC power per ton of aluminum, making electricity account for over 30% of total operating costs. Across Middle East giants like EGA and Ma'aden, maintaining a stable 960°C bath is the ultimate difference between profit and catastrophic loss.

However, the true thermodynamic battleground is not in direct contact with the liquid aluminum. While the working refractory lining takes the direct assault, the backup insulation layer determines whether that heat stays in the pot or melts your steel shell. Positioned hidden between the bricks and the exterior steel pot shell, this backup layer is subjected to relentless 600°C–800°C continuous baking and highly aggressive chemical vapor attack. Today, traditional bulk insulation is systematically failing here, costing facilities millions of dollars in energy loss and structural damage.

2. Chemical Poisoning: Cryolite Vapor and the "Vitrification" Collapse

The Pathology:

In the extreme environment of a reduction cell, molten cryolite (the electrolyte) and highly reactive sodium vapors easily permeate the primary refractory bricks. When these aggressive alkali gases penetrate into traditional calcium silicate boards or aluminum silicate fibers, a fatal chemical reaction occurs. The legacy insulation undergoes rapid vitrification (sintering). Their porous structure collapses into a dense, hardened glass-like mass, instantly destroying their thermal resistance. Independent tests show that after 1,000 hours of cryolite vapor exposure at 750°C, conventional calcium silicate boards experience a greater than 300% spike in thermal conductivity.

The S-Class Eradication:

Hebei Woqin’s S-Class High-Temperature Aerogel (which delivers a baseline thermal conductivity of just 0.017 W/(m·K) tested at 25°C) achieves exceptional chemical inertness. Its ultra-low chloride content—certified at just 0.0017%, compared to the industry average of 0.1% to 0.5%—forms a dense nanoporous barrier that alkali vapors cannot easily penetrate. Unlike conventional materials, the S-Class Aerogel retains over 90% of its original insulating performance after identical vapor exposure. It remains flexible and highly insulative even in the most corrosive reduction cell environments.

3. Structural Collapse: Thermal Shrinkage and the "Hot Spot" Crisis

The Pathology:

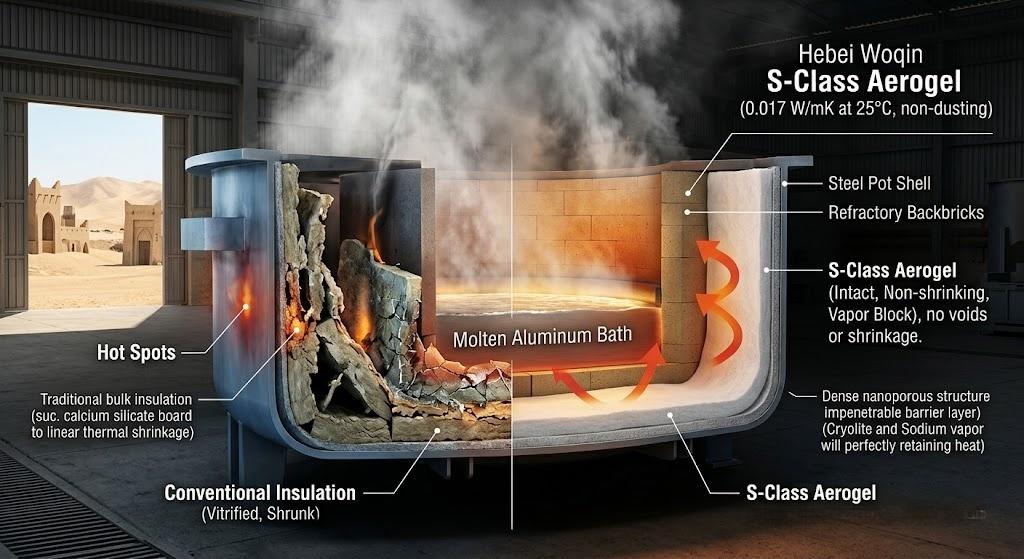

High-temperature ceramic fiber boards (RCF) suffer from severe linear thermal shrinkage when subjected to continuous 800°C heat. As the backup layer shrinks, critical voids and gaps form inside the lining. This thermal bridge allows 600°C+ heat to directly strike the exterior steel pot shell, resulting in dangerous "Hot Spots." A single hot spot exceeding 350°C on the steel shell can trigger a forced pot shutdown—costing $500,000 to $1,000,000 per day in lost production and relining.

The S-Class Eradication:

Engineered with an advanced inorganic silica skeleton, our S-Class Aerogel delivers unmatched volume stability. It exhibits no measurable shrinkage after 5 years of continuous 800°C operation (test data available upon request). The flexible blanket remains tightly compressed against the steel shell for the entire lifespan of the reduction cell. By ensuring 100% shell contact and zero thermal void formation, it completely eliminates the risk of hot spots and tap-out failures, safeguarding the structural integrity of the pot shell.

4. The Spatial Deadlock: How "Insulation Thickness" Cannibalizes Pot Capacity

The Pathology:

In aluminum smelting, the dimensions of the exterior steel pot shell are rigidly fixed. To block the intense internal heat, engineers are forced to specify excessively thick traditional refractory backup layers (often 150mm to 200mm). Every extra millimeter of insulation thickness directly cannibalizes the internal working volume. Plant managers are trapped in a spatial deadlock: increasing insulation thickness to protect the shell inherently means sacrificing the molten aluminum capacity per pot.

The S-Class Eradication (The 0.045 High-Temp Miracle):

While our S-Class Aerogel achieves an extraordinary thermal conductivity of 0.017 W/(m·K) when tested at 25°C, its true dominance is proven at operating temperatures. At 600°C, it maintains a remarkably low λ ≤ 0.045 W/(m·K), while conventional calcium silicate boards degrade rapidly to 0.18 W/(m·K). This allows smelters to replace a 150mm thick conventional backup layer with just 25mm of S-Class Aerogel, achieving the same or superior thermal drop. The 125mm of regained internal width directly adds roughly 3 to 4 tons of additional aluminum capacity per pot (on a standard 10-meter cell), without any costly modifications to the steel shell.

Conventional: 150mm calcium silicate [λ = 0.18 W/(m·K) at 600°C] restricts internal crucible volume and caps production yield.

S-Class Aerogel: 25mm ultra-thin profile [λ = 0.045 W/(m·K) at 600°C] unlocks 125mm of space, adding 3 to 4 tons of molten aluminum capacity per pot.

5. The HSE Redline: Airborne Fibers and the Relining Black Hole

The Pathology:

Traditional Refractory Ceramic Fibers (RCF) and rigid boards are notorious for severe thermal embrittlement. Over time, they break down and release microscopic, airborne particulate matter ("dusting"). This presents a dual threat: it contaminates the high-purity aluminum melt, and more critically, these free fibers trigger strict HSE (Health, Safety, and Environment) cancer redlines across the Middle East. Relining crews are forced into full hazmat protocols, drastically slowing down maintenance and inflating labor costs.

The S-Class Eradication (The Green Passport):

Our S-Class Aerogel is engineered for structural resilience. It is virtually non-dusting under normal installation and operation, emitting no detectable airborne fibers that could contaminate the melt or harm workers. Rigorously tested by European standards, it has achieved full RoHS compliance, and all 240 SVHC (Substances of Very High Concern) under the REACH directive tested below detection limits. Because the material is safe to handle, relining crews no longer require extreme hazmat suits for fiber dust, cutting maintenance labor costs by up to 30%.

Conventional: Severe high-temp embrittlement releases carcinogenic fibers, mandates expensive hazmat protocols, and slows relining.

S-Class Aerogel: SVHC below detection limits and virtually non-dusting, ensures zero melt contamination, and cuts maintenance labor costs by 30%.

6. The Energy Black Hole: The False Economy of Rigid Seams

The Pathology:

Procurement teams often select cheaper traditional rigid boards based solely on initial CAPEX, ignoring the thermodynamic reality of installation. Rigid boards cannot bend; they must be pieced together. Under extreme thermal expansion and contraction, these rigid seams widen, creating thousands of "Thermal Bridges." The smelter ends up bleeding massive amounts of expensive electrical power directly into the atmosphere just to maintain the 960°C internal bath temperature.

The S-Class Eradication (The Near-Seamless Barrier):

Supplied as a highly flexible blanket, our S-Class Aerogel enables the ultimate thermal defense technique: Multi-layer Staggered Joint Installation. By wrapping the pot shell in multiple overlapping layers with offset seams, our engineers effectively eliminate all major thermal bridges.

The Financial Verdict: A 6-Month ROI Calculation

How does a premium insulation pay for itself? Here is a simplified OPEX model for a typical Middle East facility:

• The Energy Bleed: A 400kA reduction cell consumes approximately 14 MWh to produce 1 ton of aluminum. Degraded backup insulation with thermal bridges can cause up to an 8% increase in heat loss (wasting roughly 1.12 MWh per ton).

• The True Cost: At a conservative industrial electricity rate of $0.05/kWh, that is $56 wasted per ton. For a potline producing 40,000 tons annually, the OPEX bleed exceeds $2.24 Million per year.

• The Payback: Upgrading to the S-Class Aerogel system effectively halts this specific heat loss. With an estimated incremental CAPEX of $150,000 to $300,000 per potline, the payback period is achieved in less than 6 months. For the remaining 5 to 10 years of the cell's lifespan, those energy savings convert directly into pure profit.

7. Conclusion & Next Steps: Stop Funding the OPEX Black Hole

In the high-stakes arena of Middle Eastern heavy industry, heat is money. Tolerating insulation that vitrifies, shrinks, drops carcinogenic fibers, and leaks thermal energy is a catastrophic engineering flaw. Hebei Woqin’s S-Class Aerogel is not a maintenance expense—it is a high-yield financial asset that protects your steel shells and maximizes single-pot capacity.

Two ways to prove the ROI today:

1. Download the Technical Application Guide: (Includes thickness selection tables for typical EGA/Ma’aden pot geometries). Email [ an@cn-aerogel.com ] with the subject "Smelter Guide".

2. Request a Custom ROI Model: Send us your current pot dimensions, backup layer thickness, and electricity cost. We will deliver a customized OPEX reduction report within 48 hours.

(Bonus: Qualified EPCs and smelter operators can also request a free 200mm × 200mm S-Class Aerogel sample sheet for your own high-temperature torch testing.)
