Pre-Fabricated in China, Deployed in the Middle East: Aerogel for Cross-Border Modular Skids

0. Executive Summary: The Modularization Paradox

For international EPCs executing mega-projects in the Middle East, the strategy is clear: avoid the exorbitant labor rates and extreme 50°C working conditions of the desert by utilizing "Modularization." Engineering fully integrated equipment skids and package units in Chinese manufacturing hubs—and shipping them ready to "plug and play"—is the gold standard for cost control.

However, a massive financial leak exists within this supply chain: Legacy Insulation. The very purpose of modularization is to save money through compactness and efficiency. Yet, wrapping skid piping in 100mm-150mm of bulky rock wool, cellular glass, or polyurethane (PUR) destroys this logic. Outdated insulation inflates skid dimensions, triggers astronomical Out-of-Gauge (OOG) sea freight penalties, and rarely survives the brutal ocean transit intact.

It is time to rethink skid thermal management. Hebei Woqin’s ultra-thin Aerogel Insulation is not just a material upgrade; it is a cross-border logistics strategy that drastically reduces the Total Installed Cost (TIC) of your package units.

1. The Pathology: The Fatal Flaws of Legacy Skid Insulation

Before introducing the cure, we must diagnose the disease. When cross-border skids utilize 1970s-era insulation materials, EPCs fall victim to the following critical engineering and logistical failures.

1.1 The Logistics Trap: OOG Penalties and Lifting Hazards

• The Volume Penalty (OOG Freight): International ocean freight is mercilessly tied to volume. When a skid design specifies thick traditional insulation, the overall footprint of the module expands drastically. A skid that could have fit onto a standard Flat Rack container is suddenly classified as Out-of-Gauge (OOG) or Breakbulk.

• The Mathematical Reality (Example): A 40-foot skid insulated with 150mm rock wool has a total volume of 120m³, pushing it into Breakbulk shipping at approximately $15,000. By switching to 50mm aerogel, the volume drops to 70m³, allowing it to fit a standard Flat Rack at $4,000. That is $11,000 saved per single skid. For a 50-skid project, that is over $500,000 in pure freight savings alone.




• Weight Surges & Lifting Hazards: Legacy mineral wool is highly absorbent. If the skid sits in a humid coastal staging area in China prior to shipping, the insulation absorbs moisture, and the module's weight skyrockets dynamically. This unpredictable water weight leads to severe heavy-lifting crane surcharges and increased rigging risks at the port.

1.2 The Spatial & Structural Crisis: Clashing and Crushing

• Internal Pipe Clashing: The soul of a modular skid is its ultimate compactness. Chinese fabricators are tasked with squeezing miles of piping, valves, and pumps into a minimal steel frame. When each pipe is bloated with thick traditional insulation, it creates immediate "Pipe Clashing." Pipes collide with structural beams and neighboring lines, forcing engineers to either redesign a larger frame (feeding back into the OOG freight trap) or leave critical junctions uninsulated.

• Foot Traffic Crushing (The Invisible Damage): Space inside a skid is so confined that during assembly in China—or commissioning in the Middle East—workers inevitably use the insulated pipes as stepping stools. Cellular glass and calcium silicate are brittle; one step shatters them internally. Mineral wool compresses and loses its loft permanently. Even with standard aluminum jacketing, the outer metal may just show a small dent, but underneath, the thermal armor is pulverized, creating massive heat-loss voids before the equipment is even turned on.

1.3 The Transit & Assembly Failures: From Ocean to Desert

• The "Saltwater Sponge" and Pre-Commissioning CUI: Shipping a module from Chinese ports to the Persian Gulf involves a 30 to 45-day voyage across the Indian Ocean. The marine environment provides 100% relative humidity and highly corrosive salt spray. Open-cell insulations like rock wool act as "saltwater sponges." Before the equipment ever reaches the desert, the brand-new carbon steel piping beneath the wet insulation is already suffering from severe Corrosion Under Insulation (CUI).

• Kinetic Pulverization: Cross-border skids endure violent physical trauma: factory crane flexing, 30-degree ocean swells, and multi-axle heavy transport over unpaved desert roads. Rigid materials like cellular glass or calcium silicate cannot withstand this mechanical deflection; they snap and pulverize internally. Soft wools suffer from gravity slumping. The module arrives visually intact, but thermally destroyed.

• The Hot-Work Welding Nightmare: Once skids arrive at the Middle East site, they must be welded together (skid-to-skid connections). If the package utilizes closed-cell PUR or elastomeric rubber for cold applications, hot-work sparks present an immediate catastrophic fire hazard. EPCs are forced to strip back large sections of insulation prior to welding, leaving the pipes exposed and requiring expensive manual re-insulation later.

1.4 The Ultimate False Economy: On-Site Rework

This culminates in the ultimate modularization paradox. An EPC chooses Chinese fabrication to avoid the $80-$100/hour labor rates in the Middle East. However, due to OOG size restrictions, moisture absorption, and vibration damage, the skid arrives compromised. The EPC must now hire local scaffolding crews and insulation contractors to strip the ruined Chinese rock wool and re-insulate the module in the 50°C desert. The initial labor savings are completely hemorrhaged by on-site rework.

2. The Aerogel Eradication: The Ultimate Cross-Border Armor

Hebei Woqin’s Aerogel Insulation transforms the modular skid from a fragile, oversized liability into a compact, indestructible, plug-and-play asset. It eradicates the pathology of legacy insulation through verifiable, lab-tested physics:

• Eradicating Pipe Clashing & Shrinking Volume: With a thermal conductivity of just 0.020 W/(m·K), aerogel reduces required insulation thickness by 50% to 75%. Pipes can be engineered tightly together without clashing, and the overall skid volume shrinks drastically, completely bypassing OOG freight penalties.

• Immunity to Ocean Transit (Anti-CUI): Tested to GB/T 10299, our blanket achieves a 99.7% Hydrophobic Rate, physically repelling marine moisture. Furthermore, official National Glass Fiber Testing Center reports confirm our aerogel releases absolutely zero leachable chloride ions. The skid crosses the ocean bone-dry, guaranteeing zero pre-commissioning CUI.

• Vibration-Proof & Walkable: Tested according to GB/T 11835, our aerogel blanket records a near-zero Vibration Mass Loss Rate of 0.3%. Its transverse tensile strength of 1255 kPa ensures it will not delaminate or crush. Workers can step on the insulated pipes (with standard cladding) without crushing the thermal barrier.

• Zero-Distance Hot Work: Certified as Class A1 Non-Combustible (Furnace Temp Rise of just 2℃ and 0s Sustained Burning Time). In contrast to PUR, our Class A1 aerogel can be placed directly against the weld zone. Sparks bounce off harmlessly, and there is zero flame propagation, eliminating the need to strip and replace materials during skid assembly.

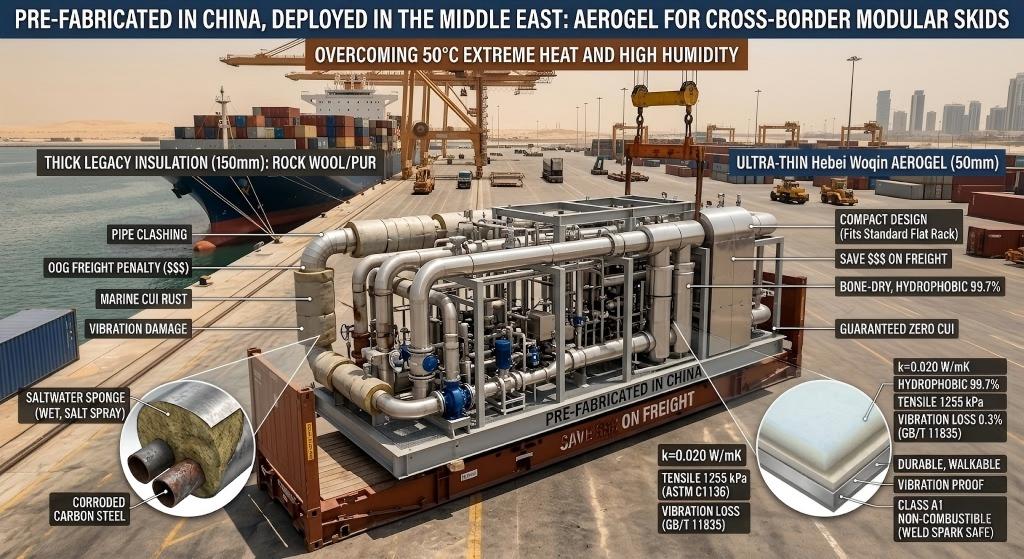

3. Technical Comparison: Legacy vs. Aerogel in Modular Skids

To fully understand the logistical and operational advantages, review the comparative matrix below:

3. Conclusion: The TIC Reality—Stop Funding the OOG and Rework Traps

In the complex supply chain of cross-border modularization, evaluating insulation by its initial material cost per square meter is a fatal procurement error. The true cost of legacy insulation is hidden in the astronomical OOG ocean freight invoices, the 45-day marine corrosion cycle, the shattered internal cellular glass, and the staggering hourly rates of Middle Eastern scaffolding crews hired to fix the damage.

Hebei Woqin’s Aerogel Insulation acts as the ultimate cross-border insurance policy. By specifying ultra-thin, indestructible thermal armor during the Chinese fabrication phase, EPCs guarantee a flawless, true plug-and-play deployment in the 50°C desert. You eliminate pipe clashing, slash sea freight volumes back to standard Flat Racks, and completely eradicate on-site rework—drastically lowering your Total Installed Cost (TIC).

Stop compromising your modular margins. Engineer the perfect skid today.
