The Engineering Balance: Debunking 6 Deadly Myths of Aerogel Insulation Coatings

Content Part 1: The "Tai Chi" of Formulation & The Reality Check

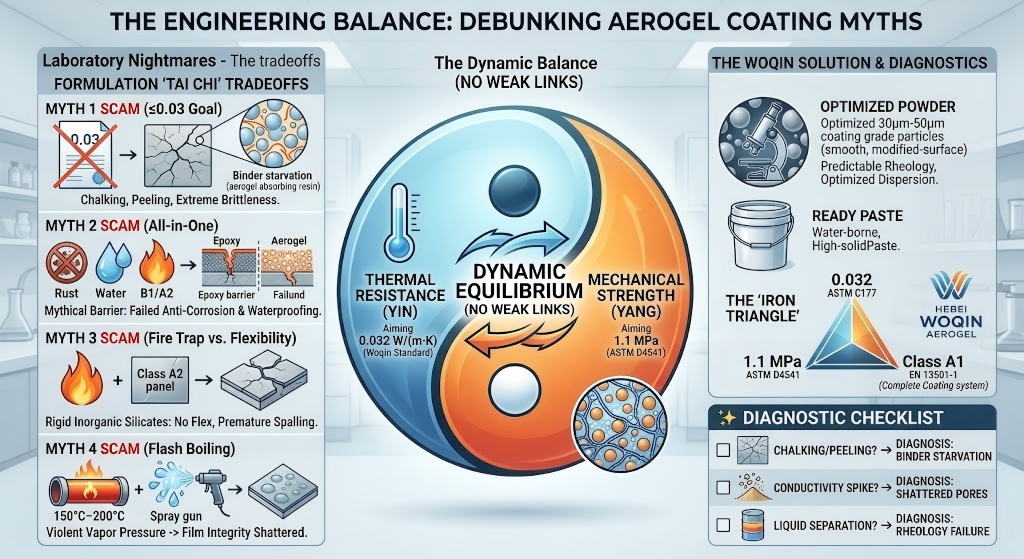

The "Tai Chi" of Formulation: Why Most Aerogel Coatings Fail

In the world of advanced materials, a perfect aerogel thermal insulation coating is not magic; it is an exercise in engineering "Tai Chi"—the dynamic balance of competing physical forces. There is no such thing as a "perfect" single metric; there is only the perfect formulation balance with no weak links.

Unfortunately, driven by aggressive marketing, many suppliers ignore this fundamental law of physics. They fall into the three ultimate formulator nightmares:

1. The Viscosity Black Hole: Aerogel aggressively absorbs resins, causing "binder starvation" and turning the paint into an un-sprayable paste.




2. The Shear Paradox: Using high-shear mixers to disperse the powder completely shatters the fragile nano-pores, destroying the insulation.




3. Phase Separation: The ultra-light aerogel powder floats to the top of the barrel within weeks, rendering the product useless before it even reaches the job site.

Instead of solving these profound formulation challenges, the market is flooded with impossible claims. It is time to debunk the deadly myths.

Debunking Myth 1: The "≤ 0.03 W/(m·K)" Bidding Scam

Many project bidding documents blindly demand an aerogel coating with a thermal conductivity of less than 0.03 W/(m·K). From a pure laboratory standpoint, adding massive amounts of aerogel powder will achieve this number. However, this creates a fatal mechanical trade-off: As insulation performance goes up, cohesion and adhesion crash down.

If a manufacturer forces the thermal conductivity below 0.03 by overloading the powder, the resulting coating will suffer from a catastrophic loss of cohesive strength. The paint film becomes severely brittle, chalks upon touch, and peels off the substrate. The realistic, engineering-sound thermal conductivity for a balanced, high-adhesion aerogel coating on the market is between 0.035 and 0.045 W/(m·K).

(Note: Through proprietary surface modification, Hebei Woqin's pre-dispersed coating achieves a highly optimized 0.032 W/(m·K) tested per ASTM C177, while maintaining an exceptional 1.1 MPa tensile adhesion strength tested per ASTM D4541—the ultimate engineering balance).

Debunking Myth 2: The "All-in-One" Illusion (Anti-Corrosion & Waterproofing)

Perhaps the most dangerous lie in the industry is the claim that aerogel coatings are "all-in-one" miracles: insulating, waterproofing, and heavy-duty anti-corrosion all in a single bucket. Let's look at the unforgiving mechanical reality.

True anti-corrosion and waterproofing rely on an incredibly dense, highly cross-linked polymer matrix to block moisture and chloride ions. Aerogel coatings, by their very nature, are highly porous and ultra-lightweight. Claiming a porous insulator can act as a standalone heavy-duty barrier is thermodynamic nonsense.

The Mechanical Reality Check: Aerogel Coating vs. Heavy-Duty Anti-Corrosion

(Note: Heavy-duty anti-corrosion coating data sourced from typical product datasheets for epoxy-based systems. Actual values vary by formulation and manufacturer.)

While aerogel powder is highly hydrophobic (water-repellent), "hydrophobic" does not equal "waterproof under pressure." An aerogel coating is a specialized thermal shield, not a magical multi-tool.

Content Part 2: Extreme Application Disasters & The Temperature Illusion

Debunking Myth 3: The Fire Rating vs. Flexibility Death Trap

Many suppliers aggressively market their water-borne aerogel coatings as achieving "Class B1" or even "Class A2" fire-retardant ratings. For a standard 3mm to 5mm thin-film coating, this marketing claim usually hides a fatal mechanical trap.

Standard organic polymer emulsions (acrylics, polyurethanes) are inherently combustible. To force them into a B1 rating, manufacturers must overload the formula with expensive flame-retardant additives, which severely compromises the coating's rheology and cohesion. Worse, some "cheap B1" coatings on the market will actively produce burning droplets (failing the "d" rating in EN 13501-1) during a fire test.

To achieve a true Class A2 (limited combustibility) rating, the formulation must switch from an organic emulsion to a fully inorganic silicate matrix. Here is the thermodynamic catch: Inorganic resins are notoriously rigid and brittle. When applied to industrial pipes or building facades experiencing daily thermal expansion and contraction, these rigid inorganic coatings simply cannot flex. They crack, delaminate, and fall off in large chunks. You traded your mechanical flexibility for a fire certificate, and the coating failed.

(Note: Industry standards for 3mm thin-film functional coatings should be evaluated differently than 150mm thick traditional insulation boards. A balanced formulation prioritizes structural integrity alongside safe, localized fire resistance).

Debunking Myth 4: The "Flash Boiling" Disaster on Hot Pipes

In industrial scenarios like steel mills and petrochemical refineries, facility managers often demand "online application" (coating pipes while they are running at 150°C to 200°C). Many aerogel paint suppliers happily promise that their products can be applied directly to these violently hot surfaces without shutting down the equipment.

Here is the physical truth about water-borne aerogel coatings: Applying them to surfaces under 100°C (below the boiling point of water) is entirely manageable with specific formulation tweaks. However, applying them to surfaces above 100°C triggers a catastrophic physical phenomenon known as Flash Boiling.

When a water-based liquid hits a 150°C steel pipe, the water within the coating matrix instantly vaporizes. This violent steam expansion rips through the wet paint, destroying the microscopic film formation integrity. While the contractor might manage to build up a 3mm layer that looks acceptable on the surface, the crucial bond interface at the substrate is essentially shattered.

The result? The coating's effective service life is drastically reduced, often leading to premature failure within months rather than years due to vibration and thermal cycling.

Content Part 3: The Mechanical Truth & The Formulator’s Solution

Debunking Myth 5: The "3mm Replaces 150mm" Magic Trick

You have likely seen marketing brochures claiming that a 3mm layer of aerogel coating can mathematically replace 150mm of traditional rock wool. From a pure R-value calculation, this defies the laws of thermodynamics.

So why do some field tests show equivalent energy savings? The answer lies in seamless sealing and the elimination of thermal bridges.

If a 3mm aerogel coating successfully replaces a thick traditional insulation board in real-world performance, it is because the previous traditional insulation system suffered from significant thermal bridging and air leakage through joints and fasteners. Aerogel coatings, applied as a liquid, create a 100% seamless thermal envelope, stopping convective heat loss dead in its tracks.

Debunking Myth 6: The 20-Year Lifespan Lie

Many suppliers eagerly stamp a "20-Year Guaranteed Lifespan" on their aerogel paint buckets. This is scientifically irresponsible, as the widespread commercial application of these coatings is relatively new.

Here is the honest lifespan reality:

• Indoor Environments: Based on current field data, a well-formulated aerogel coating can easily last 10+ years in indoor, benign environments.

• Exterior Facades: Lifespan is highly dependent on UV exposure, primer compatibility, and top-coat weatherability. Current reliable case studies generally max out around 8 to 10 years. Promising 20 years without condition is pure speculation.

• Harsh Industrial/Marine (CUI): If a poorly formulated coating is applied to a vibrating, high-temperature chemical pipe, it will likely suffer micro-cracking and peel off in less than a year.

Mastering the Balance: The Woqin Solution

At Hebei Woqin, we do not sell magic; we sell engineered thermodynamic balance.

• For Formulators & R&D Labs (The Powder Solution): Stop fighting the "Viscosity Black Hole." Hebei Woqin manufactures a specialized 30µm - 50µm Coating-Grade Aerogel Powder. Through proprietary surface modification, this powder minimizes binder absorption, ensuring you maintain exceptional film adhesion.

• For EPCs & Contractors (The Ready-to-Use Paste): If you prefer a zero-R&D approach, Woqin offers a highly stable, water-borne, high-solid aerogel paste. We have already achieved the "Iron Triangle" for you:

1. 0.032 W/(m·K) Thermal Conductivity (Tested per ASTM C177).

2. 1.1 MPa Tensile Adhesion Strength (Tested per ASTM D4541).

3. Class A1 Non-combustible (Tested per EN 13501-1 as a complete coating system, not just the powder core).

The Formulator’s Diagnostic Checklist

Before you finalize your next aerogel paint formulation, run it through our diagnostic checklist:

• Is the dry film chalking or peeling?

   Diagnosis: You likely have "Binder Starvation". Your aerogel surface area is too high, absorbing the emulsion and destroying cohesive strength.

•  Did the thermal conductivity spike after mixing?

  Diagnosis: Check your dispersion method. High-shear mixers physically shatter the fragile aerogel nano-pores, turning them into solid silica sand.

•  Is the liquid coating separating in the bucket?

  Diagnosis: Check your rheology modifiers. The extreme density difference requires highly specialized stabilization to prevent phase separation.

Stop gambling your R&D budget on unverified myths. Contact Hebei Woqin today to request our Master Edition Aerogel Coating TDS (V3.0) and secure an authentic sample for your lab.
