Aerogel: The Ultimate Thermal Insulation Material

Aerogel is widely recognized as one of the most advanced thermal insulation materials available today. Its unique structure and properties make it an excellent choice for applications ranging from industrial insulation to building energy efficiency and electronics.

What is Aerogel?

Aerogel is a solid material characterized by a highly porous, sponge-like network filled primarily with air. With porosity often exceeding 90%, aerogel combines extremely low density with outstanding thermal insulation performance. This high porosity allows aerogel to trap air in countless tiny pockets, drastically reducing heat transfer through conduction and convection, which is why it is considered one of the best solid insulating materials available.

Thermal Conductivity

Aerogel’s thermal conductivity is remarkably low, typically around 0.015 W/(m·K), making it approximately 2–3 times more effective than traditional insulation materials such as PIR foam or fiberglass. This performance varies slightly depending on the type and form of the aerogel product:

Aerogel blankets: Commercial products from leading manufacturers (Aspen Pyrogel, Cryogel, Cabot, Kemes, BASF, Hebei Woqin) exhibit thermal conductivity ranging from 0.013 to 0.02 W/(m·K) at room temperature (25℃), with the most common values around 0.014–0.02 W/(m·K). The latest generation of low-density flexible aerogel blankets (2024–2025) can reach 0.012–0.014 W/(m·K). Vacuumed aerogel panels, such as VIP core materials from Hebei Woqin, can achieve an astonishing 0.002–0.005 W/(m·K).

Aerogel coatings: Conventional silicone aerogel coatings (density ~0.05–0.15 g/cm³) have thermal conductivity of 0.015–0.025 W/(m·K). Commercial composite aerogel coatings, such as those from Cabot, Aspen, and Hebei Woqin, range from 0.018–0.035 W/(m·K) depending on aerogel content. Ultra-thin coatings (<1 mm), often used in electronics, can reach 0.012–0.018 W/(m·K), with even lower values under vacuum or low-pressure conditions.

Temperature Range

Aerogel insulation can withstand extreme temperatures, depending on the type and formulation. Silica-based aerogel blankets typically operate in a range from -200℃ to 650℃, with specific grades offering tailored limits for specialized applications. This wide temperature tolerance, combined with hydrophobic properties in some grades, extends their usability in harsh environments.

Advantages Over Traditional Insulation

Although aerogel materials have a higher initial cost compared to conventional insulation such as fiberglass, foam, or mineral wool, their superior performance delivers long-term benefits:

1. Energy Efficiency: The low thermal conductivity reduces heat loss and energy consumption, translating into significant savings over time.

2. Space Optimization: Aerogel allows for thinner insulation layers while maintaining the same or better performance, making it ideal where space is limited.

3. Durability and Maintenance-Free Operation: High-quality aerogel products can provide up to 20 years of maintenance-free service.

4. Hydrophobic Properties: Many aerogel blankets and coatings resist water absorption, preserving their insulating performance in humid or wet conditions.

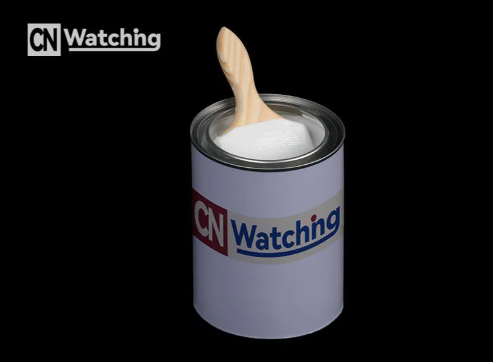

How Aerogel Coatings Improve Thermal Insulation

Aerogel coatings enhance insulation by embedding aerogel particles in a binder matrix. These particles form millions of microscopic air pockets, creating a barrier that dramatically reduces heat transfer through conduction and convection. Coatings are particularly useful in industrial applications, electronics, and areas where adding bulk insulation is impractical.

Cost Considerations

While the upfront cost of aerogel products is higher than traditional insulation, their energy savings, space efficiency, and long lifespan often make them more cost-effective over the long term. In applications where reducing heat loss, lowering energy bills, and minimizing maintenance are critical, aerogel insulation can deliver superior value compared to conventional materials.

Conclusion

Aerogel’s unique combination of high porosity, extremely low thermal conductivity, wide temperature tolerance, and long-term durability makes it one of the best insulation materials available today. From blankets to coatings to vacuum insulation panels, aerogel provides unmatched thermal performance, enabling energy savings, space optimization, and sustainable design solutions in industrial, residential, and technological applications.
