Underground District Cooling: Space-Saving Aerogel Pipe Insulation

The "Underground Labyrinth": Navigating the Spatial Dead-End of Urban Thermal Networks

Beneath the hyper-developed metropolises of Tokyo, Seoul, and other major Asian hubs lies a complex, interconnected underground infrastructure web. Power grids, fiber optic cables, gas mains, and water pipelines compete for limited subterranean space. For municipal engineers and district cooling and heating operators, upgrading or expanding urban thermal networks presents not only thermodynamic challenges but also critical spatial constraints that restrict project feasibility.

For decades, the industry has widely adopted polyurethane (PU) pre-insulated pipes to meet standard energy conservation requirements. However, conventional PU insulation requires substantial thickness to achieve qualified thermal resistance, resulting in large pipe outer diameters (OD). In congested underground utility tunnels and historic urban core areas, oversized traditional insulated pipes create major layout obstacles for new construction and renovation projects.

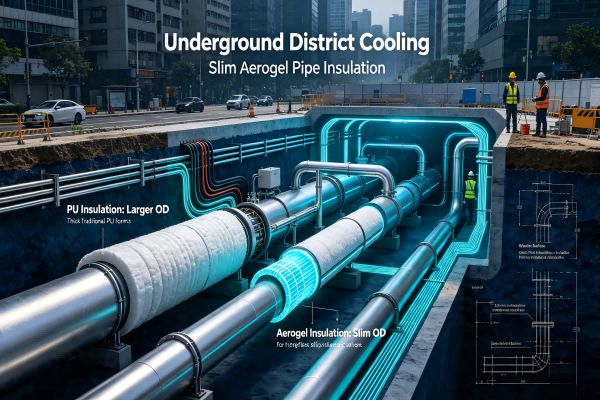

Taking a standard DN200 district cooling supply pipeline as an example: a conventional PU-insulated pipe features an outer diameter of 350mm, while a pipeline insulated with Woqin aerogel can reduce the outer diameter to 240mm. In densely arranged urban utility tunnels with strict clearance limits, the 110mm diameter reduction per pipe effectively solves spatial layout bottlenecks, enabling otherwise constrained projects to move forward smoothly.

The "Excavation Tax": How Bulky Insulation Derails Municipal Budgets

The structural limitations of thick traditional insulation materials bring prominent financial and operational challenges for urban engineering and construction projects:

1. Limited Feasibility of Trenchless Rehabilitation (Slip-lining)

In core commercial districts such as Tokyo’s Ginza and Seoul’s Myeongdong, large-scale open-cut trenching is rarely permitted due to severe traffic disruption and commercial impact. Trenchless slip-lining technology, which installs new pipelines inside existing legacy casings, serves as the ideal municipal renovation solution. Nevertheless, conventional PU insulated pipes are too bulky to fit into narrow original pipeline passages, forcing construction teams to adopt costly and disruptive open excavation works and significantly increasing overall project budgets.

2. Utility Tunnel Spatial Allocation Constraints

Modern comprehensive underground utility tunnels adopt standardized spatial allocation for different types of municipal facilities. Bulky traditional cooling water pipes occupy excessive tunnel space and easily encroach on the reserved safety clearance for adjacent high-voltage power facilities and communication cables. Excessively large pipe outer diameters often lead to design rejection in municipal network expansion reviews.

3. Restricted Night Construction Window Efficiency

Road construction in urban core areas is generally limited to fixed night-time windows (11:00 PM to 5:00 AM) to minimize public impact. Conventional thick-walled pre-insulated pipes are heavy and cumbersome for transportation and hoisting, greatly reducing on-site installation efficiency. Slow construction progress often fails to meet road restoration deadlines before morning traffic peaks, resulting in additional municipal penalties and project delays.

In urban municipal projects, the insulation specification of thermal pipelines directly determines excavation scope, road reconstruction volume and traffic control costs, making traditional bulky insulation a key factor restricting project cost control.

The Woqin Aerogel Solution: Engineering by "Reduction"

To address the universal spatial bottleneck of urban underground thermal network construction and renovation, Hebei Woqin Trading Co., Ltd. proposes a streamlined engineering solution based on high-performance aerogel insulation technology. Featuring a low thermal conductivity of approximately 0.02 W/(m·K), Woqin aerogel blankets reduce insulation thickness by 50%–70% compared with conventional PU materials under equivalent thermal performance requirements.

The significant reduction in insulation thickness effectively minimizes the overall outer diameter of insulated pipelines. Optimized aerogel-insulated pipes can adapt to narrow existing pipeline casings for trenchless slip-lining renovation and fit perfectly within the limited spatial quota of urban utility tunnels, realizing reasonable layout coordination with other municipal facilities.

Mastering Subterranean Extremes: Beyond Just Space-Saving

Space optimization represents only the basic advantage of aerogel insulation. For municipal projects in seismic-active and coastal humid cities, Woqin aerogel delivers reliable environmental adaptability to cope with complex underground working conditions.

1. Seismic Adaptability & Anti-Cracking Performance

Industry Pain Point: Underground infrastructure in Japan and South Korea is affected by long-term micro-seismic vibrations and gradual ground settlement. Rigid PU insulated pipes cannot adapt to minor ground deformation, prone to micro-cracks on outer HDPE protective jackets and internal insulation layers. Cracked insulation structures destroy continuous thermal protection and affect long-term operational stability.

Woqin Technical Advantage: Aerogel blankets feature flexible fiber-reinforced structure with excellent shock resistance and deformation adaptability. The flexible insulation layer effectively absorbs underground shear stress and seismic vibration, avoiding cracking and structural damage. It maintains complete thermal barrier integrity and long-term stable pipeline insulation performance in complex geological environments.

2. Compact Thermal Expansion Layout

Industry Pain Point: District heating and cooling pipelines produce regular thermal expansion and contraction during operation. Traditional solutions require large U-shaped expansion loops to buffer structural stress. However, the 2-meter-wide standard expansion loops for PU-insulated pipes cannot be arranged in densely laid urban underground tunnels, resulting in unresolvable design deadlocks.

Woqin Technical Advantage: The minimized outer diameter of aerogel-insulated pipes greatly reduces the space required for thermal expansion structures. Compact and standardized expansion loop designs adapt to narrow underground tunnel spaces, solving the layout dilemma of thermal compensation structures in urban renewal projects.

3. Flood Resistance & CUI Prevention

Industry Pain Point: Coastal cities suffer from high underground water tables and seasonal typhoon flooding, easily submerging pipeline trenches. Traditional PU and mineral wool insulation absorbs water rapidly once the outer protective layer is damaged. Water infiltration completely reduces thermal insulation efficiency and accelerates pipeline corrosion under insulation (CUI), posing long-term structural safety hazards for steel pipelines.

Woqin Technical Advantage: Woqin aerogel blankets adopt professional hydrophobic and breathable structural design. The material repels water effectively even in fully flooded trench environments, keeping the outer wall of steel pipelines dry. It stably maintains cooling energy insulation performance and fundamentally eliminates CUI risks caused by moisture accumulation inside the insulation layer.

4. Integrated Insulation for Complex Pipe Nodes

Woqin Technical Advantage: Flexible aerogel blankets support on-site cutting and fitting, achieving seamless wrapping and continuous thermal sealing for all complex valve nodes and special-shaped pipelines. It eliminates thermal bridge blind spots in the entire pipeline network and ensures unified and reliable insulation performance for the whole system.

The True Engineering ROI: Eradicating Hidden Civil Costs

In traditional project evaluation, engineering teams usually focus on the unit material cost of insulated pipes. In high-density urban areas such as Tokyo and Seoul, however, pipeline materials only account for a small part of the Total Installed Cost (TIC). The major cost consumption comes from civil construction and municipal coordination works.

Woqin aerogel insulation optimizes the overall project cost structure through spatial optimization, effectively reducing various hidden engineering expenditures for urban pipeline renovation and new construction:

Reduced Excavation & Transportation Costs: The smaller outer diameter of aerogel-insulated pipes supports narrower trench excavation, greatly reducing earthwork volume, soil transportation and backfill material consumption, and cutting heavy machinery and logistics costs in urban core areas.

Minimized Road Demolition & Restoration: The ultra-thin insulation structure enables trenchless slip-lining renovation using existing pipeline passages, avoiding large-scale road surface demolition and repaving works in commercial and residential areas, lowering municipal construction impact and renovation costs.

Improved Construction Efficiency & Risk Control: Lightweight aerogel-insulated pipes are easy to transport and install, fully adapting to limited night-time construction windows. Efficient construction ensures on-schedule road restoration, avoiding traffic control costs and municipal penalty losses caused by delayed construction.

From a full-cycle ROI perspective, the comprehensive civil construction savings brought by aerogel far offset the incremental cost of high-performance insulation materials, delivering significant economic benefits for large-scale urban thermal network projects.

Future-Proof Your Urban Thermal Networks: Act Now

Urban underground municipal space in Asian metropolises will become increasingly compact. Outdated bulky insulation materials restrict pipeline design flexibility, raise construction costs, and limit the upgrade potential of district cooling systems. For utility tunnel layout optimization and non-disruptive urban pipeline renovation projects in high-standard urban areas, Hebei Woqin Trading Co., Ltd. provides professional aerogel thermal insulation solutions tailored for urban underground thermal networks.

(Includes: Pipe-in-Pipe Slip-lining Clearances, Micro-Trenching Cost Comparison Models, and Seismic CUI Prevention Specs)

Our technical team collaborates directly with municipal design institutes, urban planners, and EPC contractors to optimize underground spatial layouts and validate thermal performance.
