Uncompromising Luxury: Ultra-Thin Aerogel for Superyacht Engine Rooms

1. Introduction: The Thermodynamic Conflict in Superyacht Design

In the elite shipyards of Dubai and Abu Dhabi, constructing a modern superyacht is an exercise in extreme spatial and thermodynamic management. Naval architects are tasked with packing massive twin diesel engines (such as MTU or Caterpillar) into confined engine rooms, directly adjacent to or immediately below ultra-luxury VIP cabins and main saloons.

Inside the engine room, ambient temperatures can exceed 50°C due to the dense packing of high-output diesels, while exhaust lines and turbocharger surfaces routinely reach 400°C to 600°C. This thermal assault is severely amplified by the Persian Gulf’s 50°C outside air and 80%+ coastal humidity.

Historically, builders have relied on thick mineral wool to meet strict maritime fire codes. But in the realm of uncompromising luxury, these legacy materials introduce spatial, acoustic, and experiential flaws that are no longer acceptable. Hebei Woqin’s Silica Aerogel system represents a fundamental engineering upgrade, replacing bulky rock wool with an ultra-thin, absolute thermal and acoustic barrier.

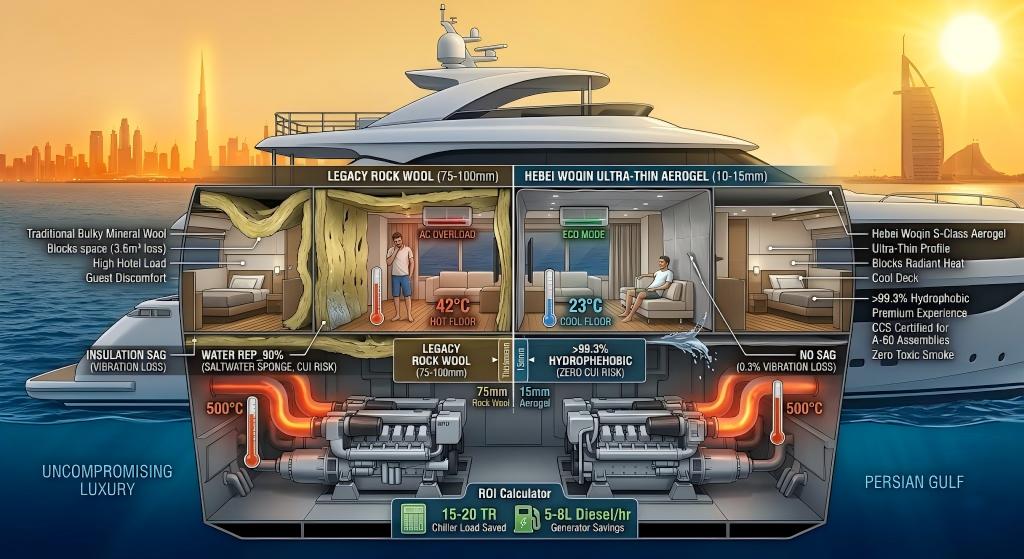

Technical Comparison Summary: Legacy vs. Aerogel

2. The Spatial & Gross Tonnage Dilemma: Reclaiming VIP Cabin Volume

The Pathology:

Space is the ultimate currency on a superyacht, directly dictating its Gross Tonnage (GT) and market value. To achieve the required A-60 structural fire protection between the engine room and guest areas, traditional mineral wool systems demand an installation profile of 50mm to 100mm on bulkheads and overhead decks.

When wrapped around the entire perimeter of a tight engine room, this thick "wool wall" aggressively devours cubic meters of internal volume. Every centimeter lost to insulation is a centimeter stolen from the owner's master suite or storage lockers. Furthermore, fibrous insulation is inherently heavy when exposed to marine moisture, increasing the yacht's "deadweight," which directly drags down the top-end cruising speed and increases fuel consumption.

The Aerogel Eradication:

Silica aerogel fundamentally alters the geometry of marine architecture. For equivalent thermal resistance and A-60 fire rating, a bulky 50mm to 100mm traditional rock wool barrier can be replaced by a highly flexible, 10mm to 15mm aerogel blanket.

Engineering Example: On a typical 50-meter superyacht with 60m² of engine room bulkhead surface, switching from 75mm rock wool to 15mm aerogel recovers over 3.6 cubic meters of interior volume. For a naval architect, this recovered space is enough to add a walk-in wardrobe, expand an ensuite bathroom, or widen a critical maintenance corridor.

Spatial ROI at a Glance:

• Legacy Rock Wool: 75mm thickness, heavy deadweight, severe spatial penalty.

• S-Class Aerogel: 15mm thickness, ultra-lightweight, 3.6m³ recovered volume (on a 50m yacht).

3. The "Oven Under the Floor": Defeating the HVAC Energy Black Hole

The Pathology:

In a standard superyacht layout, the main saloon or master deck sits directly above the engine compartment. Traditional fibrous insulation struggles to contain the intense, radiating heat generated by the 500°C exhaust manifolds.

As a result, radiant heat bleeds directly through the overhead deck. For the owner, this creates the disastrous "oven under the floor" effect—the premium teak or marble flooring becomes uncomfortably warm to the touch. To compensate for this massive thermal intrusion, the yacht's HVAC (air conditioning) system must run at maximum capacity. This creates an energy black hole, driving up the vessel's "Hotel Load" (the power required for non-propulsion systems), which demands larger generators, increases vibration, and burns excess diesel.

The Aerogel Eradication:

Even when applied in ultra-thin profiles (10-15mm), the nanoporous matrix of Hebei Woqin’s Aerogel decisively blocks the intense radiant heat generated by 500°C exhaust lines, preventing it from reaching the upper deck. The upper luxury surfaces remain at ambient room temperature, ensuring the owner's barefoot experience is flawlessly cool.

Engineering Example: By eliminating thermal bleed, reducing the radiant heat gain through the engine room overhead by 90% can lower the chiller plant load by 15-20 tons of refrigeration (TR). This massive reduction in Hotel Load cuts generator fuel consumption by approximately 5 to 8 liters per operating hour, extending the vessel's cruising range.

HVAC ROI at a Glance:

• Legacy Rock Wool: Fails to block radiant heat, forces HVAC into overdrive.

• S-Class Aerogel: Blocks 500°C radiant heat, saves 15-20 TR cooling capacity, reduces diesel burn.

4. Acoustic Silence & Vibration Immunity: The End of Insulation Sagging

The Pathology:

A superyacht in motion is a dynamic, high-stress environment. The vessel is subjected to relentless mechanical forces: the low-frequency thrum of twin diesel engines, the high-frequency whine of generators, and the continuous impact of ocean waves. Under these persistent vibrations, traditional fibrous insulation materials—such as mineral wool or fiberglass—suffer from severe structural fatigue.

The organic binders holding legacy fibers together eventually fracture, causing the material to succumb to gravity. This physical degradation, known in marine engineering as "insulation slump," causes the wool to compress toward the bottom of bulkhead cavities, leaving the upper sections completely bare. These "acoustic voids" allow engine noise to bypass the insulation entirely, destroying the silence of VIP suites and transferring harsh mechanical noise directly into the luxury living quarters.

The Aerogel Eradication:

Silica aerogel solves the vibration paradox through its resilient, flexible nanoporous matrix reinforced by high-purity glass fibers. Under rigorous type testing (conducted at 50Hz vibration frequency, 2g acceleration, and 70°C ambient for 100 hours according to GB/T 11835), Hebei Woqin’s aerogel blanket recorded a vibration mass loss rate of just 0.3%.

In comparison, standard mineral wool boards typically show a 5.0% to 15.0% mass loss under identical conditions, leading to rapid structural collapse. Because the aerogel matrix does not pulverize or slump, it maintains its original installation geometry for the vessel's entire lifecycle, providing a permanent, unbroken acoustic and thermal envelope.

Vibration Resilience at a Glance:

• Legacy Rock Wool: 5.0% - 15.0% mass loss; prone to sagging and creating noise leaks.

• S-Class Aerogel: 0.3% mass loss (GB/T 11835); zero settling, permanent acoustic silence.

5. Coastal Condensation & CUI: Eradicating the "Saltwater Sponge"

The Pathology:

Operating in the Persian Gulf exposes superyachts to extreme humidity and high-salinity marine air. The massive temperature differential between the engine room and the seawater-cooled hull inevitably leads to persistent condensation within bulkhead cavities.

Traditional mineral wool acts as a perfect "saltwater sponge." Once it absorbs marine moisture, its thermal resistance collapses. More critically, the wet wool traps concentrated chloride-rich moisture directly against the yacht's expensive aluminum (5083/5086 grade) or steel hull plates. This creates a permanent, highly corrosive environment, triggering Corrosion Under Insulation (CUI). In comparison to industrial pipelines, marine CUI is often more aggressive due to the high chloride concentration in seawater, leading to catastrophic pitting that can cost millions in hull repairs during a refit.

The Aerogel Eradication:

Hebei Woqin’s Aerogel Blanket interrupts the corrosion cycle through a dual physical and chemical defense. Tested according to GB/T 10299, our aerogel achieves a water repellency rate of >99.3%, meaning it repels liquid water while remaining vapor-permeable, allowing the hull to "breathe" and stay dry.

Chemically, we eliminate the catalyst for pitting corrosion. Advanced laboratory extraction testing confirms that the leachable chloride (Cl-) content in our aerogel is an exceptionally low 0.0017%. In contrast, standard mineral wool often contains leachable chlorides above 0.05%. By physically repelling the saltwater electrolyte and chemically minimizing chloride ions, the aerogel system stops the "saltwater sponge" effect, protecting the vessel's structural integrity.

CUI Defense at a Glance:

• Legacy Rock Wool: Absorbs saltwater; chlorides >0.05%; high risk of hull pitting.

• S-Class Aerogel: >99.3% water repellent; chlorides 0.0017%; eradicates marine CUI.

6. The SOLAS/IMO Redline: Uncompromising A-60 Fire Defense

The Pathology:

In the maritime sector, thermal management is legally and functionally inseparable from absolute fire safety. The International Maritime Organization (IMO) and the SOLAS (Safety of Life at Sea) Convention enforce uncompromising regulations regarding structural fire protection in engine rooms.

Many yacht builders attempt to save space by utilizing thin polyurethane (PUR) or elastomeric foams. However, these organic materials fundamentally fail high-temperature maritime fire tests. In the event of an engine room fire, traditional combustible insulation accelerates flame spread across the bulkheads, turning a localized mechanical failure into a catastrophic vessel-wide emergency.

The Aerogel Eradication:

Hebei Woqin’s Silica Aerogel provides an impenetrable, fail-safe structural firewall. Manufactured as a pure, inorganic silica matrix, the material itself is certified as Class A1 Non-Combustible.

This is not a theoretical claim; it is backed by the highest echelons of maritime regulatory bodies. The aerogel blanket has officially acquired the Certificate of Works Approval from the China Classification Society (CCS). This CCS approval explicitly confirms that the material, when installed according to the approved assembly, meets the rigorous requirements for A-60 class divisions as defined by the IMO 2010 FTP Code (Annex Part 1 and Part 3) and Regulation 3, Chapter II-2 of the 1974 SOLAS Convention.

By integrating this certified aerogel, naval architects effortlessly achieve A-60 compliance in minimum thickness, ensuring unbreachable structural safety.

7. The Silent Killer: Zero Smoke Toxicity and HSE Compliance

The Pathology:

Maritime disaster statistics reveal a grim reality: in confined vessel fires, over 80% of casualties are not caused by direct flames, but by toxic smoke asphyxiation.

While traditional mineral wool itself is non-combustible, the manufacturing process relies heavily on organic resin binders to hold the fibers together. When engine room temperatures spike beyond 250°C, or during a direct fire event, these organic binders thermally decompose. This decomposition violently off-gasses dense, blinding black smoke and lethal Volatile Organic Compounds (VOCs), including formaldehyde and cyanides. In the highly sealed environment of a superyacht, this toxic gas rapidly infiltrates the HVAC systems and luxury cabins, instantly depriving the occupants of their golden escape window.

The Aerogel Eradication:

True uncompromising luxury demands uncompromising Health, Safety, and Environment (HSE) standards. Hebei Woqin’s Aerogel Blanket uses a fully inorganic silica matrix reinforced with high-purity glass fibers—containing absolutely zero organic binders or resin additives.

When exposed to extreme fire, the inorganic matrix produces zero toxic smoke. This extreme chemical purity is validated by rigorous European safety protocols. Official laboratory testing confirms full compliance with the European RoHS directive, verifying the complete absence of heavy metals. Furthermore, the material has successfully passed the stringent REACH certification, confirming the non-detection of all Substances of Very High Concern (SVHC). This guarantees that the yacht's air quality remains flawlessly pure, and in an emergency, the atmosphere remains visible and breathable.

Fire & HSE Safety at a Glance:

• Legacy Rock Wool: Uses organic binders; emits toxic VOC smoke during fires.

• S-Class Aerogel: 100% inorganic matrix; CCS certified for A-60 assemblies; zero toxic smoke.

8. Conclusion & High-Value Engineering Support

In the elite tiers of Middle Eastern superyacht manufacturing, evaluating insulation solely by its initial price per square meter is a critical engineering flaw. The true cost of legacy mineral wool is paid in lost VIP cabin space, compromised acoustic silence, increased HVAC energy consumption, and the hidden threat of hull corrosion.

Transitioning to Hebei Woqin’s Aerogel System is not merely an insulation upgrade; it is a strategic engineering decision that reclaims valuable Gross Tonnage, maximizes vessel speed, and secures the ultimate safety and comfort of the owner.

Engineer the uncompromising yacht today:

• Request the Marine Technical Data Package: Email [ an@cn-aerogel.com ] to receive our full, unredacted testing dossier. This includes the official CCS (China Classification Society) Certificate, IMO/SOLAS compliance documents, and the complete RoHS/REACH chemical safety reports.

• Request a Custom Yacht Spatial ROI Calculation: Are you drafting a new vessel or planning a major refit? Send our marine engineering team your current engine room bulkhead dimensions and legacy insulation thickness. We will provide a precise calculation detailing exactly how many cubic meters of luxury space you will recover by upgrading to our ultra-thin thermal armor.

• Request a Free Sample Sheet: Qualified shipyards and naval architects can request a free 200×300mm aerogel sample. Conduct your own in-house high-temperature torch testing, inspect the lack of organic smoke, and feel the compression resilience firsthand.
