Stop Cabinet Condensation & Overheating: Aerogel Thermal Coating for Southeast Asia Power Grids

Southeast Asia’s intense solar radiation and persistent high humidity create harsh operating conditions for outdoor power grid infrastructure. Heat-induced equipment tripping and moisture-related electrical faults pose constant risks to substations and distribution cabinets. This article outlines how Woqin’s Silica Aerogel Thermal Insulation & Anti-Condensation Coating System delivers a passive, low-maintenance thermal barrier that reduces condensation risk, reflects solar heat and streamlines on-site installation for EPC contractors.

Introduction: Climate Pressures on Tropical Grid Modernization

As Southeast Asian markets — including Indonesia’s PLN, Thailand’s EGAT and Vietnam’s EVN — accelerate smart grid deployment, hundreds of thousands of outdoor substations and secondary equipment cabinets are being installed across the region. These critical assets operate under relentless climatic stress: strong equatorial sunlight and ambient relative humidity often exceeding 80%.

Relying on high-maintenance active cooling or conventional protective paints is no longer sufficient for long-term grid reliability. Forward-looking electrical EPCs and utilities are adopting Woqin Aerogel Coating as a passive, nano-engineered protection solution for outdoor electrical assets.

Twin Climate Challenges for Outdoor Power Infrastructure

Outdoor electrical cabinets are sealed metal enclosures housing sensitive, high-value electronic components. In tropical climates, they face two primary failure drivers:

Solar Overheating & Thermal Tripping

Under direct midday sunlight, metal enclosures absorb large volumes of solar radiation, driving internal temperatures to 60–70°C or higher. This “oven effect” accelerates aging of relays and control boards, increases the frequency of thermal tripping and leads to unplanned grid downtime.

Condensation & Electrical Fault Risk

Southeast Asia’s sudden heavy rainfalls and sharp nighttime temperature drops create rapid cooling of cabinet enclosures. When warm, humid air trapped inside the cabinet contacts cooled inner metal surfaces, condensation forms. Water droplets falling onto live PCBs or terminals raise the risk of short circuits, equipment burnout and arc flash hazards.

Limitations of Conventional Protection Methods

Active HVAC & Heating Strips

Installing mechanical cooling or electric heating strips consumes significant electricity, running counter to green grid efficiency targets. Moving parts also degrade quickly in harsh outdoor environments, driving up long-term maintenance costs and failure rates.

Traditional Anti-Condensation Paints

From a construction perspective, conventional anti-condensation paints require heavy labor to achieve effective thickness. Industry field data shows that reaching a 2 mm dry film thickness typically requires up to 14 separate spray coats. The resulting thermal resistance remains limited, and multi-coat application causes lengthy project schedule delays.

Passive Thermal Protection With Woqin Aerogel Coating

Woqin’s Aerogel Coating System provides reliable passive thermal performance with no moving parts and no ongoing energy consumption, addressing both overheating and condensation at the material level.

Thermal Barrier for Condensation Control

With a thermal conductivity of ≤0.035 W/(m·K) tested per GB/T 10294 standards, the coating creates an effective thermal break across the cabinet wall. By reducing heat transfer through the enclosure, it raises the inner surface temperature above the dew point of internal air, disrupting the conditions required for condensation to form.

In laboratory simulated condensation testing (26°C internal ambient, 80% RH; 12°C external, 65% RH): Conventional anti-condensation paint showed visible condensation on the inner surface after 20 minutes of continuous operation, while the Woqin aerogel coated surface remained free of visible condensation after 5 hours of continuous testing under identical conditions.

For more severe tropical field conditions, project-specific thickness design based on local temperature and humidity data can maintain dry inner surfaces and reliably reduce condensation risk.

Solar Heat Reflection for Temperature Reduction

When paired with a nano-reflective topcoat, the system achieves a solar reflectance of ≥0.91 and hemispherical emissivity of ≥0.86, tested per GB/T 25261 standards. It reflects infrared solar radiation away from the enclosure, lowering peak internal temperatures and reducing thermal stress on electronic components.

Streamlined On-Site Installation

The high-build aerogel formula allows up to 1 mm of dry film thickness per application pass. To achieve a 2 mm protective layer, contractors require only 2 coats instead of up to 14 coats with conventional paints. This greatly simplifies the application workflow, reduces on-site labor hours and compresses project delivery timelines for EPC teams.

Class A1 Non-Combustible Fire Safety

Tested in accordance with GB 8624 standards, the coating achieves a Class A1 non-combustible fire rating. In the event of an electrical fault, the material will not ignite or propagate flame, adding an extra layer of safety for power infrastructure assets.

Key Applications in the Power Sector

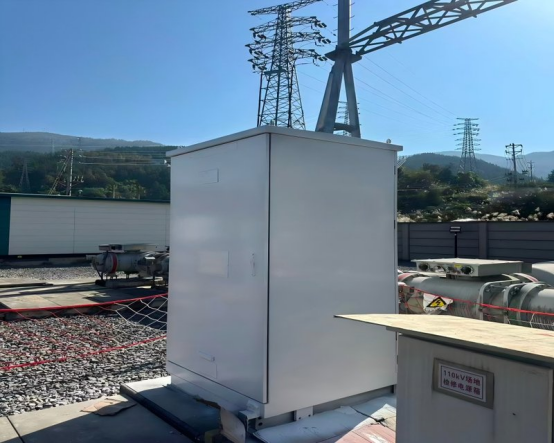

Outdoor Substation Secondary Equipment Cabinets

Protects critical relays, meters and communication devices from solar overheating and nighttime dew-related short circuits, extending equipment service life and reducing unplanned maintenance.

Urban Ring Main Units & Distribution Boxes

Reduces condensation-related electrical fault risks in densely populated urban grids, improving distribution network reliability and public safety.

Power Plant Medium & Low Temperature Pipelines

Prevents pipe sweating and corrosion under insulation (CUI) at coastal and high-humidity power generation facilities, reducing long-term corrosion repair costs.

Conclusion: Build Resilient Grids With Passive Material Science

Protecting Southeast Asia’s power grid does not require higher energy consumption — it requires smarter material engineering. Upgrading to the Woqin Aerogel Coating System allows utilities, switchgear OEMs and EPC contractors to engineer out condensation and overheating risks through passive, long-lasting thermal protection.

Hebei Woqin partners with forward-thinking utilities, EPC contractors and switchgear manufacturers across Southeast Asia. Backed by full engineering support including thermal calculation, customized thickness design and on-site application guidance, our team delivers optimized solutions tailored to tropical grid operating conditions.

To request power-grade aerogel coating samples, full condensation test reports or project-specific technical support, contact our team directly.
