Defeating CUI in Southeast Asia: The Rise of WOKISOL Single-Component Aerogel Coatings in Oil & Gas

Southeast Asia’s relentless humidity and salt-laden coastal atmosphere make CUI (Corrosion Under Insulation) the costliest operational threat to oil and gas pipelines and facilities. Discover how pre-mixed, single-component Woqin aerogel coatings are replacing brittle traditional insulation systems to eliminate thermal bridges on complex geometries, delivering Class A1 fire safety and long-term moisture resistance for heavy industrial environments.

Introduction: The Climate Challenge and Traditional Insulation Limits

Southeast Asia is a critical global hub for oil and gas (O&G), petrochemical processing, and offshore FPSO operations. It is also home to one of the most hostile industrial operating climates on Earth: year-round high humidity, intense monsoon rainfall, and pervasive salt spray in coastal and offshore zones.

When conventional insulation materials such as mineral wool, calcium silicate or cellular glass are deployed in these conditions, they act like sponges over time. Once moisture penetrates the outer cladding and reaches hot pipe surfaces, it triggers the industry’s most persistent and expensive failure mode: Corrosion Under Insulation (CUI). Relying on decades-old insulation specifications for modern Southeast Asian facilities is no longer inefficient — it is a measurable operational and financial liability.

Chapter 1: Why Traditional Systems Fail on the Front Line

Even when high-performance rigid insulation is specified, it consistently underperforms in Southeast Asia due to three inherent structural limitations:

1. Brittle Failure Under Thermal Cycling

Rigid insulators such as cellular glass frequently crack at expansion joints during repeated pipe thermal contraction and expansion — a well-documented failure mode in regional ammonia plants and refineries. Once the material fractures, moisture bypasses the thermal barrier entirely, and the insulation system loses its integrity.

2. Thermal Bridges on Complex Geometry

Valves, flanges, pipe supports and irregular equipment shapes are the weak point of every wrap-around insulation system. It is nearly impossible to achieve a perfect, gap-free fit with rigid boards or flexible blankets on these components. The resulting exposed thermal bridges drive localized condensation, heat loss, and accelerated CUI development.

3. On-Site Application Variability

Conventional industrial thermal coatings often require two-component (A+B) chemical mixing on site. Under the high heat and humidity of Southeast Asian job sites, human error in mixing ratios, pot life management and application thickness frequently leads to premature cracking, delamination and coating failure.

Chapter 2: The Engineering Behind Woqin Single-Component Aerogel Coating

To address these gaps, Hebei Woqin has developed a fully integrated thermal defense system: Woqin Single-Component Aerogel Coating. Formulated with nanoporous silica aerogel as the core functional filler, combined with high-performance film-forming resins and industrial-grade additives, the coating is engineered to eliminate the installation and performance gaps of traditional insulation.

Backed by standardized laboratory testing, key material properties redefine what is possible for thin-film industrial thermal protection:

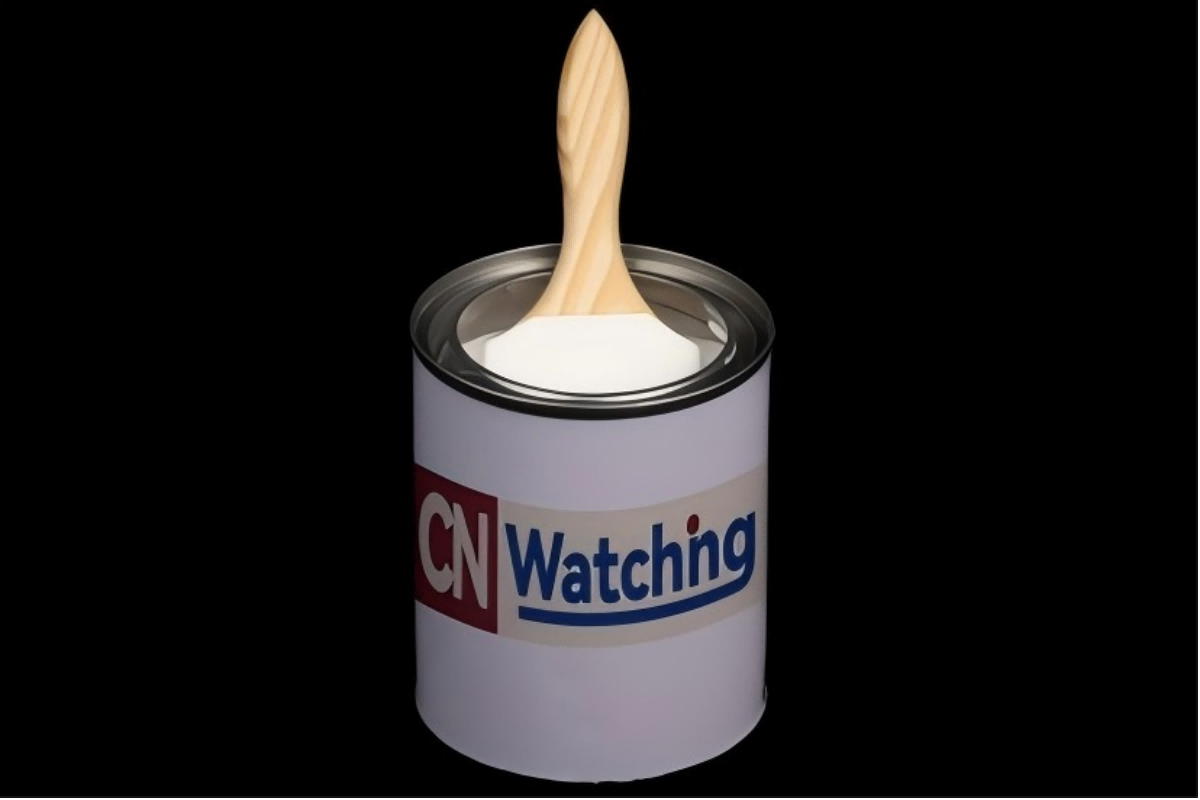

1. 100% Pre-Mixed, Ready-to-Apply

The single-component formulation arrives at the job site fully pre-mixed. A brief mechanical agitation prior to application ensures uniform re-dispersion of the ultra-lightweight aerogel particles, completely eliminating the on-site mixing errors that frequently cause premature failure in two-part chemical systems. This simplifies on-site quality control and reduces application risk under high-heat, high-humidity job site conditions.

2. High-Efficiency Thermal Performance

The coating delivers a laboratory-tested thermal conductivity of 0.032 W/(m·K) at 25°C. For process equipment operating up to 200°C, millimeter-level coating thickness provides meaningful heat retention and surface temperature reduction, dramatically slashing the required insulation envelope compared to fibrous materials.

3. Direct Bonding Eliminates the CUI Air Gap

Applied directly to the metal substrate, the coating forms a continuous, adherent skin that eliminates the annular air gap between pipe and insulation — the very environment where CUI initiates and propagates. It conforms fully to curved and irregular surfaces with no seams, gaps or fastener penetration points.

Chapter 3: Durability and Safety Built for Industrial Environments

In the O&G sector, thermal performance is irrelevant without long-term durability and fire safety. Woqin aerogel coating is validated against core industrial performance metrics:

1. Sustained Moisture Resistance

Once fully cured, the coating forms an integral hydrophobic barrier against rain, condensation and saline atmospheric moisture. Under standardized water immersion testing, the coating exhibits no blistering, cracking or delamination after 96 hours of continuous exposure, providing a first line of defense against monsoon-driven moisture intrusion.

2. Class A1 Non-Combustible Safety

Tested in accordance with GB/T 5464 and GB/T 14402 standards, the coating achieves the highest Class A1 (non-combustible) fire rating, meeting the strict safety requirements of refineries, petrochemical plants and offshore facilities:

Chapter 4: Core Applications in Southeast Asia’s O&G Sector

1. Safe-Touch Personnel Protection

In cramped petrochemical plants and FPSO deck areas, exposed high-temperature piping presents a severe burn hazard. A thin application of Woqin aerogel coating can reduce a 150°C surface to below 60°C safe-touch temperature, without adding significant bulk to pipe outer diameters or narrowing walkways.

2. Complex Geometry CUI Mitigation

Any surface that can be sprayed or brushed can be fully insulated. The Woqin aerogel coating creates a seamless thermal envelope over valves, flanges, pipe supports and vessel nozzles — locations where rigid blankets and boards consistently leave gaps and drive CUI.

3. Offshore FPSO Weight & Space Savings on Irregular Components

Space and payload are at an absolute premium offshore. On irregular pipe fittings, valve bodies and vessel nozzles where rigid insulation adds disproportionate bulk and weight, Woqin coating provides a thin, seamless thermal layer that eliminates the need for heavy metal cladding and frees critical deck load capacity.

4. Brownfield Facility Retrofits

For aging refineries and petrochemical plants across the region, the single-component Woqin aerogel coating enables targeted insulation upgrades without full system teardown, reducing shutdown duration and turnaround costs.

Conclusion: From Passive Wrapping to Active Thermal Defense

Southeast Asia’s O&G operators no longer need to accept repeated CUI repairs, excessive heat loss and short insulation service life as unavoidable costs. Woqin single-component aerogel coating shifts the paradigm from passively wrapping pipes to actively defending them against moisture, heat loss and corrosion.

Backed by Hebei Woqin’s full engineering support — including thermodynamic calculations, custom thickness design and on-site application guidance — the system delivers a proven path to lower lifecycle cost and improved asset reliability.

To request the full technical datasheet, Southeast Asia CUI case profiles or project-specific thickness calculations, visit our website or contact our engineering team directly.
