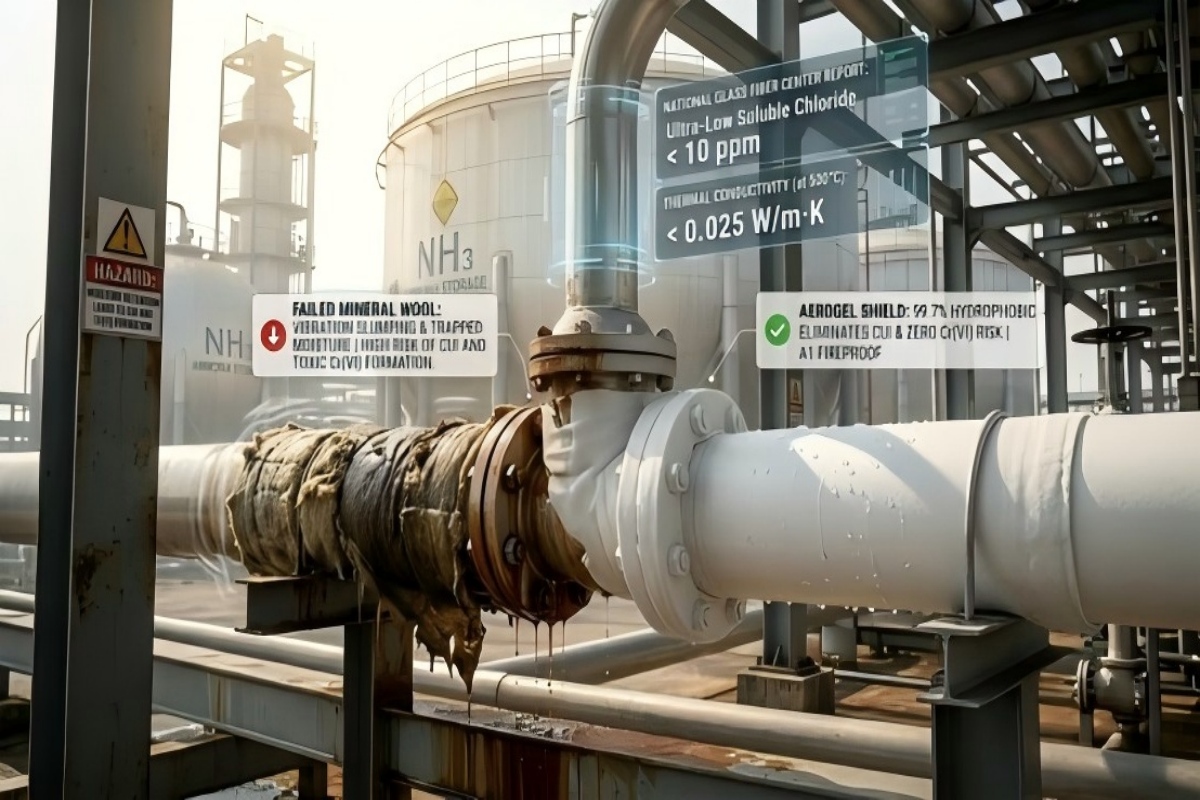

Defeating CUI and Toxic Cr(VI) Risks in Fertilizer & Chemical Plants

Southeast Asia’s extreme humidity and corrosive atmospheric conditions create one of the harshest operating environments for fertilizer and chemical processing facilities. Traditional insulation materials not only fail to prevent Corrosion Under Insulation (CUI) but also introduce hexavalent chromium (Cr(VI)) exposure risks and chloride stress corrosion hazards. Woqin hydrophobic aerogel blankets and seamless aerogel coatings effectively mitigate thermal breathing effects, eliminate geometry-related water traps, and build a durable, non-hazardous thermal barrier for critical process assets.

Introduction: The Dual Threat to Assets and Personnel

For chemical engineers and HSE (Health, Safety, and Environment) managers across Southeast Asia, operating ammonia, urea and petrochemical facilities means continuous risk control against environmental degradation. The tropical climate features sustained relative humidity above 80%, coupled with pervasive corrosive gases including ammonia (NH₃), sulfur dioxide (SO₂), and hydrogen sulfide (H₂S).

In this aggressive operating atmosphere, conventional mineral wool and calcium silicate insulation exhibit obvious performance limitations. They accelerate CUI propagation, trigger frequent maintenance shutdowns with high economic losses, and bring potential occupational health and safety risks. For this reason, an increasing number of regional fertilizer and chemical operators are phasing out outdated porous insulation systems and adopting inert, high-hydrophobic Woqin aerogel solutions customized for tropical corrosive working conditions.

Chapter 1: Blocking Thermal Breathing Effect and CUI Initiation

The Traditional Limitation

In monsoon-affected tropical regions, process storage tanks and production piping undergo drastic temperature fluctuations between high-temperature daytime operation and low-temperature nighttime rainfall. Repeated thermal cycling generates alternating positive and negative pressure inside the insulation cladding system, which draws humid, chemical-laden ambient air into the porous insulation layer — a typical phenomenon defined as the thermal breathing effect.

After absorbing external moisture and corrosive gas molecules, traditional porous insulation forms a concentrated corrosive electrolyte environment. Long-term contact between the wet insulation and carbon steel or stainless steel substrates accelerates electrochemical corrosion, becoming the core inducement of persistent CUI failure on process equipment.

The Woqin Aerogel Blanket Solution

Woqin Aerogel Blankets adopt nanoporous silica aerogel as the core material, with a laboratory-verified hydrophobic rate of ≥99.7% tested in accordance with GB/T 10299 standards. The unique molecular structure repels liquid water stably, resisting moisture infiltration even under long-term high humidity and continuous monsoon erosion.

This durable hydrophobic performance maintains a dry isolation state between the insulation layer and metal substrate, effectively restraining the electrochemical reaction conditions required for CUI generation and fundamentally slowing down asset corrosion failure caused by thermal breathing effect.

Chapter 2: Mitigating Cr(VI) Hazards and Chloride Stress Corrosion

The Traditional Limitation

Conventional high-temperature insulation systems carry two hidden long-term risks for chemical and fertilizer plants, restricting site safety operation and asset life cycle management:

Hexavalent Chromium (Cr(VI)) Exposure Risk: Some traditional alkaline-bonded insulation materials may contain soluble chromate components. Under high-temperature and humid operating conditions, chemical reactions may occur to produce Cr(VI) substances, a recognized carcinogen. Aged insulation removal during facility turnarounds can produce harmful airborne dust, bringing potential occupational exposure hazards and HSE compliance pressure.

Chloride Stress Corrosion Cracking (CSCC): Low-grade mineral wool insulation contains residual leachable chloride ions. When moisture penetrates the insulation structure, free chlorides are released and erode austenitic stainless steel equipment. Long-term accumulation of damage induces invisible stress corrosion cracking, which easily causes medium leakage, unplanned shutdowns and other safety and economic losses.

The Woqin Aerogel Blanket Solution

Woqin Aerogel Blankets provide dual safety protection for plant personnel and high-value process assets, solving the inherent defects of traditional insulation materials:

First, the product is made of pure inorganic silica-based raw materials without chromate additives or harmful chemical components. Its permanent hydrophobic performance avoids the humid alkaline environment required for Cr(VI) compound generation, greatly reducing harmful dust exposure risks during maintenance and dismantling operations, and fully matching plant HSE management standards.

Second, verified by authoritative third-party quality inspection institutions, Woqin aerogel blankets contain extremely low soluble chloride ions, far below the safe threshold for stainless steel service. It effectively prevents chloride-induced stress corrosion cracking and ensures the long-term operational stability of stainless steel piping and equipment in chemical and fertilizer production environments.

Chapter 3: Eliminating Complex Geometry Water Traps with Seamless Coating Protection

The Traditional Limitation

Fertilizer and chemical plants feature dense and complex equipment structures, including a large number of flanges, valves, pipe tees, vessel nozzles and spherical tank domes. Rigid insulation boards and ordinary flexible blankets cannot achieve fully fitted wrapping on these irregular components, resulting in inevitable assembly gaps and structural dead angles.

External rainwater and condensed moisture easily penetrate the insulation system through gaps, forming localized water accumulation areas at the low points of valves and supports. These long-term corrosive water traps are the main failure points of regional CUI, leading to frequent partial insulation damage and metal corrosion.

The Woqin Aerogel Coating Solution

To make up for the insufficient fitting performance of traditional insulation on complex geometric components, Hebei Woqin supports a complete set of thermal insulation and anti-corrosion solutions: matching Woqin single-component aerogel coating based on aerogel blanket overall insulation.

The Woqin aerogel coating features a stable thermal conductivity of 0.032 W/(m·K) at 25°C. It can be constructed by spraying or brushing, directly bonding to all types of irregular metal surfaces. The cured coating forms an integral seamless thermal protection layer, completely filling assembly gaps and structural dead angles, eliminating thermal bridges and water trap hidden dangers that cannot be avoided by traditional insulation methods.

Matched with Woqin aerogel blankets for large-area straight pipes and tank bodies, the two products form a complementary full-coverage protection system, realizing comprehensive CUI prevention for the whole plant equipment.

Chapter 4: Optimizing Maintenance Cycles and Reducing Turnaround Costs

The Operational Reality

CUI defects are hidden under insulation and metal cladding, making daily inspection difficult for chemical and fertilizer plants. During mandatory regular turnarounds, enterprises need to remove a large amount of traditional insulation for equipment safety investigation and corrosion detection. This repeated dismantling and replacement mode consumes massive labor and material costs, and causes long-term production shutdown losses, forming a heavy operational burden for enterprises.

In addition, traditional porous insulation materials are prone to moisture absorption and aging in tropical high-humidity and corrosive environments, with short service cycles, further increasing the frequency and comprehensive cost of facility maintenance.

The Woqin Aerogel Solution

Woqin’s integrated aerogel blanket and coating system fundamentally optimizes the plant maintenance model and reduces full-life-cycle operational costs:

For complex components protected by Woqin aerogel coating, the integrally bonded thermal insulation layer supports convenient surface inspection without large-area dismantling, greatly simplifying daily equipment condition assessment and reducing unnecessary shutdown operations.

Woqin aerogel blankets have excellent tensile resistance and permanent hydrophobic stability. Tested in accordance with GB 8624-2012 standards, the product achieves Class A1 non-combustible fire rating, adapting to long-term harsh industrial working conditions. It effectively extends the insulation service cycle, reduces the frequency of repeated dismantling and replacement, and avoids continuous economic losses caused by frequent maintenance.

Conclusion: Upgrade Facility Protection with Full-Cycle Safe Aerogel Insulation

The upgrade of plant insulation systems in Southeast Asian fertilizer and chemical enterprises is not only an optimization of thermal insulation performance, but also a key upgrade of asset safety protection and HSE risk control capability.

Woqin’s combined aerogel blanket and aerogel coating solution targets the core pain points of tropical chemical plants: thermal breathing effect-induced CUI, Cr(VI) and chloride corrosion hazards, geometric gap water trapping, and high maintenance costs. It builds a stable, non-toxic, long-life thermal insulation and anti-corrosion protection system for production piping and process equipment.

Supported by Hebei Woqin’s professional engineering team, we provide one-stop services including project thermal calculation, customized thickness design and on-site construction guidance, to create targeted insulation solutions for tropical high-corrosion working conditions.

If you are operating ammonia, urea or petrochemical facilities in Indonesia, Malaysia, Vietnam and other Southeast Asian regions, you can effectively avoid repeated asset corrosion, personnel safety risks and high turnaround costs through aerogel system upgrades. Contact our engineering team to obtain official technical datasheets, chloride test reports and customized plant insulation solutions.
