Solving the "Clash Detection" Crisis: Aerogel Insulation Coordination for High-Density & High-Altitude Designs

The Designer’s Nightmare: Space vs. Standards

In 2026’s mega-projects, whether it is a Brownfield Revamp in Jubail or a High-Altitude Substation in the mountains, Lead Engineers and BIM Managers face the same bottleneck: Space. Traditional insulation (Rock Wool/Glass Wool) requires massive thickness (100mm+) to meet thermal targets. In dense pipe racks, this bulky profile causes two critical issues during MEP coordination:

• Clash Detection Failures in BIM: When running collision tests in software like Autodesk Navisworks or Revit, bulky insulation triggers "hard clashes" with adjacent pipes, cable trays, or steel structures.

• Layout Compromises: Forcing designers to widen racks, significantly increasing structural steel costs and site footprint.

The "Thinness" Advantage: Space-Saving Insulation in the Real World

Hebei Woqin’s Aerogel Blanket changes the geometry of digital design. With a thermal conductivity of 0.020 W/(m·K), we offer a drastic reduction in envelope size, acting as the ultimate space-saving insulation for congested layouts.

Case Study: The Jubail Revamp Success

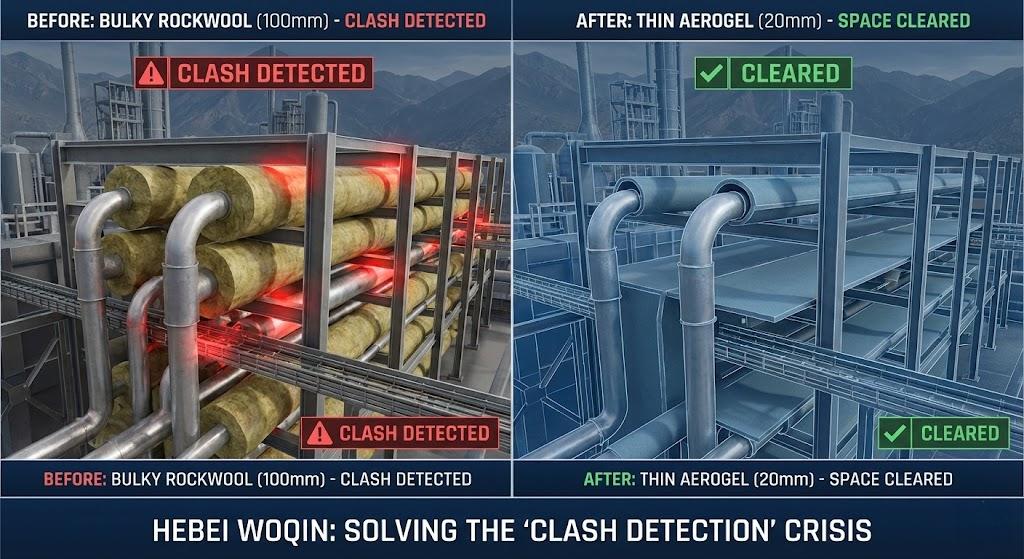

In a recent brownfield project at a Jubail chemical plant, engineers faced a critical bottleneck on a congested process line. Traditional 100mm mineral wool caused 7 major hard clashes in the Navisworks 3D model.

• The Switch: By replacing it with just 20mm of Woqin Aerogel, the MEP coordination team resolved all clashes instantly without redesigning the pipe routing.

• The Impact: This simple material swap averted an estimated 3-week piping re-routing effort, saving significantly on steel modifications and engineering man-hours.

Addressing Expert Concerns: High Altitude & Pollution Design

As industry expert Gamil Thabet highlights, designing for High Altitude (>2000m) and High Pollution requires strict Insulation Coordination.

• The Altitude Factor: At high elevations, air dielectric strength drops. Designers need more air clearance between equipment to prevent flashover.

• The Aerogel Solution: By reducing the insulation thickness on pipes/busbars by 80%, designers effectively gain back precious air clearance. This extra spacing is critical for maintaining safety margins in thin-air environments, complying with OEM insulation coordination curves.

Compliance: ASME B31.3 & Beyond

Our solutions are not just about passing BIM clash detection; they are about meeting code. Thinner, hydrophobic aerogel allows for easier inspection ports and better compliance with ASME B31.3 maintenance accessibility requirements.

Proactive Design Support: Don’t Wait for Clash Detection to Fail

At the preliminary layout stage, Hebei Woqin serves as your design partner, not just a supplier. We provide:

• Comparative Envelope Drawings: Visualize the massive space freed up by switching to aerogel in your Revit models.

• "What-If" Thermal Modeling: We calculate the exact minimum thickness needed to meet skin temperature specs, maximizing your clearance.

• Brownfield Audit: For revamp projects, we review your specific constraints to identify lines where Aerogel offers the highest ROI in space recovery.

Engineering Team Contact:

Hebei Woqin Trading Co., Ltd.

WhatsApp/WeChat: +86 13933929092

 Email: an@cn-aerogel.com

Request: Ask for a Free Space-Saving Simulation for your project.
