The "Room-Temp" Trap: Why High-Temp Insulation Starts Failing After 6 Months

1. The Engineering Illusion: Design Specs vs. Site Reality

In the design phases of petrochemical and power generation projects, engineers naturally calculate insulation thickness based on the material's data sheet. However, a massive industry trap lies hidden in plain sight: Specs almost exclusively highlight the thermal conductivity (K-value) at room temperature (25℃), typically around 0.035 - 0.045 W/(m·K).

Based on this "perfect" static data, the project is signed off. Yet, after six months of actual operation, the reality hits hard: Pipelines carrying 300℃+ media become dangerously hot to the touch, and energy loss steadily worsens. Why does an insulation system that looked perfect on paper start failing so quickly in the field?

2. The Physics Unveiled: "Thermal Degradation" (K-Value Shift)

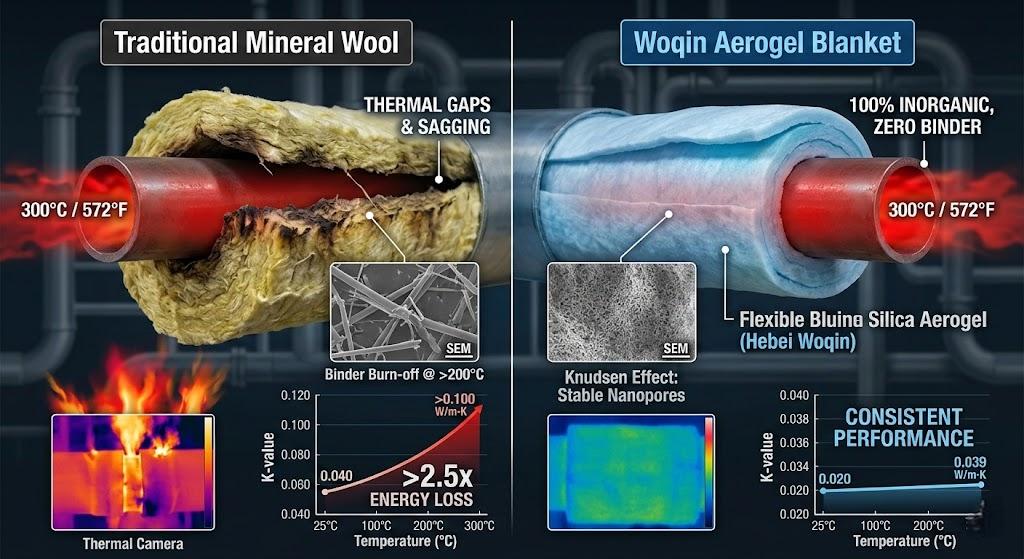

To understand this failure, we must address Thermal Degradation. Thermal conductivity is not a static number; it is a dynamic curve that shifts aggressively with temperature. For traditional mineral wool or calcium silicate, when the operational temperature reaches 300℃, internal air convection and thermal radiation intensify. The actual thermal conductivity spikes from the room-temp 0.040 to approximately 0.100 W/(m·K) or higher.

This massive 2.5x degradation means the 100mm of insulation you originally calculated is now performing like less than 40mm.

3. The Fatal Flaw: Structural Collapse via "Binder Burn-off"

If K-value shift were the only issue, facilities could simply install thicker insulation. However, traditional fibrous materials harbor a fatal flaw that manufacturers rarely discuss: Binder Burn-off.

To hold their shape and mechanical strength, traditional mineral wool and fiberglass require organic resins (such as phenolic binders). These organic binders thermally decompose and burn off between 200℃ and 250℃. When your pipeline operates continuously at 300℃+, the binders closest to the hot pipe are completely incinerated. Without the binder to hold them together, the fibers loosen, pulverize, and sag due to gravity and industrial vibration. This creates massive "hollow heat-loss cavities" at the top of the pipe. This structural collapse is irreversible.

4. The Aerogel Counter-Strike: Locking the Thermal Curve

To terminate thermal degradation, you must change the fundamental architecture of the material. Hebei Woqin's nanoporous silica aerogel blanket provides the ultimate engineering answer:

• Zero Binder Burn-off: In stark contrast to traditional materials, Woqin Aerogel is 100% inorganic and utilizes absolutely ZERO organic binders. For continuous operations below 650℃, it will never thermally decompose, pulverize, or sag.

• The Knudsen Effect: The nanopores within our aerogel (20-50 nanometers) are smaller than the mean free path of air molecules. This restricts air movement, effectively killing high-temp convection.

• Hard Data: According to our latest certified CNAS test reports (Report No. available for download below), Woqin Aerogel maintains a rigorously tested thermal conductivity of just 0.039 W/(m·K) at a scorching 300℃. The thermal curve remains virtually flat.

5. The TCO "Snowball Effect": Stop Burning Your Profits

For EPCs and facility owners, opting for cheaper traditional materials creates a disastrous Total Cost of Ownership (TCO) snowball effect:

• As the insulation degrades and sags, boilers must work in overdrive to maintain end-line temperatures, forcing plants to burn tens of thousands of dollars in wasted fuel annually.

• Because of binder burn-off, traditional insulation requires a forced total replacement every 3 to 5 years.

Conversely, Woqin Aerogel achieves a "one-time installation, lifetime maintenance-free" standard, typically paying for itself through fuel savings within 12 to 18 months.

6. Stop Guessing, Start Diagnosing

Don't let static 25℃ laboratory data sabotage your 300℃ field operations.
