Modular Skid Insulation: Eliminating OOG Freight with Aerogel

The Logistics Nightmare of Cross-Border Modular Construction: How Insulation Thickness Erodes EPC Profits

For Japanese and Korean multinational EPC firms delivering offshore and petrochemical projects across the Middle East, Southeast Asia and Europe, modular skid fabrication is a core competitive advantage. Prefabricating process skids domestically cuts on-site construction time, reduces quality risks and tightens project schedules. However, one often-overlooked detail can wipe out the cost savings of modular construction entirely: insulation thickness.

A standard 40ft High Cube (40HQ) container has internal dimensions of approximately 12.03m × 2.35m × 2.69m, while a 20ft General Purpose (20GP) unit measures 5.90m × 2.35m × 2.39m. Exceeding these limits by even 50mm triggers an OOG (Out of Gauge) classification, unlocking a cascade of premium logistics charges that directly eat into EPC project margins. For many modular packages, the 50-100mm of traditional rock wool or calcium silicate insulation wrapped around piping and equipment is the single largest controllable variable pushing the skid over the size threshold.

This creates a high-stakes trade-off in the FEED (Front End Engineering Design) phase: accept exorbitant OOG shipping costs, or redesign the skid to shrink equipment footprint at the cost of process performance. Woqin ultra-thin aerogel blanket breaks this trade-off entirely.

Core Pain Points: How Thick Traditional Insulation Triggers Crippling OOG Shipping Costs

Traditional heavy insulation systems create cascading cost and schedule risks across the entire modular project lifecycle, from factory fabrication to on-site commissioning.

Envelope Size Bloat: The Controllable Root of OOG Classification

A skid’s total envelope dimension = equipment footprint + piping center-to-center spacing + insulation thickness + maintenance clearance. Traditional 50-100mm insulation adds bulk on both the exterior of the skid and between internal piping runs, driving up overall dimensions on all three axes.

Most design teams treat insulation thickness as a fixed, non-negotiable parameter. They first lay out equipment and piping, then add insulation on top — only to discover at final dimensional check that the skid exceeds standard container limits. Compounding the issue, rigid insulation boards have high installation tolerances, often adding an extra 10-15mm of unplanned thickness that pushes otherwise compliant skids into OOG territory.

The Staggering True Cost of OOG Ocean Freight

OOG classification does not merely add a small surcharge — it rewrites the entire logistics budget:

• Base freight premium: OOG cargo requires open-top containers, flat racks or breakbulk vessel space, with base rates 3-5 times higher than standard containers. On low-volume long-haul routes to remote project sites, the premium can reach 8-10 times standard container rates.




• Zero stackability: Standard containers can be stacked 8-10 high on vessel decks, spreading costs across multiple units. OOG cargo cannot be stacked, wasting vertical cabin space and driving up per-unit pricing.




• Port and handling surcharges: Oversized cargo incurs premium loading/unloading fees, specialized lashing costs, extended storage charges and special maritime declaration fees, adding 30%+ to total logistics spend.




• Schedule volatility: OOG vessel space is limited and frequently rescheduled, creating high risks of project delivery delays and contractual late penalties that far exceed the freight cost itself.




Full-Chain Hidden Risks From Port to Project Site

The cost of thick insulation extends far beyond ocean freight:

• Inland transportation barriers: Oversized skids require special permits and heavy haul trucks for last-mile delivery to remote project sites, with permitting timelines stretching for weeks and costs rising exponentially.




• Vibration-induced degradation: Traditional fibrous insulation suffers 15-30% mass loss after 1-3 months of transoceanic vibration and port handling shocks, leading to powdering, settling and cracking. Damaged insulation must be repaired on site, where labor costs are far higher than in domestic factories.




• Compliance-driven extra thickness: For offshore skids requiring fire resistance and weather protection, traditional systems add separate fire layers, moisture barriers and metal cladding, stacking even more thickness onto the envelope and worsening the OOG problem.




Woqin Solution: Ultra-Thin Aerogel Blanket for Envelope Shrinkage & OOG Surcharge Elimination

Woqin aerogel blanket delivers equivalent thermal performance to 50-100mm traditional rock wool at only 10-15mm thickness — a 70%+ reduction — enabling dual compression of both external skid envelope and internal piping layout to fit standard container dimensions.

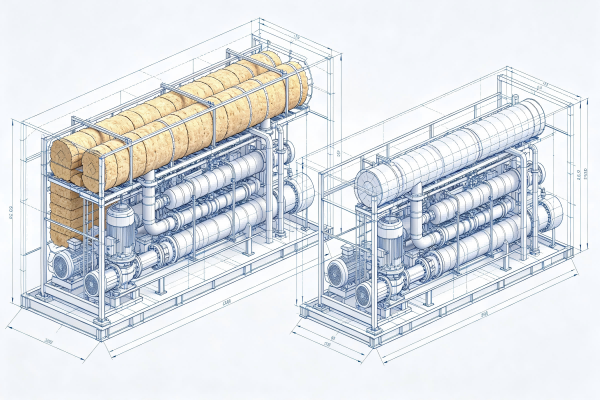

Dual Compression: Shrink Both External Envelope and Internal Piping Layout

The ultra-thin profile creates two layers of size reduction that work together to bring skids within standard container limits:

1. External envelope compression: Removing 40-85mm of insulation thickness from all sides of the skid directly shrinks overall length, width and height, bringing borderline OOG skids firmly within standard container dimensions.




2. Internal piping compaction: Thinner insulation reduces the required clearance between adjacent piping runs, allowing piping center-to-center spacing to be compressed by 40% or more. This shrinks the overall skid frame footprint from the inside out, creating a second round of size savings that most design teams never knew was possible.




This dual compression eliminates OOG classification at the source, replacing premium breakbulk shipping with low-cost standard container service and directly protecting EPC project margins.

Precision Dimension Control for Predictable FEED Design

Unlike rigid insulation boards with high installation tolerances, Woqin aerogel blanket has a consistent, factory-calibrated thickness with minimal deviation. Design teams can accurately calculate final envelope dimensions during the FEED phase with full confidence that as-built dimensions will match design models.

This eliminates last-minute insulation rework and piping redesigns at the fabrication yard, reducing pre-shipment delays and keeping projects on schedule.

Lightweight Design to Cut Secondary Logistics Costs

At just 1/4 to 1/3 the weight of traditional insulation of equal thermal performance, Woqin aerogel blanket also reduces total skid mass. This cuts port lifting fees, avoids heavy weight surcharges, and reduces the required capacity of on-site installation equipment — delivering secondary cost savings across the full logistics chain.

Transoceanic Vibration Resistance: Zero Damage After Months of Cross-Border Shipping

Thin insulation delivers no value if it arrives at the project site cracked, settled or powderized. Woqin aerogel blanket is engineered to survive the harshest transoceanic supply chains with zero performance degradation.

Industry-Leading Vibration Stability

Reinforced with a high-strength fiber matrix, Woqin aerogel blanket has a vibration mass loss rate of just 0.3% (tested per GB/T 34336). After months of continuous ocean vibration, port handling shocks and multi-modal transport bumps, the blanket maintains its full structural integrity, original thickness and thermal performance. There is no settling, no powdering, no cracking and no thermal bridging — the insulation arrives at site in identical condition to when it left the Korean or Japanese fabrication yard.

Eliminate Costly Overseas On-Site Rework

For Middle East projects, on-site insulation repair labor costs typically reach 3–5 times the cost of factory prefabrication in Japan and Korea, and can rise to 5–7 times for work in confined or elevated spaces. Damaged insulation also delays commissioning, pushing back project handover and triggering contractual penalties.

With Woqin aerogel blanket, no post-shipment insulation repair is required. Skids can go directly from container unloading to site installation and commissioning, cutting on-site labor costs and protecting project timelines.

Full Lifecycle Value for Global EPC Projects

Beyond eliminating OOG freight costs, Woqin aerogel blanket delivers long-term value across the full project lifecycle:

• Simplified fire and weather compliance: The blanket is inherently Class A1 non-combustible. Unlike traditional systems that require stacked fire-resistant layers and protective cladding that add extra thickness, the single-layer blanket delivers full thermal and weathering performance, and supports system-level IMO A-60 fire division designs without incremental bulk. It holds CCS marine certification, is 100% asbestos-free and fully REACH/RoHS compliant, meeting requirements for all global offshore and onshore petrochemical projects.




• Fast, low-cost on-site installation: The flexible, lightweight blanket can be cut and fitted on site by general installation crews, with no specialized tools required. Installation speed is 3x faster than rigid traditional insulation, further reducing overseas labor costs.




• Long service life in harsh environments: The inorganic silica nanoporous structure resists salt spray, high humidity, UV exposure and desert sand erosion, with a service life 3-5 times longer than traditional fibrous insulation. This reduces long-term maintenance costs for end clients and strengthens EPC warranty positions.




Call to Action

Woqin ultra-thin aerogel blanket transforms modular skid logistics from a margin-eroding constraint into a competitive advantage for EPC firms. By eliminating OOG surcharges, reducing rework and stabilizing delivery schedules, it delivers measurable bottom-line value that far exceeds the material cost premium.
