The Carbon Bomb: Why Hydrophobic Aerogel Fails in Liquid Oxygen (LOX) Leaks

Executive Summary (TL;DR)

In Liquid Oxygen (LOX) and cryogenic air separation environments, standard insulation principles can lead to catastrophic oversights. This technical whitepaper establishes the precise chemical behavior of aerogels under pipeline leak and permeation scenarios. It reveals why standard hydrophobic aerogels—widely praised for water resistance—turn into high-sensitivity explosive matrices when saturated with LOX. By analyzing the redefined "Mechanical Impact Triangle," engineering executives can accurately evaluate the lethal liabilities of hydrocarbon-modified insulation on oxygen-rich infrastructure.

The Operational Reality: Setting the Leakage Scenario

In any standard cryogenic or air separation facility, thermal insulation is installed on the outside of the process piping. Under normal, nominal operating conditions, the insulation never makes direct contact with the internal fluid. Because of this, many procurement directors mistakenly assume that standard industrial insulation grades are perfectly acceptable for Liquid Oxygen (-183°C) lines.

This assumption ignores the realities of heavy industrial operations.

Over years of thermal cycling, vibration, and mechanical stress, micro-leaks inevitably develop at pipe flanges, valve packings, gaskets, and instrument connections. Concurrently, if an external vapor barrier suffers even a microscopic breach, ambient air siphons into the cryogenic zone, where the oxygen preferentially condenses on the cold pipe wall into an enriched, volatile liquid.

When pure LOX or enriched liquid air escapes the pipe, it immediately permeates the surrounding porous insulation. At this exact intersection of leakage and material science, the choice of your insulation material becomes a matter of life and death.

Fatal Flaw #1: The Hydrocarbon Trap (The Chemistry of the Methyl Group)

To achieve high hydrophobicity and prevent moisture absorption under normal atmospheric conditions, standard industrial silica aerogels must undergo surface modification. Manufacturers achieve this by chemically grafting organic methyl groups (-CH3) onto the internal nanostructured silica skeleton, typically using modification agents like hexamethyldisilazane (HMDS) or trimethylchlorosilane (TMCS).

While this organic treatment is highly effective at repelling liquid water, it introduces a fatal chemical vulnerability into an oxygen system.

Chemically speaking, these grafted methyl groups are concentrated hydrocarbon fuels. When a valve weeps or a flange leaks, the low-viscosity, highly fluid Liquid Oxygen saturates the ultra-porous structure of the aerogel. At the nanoscale, the 100% pure, aggressive oxidizer becomes intimately mixed and locked against a high-surface-area hydrocarbon fuel.

Fundamentally, this saturation changes the nature of the material. It is no longer functioning as an insulation layer; the saturated hydrophobic aerogel has transformed into a high-explosive matrix enveloping your critical infrastructure. It is equivalent to intentionally embedding fine plastic or wax flakes directly into a pressurized oxygen stream.

Fatal Flaw #2: Mechanical Impact Detonation (Annihilating the Fire Triangle)

The most dangerous misconception among field engineers is the strict reliance on the traditional "Fire Triangle" (Oxygen, Fuel, Heat). Standard safety protocols assume that if hot-work is banned, open flames are eliminated, and electrical equipment is intrinsically safe, an explosion is physically impossible.

In a LOX-saturated hydrophobic aerogel matrix, the laws of thermodynamics are brutally rewritten.

Because the oxidizer and the organic fuel are mixed at the nanoscale within the aerogel’s pores, the activation energy required to initiate a reaction drops to near zero. An open flame or thermal spark is entirely unnecessary. The system shifts to a Mechanical Impact Triangle, where the third required element is purely kinetic or mechanical energy.

Under these conditions, the shock energy from routine operations becomes a detonator. The kinetic energy generated by a fluid pressure surge (water hammer), the hard cycling of a pneumatic valve, the structural vibration of a heavy compressor, or a maintenance technician accidentally dropping a steel tool onto the clad piping provides more than enough mechanical impact energy to bridge the microscopic activation threshold. The result is an instantaneous, violent detonation that shatters the piping and causes catastrophic facility damage.

This extreme kinetic sensitivity is precisely why aerospace organizations and air separation unit (ASU) design codes mandate strict compliance with mechanical impact standards like ASTM D2512 or EN 1797. Under these standardized drop-weight tests, hydrocarbon-modified hydrophobic aerogels consistently fail, exhibiting violent flash reactions and detonations upon impact.

Fatal Flaw #3: The Residual Carbon Myth of Standard Hydrophilic Aerogels

Once the explosive nature of hydrophobic aerogels is understood, many EPC contractors immediately pivot to standard "hydrophilic" aerogels. The marketing narrative pushed by suppliers is dangerously simple: they claim these materials are pure, 100% inorganic Silicon Dioxide (SiO2) and therefore entirely carbon-free.

This is a fundamental engineering falsehood.

The industrial synthesis of aerogel intrinsically relies on organic silica precursors (such as TEOS or TMOS) and organic solvents (like ethanol). Unless heavily and specifically processed, standard hydrophilic aerogels directly off the production line will always retain residual unreacted alkoxy groups and trapped solvent molecules deep within their nanoporous structures.

In a 100% pure Liquid Oxygen environment, the origin of the carbon is completely irrelevant. It does not matter if the carbon is an intentional hydrophobic coating or an unintentional manufacturing residue. Residual carbon is still hydrocarbon fuel. Even at parts-per-million (PPM) levels, this hidden fuel is sufficient to trigger a catastrophic flash fire during a strict LOX mechanical impact test. Specifying a standard hydrophilic aerogel is not a shortcut to cryogenic safety.

The Engineering Upgrade: Extreme Deep Calcination

A standard hydrophilic aerogel is not LOX-ready. To achieve absolute LOX compatibility and permanently break the mechanical impact triangle, the material must undergo an intense, secondary manufacturing process. Hebei Woqin eliminates the residual fuel through Extreme Deep Calcination.

After the initial supercritical drying phase, Hebei Woqin subjects the hydrophilic aerogel to highly controlled furnaces at temperatures exceeding 500°C for extended durations. This deep calcination actively oxidizes, burns off, and eradicates the trapped solvent molecules and unreacted alkoxy groups, stripping the carbon content down to the absolute physical limits.

By achieving bare PPM levels of carbon, this ultra-pure aerogel matrix completely eliminates the "fuel" variable. It provides extreme cryogenic thermal resistance while remaining entirely inert, engineered specifically to meet the absolute limits of ASTM D2512 and EN 1797 LOX compatibility thresholds without the slightest kinetic reaction.

Overcoming the Thermal Paradox: Preserving the Nanostructure

At this point, experienced materials engineers will raise a critical objection: exposing silica aerogel to 500°C typically causes severe sintering. Standard calcination collapses the delicate nanopores, drastically reduces the internal surface area, and renders the material highly brittle and thermally inefficient.

This is where Hebei Woqin’s manufacturing capability stands apart.

To eradicate carbon without inducing structural collapse, Hebei Woqin employs a Proprietary Stepped Thermal Purification profile. Instead of shocking the material with sudden extreme heat, the temperature is ramped up in precisely controlled micro-stages under specific atmospheric conditions.

This meticulous control allows the carbonaceous residues to gasify and escape without triggering silica densification. The result is an engineering marvel: a deep-calcined, highly purified hydrophilic aerogel that retains its original ultra-low thermal conductivity, high internal surface area, and the essential mechanical flexibility required for complex cryogenic pipeline wrapping.

System-Level Engineering: Managing Moisture in Cryogenic Service

If Deep-Calcined Aerogel completely neutralizes the mechanical impact detonation risk, why do some engineers still hesitate? The answer lies in cryogenic moisture management.

At -183°C, thermodynamic laws dictate that ambient humidity will aggressively drive toward the cold pipe wall. Because deep-calcined aerogel has been stripped of its hydrophobic methyl groups, it will absorb moisture if exposed to the atmosphere. This moisture rapidly freezes, leading to volumetric expansion (Ice-Jacking) that can fracture the insulation matrix and spike thermal conductivity.

However, assuming this is a material defect is a fundamental engineering oversight. In extreme cryogenic service, forcing a single material to act as both a non-reactive thermal barrier and a vapor barrier is a flawed design philosophy. Absolute safety requires system-level architecture.

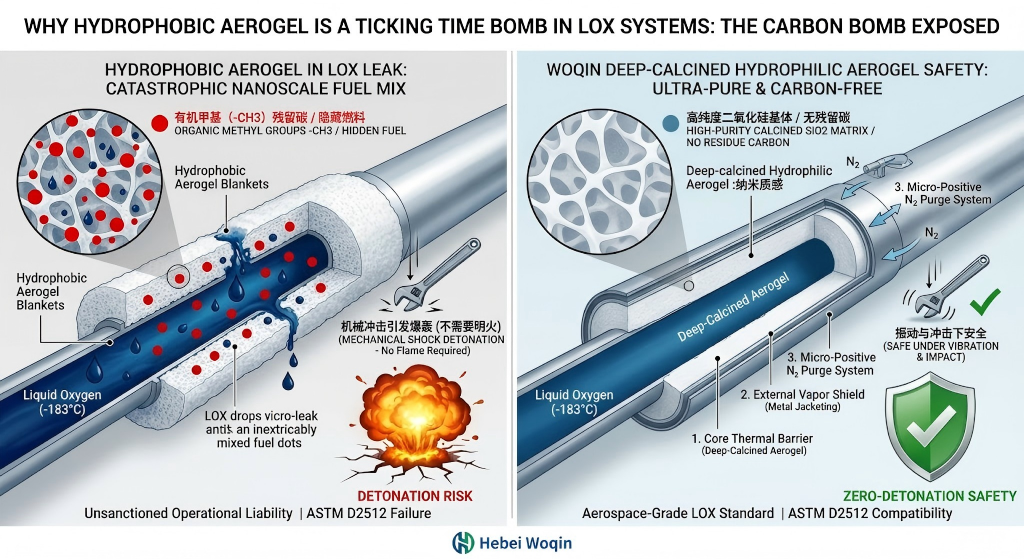

The Proven System Architecture: The Three-Layer Defense

To achieve zero-detonation safety without compromising long-term thermal efficiency, Hebei Woqin recommends a strict, three-layer deep-freeze architecture for critical ASU and aerospace pipelines:

1. The Core Thermal Barrier (Absolute Non-Reactivity): Apply Hebei Woqin Deep-Calcined Hydrophilic Aerogel directly against the LOX-wetted pipeline. With the hydrocarbon fuel purged, the core remains entirely inert against mechanical impacts or LOX leaks.




2. The External Vapor Shield (Absolute Moisture Defense): Utilize a high-gauge, zero-permeability external vapor barrier (such as heavy-duty aluminum-mylar laminates or welded stainless steel jacketing) to permanently lock ambient moisture out of the system.




3. The Micro-Positive N2 Purge (For Critical Assets): For the highest-tier aerospace launch pads or critical ASU nodes, introduce a continuous, low-pressure dry nitrogen purge within the insulation annulus. This sweeps out any minute moisture ingress from jacket micro-fissures and fundamentally prevents the condensation of highly reactive "Liquid Air."

The Ultimate Showdown: Aerogel vs. Legacy Solutions

When auditing LOX insulation, engineers frequently default to traditional Cellular Glass (Foamglas) because it is entirely inorganic. However, in dynamic industrial environments, thermal insulation must survive more than just chemical tests; it must survive structural reality.

Below is the side-by-side engineering reality of your LOX insulation options:

Legacy cellular glass solves the combustion problem but introduces massive structural vulnerabilities: it shatters under compressor vibration, requires complex contraction joints that frequently fail, and demands an incredibly bulky footprint on congested pipe racks. Hebei Woqin Deep-Calcined Aerogel delivers the inorganic safety of glass with the ultra-thin, flexible durability of advanced nanomaterials.

Application Disclaimer: This article addresses direct-contact insulation for LOX-wetted surfaces and high-risk leak zones. For non-wetted or secondary barrier applications outside the primary vapor boundary, other material selections may be engineered based on specific risk assessments.

Stop Gambling on Your Critical Infrastructure

Wrapping a high-purity Liquid Oxygen pipeline in standard hydrophobic aerogel is an unsanctioned operational liability. Hebei Woqin’s Proprietary Stepped Thermal Purification has permanently rewritten the safety baseline for cryogenic air separation.

Do not wait for a mechanical shock or a valve surge to expose your facility’s hidden vulnerabilities. Send me a Direct Message (DM) with the keyword "LOX DATA" to secure our comprehensive technical verification reports, master datasheets, and to request a deep-calcined sample pack for your laboratory evaluation.
