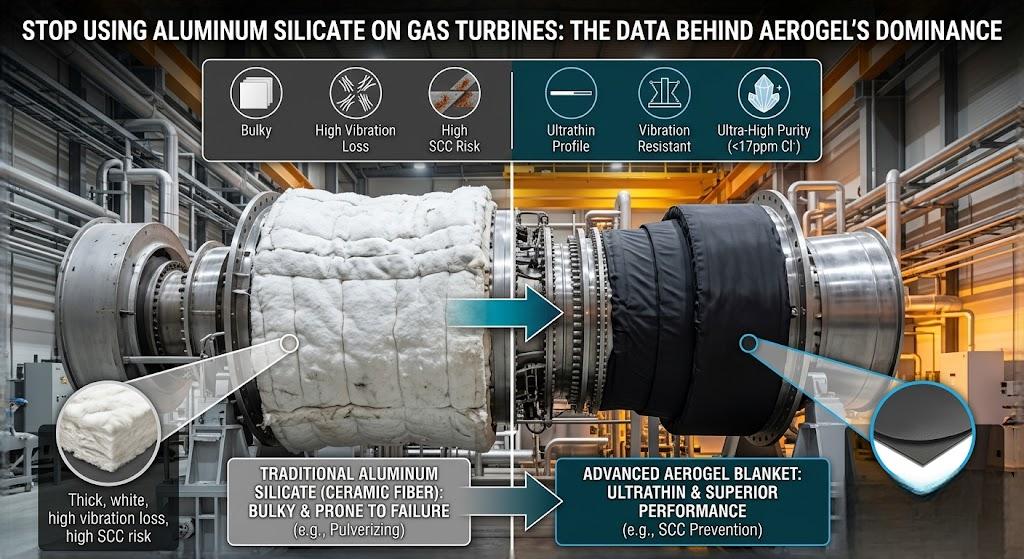

Stop Using Aluminum Silicate on Gas Turbines: The Data Behind Aerogel's Dominance

The operating environment of a modern gas turbine is one of the most unforgiving spaces in industrial engineering. With exhaust temperatures exceeding 600°C, relentless high-frequency vibrations, and severe spatial constraints, the insulation jackets wrapping these multi-million-dollar assets must perform flawlessly.

For decades, Aluminum Silicate (Ceramic Fiber) has been the default specification. However, as turbine technology advances, the hidden costs and physical limitations of traditional ceramic fibers are becoming impossible to ignore. From catastrophic Stress Corrosion Cracking (SCC) to rapid pulverization, the old toolkit is failing.

Enter the next generation of thermal management: High-Temperature Aerogel Blankets. Currently in qualification testing with a leading European gas turbine OEM, these advanced materials are proving that better data leads to better performance. Let’s dive into the hard laboratory data to understand why top-tier OEMs are permanently engineering aluminum silicate out of their turbine systems.

1. The Spatial Crisis: Millimeter-Level Efficiency

The Problem: The thermal conductivity of aluminum silicate spikes exponentially as temperatures rise. To achieve a safe "touch temperature" (typically <60°C) for personnel safety on a 300°C-600°C turbine casing, ceramic fiber jackets often require a massive thickness of 100mm to 150mm. This bulky profile severely restricts the already tight mechanical footprint, making routine inspections of adjacent sensors, valves, and pipework a logistical nightmare.

The Aerogel Solution: Aerogel changes the fundamental math of thermal resistance. Based on CNAS-certified laboratory testing, our high-temperature aerogel blanket maintains a staggering thermal conductivity of just 0.039 W/(m·K) at a 300°C average temperature (vs. aluminum silicate’s 0.100+ W/(m·K) at the same temperature).

• The Engineering Reality: Engineers can replace a bulky 100mm ceramic fiber jacket with just 20mm to 30mm of Aerogel. This recovers up to 70% of the spatial footprint inside the turbine enclosure, dramatically accelerating maintenance access without sacrificing an inch of thermal protection.

2. The Silent Killer: Eliminating SCC and CUI Risks

The Problem: High-temperature stainless steel and alloy turbine casings have a fatal weakness: Halogen ions (specifically chlorides and fluorides). Traditional ceramic fibers are highly porous and readily absorb moisture during turbine shutdowns or humid conditions. Once wet, they leach out aggressive chloride ions. Under high heat, this deadly combination of moisture, chlorides, and thermal stress leads directly to Stress Corrosion Cracking (SCC) and Corrosion Under Insulation (CUI), potentially destroying turbine shells.

The Aerogel Solution: True turbine protection requires a zero-tolerance policy for water and halogens.

• Absolute Hydrophobicity: Our aerogel blankets boast a 99.7% hydrophobic rate. They actively repel liquid water, preventing the insulation from ever becoming a "wet sponge."

• Ultra-High Purity: Chemical analysis reveals an incredibly low leachable chloride (Cl-) content of just 0.0017% (17 ppm) , while soluble fluorides (F-) are strictly undetected (<0.0001%).

• The Engineering Reality: By keeping water out and eliminating halogen leaching, aerogel guarantees that your insulation will never act as a catalyst for catastrophic turbine casing corrosion.

3. Surviving the Shake: Anti-Vibration and Zero Pulverization

The Problem: Ceramic fibers become highly brittle after prolonged baking at 600°C. When subjected to the aggressive, high-frequency vibrations of an active gas turbine, these brittle fibers simply shatter. The insulation blanket begins to sag, lose density, and pulverize into hazardous dust. Not only does the thermal barrier fail, but the released airborne fibers pose significant respiratory risks to maintenance crews.

The Aerogel Solution: The 3D nano-porous silica skeleton of an aerogel blanket is inherently flexible and mechanically robust, even after extreme thermal cycling.

• Vibration Survival: In strict GB/T vibration mass loss testing, our aerogel recorded a mere 0.3% mass loss (smashing the strict ≤1.0% industry standard ).

• Structural Integrity: With a transverse tensile strength of 1255 kPa, the material maintains its physical matrix.

• The Engineering Reality: Aerogel blankets do not settle, sag, or pulverize. They remain dust-free and structurally sound, surviving the harshest turbine vibrations while ensuring a safe, clean environment for operators.

4. Total Cost of Ownership (TCO): The Reusability Factor

Gas turbine planned outages are highly time-sensitive. Removing traditional, degraded ceramic fiber jackets often results in the material tearing or disintegrating, rendering it single-use. The OEM must purchase new insulation for every major inspection.

Aerogel blankets, due to their extreme tensile strength and flexibility, are fully removable and reusable. While the initial material cost of aerogel is higher than basic aluminum silicate, the ROI is realized during the very first maintenance cycle. Quicker installation/removal times, zero replacement costs, and the prevention of SCC damage mean the Total Cost of Ownership (TCO) heavily favors aerogel.

Conclusion: Time to Upgrade Your Specs

The data is unequivocal. For Gas Turbine Tier One suppliers and OEM designers, relying on aluminum silicate is no longer a cost-saving measure—it is an operational liability. By upgrading to High-Temperature Aerogel Blankets, you are engineering out corrosion risks, recovering critical space, and providing a safer, reusable solution that matches the lifespan of the turbine itself.

Are you designing next-generation turbine insulation jackets? Contact our engineering team at Hebei Woqin today to request our full CNAS test reports and a physical sample roll to evaluate the workability of our Aerogel solutions for your facility.
