1. The Thermodynamic Abyss of the Hydrogen Economy

The global race to commercialize green hydrogen is accelerating, but the industry has hit a brutal thermodynamic bottleneck: transportation. To move hydrogen efficiently, it must be liquefied. However, Liquid Hydrogen (LH2) boils at a staggering -253°C (20 Kelvin)—only 20 degrees above absolute zero.

Do not mistake LH2 for LNG (-162°C). Plunging from 111 Kelvin down to 20 Kelvin fundamentally rewrites the laws of physics. In this thermodynamic abyss, traditional industrial insulation materials instantly shatter, and the ambient air itself becomes a deadly hazard. To scale the hydrogen economy, engineering EPCs require a fundamental leap in materials science.

2. The Silent Bomb: Air Liquefaction and LOx Enrichment

The most terrifying threat in LH2 transport is not the cold, but the air around it. At -253°C, the temperature is so extreme that oxygen in the ambient air condenses into a liquid at -183°C.

If an insulation system fails to provide sufficient thermal resistance, the outer jacket's temperature drops below the dew point and the oxygen liquefaction point. This triggers Air Liquefaction, causing Liquid Oxygen (LOx) to condense and drip along the pipeline. LOx is a highly reactive oxidizer. In a hydrogen-rich environment, even the slightest static spark or mechanical friction can ignite this LOx enrichment, triggering a catastrophic explosion.

Hebei Woqin’s Silica Aerogel Blanket acts as an absolute physical firewall. Featuring an ultra-low thermal conductivity of 0.020 W/(m·K) at room temperature (dropping even lower at deep cryogenic states), it establishes a massive thermal barrier within a fraction of the thickness of traditional foams. It forcefully pins the outer surface temperature above the oxygen liquefaction point, permanently eliminating the LOx threat. Furthermore, the aerogel is tested to strict Class A1 Non-Combustible standards (with a mass loss rate of just 2.1%), ensuring zero contribution to fire loads.

3. The Latent Heat Penalty & Massive BOG Hemorrhage

LH2 is financially fragile. Its Latent Heat of Vaporization is incredibly low—about one-fifth that of water. This means even a microscopic "Heat Leak" through the insulation will cause the liquid hydrogen to rapidly boil back into a gas, known as Boil-Off Gas (BOG).

Currently, LH2 transport networks suffer from massive BOG rates, losing 2% to 3% of their payload daily. This "Latent Heat Penalty" evaporates millions of dollars in potential revenue. Woqin Aerogel’s dense nanoporous structure immobilizes air molecules, completely locking out convective heat transfer. By wrapping LH2 storage tanks and pipelines with aerogel, operators can dramatically suppress the BOG hemorrhage, ensuring the green energy you liquefy actually reaches its destination.

4. The "Glass Sword" of VJP and the Ultimate Hybrid Failsafe

To survive -253°C, the hydrogen industry relies heavily on Vacuum Jacketed Piping (VJP). While thermally efficient, VJP is a "glass sword." It suffers from a fatal single-point-of-failure: Loss of Vacuum (LOV). If the outer pipe sustains a micro-fracture or a vacuum seal degrades, the insulation value instantly drops to zero, triggering immediate LH2 boiling and severe pipeline freezing.

Woqin Aerogel provides the ultimate Hybrid Failsafe. Forward-thinking EPCs are now wrapping complex VJP nodes, valves, and inner lines with flexible aerogel blankets. In the event of a sudden vacuum failure, the aerogel acts as an emergency thermal shield, preventing immediate catastrophic boil-off and granting plant operators the critical hours needed to execute emergency shutdowns and depressurization safely.

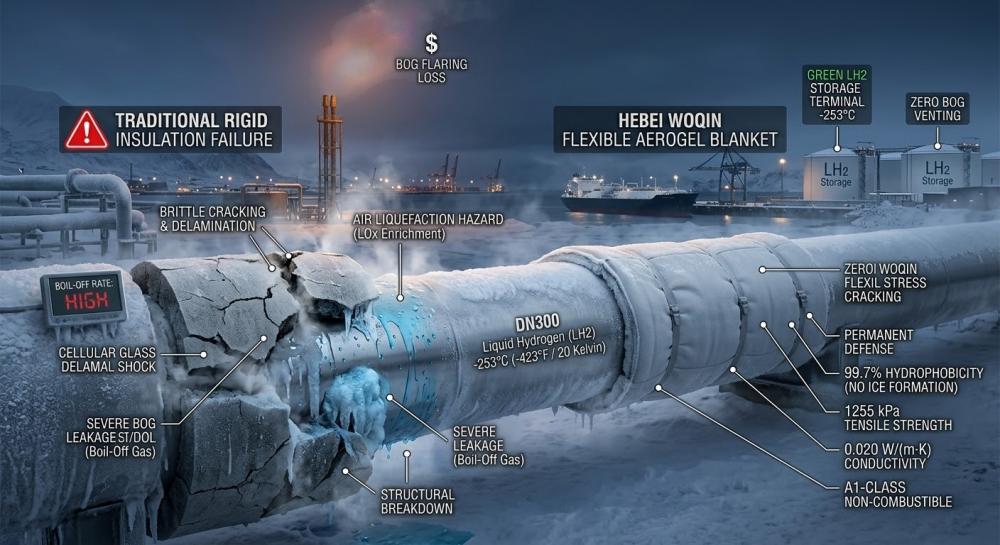

5. Surviving the 20K Glass Transition: Indestructible Flexibility

As temperatures approach 20 Kelvin, almost all traditional rigid foams (PIR, PUR) and polymers undergo a severe "Glass Transition," becoming as brittle as fine glass. Simultaneously, the extreme temperature drop causes the stainless steel LH2 pipes to undergo violent thermal contraction. The steel shrinks, but the rigid foam shatters into dust, destroying the thermal envelope.

This is where Woqin Aerogel breaks the limits of materials science. Certified by CNAS laboratories with a massive transverse tensile strength of 1255 kPa, our silica aerogel retains its structural flexibility even in the abyss of -253°C. It acts as a cryogenic shock absorber, moving, shrinking, and flexing synchronously with the metal piping. It guarantees zero stress cracking and a lifetime of mechanical integrity under extreme thermal cycling.

6. Define the Safety Standard for the Next Energy Era

In the era of liquid hydrogen, insulation is no longer an afterthought—it is the central safety mechanism of the entire supply chain. Static foams cannot survive the 20 Kelvin frontier.

Are you engineering an LH2 liquefaction plant, a liquid hydrogen carrier, or a green hydrogen storage terminal? [Contact Hebei Woqin’s Advanced Materials Team] today to request LH2-grade aerogel samples, BOG thermodynamic calculations, and our CNAS technical data sheets. Let's secure the future of hydrogen together.
